1
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 434

2
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

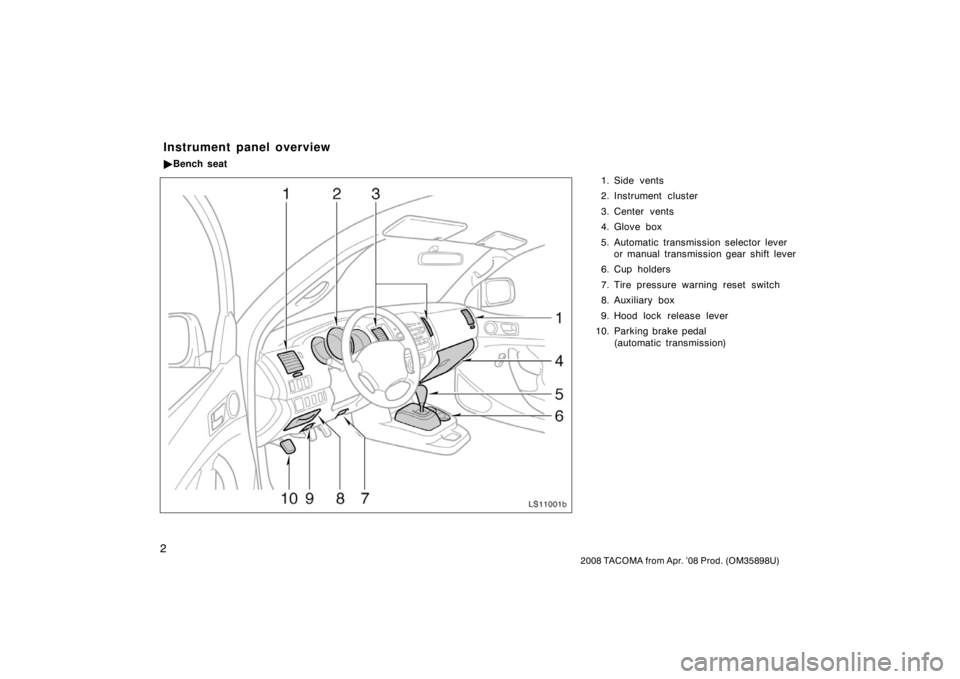

1. Side vents
2. Instrument cluster
3. Center vents
4. Glove box
5. Automatic transmission selector leveror manual transmission gear shift lever
6. Cup holders
7. Tire pressure warning reset switch
8. Auxiliary box
9. Hood lock release lever
10. Parking brake pedal (automatic transmission)
Instrument panel overview
Bench seat
LS11001b
Page 15 of 434

5
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
1. Front fog light switch
2. Rear differential lock switch
3. Power outlet main switch
4. Instrument panel light control dial
5. Headlight and turn signal switches
6. Audio remote control switches
7. Wiper and washer switches
8. Front drive control switch knob
9. Audio system
10. Clock
11. Engine immobilizer system indicator light
12. Front passenger ’s seat belt reminder light
13. Front passenger occupant classification indicator lights or passenger airbag on −
off indicator lights
14. Passenger airbag off switch
15. Air conditioning controls
16. Power outlet
17. Emergency flasher switch
18. Cigarette lighter
19. Parking brake lever (manual transmission)
LS11004b
Page 18 of 434

8
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Front passenger ’s seat belt reminder light∗1
Front passenger occupant classification
indicator light or passenger airbag on −off
indicator light
Engine oil replacement reminder light∗ 1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Tire pressure warning light∗1
Automatic transmission fluid temperature
warning light∗1
(four −wheel drive models only)
Engine immobilizer system indicator light
∗ 1
Roll sensing of curtain shield airbags off
indicator light∗5
Indicator symbols on the instrument panel
Page 44 of 434

34
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions
Page 151 of 434

141
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights and Wipers
Headlights and turn signals142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Windshield wipers and washer 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 5
Page 152 of 434

142
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
LS15001b
For the U.S.A.
LS15002b
For Canada
HEADLIGHTS

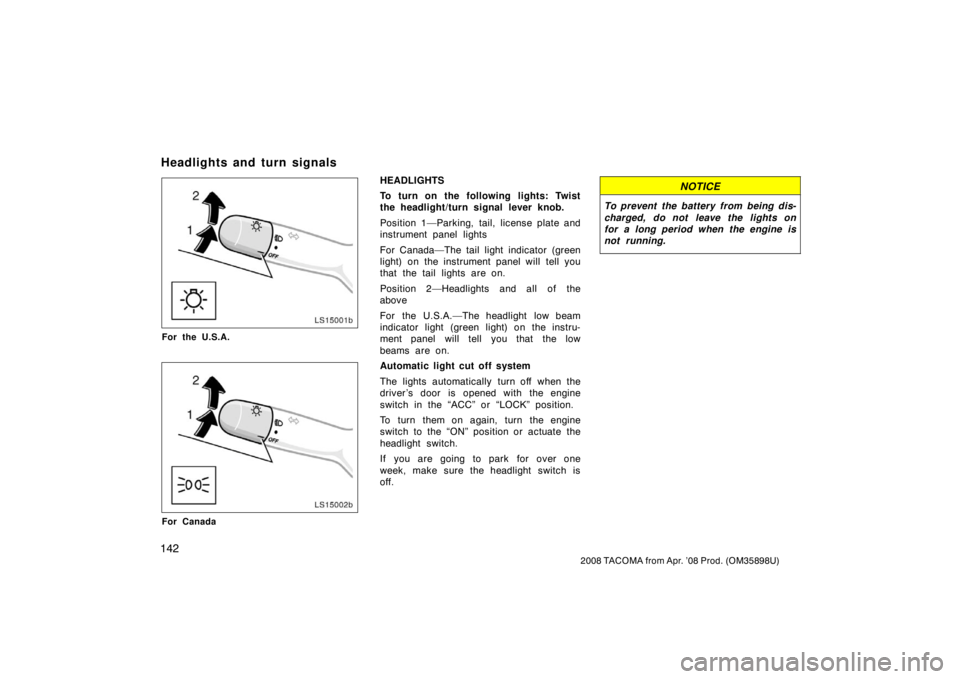

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate and
instrument panel lights
For Canada—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Automatic light cut off system
The lights automatically turn off when the
driver ’s door is opened with the engine
switch in the “ACC” or “LOCK” position.
To turn them on again, turn the engine
switch to the “ON” position or actuate the
headlight switch.
If you are going to park for over one
week, make sure the headlight switch is
off.NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
Page 153 of 434

143
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Daytime running light (DRL) system (on
some models)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make your front turn
signal lights come on when:
The engine switch is on with the en-
gine running.
The knob is in the “OFF” position or
position 1.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2 or turn the engine switch off.
LS15003b
High Low beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
LS15004b
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Page 154 of 434

144
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

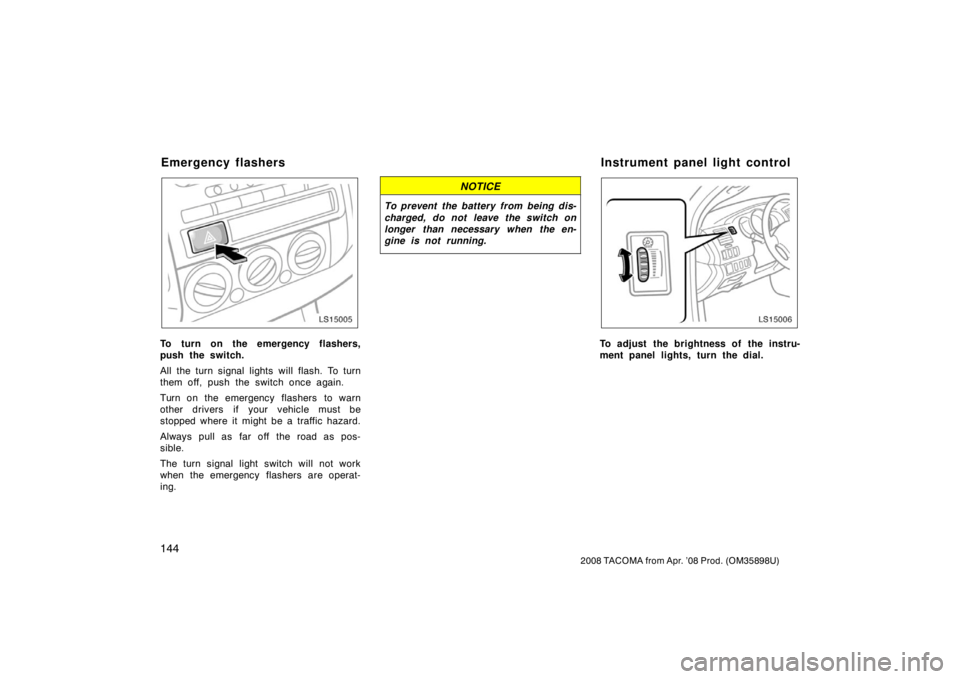

LS15005
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
LS15006
To adjust the brightness of the instru-
ment panel lights, turn the dial.
Emergency flashersInstrument panel light control
Page 198 of 434

188
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
TO ACTIVATE THE DOWNHILL ASSIST
CONTROL SYSTEM1. Turn the front drive control switch knob to the “L4” position.
The system does not operate when the
front drive control switch knob is in the
“H2” or “H4” position, or the rear differen-
tial is locked.
2. In order to make full use of the en- gine brake, putting the transmission
in “L” or “2” is recommended.
The system will operate even if the trans-
mission selector lever is in “D”, “4”, “3”
or “N”. However, when it is in “L” or “2”
the engine brake can also be utilized en-
abling the system to operate more effec-
tively.
LS17016a
3. Push the “DAC” switch to turn the system on. The downhill assist con-
trol system indicator light on the in-
strument panel will come on.
If the downhill assist control system indi-
cator light flashes, one of the following
may be the cause:
The selector lever is in the “N” posi-
tion.
The front drive control switch knob is
in the “H2” or “H4” position.
The rear differential is locked.
If the indicator light does not come on
when the switch is pushed, contact your
Toyota dealer.
LS17007b
With the vehicle traveling at a speed of
25 km/h (15 mph) or less, release your
foot from the accelerator or brake pedal
to activate the system. The vehicle will
descend the hill at a low speed. While the
system is operating, the slip indicator light
on the instrument panel will flash and the
stop lights and high mounted stoplight will
be lit.
If you push the “DAC” switch to turn the
system off while it is in operation, the
system will stop operating gra dually. The
downhill assist control system indicator
light will flash to alert the driver. To con-
tinue driving at a low speed, push the
“DAC” switch to turn the system on.
