TOYOTA TACOMA 2008 (in English) Owner's Manual
Manufacturer: TOYOTA, Model Year: 2008, Model line: TACOMA, Model: TOYOTA TACOMA 2008Pages: 24, PDF Size: 0.4 MB

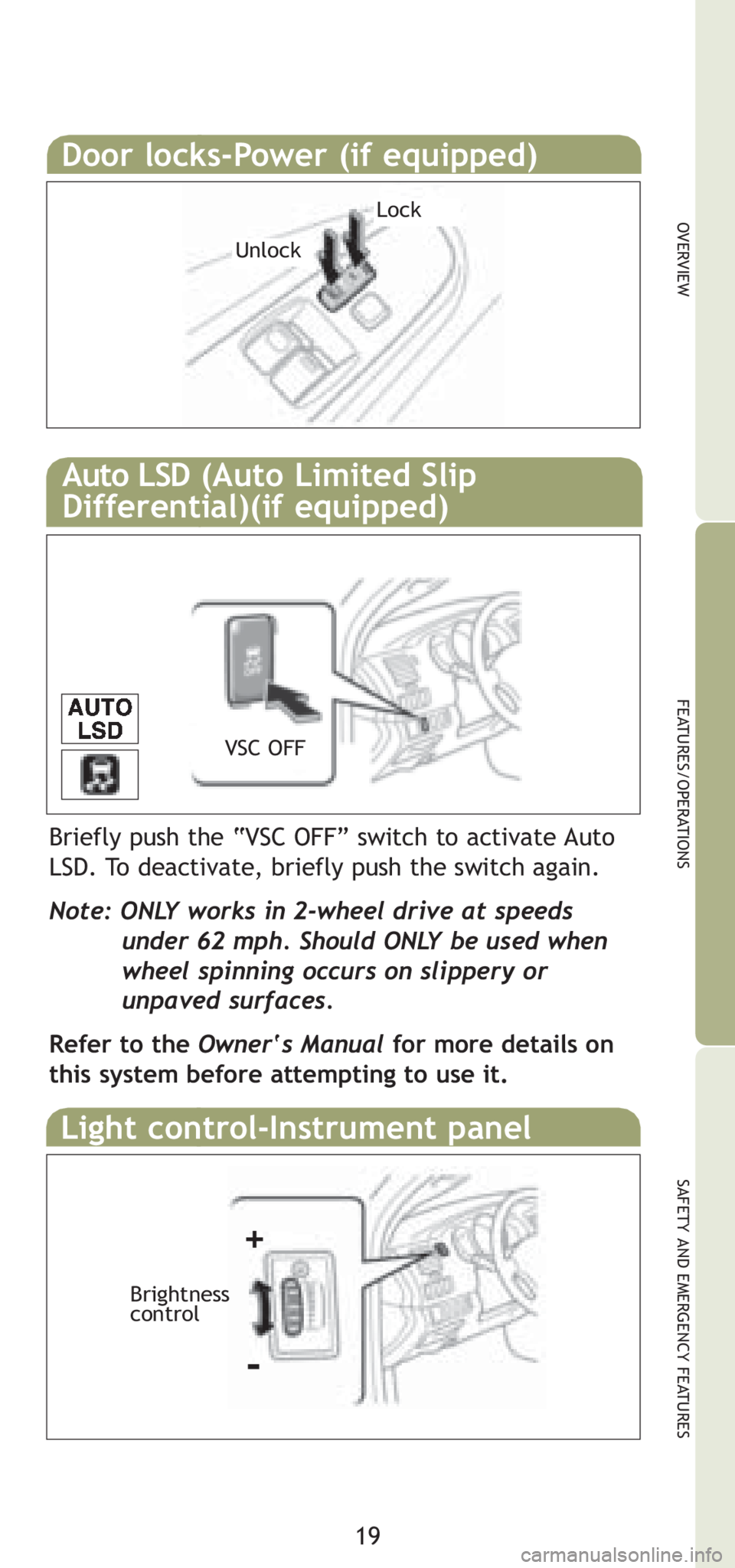

Page 21 of 24
19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Door locks-Power (if equipped)
Light control-Instrument panel
VSC OFF
Lock
Unlock
Brightness
control
-
Briefly push the “VSC OFF” switch to activate Auto
LSD. To deactivate, briefly push the switch again.
Note: ONLY works in 2-wheel drive at speeds
under 62 mph. Should ONLY be used when
wheel spinning occurs on slippery or
unpaved surfaces.
Refer to the Owner‘s Manualfor more details on
this system before attempting to use it.
+
Auto LSD (Auto Limited Slip
Differential)(if equipped)

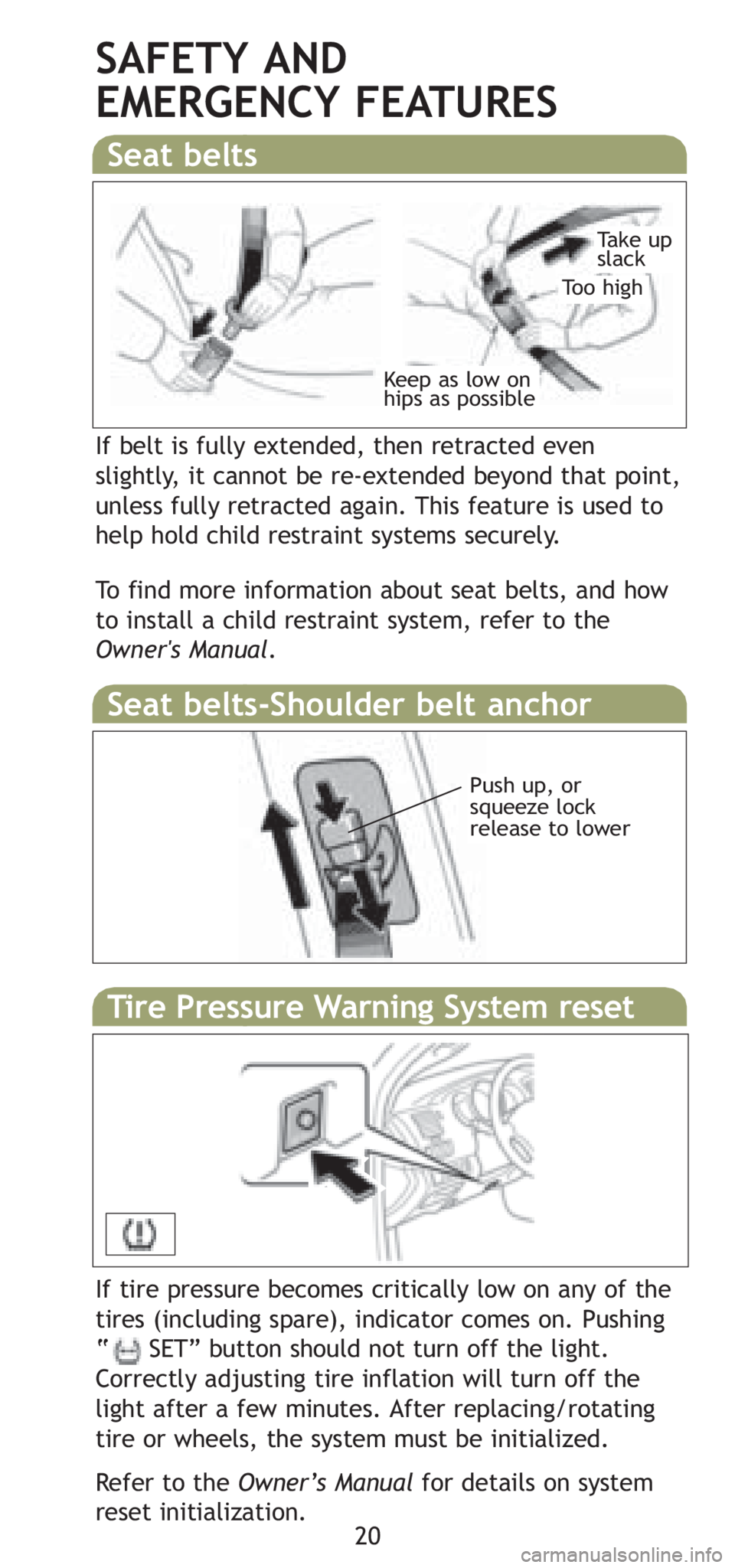

Page 22 of 24
20
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Seat belts-Shoulder belt anchor
Push up, or
squeeze lock
release to lower
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the
tires (including spare), indicator comes on. Pushing
“ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the
light after a few minutes. After replacing/rotating
tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor details on system
reset initialization.

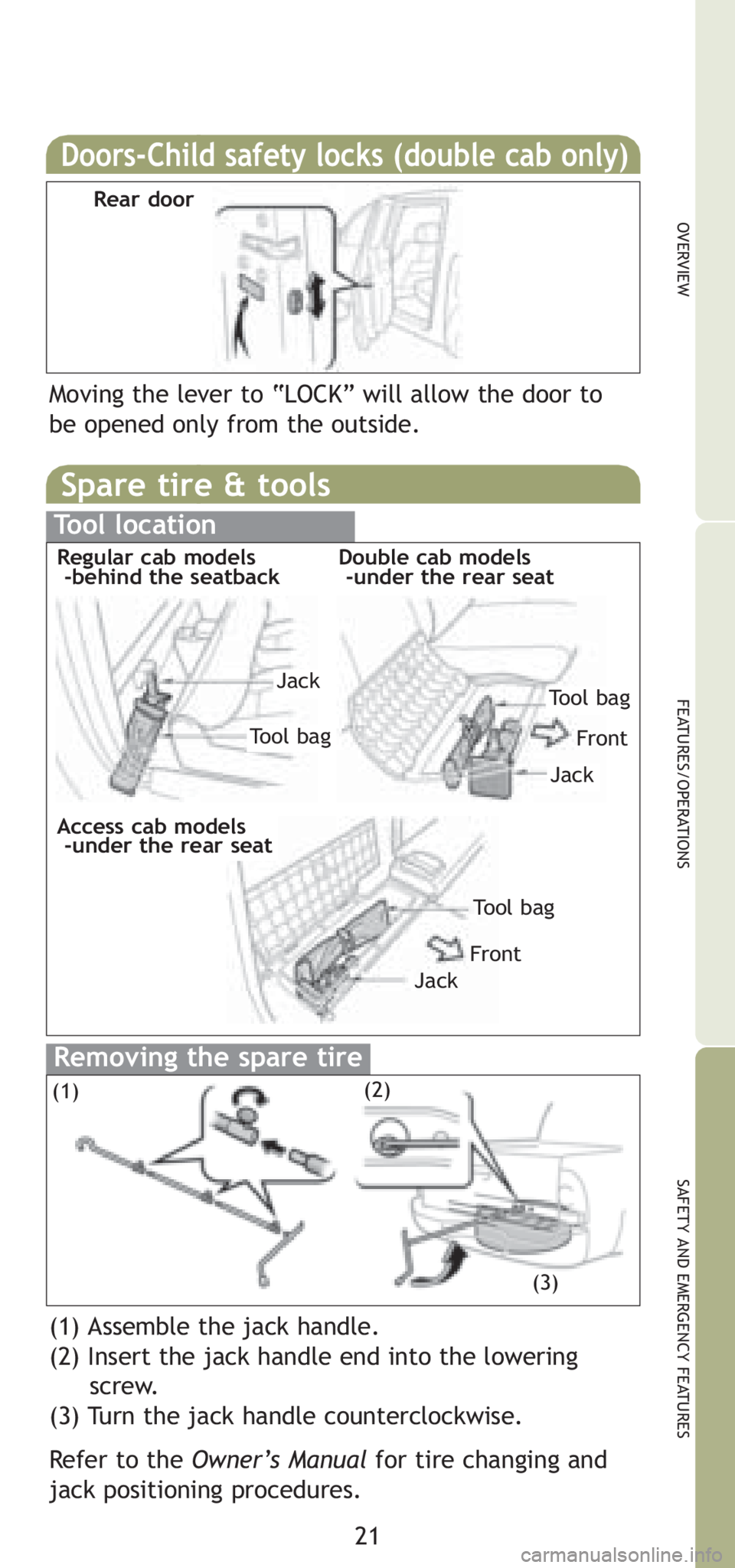

Page 23 of 24
Spare tire & tools
Tool location
Removing the spare tire
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering
screw.
(3) Turn the jack handle counterclockwise.
Refer to the
Owner’s Manualfor tire changing and
jack positioning procedures.
Regular cab models
-behind the seatbackDouble cab models
-under the rear seat
Access cab models
-under the rear seat
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Front
Front
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks (double cab only)
Rear door
(1)
(3) (2)

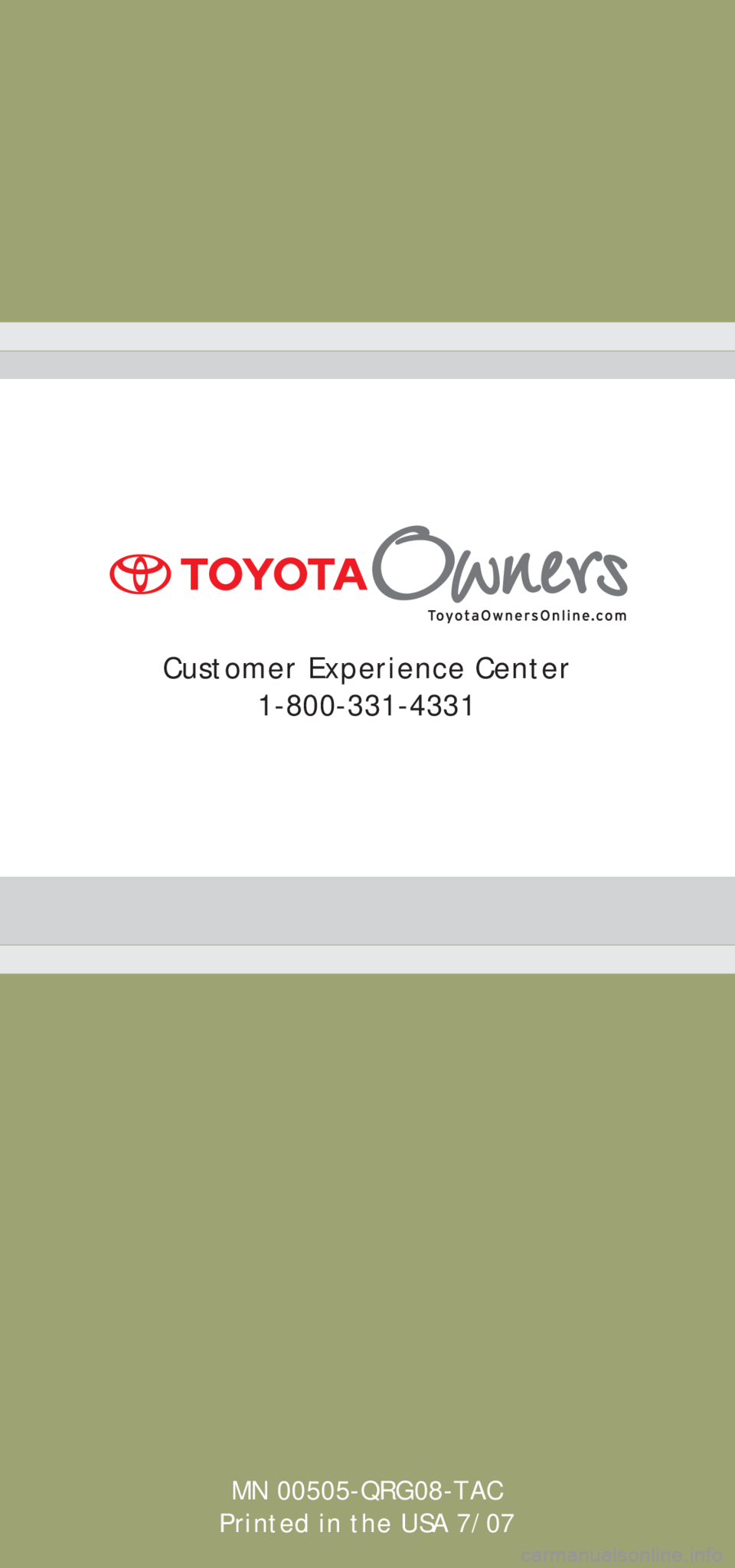

Page 24 of 24
MN 00505-QRG08-TAC
Printed in the USA 7/07
Customer Experience Center
1-800-331-4331
