Page 11 of 22
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Shift when speed is below 62 mph.
Low speed (4WD)
Shift into neutral while stopped, or depress clutch pedal at speeds
below 2 mph.
For best fuel economy and performance under normal driving conditions,
keep in “H2” position.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tu r n
Push and turn
Length
Angle
Lock release lever
Tu r n
Page 12 of 22
10
FEATURES/OPERATIONS

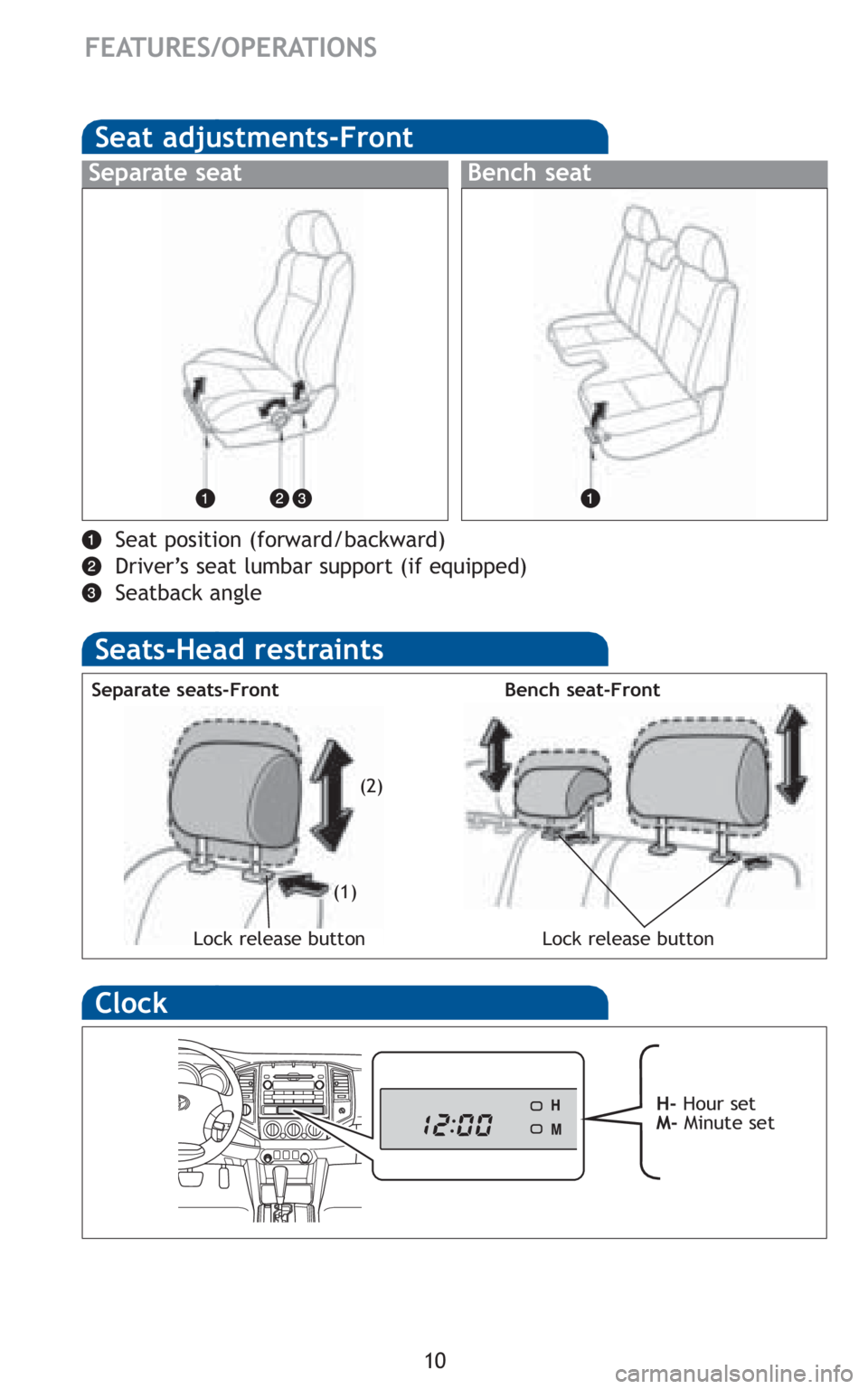

Seat adjustments-Front
Separate seatBench seat
Seat position (forward/backward)
Driver’s seat lumbar support (if equipped)
Seatback angle
Seats-Head restraints
Bench seat-Front Separate seats-Front
Lock release buttonLock release button
Clock
H-Hour set
M-Minute set
(1)(2)
Page 13 of 22
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

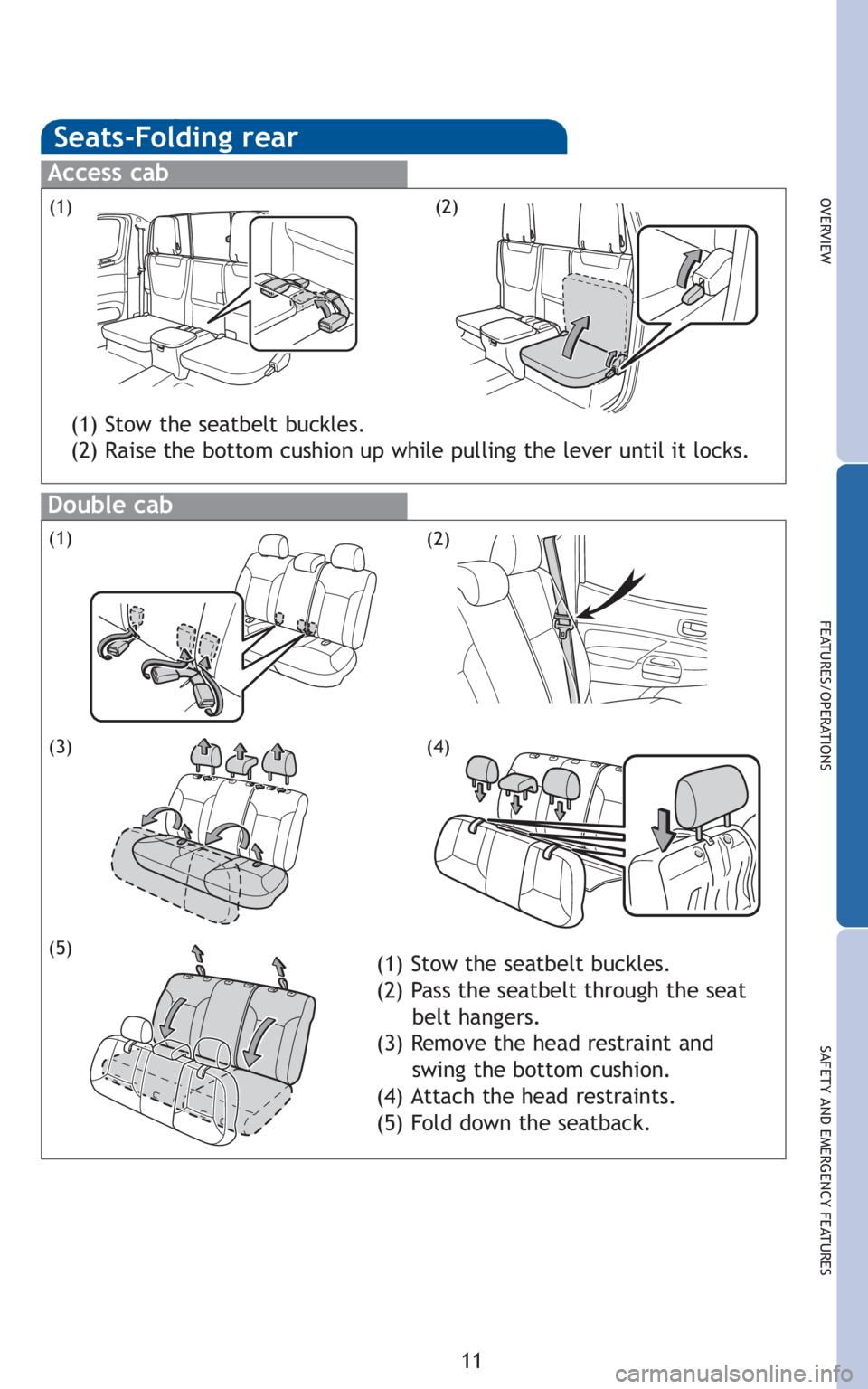

Seats-Folding rear
Access cab
Double cab
(1)(2)
(1) Stow the seatbelt buckles.
(2) Raise the bottom cushion up while pulling the lever until it locks.
(1)
(5)
(3)
(2)
(4)
(1) Stow the seatbelt buckles.
(2) Pass the seatbelt through the seat
belt hangers.
(3) Remove the head restraint and
swing the bottom cushion.
(4) Attach the head restraints.
(5) Fold down the seatback.
Page 14 of 22
12
FEATURES/OPERATIONS

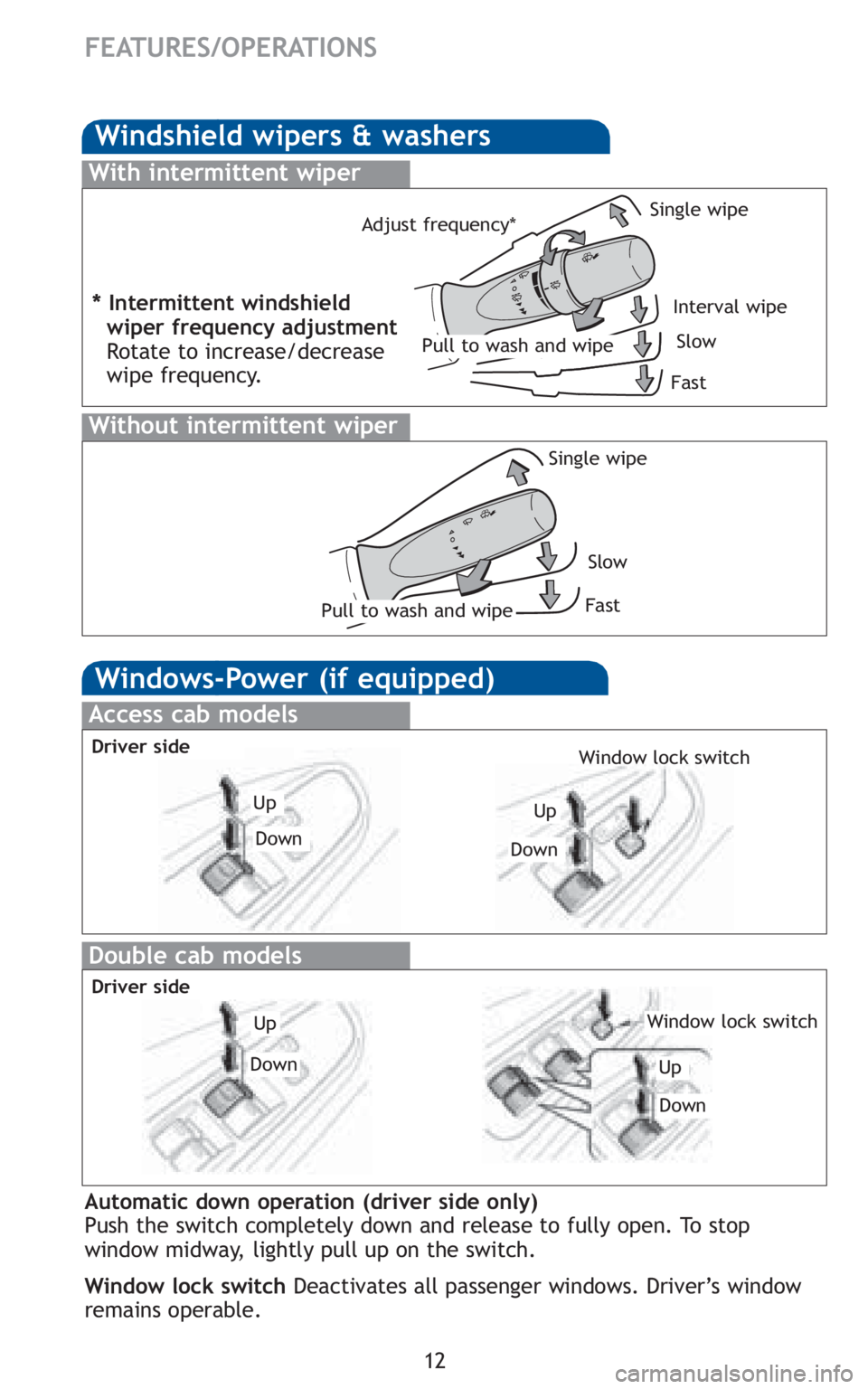

Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe Adjust frequency*
With intermittent wiper
Without intermittent wiper
Pull to wash and wipe
Single wipe
Slow
Fast
Windows-Power (if equipped)
Access cab models
Up
Down
Driver sideWindow lock switch
Up
Down
Double cab models
Up
Down
Driver side
Window lock switch
Up
Down
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop
window midway, lightly pull up on the switch.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable. * Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
Page 15 of 22
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

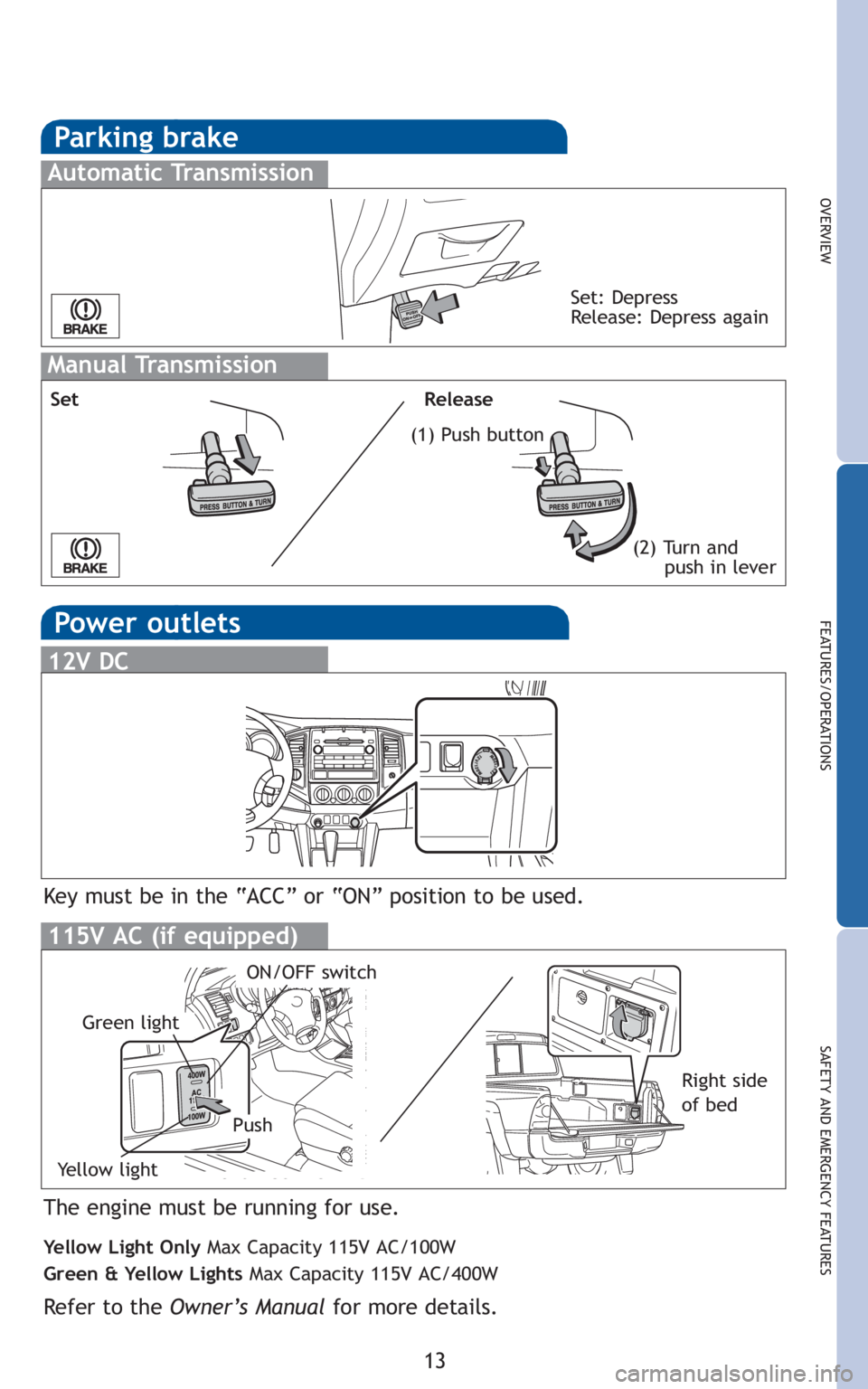

Parking brake
Manual Transmission
Set Release
(2) Turn and
push in lever
Automatic Transmission
Set: Depress
Release: Depress again
Power outlets
12V DC
115V AC (if equipped)
3
ON/OFF switch
Green light
Yellow light
Right side
of bed
Push
Key must be in the “ACC” or “ON” position to be used.
The engine must be running for use.
Yellow Light OnlyMax Capacity 115V AC/100W
Green & Yellow LightsMax Capacity 115V AC/400W
Refer to the Owner’s Manualfor more details.
(1) Push button
Page 16 of 22
14
FEATURES/OPERATIONS

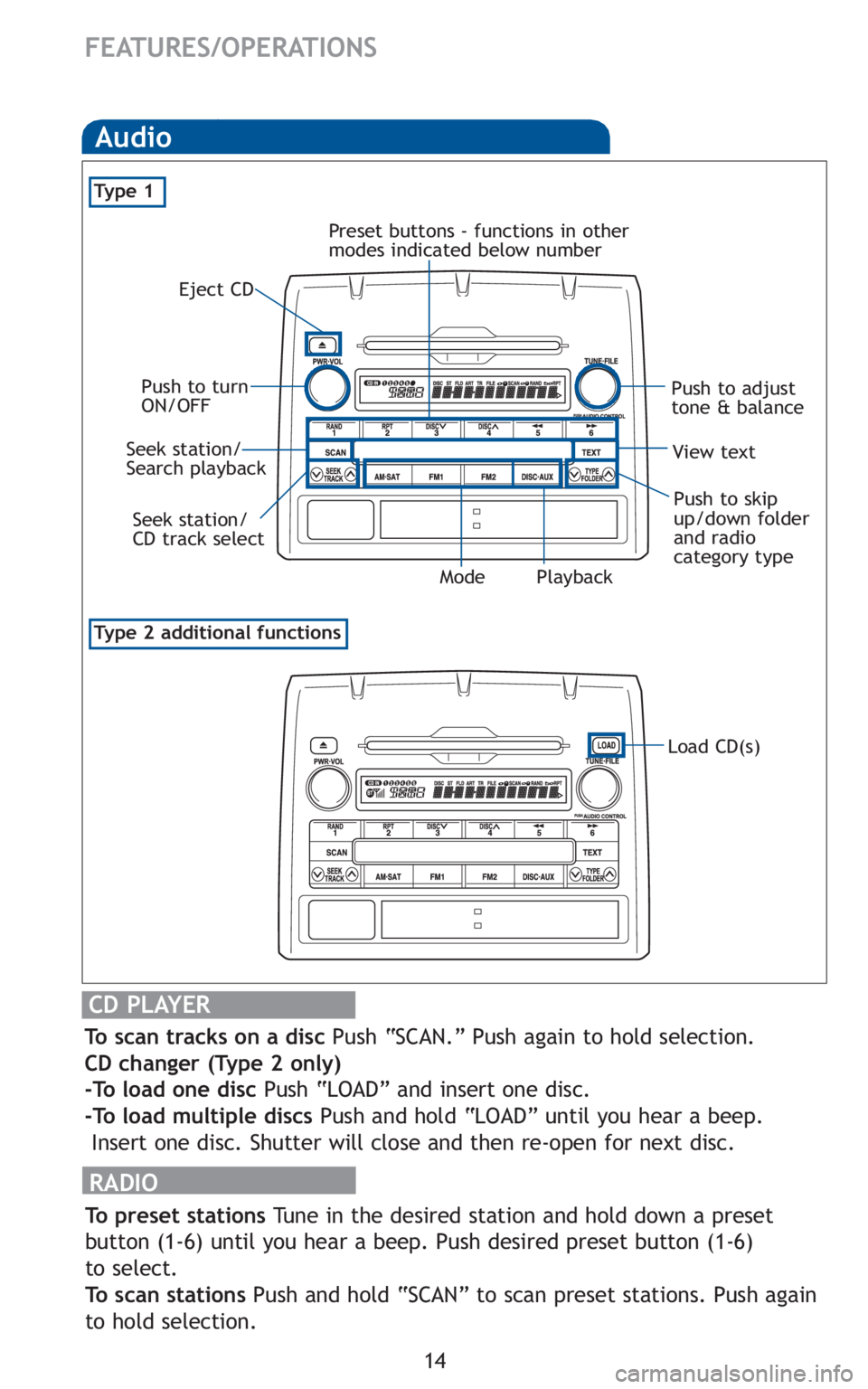

Type 2 additional functions
Audio
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track selectView text
Mode Preset buttons - functions in other
modes indicated below number
Load CD(s)
Ty p e 1
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
Playback
Seek station/
Search playback
Push to skip
up/down folder
and radio
category type
Page 17 of 22
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio mode
Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode
Push to skip up or down to the next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF. >>

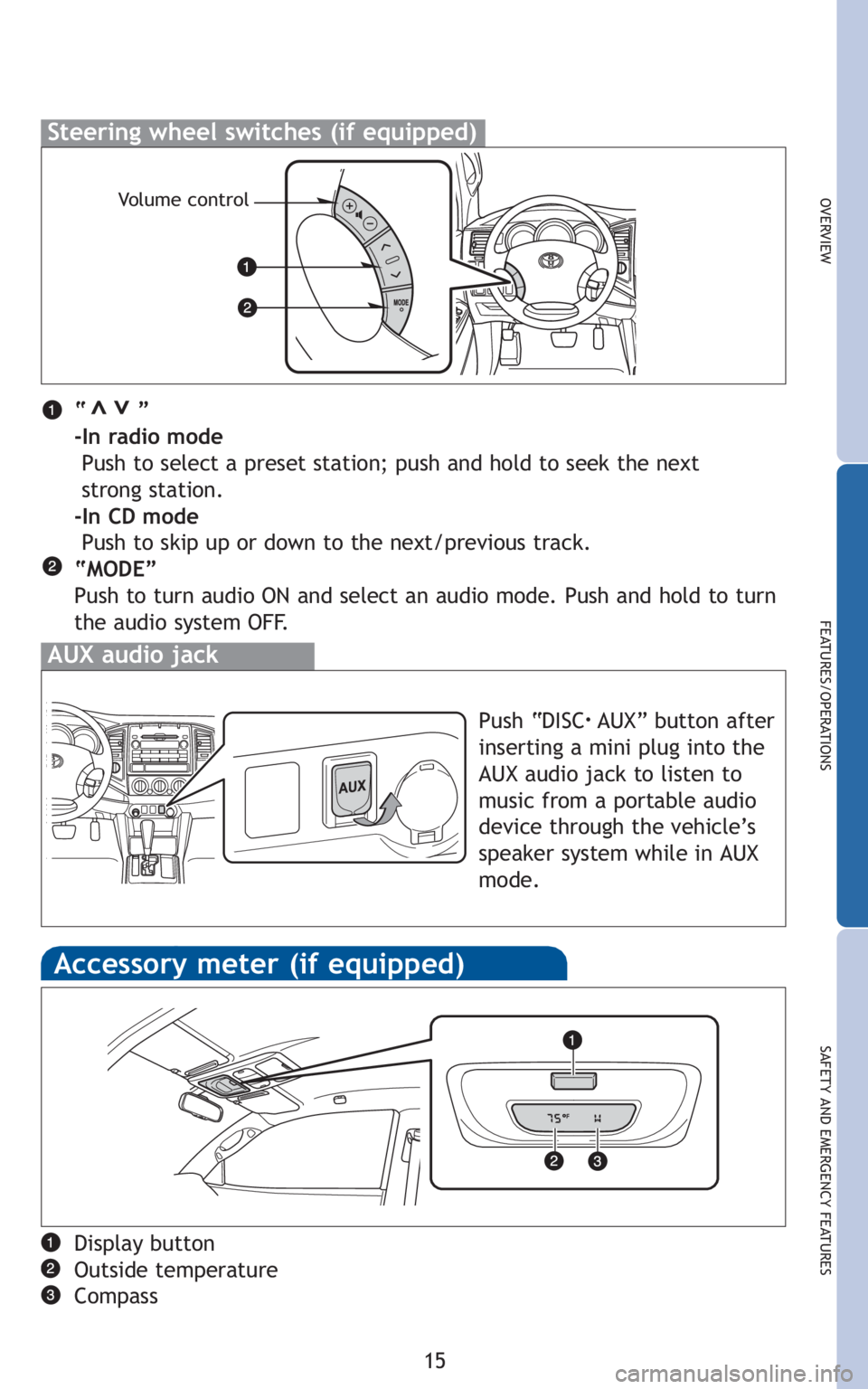

Steering wheel switches (if equipped)
Volume control
AUX audio jack
Push “DISC• AUX” button after
inserting a mini plug into the
AUX audio jack to listen to
music from a portable audio
device through the vehicle’s
speaker system while in AUX
mode.
Accessory meter (if equipped)
Display button
Outside temperature
Compass
Page 18 of 22
16
FEATURES/OPERATIONS

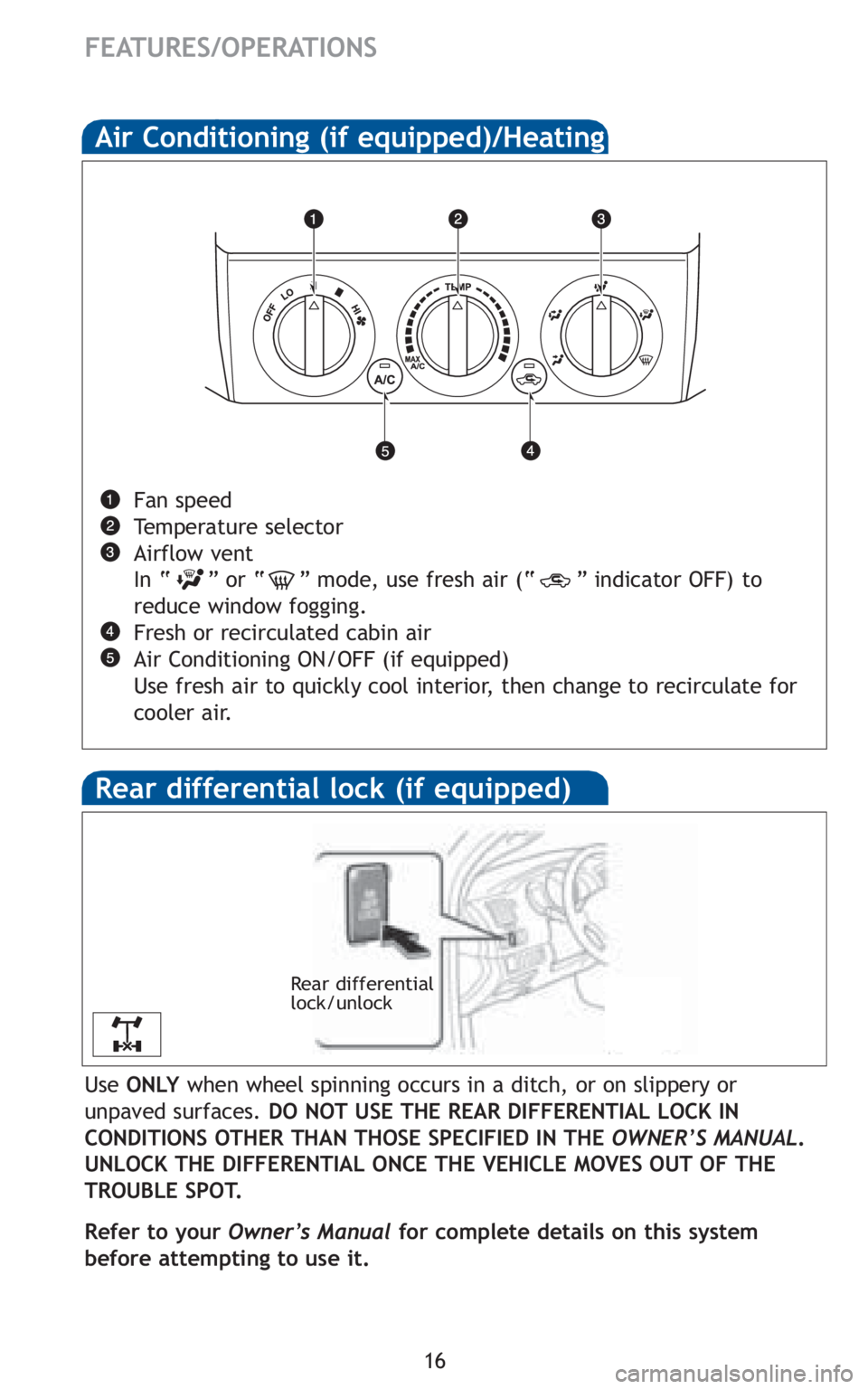

Air Conditioning (if equipped)/Heating
Fan speed
Temperature selector
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Fresh or recirculated cabin air
Air Conditioning ON/OFF (if equipped)
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use ONLYwhen wheel spinning occurs in a ditch, or on slippery or
unpaved surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN
CONDITIONS OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL.
UNLOCK THE DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE
TROUBLE SPOT.
Refer to your Owner’s Manualfor complete details on this system
before attempting to use it.
Rear differential lock (if equipped)
Rear differential
lock/unlock
Page 19 of 22
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam
flasher Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped) Automatically turns on
the front turn signal lights at a reduced intensity.
-Automatic light cutoff system Automatically turns lights off when
driver’s door is opened with the engine switch in the “ACC” or
“LOCK” position.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beam
Page 20 of 22
18
FEATURES/OPERATIONS

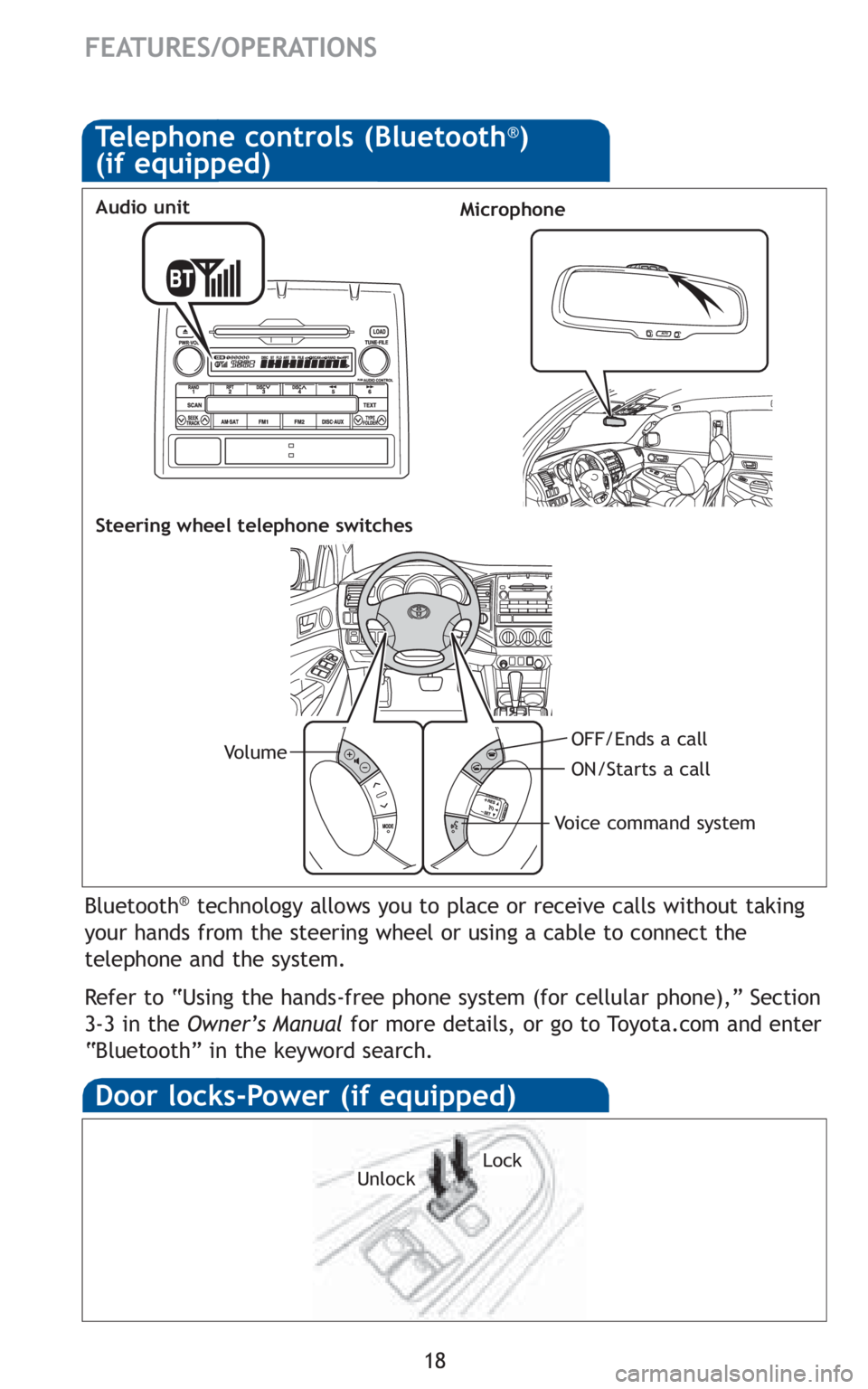

Door locks-Power (if equipped)
LockUnlock
Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-3 in the Owner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Telephone controls (Bluetooth®)
(if equipped)
Microphone Audio unit
Steering wheel telephone switches
ON/Starts a call
OFF/Ends a call
Voice command systemVo l u m e
