30,000 miles or 36 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine only)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive shaft boots (4WD)Engine coolant6
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oil
Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log41

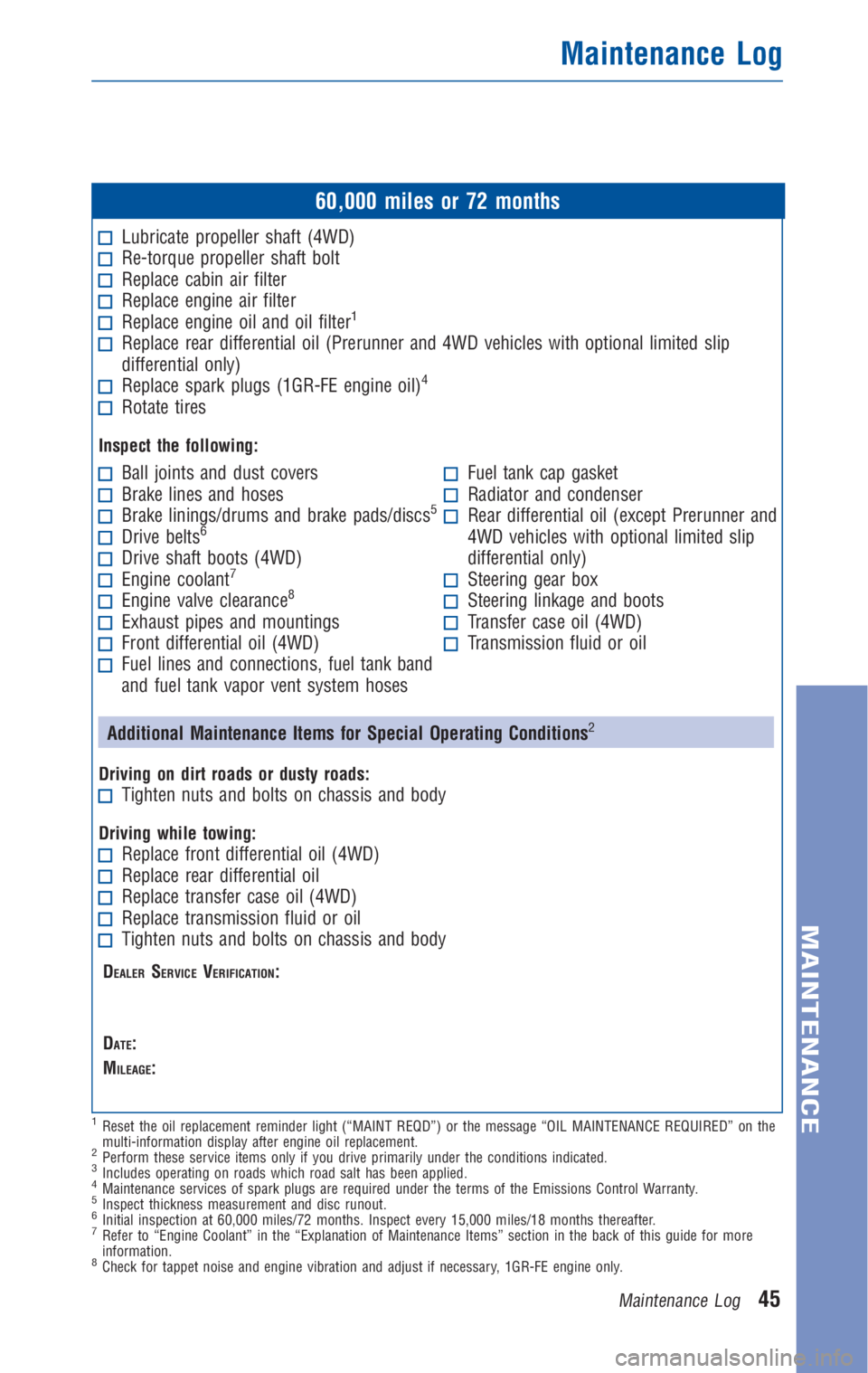

60,000 miles or 72 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine oil)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive belts6
Drive shaft boots (4WD)Engine coolant7
Engine valve clearance8
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
8Check for tappet noise and engine vibration and adjust if necessary, 1GR-FE engine only.
Maintenance Log
MAINTENANCE
Maintenance Log45

90,000 miles or 108 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine only)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive beltsDrive shaft boots (4WD)Engine coolant6
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oil
Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log49

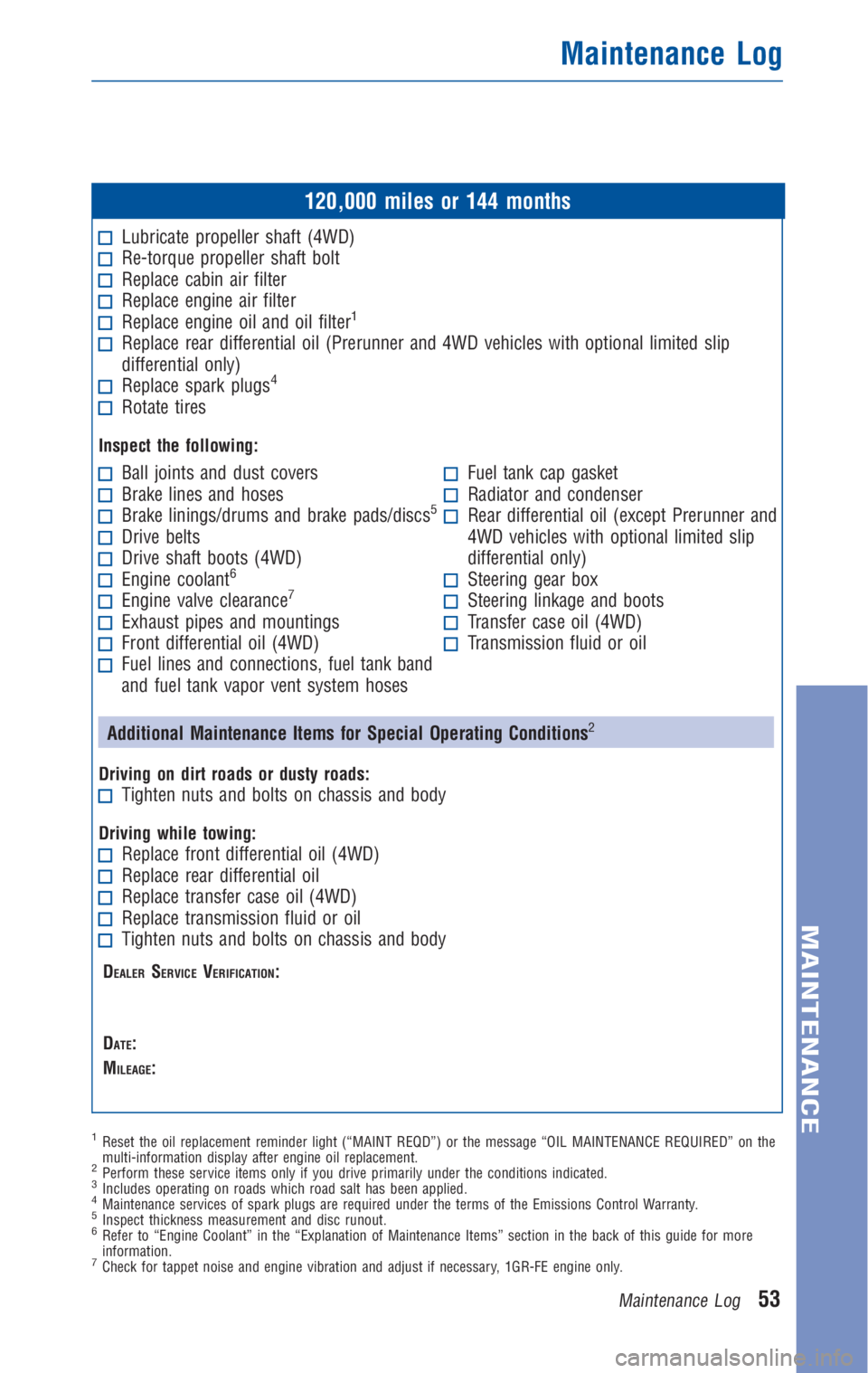

120,000 miles or 144 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive beltsDrive shaft boots (4WD)Engine coolant6
Engine valve clearance7
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
7Check for tappet noise and engine vibration and adjust if necessary, 1GR-FE engine only.
Maintenance Log
MAINTENANCE
Maintenance Log53
