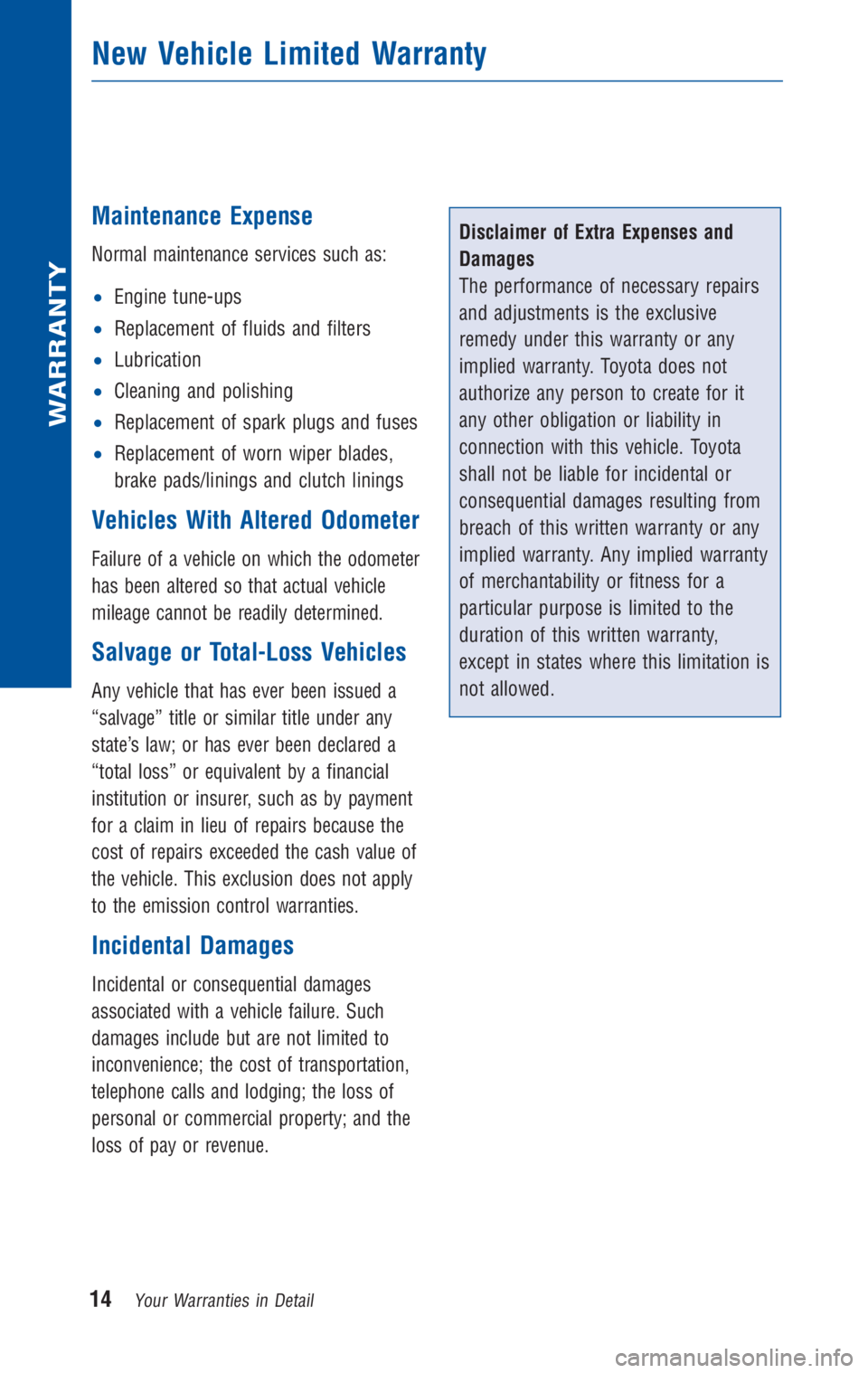

Page 15 of 62
Maintenance Expense
Normal maintenance services such as:
•Engine tune-ups
•Replacement of fluids and filters
•Lubrication
•Cleaning and polishing
•Replacement of spark plugs and fuses
•Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra Expenses and
Damages
The performance of necessary repairs
and adjustments is the exclusive
remedy under this warranty or any
implied warranty. Toyota does not
authorize any person to create for it
any other obligation or liability in
connection with this vehicle. Toyota
shall not be liable for incidental or
consequential damages resulting from
breach of this written warranty or any
implied warranty. Any implied warranty
of merchantability or fitness for a
particular purpose is limited to the
duration of this written warranty,
except in states where this limitation is
not allowed.
New Vehicle Limited Warranty
WARRANTY
14Your Warranties in Detail
Page 42 of 62
30,000 miles or 36 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine only)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive shaft boots (4WD)Engine coolant6
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oil
Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log41
Page 46 of 62
60,000 miles or 72 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine oil)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive belts6
Drive shaft boots (4WD)Engine coolant7
Engine valve clearance8
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
8Check for tappet noise and engine vibration and adjust if necessary, 1GR-FE engine only.
Maintenance Log
MAINTENANCE
Maintenance Log45
Page 50 of 62
90,000 miles or 108 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine only)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive beltsDrive shaft boots (4WD)Engine coolant6
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oil
Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log49
Page 54 of 62
120,000 miles or 144 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive beltsDrive shaft boots (4WD)Engine coolant6
Engine valve clearance7
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
7Check for tappet noise and engine vibration and adjust if necessary, 1GR-FE engine only.
Maintenance Log
MAINTENANCE
Maintenance Log53

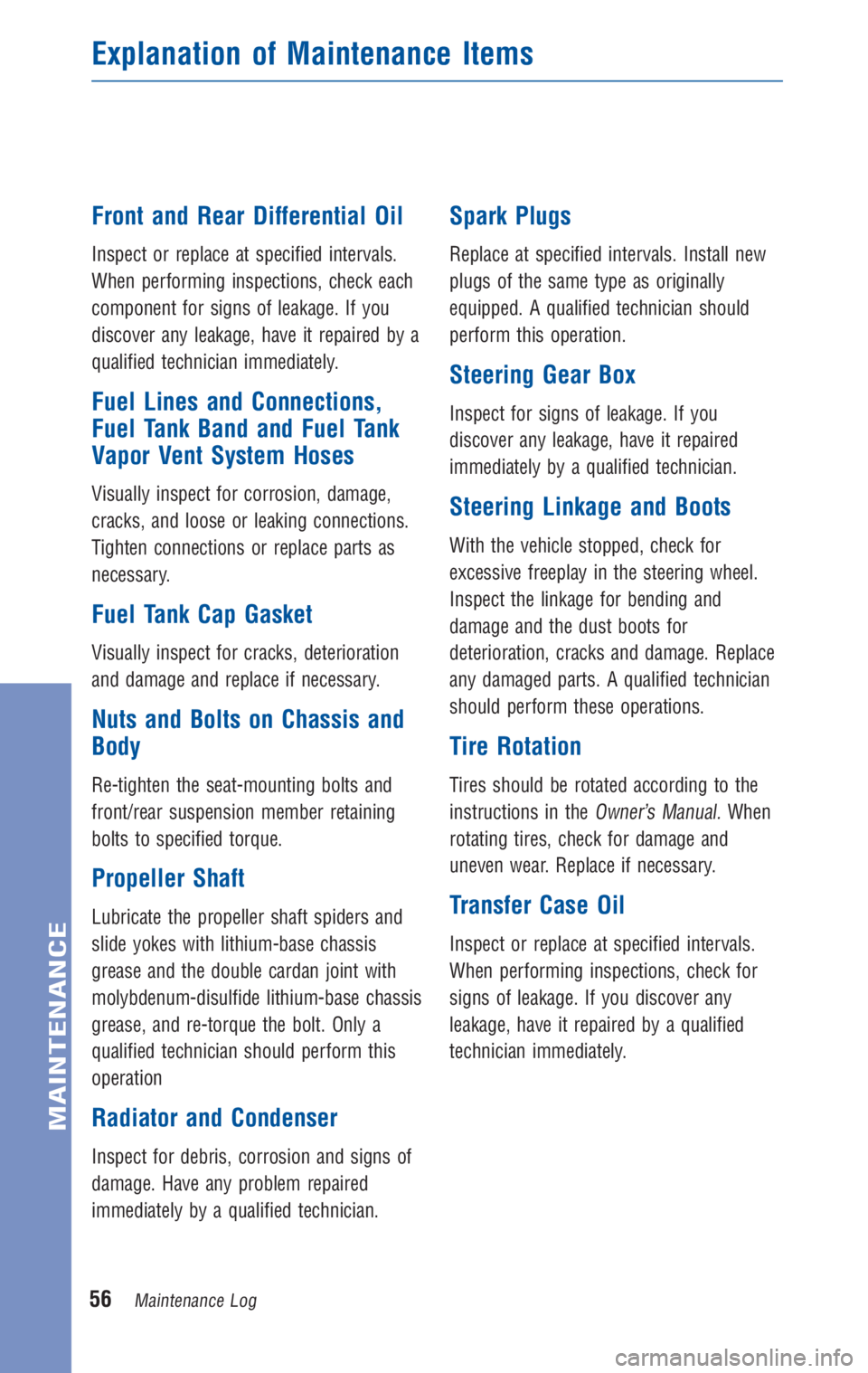

Page 57 of 62
Front and Rear Differential Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Lubricate the propeller shaft spiders and
slide yokes with lithium-base chassis
grease and the double cardan joint with
molybdenum-disulfide lithium-base chassis
grease, and re-torque the bolt. Only a
qualified technician should perform this
operation
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transfer Case Oil
Inspect or replace at specified intervals.
When performing inspections, check for
signs of leakage. If you discover any
leakage, have it repaired by a qualified
technician immediately.
Explanation of Maintenance Items
56Maintenance Log
