366
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition ( P. 384)•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 380)• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
Engine coolant level ( P. 379)• “Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant
and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant
and 45% deionized water.
Engine oil level P. 374) • Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel
• Funnel (used only for adding oil)
Fuses ( P. 408)• Fuse with same amperage rating
as original

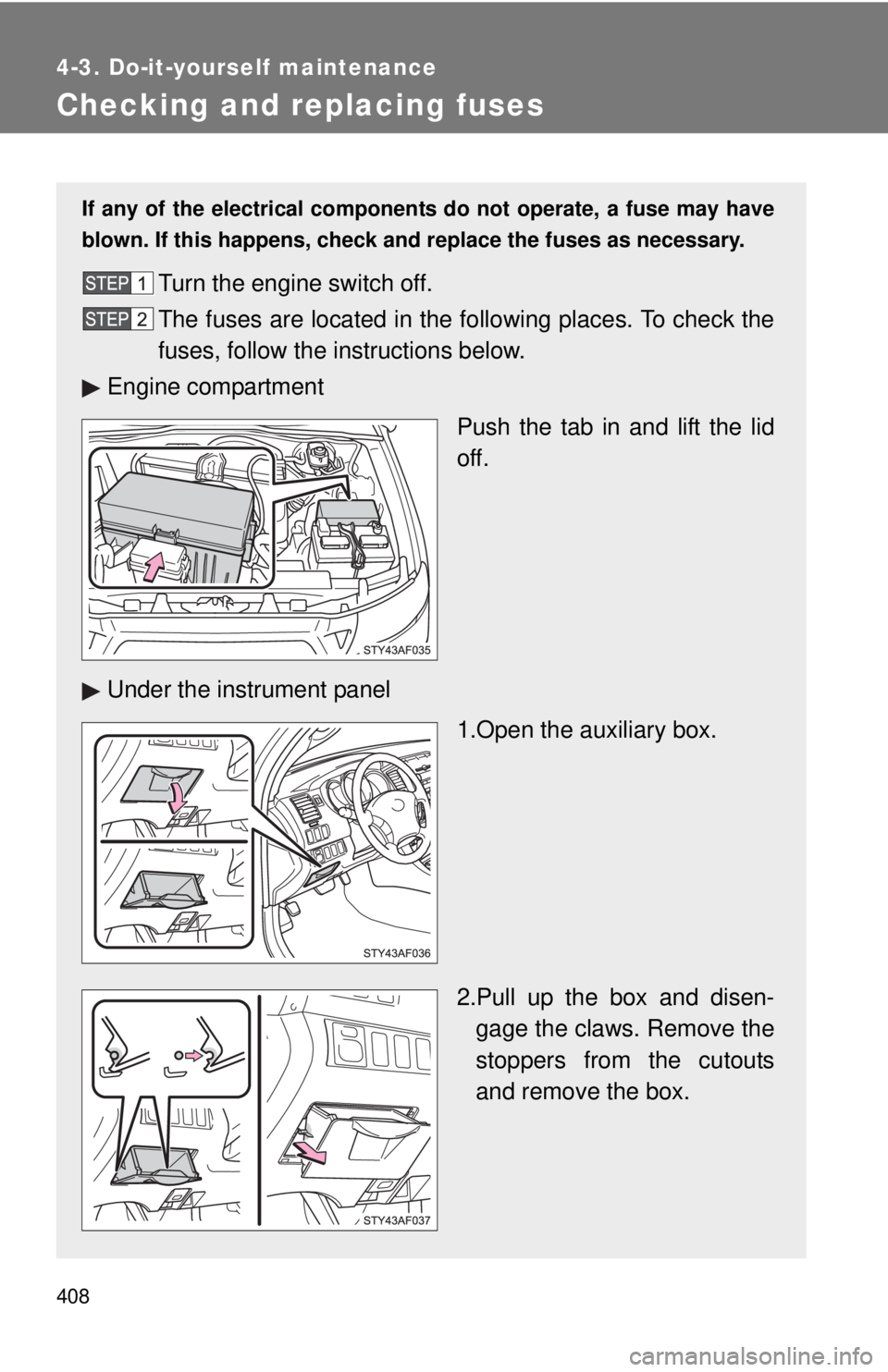

408
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
The fuses are located in the following places. To check the
fuses, follow the in structions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel 1.Open the auxiliary box.
2.Pull up the box and disen-gage the claws. Remove the
stoppers from the cutouts
and remove the box.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
18 EFI
20 AMultiport fuel injection system/
sequential multiport fuel injection
system
19 HORN 10 A Horn
20 A/F HEATER 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
21 ECU-B 7.5 AWireless remote control system, air
conditioning system, multiplex
communication system, meter and
gauge, front passenger occupant
classification system
22 DOME 7.5 A Interior light, personal lights, clock
23 RADIO NO.1 10 A Audio system
24 STA 7.5 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system, meter
and gauge, clutch start cancel
switch
25 Spare 10 A Spare fuse
26 Spare 15 A Spare fuse
27 J/B 50 ATAIL, AC SKT, DR LCK, D FR P/W,
D RR P/W, P FR P/W and P RR P/
W fuses
28 AM1 50 AACC, IG1, IG1 NO.2, WIP, WSH,
4WD and STA fuses
29 HEATER 50 A A/C fuse, air conditioning system
30 ABS NO.1 50 AAnti-lock brake system, vehicle sta-
bility control system
31 AM2 30 AIGN and GAUGE fuses, multiport
fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

414 4-3. Do-it-yourself maintenance
*: Replace the fuse with one of the same ampere rating as the original32 A/PUMP
50 AMultiport fuel injection system/
sequential multiport fuel injection
system
33 ABS NO.2 30 AAnti-lock brake system, vehicle sta-
bility control system
34 AC SKT 100 A Cigarette lighter, power outlets
35 ALT 120 A*
AM1, AC SKT, HEATER, FR FOG,
STOP, OBD, J/B, TOWING TAIL,
TOWING BRK and BATT CHG
fuses
140 A*
FuseAmpereCircuit

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 418)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.
