TOYOTA TACOMA 2011 Owners Manual (in English)

5
When trouble arises
481
5-2. Steps to take in an emergency
CAUTION
■
If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

482 5-2. Steps to take in an emergency

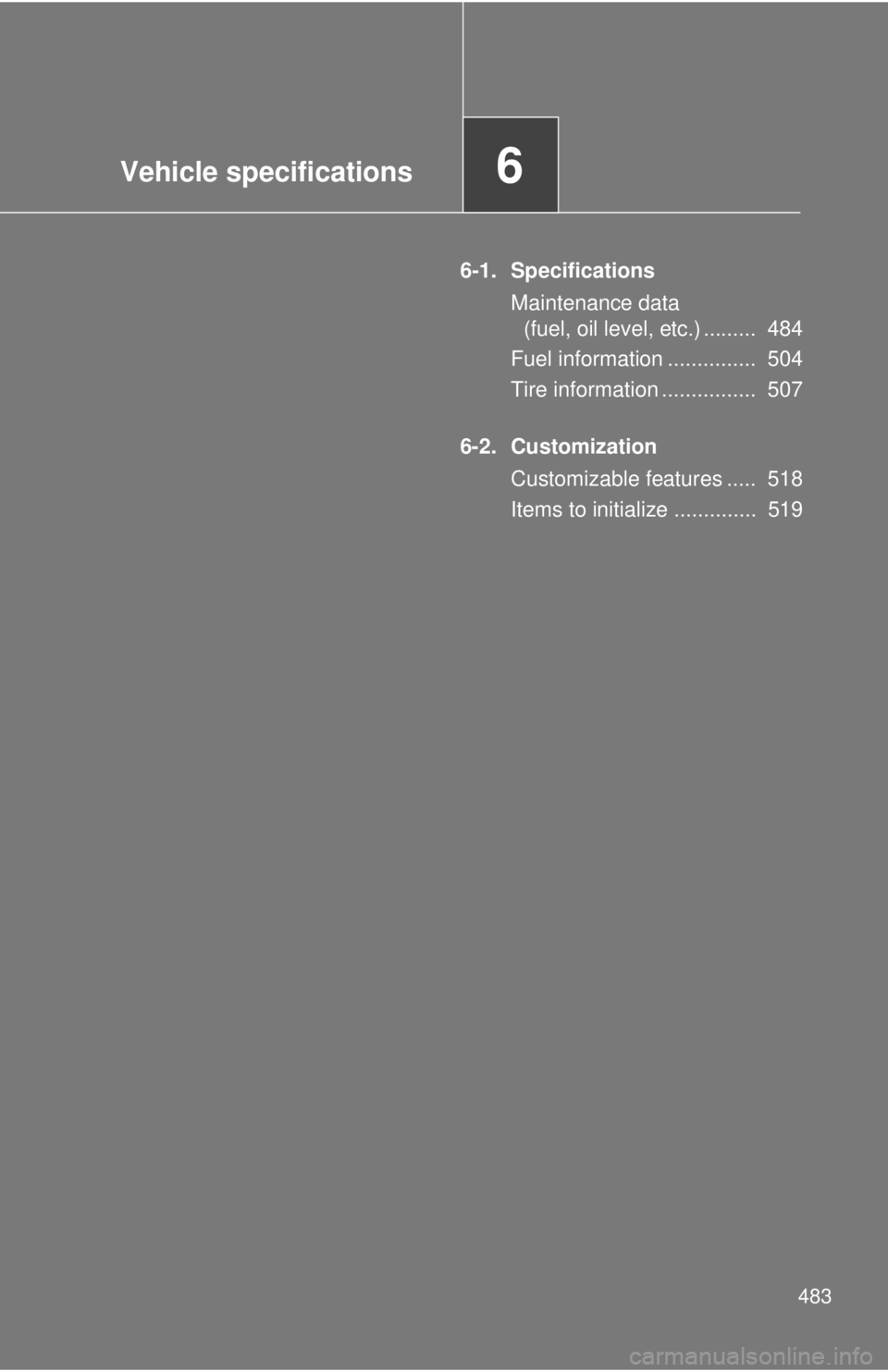

Vehicle specifications6
483
6-1. SpecificationsMaintenance data(fuel, oil level, etc.) ......... 484
Fuel information ............... 504
Tire information ................ 507
6-2. Customization Customizable features ..... 518
Items to initialize .............. 519

484
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions2WD models except PreRunner
*: Unladen vehicle
4WD models and PreRunner
*: Unladen vehicle
Cab typeRegular Cab
Access Cab
Double CabExcept
X-RunnerX-Runner
Overall
length 190.4 in.
(4835 mm) 208.1 in. (5285 mm)
Overall
width72.2 in. (1835 mm) 74.0 in.
(1880 mm) 74.6 in.
(1895 mm)
Overall
height* 65.8 in.
(1670 mm) 66.1 in.
(1680 mm) 65.6 in.
(1665 mm) 66.1 in.
(1680 mm)
Wheelbase 109.6 in.
(2785 mm) 127.4 in. (3235 mm)
Front tread 61.0 in. (1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)
Rear tread 61.0 in. (1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)
Cab typeRegular CabAccess Cab
Overall length 190.4 in. (4835 mm) 208.1 in. (5285 mm)
Overall width 74.6 in. (1895 mm)
Overall height* 69.9 in. (1775 mm) 70.3 in. (1785 mm)
Wheelbase 109.6 in. (2785 mm) 127.4 in. (3235 mm)
Front tread63.0 in. (1600 mm)
Rear tread 63.4 in. (1610 mm)

485
6-1. Specifications
6
Vehicle specifications
*: Unladen vehicle
Vehicle capacity weight
2WD models except PreRunner
*: Installing accessories in addition to those installed at the factory increases vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeDouble Cab
With short deckWith long deck
Overall length 208.1 in. (5285 mm) 221.3 in. (5620 mm)
Overall width 74.6 in. (1895 mm)
Overall height* 70.1 in. (1780 mm)
Wheelbase 127.4 in. (3235 mm) 140.6 in. (3570 mm)
Front tread63.0 in. (1600 mm)
Rear tread 63.4 in. (1610 mm)
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1250 lb. (567 kg)
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine1200 lb. (544 kg)
4.0 L V6
(1GR-FE) engine850 lb. (386 kg)
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine1100 lb. (499 kg)

486 6-1. Specifications
PreRunner
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
4WD models
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1300 lb. (590 kg)4.0 L V6
(1GR-FE) engine
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engineShort deck
Long deck
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck 1300 lb. (590 kg)
Access Cab2.7 L 4-cylinder
(2TR-FE) engine
4.0 L V6
(1GR-FE) engine 1205 lb. (547 kg)
Double Cab
4.0 L V6
(1GR-FE) engineShort deck 1200 lb. (544 kg)
Long deck 1100 lb. (499 kg)

487
6-1. Specifications
6
Vehicle specifications
TWR (Trailer Weight Rating)
Regular Cab models
Access Cab models
Model code*1EngineDriving
systemTWR
TRN220L-TRMDKA
2.7 L 4-cylinder
(2TR-FE) engine
2WD 3500 lb. (1587 kg)
TRN220L-TRPDKA
TRN240L-TRMDKA
4WD
TRN240L-TRPDKA
Model code*1EngineDriving
systemTWR
TRN225L-CRMDKA
2.7 L 4-cylinder
(2TR-FE) engine
2WD
3500 lb. (1587 kg)
TRN225L-CRPDKA
TRN245L-CRMDKA
4WD
TRN245L-CRPDKA
TRN265L-CRPDKA
2WD
GRN225L-CRFDKA
4.0 L V6 (1GR-FE)
engine 3300 lb. (1496 kg)
GRN245L-CRADKA4WD 3500 lb. (1587 kg)
*2
6500 lb. (2948 kg)*3
GRN245L-CRFDKA
3500 lb. (1587 kg)*2
6500 lb. (2948 kg)*3
GRN265L-CRADKA2WD3500 lb. (1587 kg)*2
6500 lb. (2948 kg)*3

488 6-1. Specifications
Double Cab models
*1: The model code is indicated on the Certification Label. (P. 489)
*2: Without towing package
*3: With towing package
Model code*1EngineDriving
systemTWR
TRN225L-PRPDKA
2.7 L 4-cylinder
(2TR-FE) engine2WD 3400 lb. (1542 kg)
TRN265L-PRPDKA 3500 lb. (1587 kg)
GRN245L-PRADKA
4.0 L V6 (1GR-FE)
engine
4WD 3500 lb. (1587 kg)
*2
6400 lb. (2903 kg)*3
GRN245L-PRFDKA
3500 lb. (1587 kg)*2
6400 lb. (2903 kg)*3
GRN250L-PRADKA3500 lb. (1587 kg)*2
6300 lb. (2857 kg)*3
GRN265L-PRADKA
2WD3500 lb. (1587 kg)
*2
6500 lb. (2948 kg)*3
GRN270L-PRADKA
3500 lb. (1587 kg)*2
6500 lb. (2948 kg)*3

489
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Regular Cab and Double Cab models This number is also on the
Certification Label.
Access Cab models This number is also on the
Certification Label.

490 6-1. Specifications
■Engine number
The engine number is stamped on the engine bl ock as shown.
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
