TOYOTA TACOMA 2011 (in English) User Guide

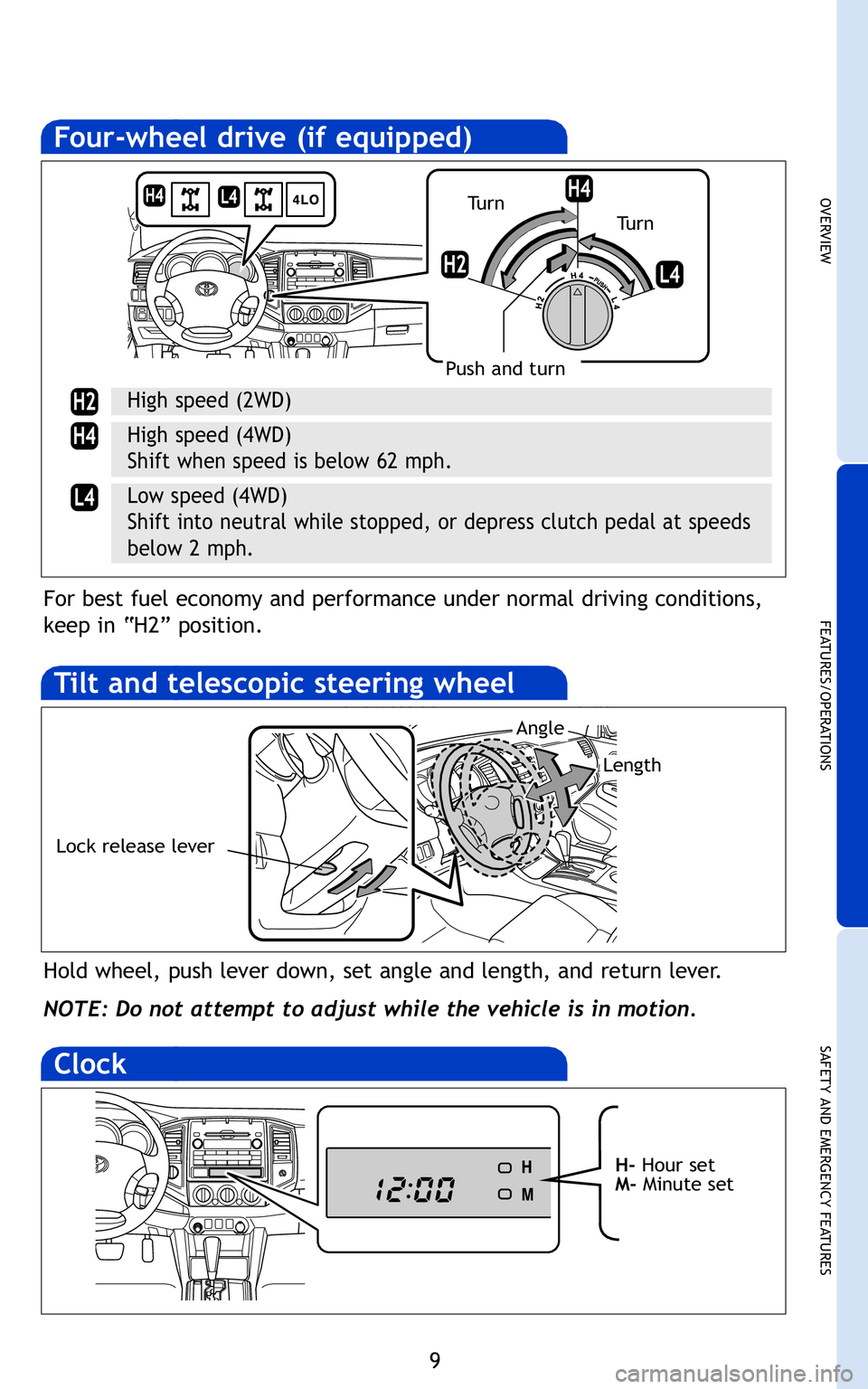

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Shift when speed is below 62 mph.
Low speed (4WD)
Shift into neutral while stopped, or depress clutch pedal at speeds
below 2 mph.
For best fuel economy and performance under normal driving conditions,
keep in “H2” position.
Turn
Push and turn
Turn
Clock
H-Hour set
M- Minute set
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 9

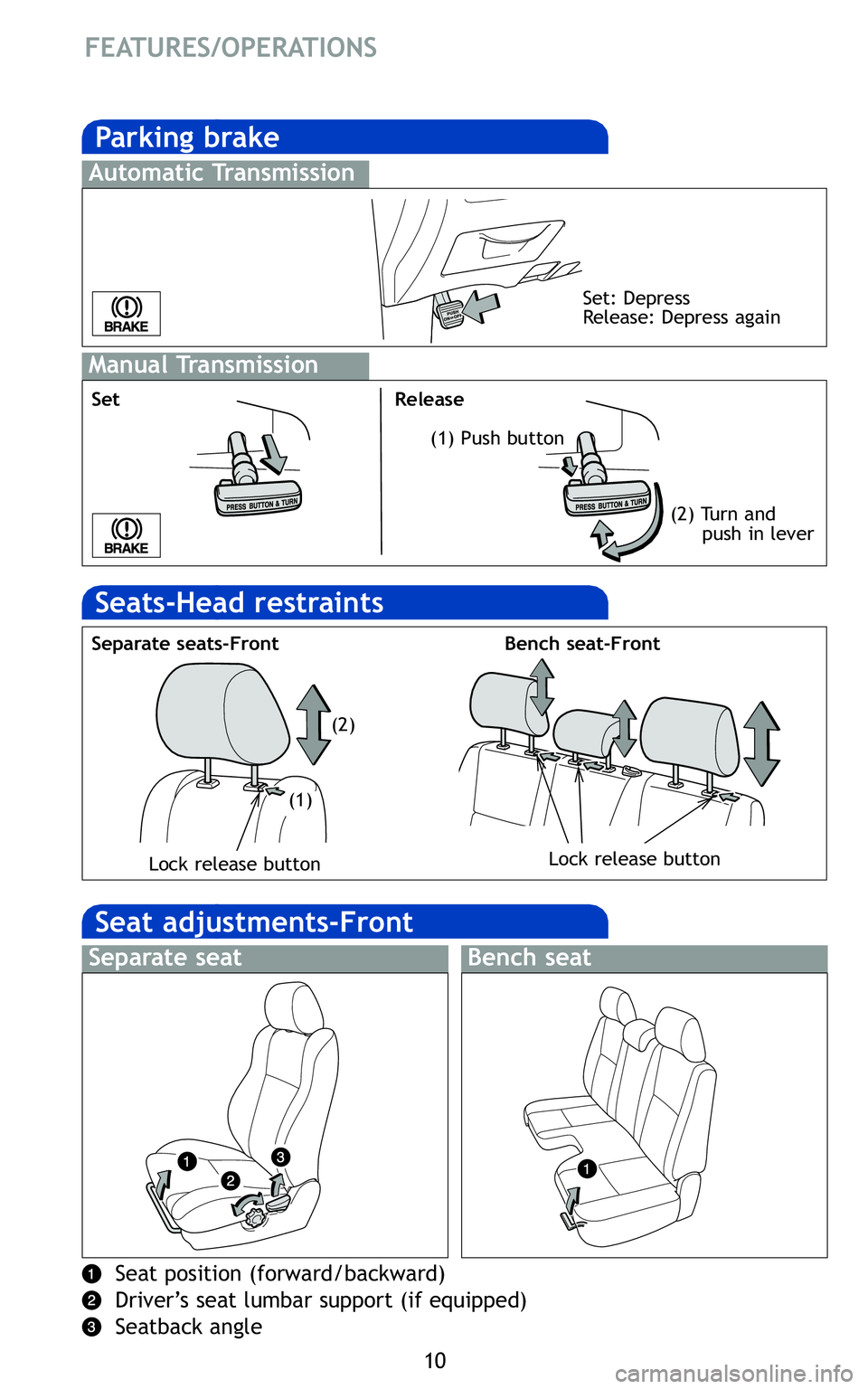

10
FEATURES/OPERATIONS
Parking brake
Manual Transmission
SetRelease
(2) Turn and push in lever
Automatic Transmission
Set: Depress
Release: Depress again
(1) Push button
Seat adjustments-Front
Separate seatBench seat
Seat position (forward/backward)
Driver’s seat lumbar support (if equipped)
Seatback angle
Seats-Head restraints
Bench seat-Front
Separate seats-Front
Lock release buttonLock release button
(1) (2)
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 10

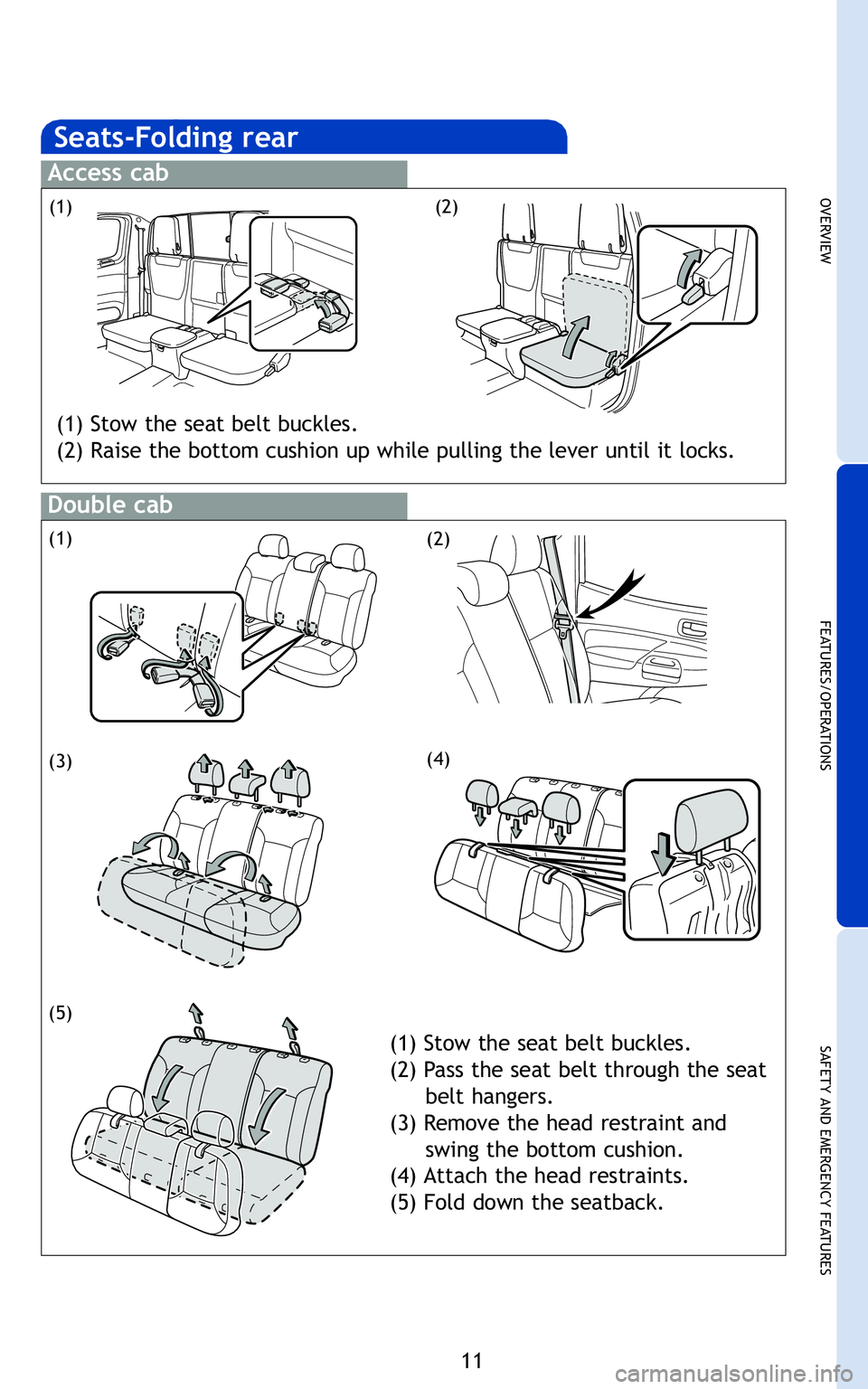

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Folding rear
Access cab
Double cab
(1)(2)
(1) Stow the seat belt buckles.
(2) Raise the bottom cushion up while pulling the lever until it locks\
.
(1)
(5)
(3)
(2)
(4)
(1) Stow the seat belt buckles.
(2) Pass the seat belt through the seat belt hangers.
(3) Remove the head restraint and swing the bottom cushion.
(4) Attach the head restraints.
(5) Fold down the seatback.
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 11

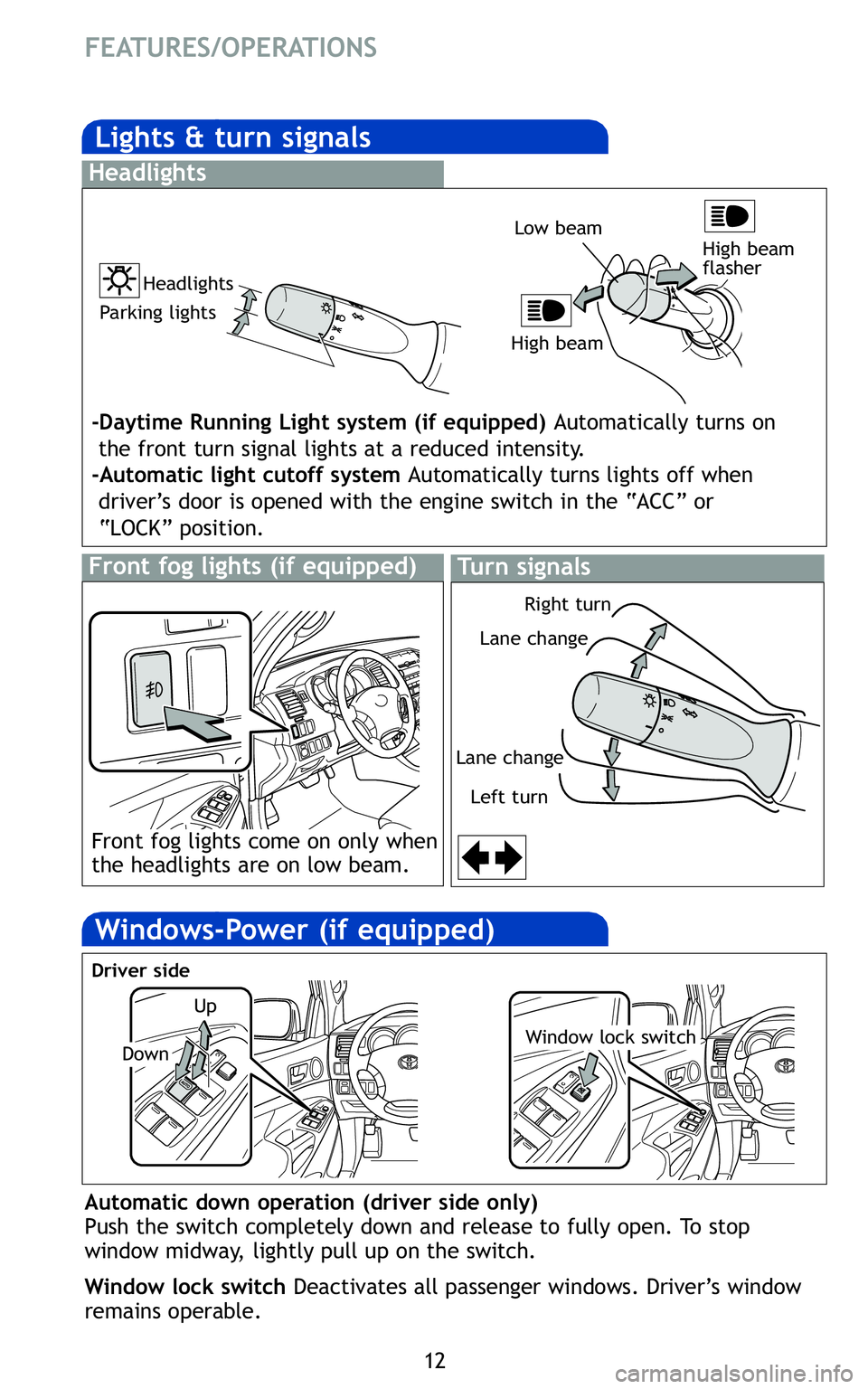

12
FEATURES/OPERATIONS
Lights & turn signals
Turn signals
Headlights
High beam
flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped)
Automatically turns on
the front turn signal lights at a reduced intensity.
-Automatic light cutoff system Automatically turns lights off when
driver’s door is opened with the engine switch in the “ACC” or
“LOCK” position.
Front fog lights come on only when
the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change Left turn High beam
Windows-Power (if equipped)
Up
Down
Driver side
Window lock switch
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop
window midway, lightly pull u
p on the switch.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 12

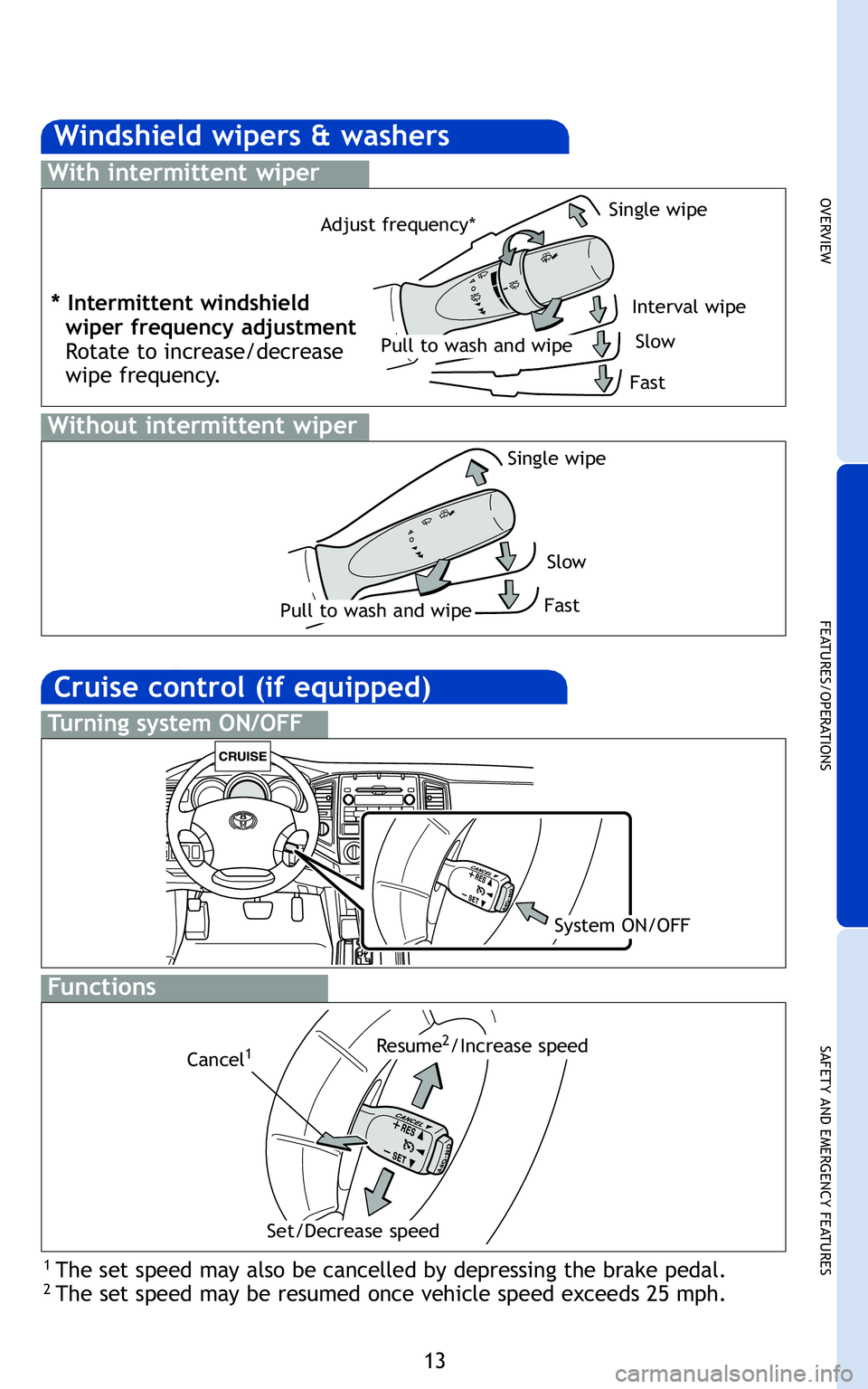

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency*
With intermittent wiper
Without intermittent wiper
Pull to wash and wipe
Single wipe
Slow
Fast
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 13

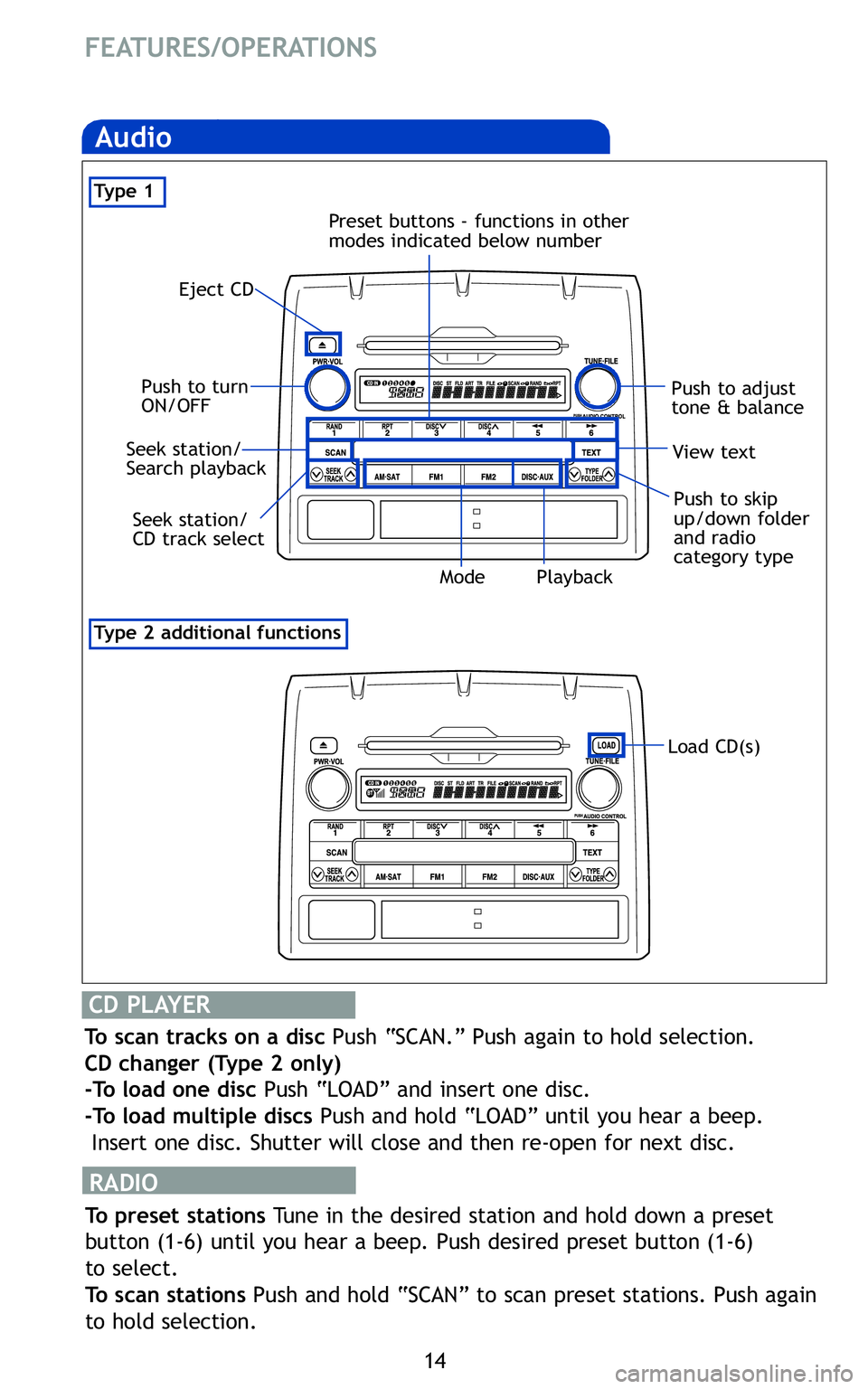

14
FEATURES/OPERATIONS
Ty p e 2 additional functions
Audio
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Seek station/
CD track select View text
Mode
Preset buttons - functions in other
modes indicated below number
Load CD(s)
Ty p e
1
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD changer (Type 2 only)
- To load one disc Push “LOAD” and insert one disc.
- To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
Playback
Seek station/
Search playback
Push to skip
up/down folder
and radio
category type
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF. >>
Steering wheel switches (if equipped)
Volume control
AUX audio jack
Push “DISC• AUX” button after inserting a mini plug into the AUX audio
jack to listen to music from a portable audio device through the vehicle\
’s
speaker system while in AUX mode.
Accessory meter (if equipped)
Display button
Outside temperature
Compass
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 15

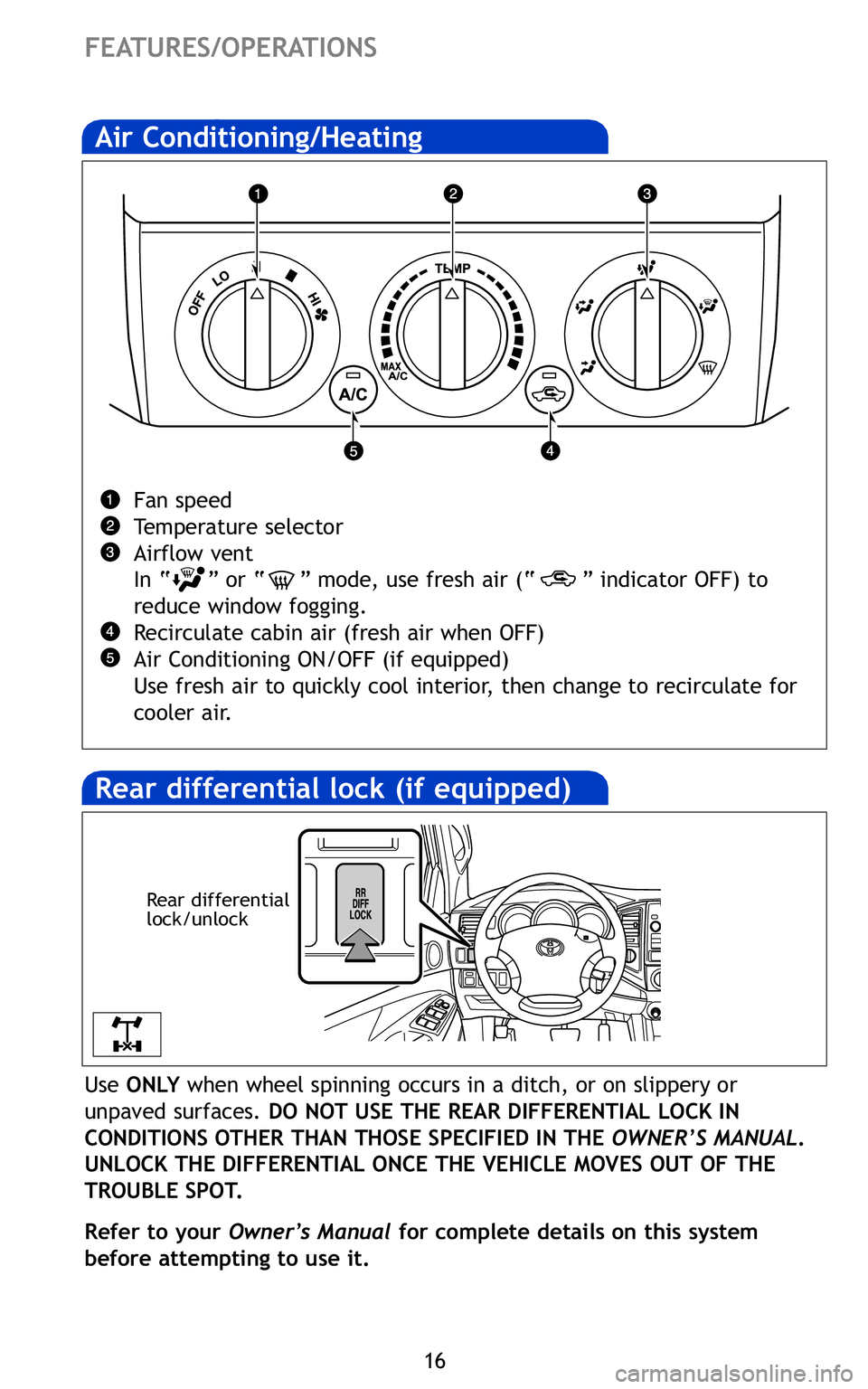

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Fan speed
Temperature selector
Airflow vent
In “” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Recirculate cabin air (fresh air when OFF)
Air Conditioning ON/OFF (if equipped)
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use O N LY when wheel spinning occurs in a ditch, or on slippery or
unpaved surfaces. DO NOT USE THE REAR DIFFERENTIAL LOCK IN
CONDITIONS OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL.
UNLOCK THE DIFFERENTIAL ONCE THE VEHICLE MOVES OUT OF THE
TROUBLE SPOT.
Refer to your Owner’s Manual for complete details on this system
before attempting to use it.
Rear differential lock (if equipped)
Rear differential
lock/u nlock
414751M2_r1.qxd:414751M2_r1 6/15/10 12:48 PM Page 16

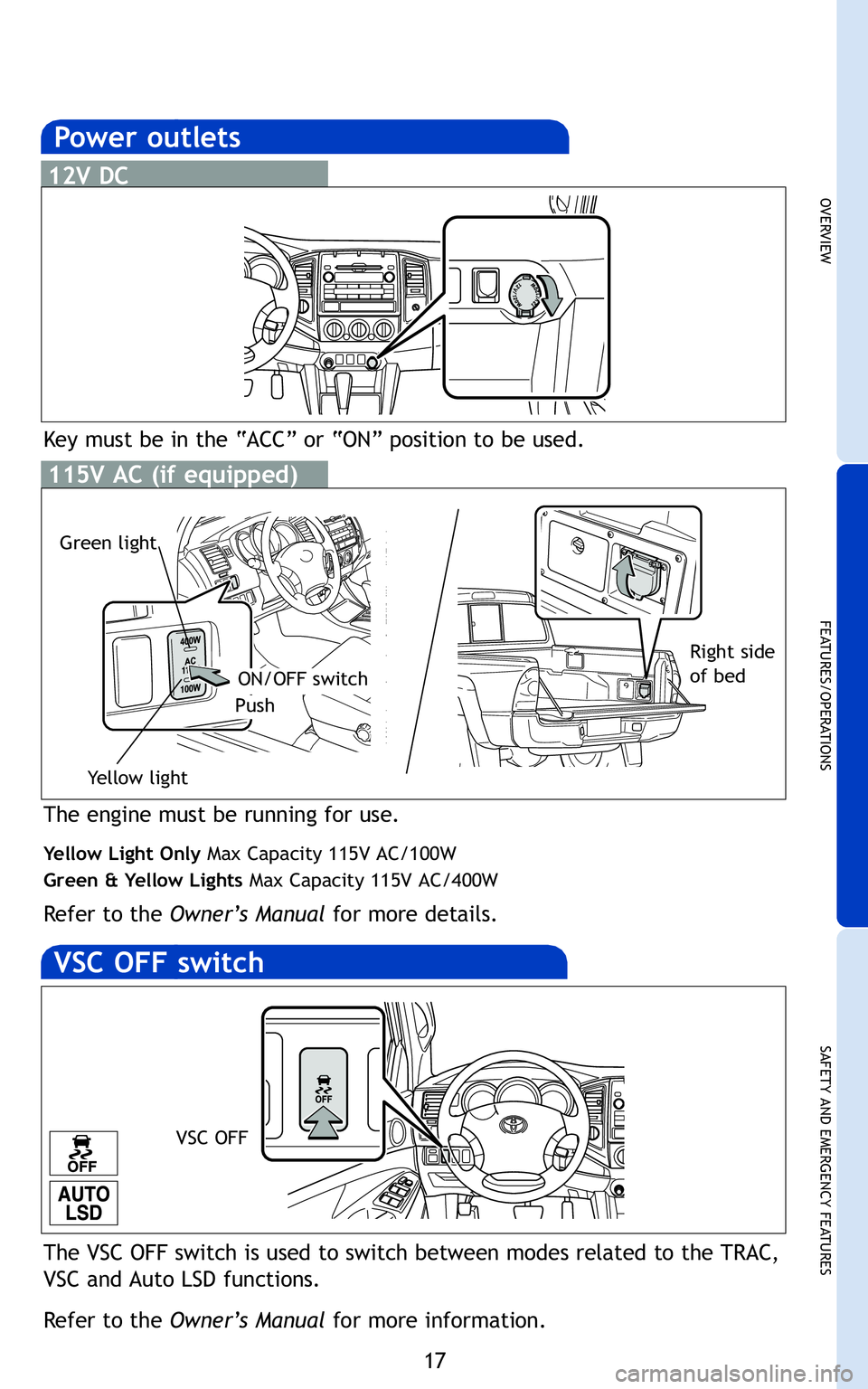

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
VSC OFF
The VSC OFF switch is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to the Owner’s Manual for more information.
VSC OFF switch
Power outlets
12V DC
115V AC (if equipped)
3
ON/OFF switch
Green light
Yellow light
Right side
of bed
Push
Key must be in the “ACC” or “ON” position to be used.
The engine must be running for use.
Yellow Light Only Max Capacity 115V AC/100W
Green & Yellow Lights Max Capacity 115V AC/400W
Refer to the Owner’s Manual for more details.
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 17

18
FEATURES/OPERATIONS
Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),”\
Section
3-3 in the Owner’s Manual for more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Telephone controls (Bluetooth®)
(if equipped)
Microphone
Audio unit
Steering wheel telephone switches
ON/Starts a call
OFF/Ends a call
Voice command systemVolume
414751M2.qxd:414751M2 6/11/10 12:43 PM Page 18
