TOYOTA TACOMA 2014 Accessories, Audio & Navigation (in English)

8
181
1
2
8
4
5
6
7
3
9

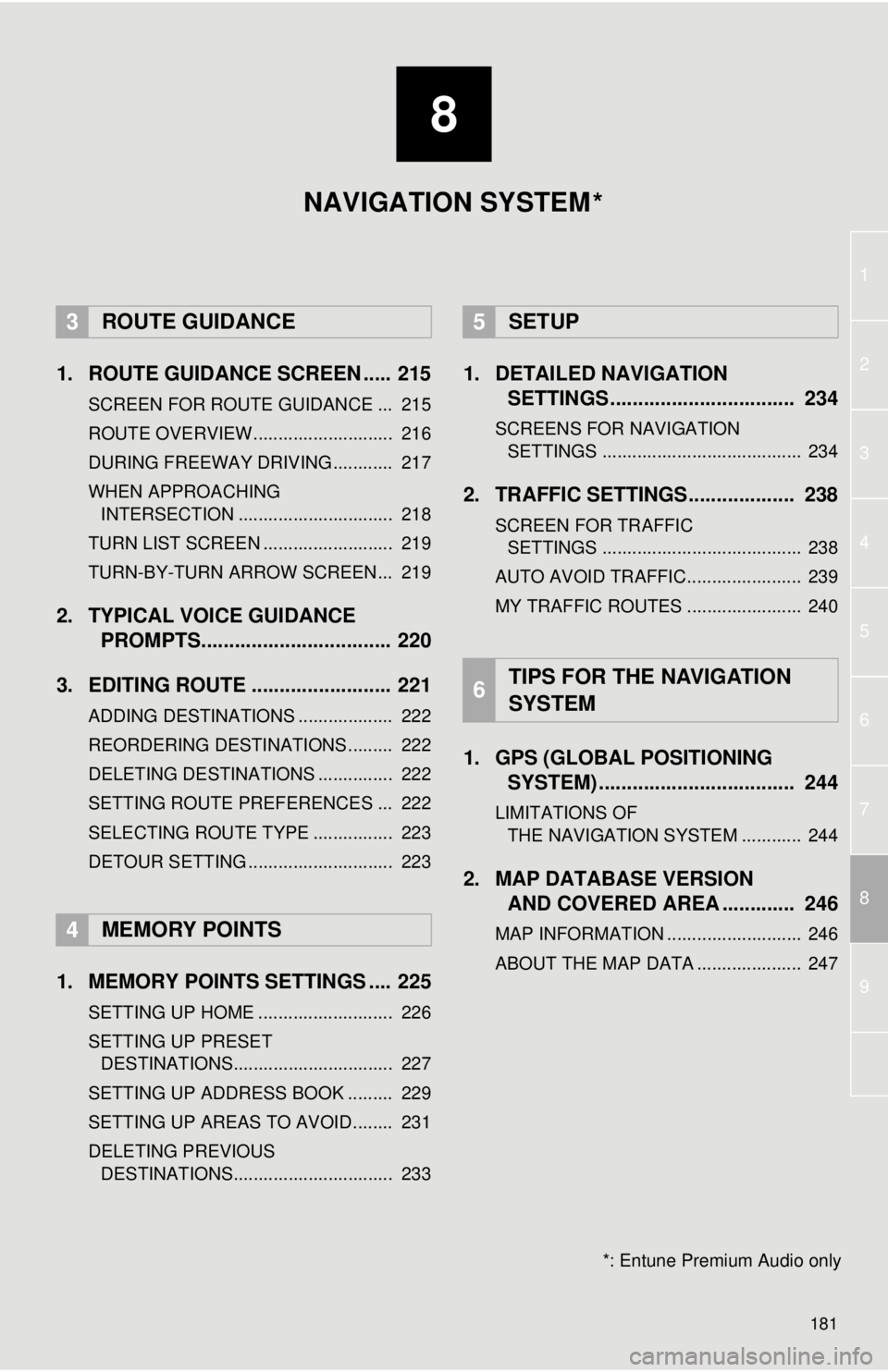

1. ROUTE GUIDANCE SCREEN ..... 215
SCREEN FOR ROUTE GUIDANCE ... 215
ROUTE OVERVIEW............................ 216
DURING FREEWAY DRIVING............ 217
WHEN APPROACHING INTERSECTION ............................... 218
TURN LIST SCREEN .......................... 219
TURN-BY-TURN ARROW SCREEN ... 219
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 220
3. EDITING ROUTE ......................... 221
ADDING DESTINATIONS ................... 222
REORDERING DESTINATIONS ......... 222
DELETING DESTINATIONS ............... 222
SETTING ROUTE PREFERENCES ... 222
SELECTING ROUTE TYPE ................ 223
DETOUR SETTING ............................. 223
1. MEMORY POINTS SETTINGS .... 225
SETTING UP HOME ........................... 226
SETTING UP PRESET DESTINATIONS................................ 227
SETTING UP ADDRESS BOOK ......... 229
SETTING UP AREAS TO AVOID ........ 231
DELETING PREVIOUS DESTINATIONS................................ 233
1. DETAILED NAVIGATION SETTINGS ................................. 234
SCREENS FOR NAVIGATION
SETTINGS ........................................ 234
2. TRAFFIC SETTINGS................... 238
SCREEN FOR TRAFFIC SETTINGS ........................................ 238
AUTO AVOID TRAFFIC....................... 239
MY TRAFFIC ROUTES ....................... 240
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 244
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 244
2. MAP DATABASE VERSION AND COVERED AREA ............. 246
MAP INFORMATION ........................... 246
ABOUT THE MAP DATA ..................... 247
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM
*: Entune Premium Audio only
*

182

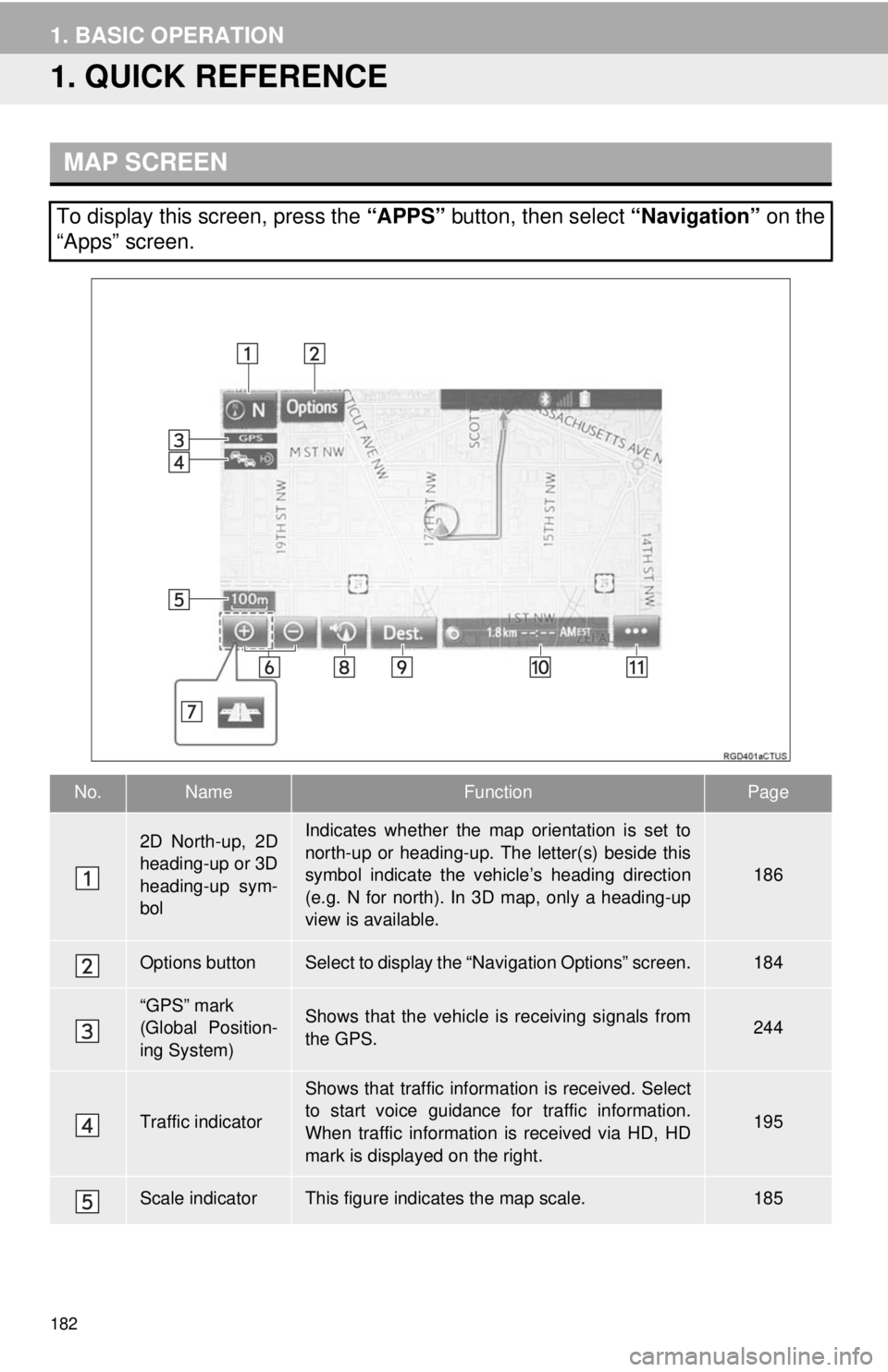

1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
186
Options buttonSelect to display the “Navigation Options” screen.184
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.244
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
195
Scale indicatorThis figure indicates the map scale.185

183
1. BASIC OPERATION
8
NAVIGATION SYSTEM

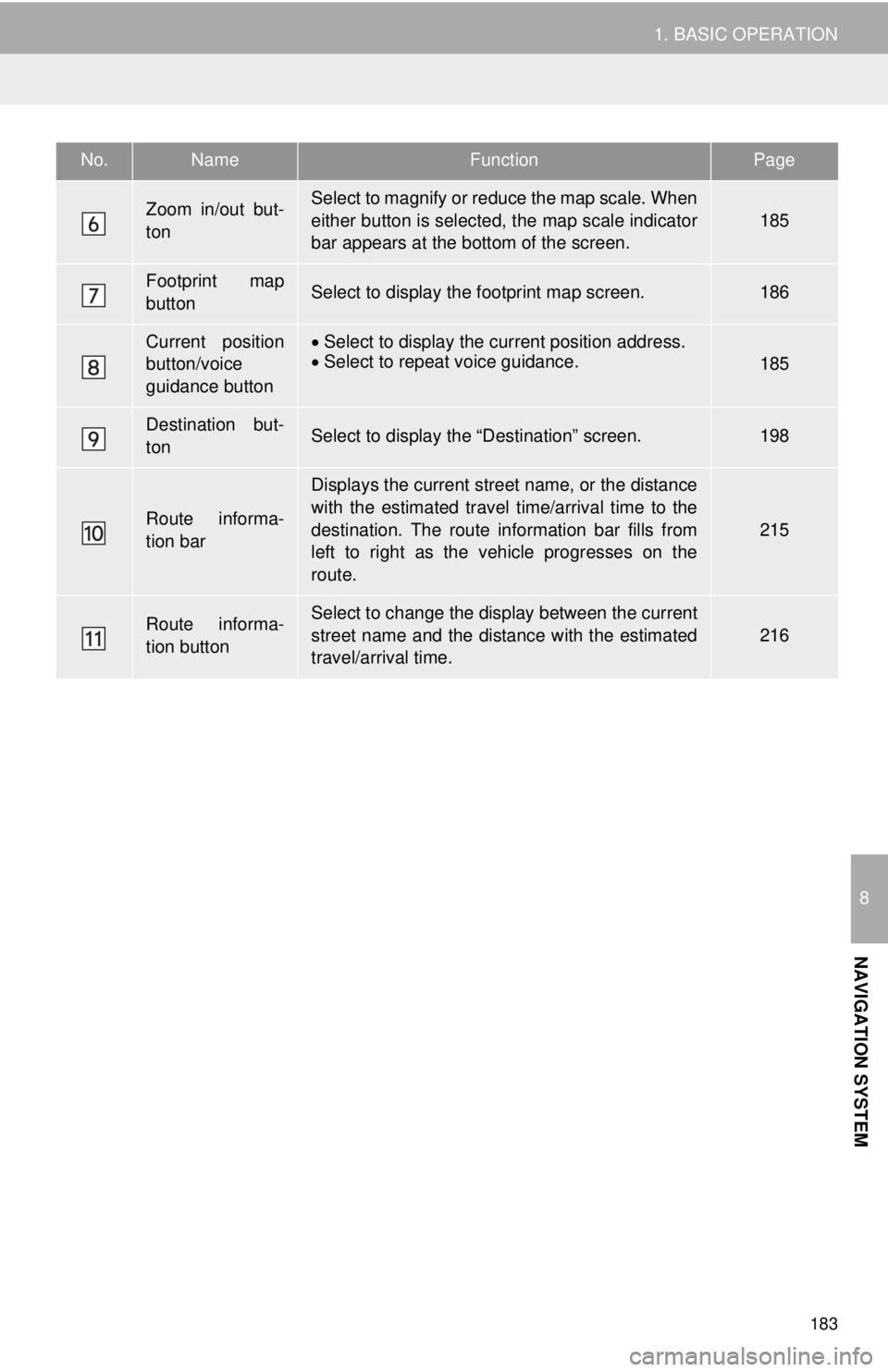

Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
185
Footprint map
buttonSelect to display the footprint map screen.186
Current position
button/voice
guidance buttonSelect to display the current position address.
Select to repeat voice guidance.185
Destination but-
tonSelect to display the “Destination” screen.198
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
215
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
216
No.NameFunctionPage

184
1. BASIC OPERATION

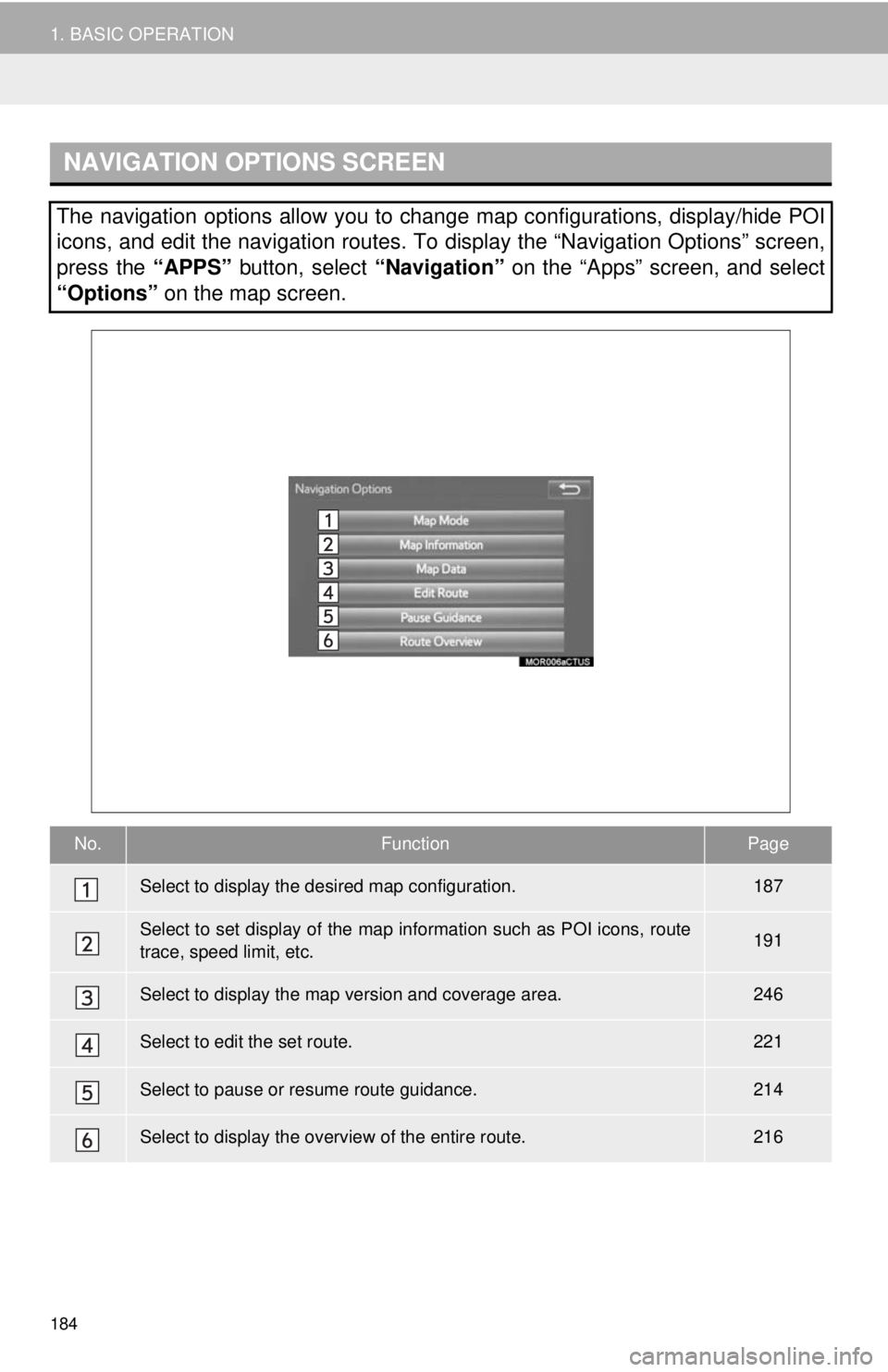

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to display the desired map configuration.187
Select to set display of the map information such as POI icons, route
trace, speed limit, etc.191
Select to display the map version and coverage area.246
Select to edit the set route.221
Select to pause or resume route guidance.214
Select to display the overview of the entire route.216

185
1. BASIC OPERATION
8
NAVIGATION SYSTEM
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation”.
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
Select and hold or to con-
tinue changing the scale of the map
screen.
The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 3 6
INFORMATION
●While driving, the current position mark
is fixed on the screen and the map
moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
●After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
●In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

186
1. BASIC OPERATION
1Select on the map screen.
2Check that the footprint map is dis-
played.
To return to the normal map display, select
.
1Select , or .
North-up screen
Heading-up screen
3D screen
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on
a scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the footprint
map.
INFORMATION
●If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
●On the footprint map, a one way street is
displayed by .
●Scrolling on the footprint map is not
available while driving.
Building footprints in the database
were created and provided by
NAVTEQ.
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.

187
1. BASIC OPERATION
8
NAVIGATION SYSTEM
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
1Select “Options” on the map screen.
2Select “Map Mode”.
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 188
Select to display the dual
map screen.188
Select to display the com-
pass mode screen.189
Select to display the turn list
screen.219
Select to display the free-
way exit list screen.217
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
218
Select to display the turn-
by-turn arrow screen.219

188
1. BASIC OPERATION
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
Editing right map
1Select any point on the right side map.
2Select the desired item.
When set to on, the indicator will illumi-
nate.
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.186
Select to display POI icons.191
Select to show traffic infor-
mation. 195
Select to change the map
scale.185

189
1. BASIC OPERATION
8
NAVIGATION SYSTEM
■COMPASS
To scroll over the map screen, place the
cursor mark in the desired position and
then press and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
●The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
●When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. (P.211)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ”: Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route”: Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
P.229
Select to return to the current posi-
tion.

190
1. BASIC OPERATION
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.
ADJUSTING LOCATION IN
SMALL INCREMENTS
The cursor location can be adjusted in
small increments when “Adjust Loca-
tion” is selected on the setting map
screen.
Also, when changing the location of
memory points on the editing screen
(P.233) and adjusting the current po-
sition mark manually on the “Calibra-
tion” screen (P.236), 8 directional
arrows may appear for this purpose.
