TOYOTA TACOMA 2014 Owners Manual (in English)

5
When trouble arises
521
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
Vehicles with an automatic transmission: Be careful not to shift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P (vehicles with an automatic transmission) or N
(vehicles with a manual transmission).
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off the VSC. ( P. 202, 203)
Shift the shift lever to D or R (automatic transmission) or 1
or R (manual transmission) and carefully apply the acceler-
ator to free the vehicle.

522 5-2. Steps to take in an emergency
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev up the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

5
When trouble arises
523
5-2. Steps to take in an emergency

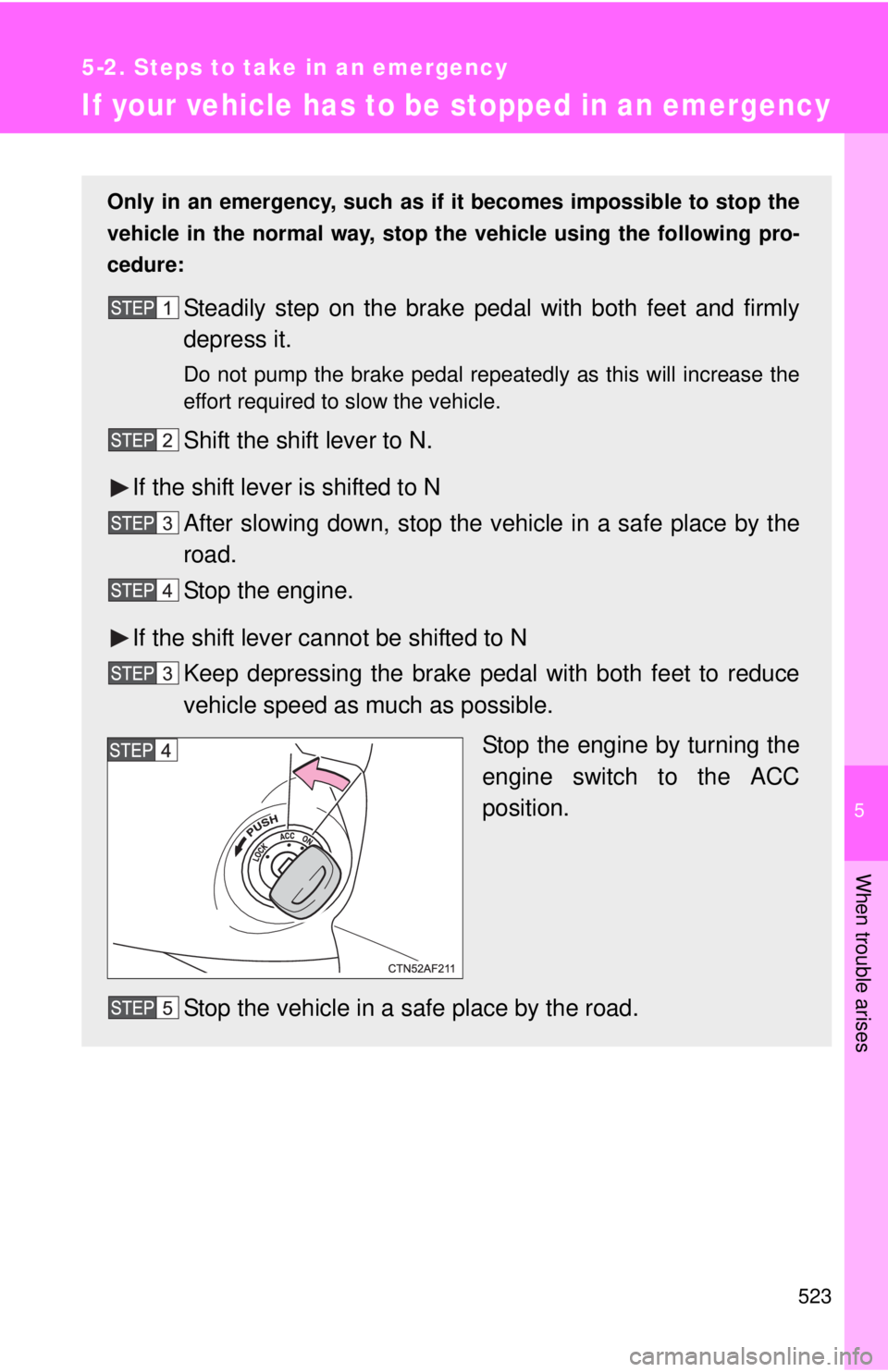

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

524 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

5
When trouble arises
525
5-2. Steps to take in an emergency

Vehicle specifications6
525
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 526
Fuel information ............... 547
Tire information ................ 550
6-2. Customization Customizable features ..... 561
Items to initialize .............. 562

526
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions2WD models except PreRunner
*: Unladen vehicle
4WD models and PreRunner (except Regular Cab models)
*: Unladen vehicle
Cab typeRegular Cab
Access Cab
Double CabExcept
X-RunnerX-Runner
Overall length 190.4 in.
(4835 mm) 208.1 in.
(5285 mm) 208.5 in.
(5295 mm) 208.1 in.
(5285 mm)
Overall width 72.2 in. (1835 mm) 74.0 in.
(1880 mm) 74.6 in.
(1895 mm)
Overall height*65.8 in.
(1670 mm) 66.1 in.
(1680 mm) 65.6 in.
(1665 mm) 66.1 in.
(1680 mm)
Wheelbase 109.6 in.
(2785 mm) 127.4 in. (3235 mm)
Front tread
61.0 in. (1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)
Rear tread 61.0 in. (1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)
Cab typeRegular CabAccess Cab
Overall length 190.4 in. (4835 mm) 208.1 in. (5285 mm)
Overall width 74.6 in. (1895 mm)
Overall height*69.9 in. (1775 mm)70.3 in. (1785 mm)
Wheelbase 109.6 in. (2785 mm) 127.4 in. (3235 mm)
Front tread 63.0 in. (1600 mm)
Rear tread63.4 in. (1610 mm)

527
6-1. Specifications
6
Vehicle specifications
*: Unladen vehicle
Vehicle capacity weight
2WD models except PreRunner
*: Installing accessories in addition to those installed at the factory increases vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeDouble Cab
With short deckWith long deck
Overall length 208.1 in. (5285 mm) 221.3 in. (5620 mm)
Overall width 74.6 in. (1895 mm)
Overall height*
2.7 L 4-cylinder
(2TR-FE) engine70.3 in. (1785 mm)
4.0 L V6
(1GR-FE) engine70.1 in. (1780 mm)
Wheelbase
127.4 in. (3235 mm) 140.6 in. (3570 mm)
Front tread 63.0 in. (1600 mm)
Rear tread63.4 in. (1610 mm)
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1150 lb. (520 kg)
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine1050 lb. (475 kg)
4.0 L V6
(1GR-FE) engine850 lb. (385 kg)
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine950 lb. (430 kg)

528 6-1. Specifications
PreRunner
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
4WD models
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine
Long deck 1300 lb. (585 kg)
4.0 L V6
(1GR-FE) engine
1250 lb. (565 kg)
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine
Short deck 1300 lb. (585 kg)
4.0 L V6
(1GR-FE) engine
1150 lb. (520 kg)
Long deck
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Regular Cab2.7 L 4-cylinder
(2TR-FE) engine
Long deck 1300 lb. (585 kg)
Access Cab2.7 L 4-cylinder
(2TR-FE) engine 1200 lb. (540 kg)
4.0 L V6
(1GR-FE) engine 1140 lb. (515 kg)
Double Cab
4.0 L V6
(1GR-FE) engineShort deck 1040 lb. (470 kg)
Long deck

529
6-1. Specifications
6
Vehicle specifications
TWR (Trailer Weight Rating)
Regular Cab models
Access Cab models
Model code*1EngineDriving
systemTWR
TRN220L-TRMDKA
2.7 L 4-cylinder
(2TR-FE) engine
2WD 3500 lb. (1585 kg)
TRN220L-TRPDKA
TRN240L-TRMDKA
4WD
TRN240L-TRPDKA
Model code*1EngineDriving
systemTWR
TRN225L-CRMDKA
2.7 L 4-cylinder
(2TR-FE) engine
2WD
3500 lb. (1585 kg)
TRN225L-CRPDKA
TRN245L-CRMDKA
4WD
TRN245L-CRPDKA
TRN265L-CRPDKA
2WD
GRN225L-CRFDKA
4.0 L V6 (1GR-FE)
engine 3300 lb. (1495 kg)
GRN245L-CRADKA4WD 3500 lb. (1585 kg)
*2
6500 lb. (2945 kg)*3
GRN245L-CRFDKA
3500 lb. (1585 kg)*2
6500 lb. (2945 kg)*3
GRN265L-CRADKA2WD3500 lb. (1585 kg)*2
6500 lb. (2945 kg)*3
