TOYOTA TACOMA 2015 Accessories, Audio & Navigation (in English)

181
3. WHAT TO DO IF...
PHONE
7

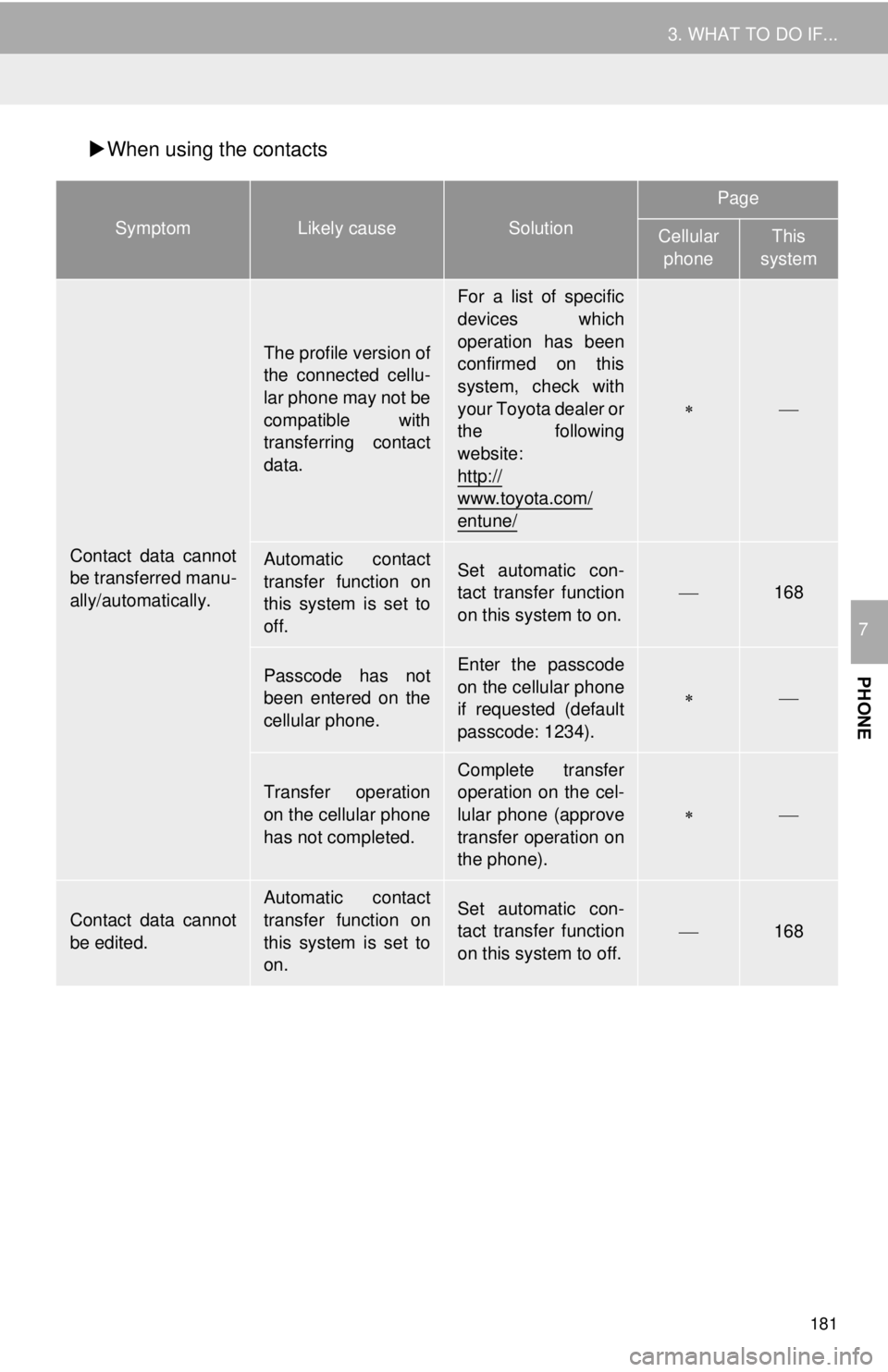

When using the contacts
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Contact data cannot
be transferred manu-
ally/automatically.
The profile version of
the connected cellu-
lar phone may not be
compatible with
transferring contact
data.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following
website:
http://
www.toyota.com/
entune/

Automatic contact
transfer function on
this system is set to
off.Set automatic con-
tact transfer function
on this system to on.168
Passcode has not
been entered on the
cellular phone.Enter the passcode
on the cellular phone
if requested (default
passcode: 1234).

Transfer operation
on the cellular phone
has not completed.
Complete transfer
operation on the cel-
lular phone (approve
transfer operation on
the phone).

Contact data cannot
be edited.
Automatic contact
transfer function on
this system is set to
on.Set automatic con-
tact transfer function
on this system to off.168

182
3. WHAT TO DO IF...

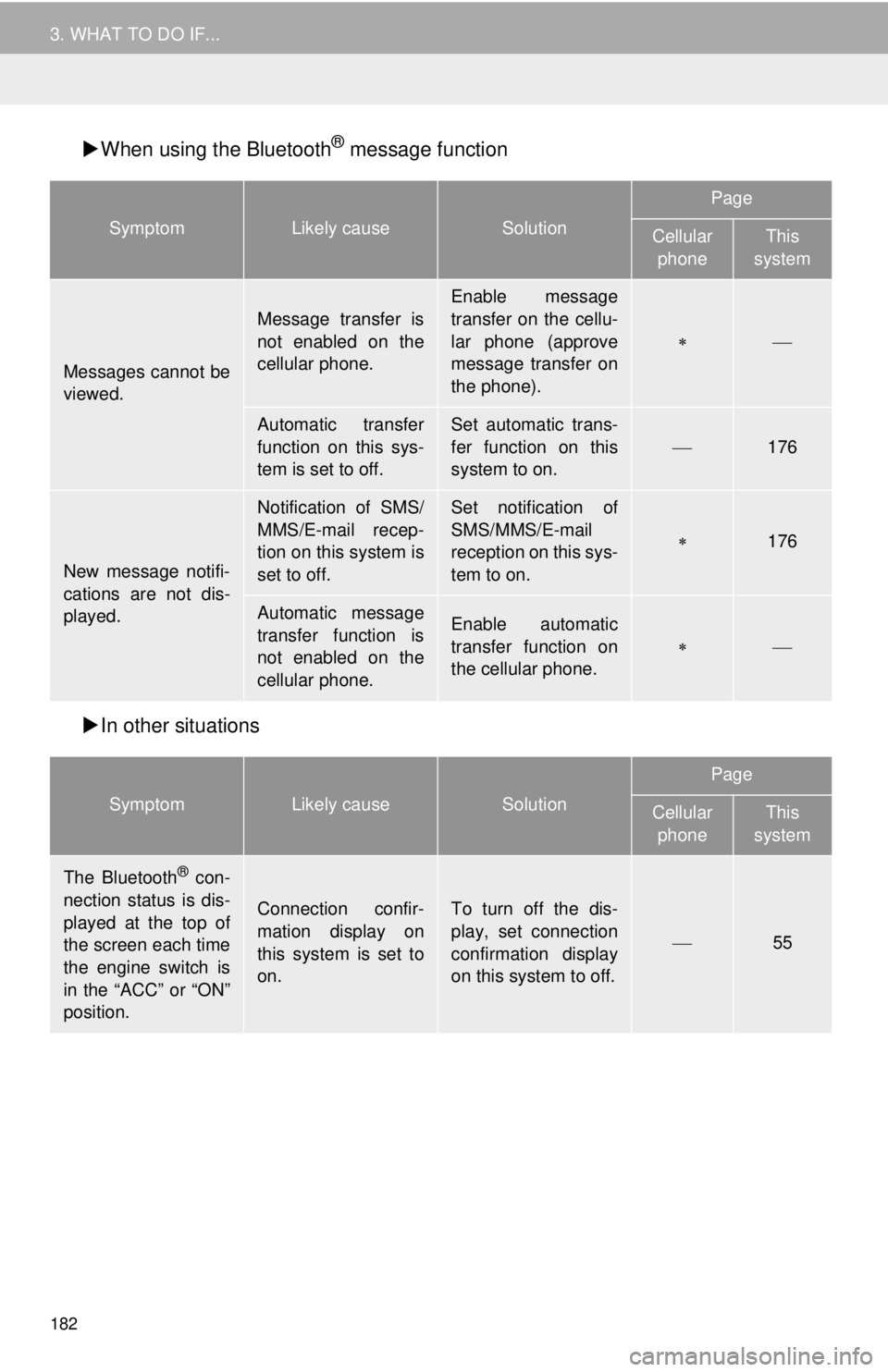

When using the Bluetooth® message function
 In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.
176
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
176
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.

SymptomLikely causeSolution
Page
Cellular phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is
in the “ACC” or “ON”
position.
Connection confir-
mation display on
this system is set to
on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
55

183
3. WHAT TO DO IF...
PHONE
7
: For details, refer to the owner’s manual that came with the cellular phone.

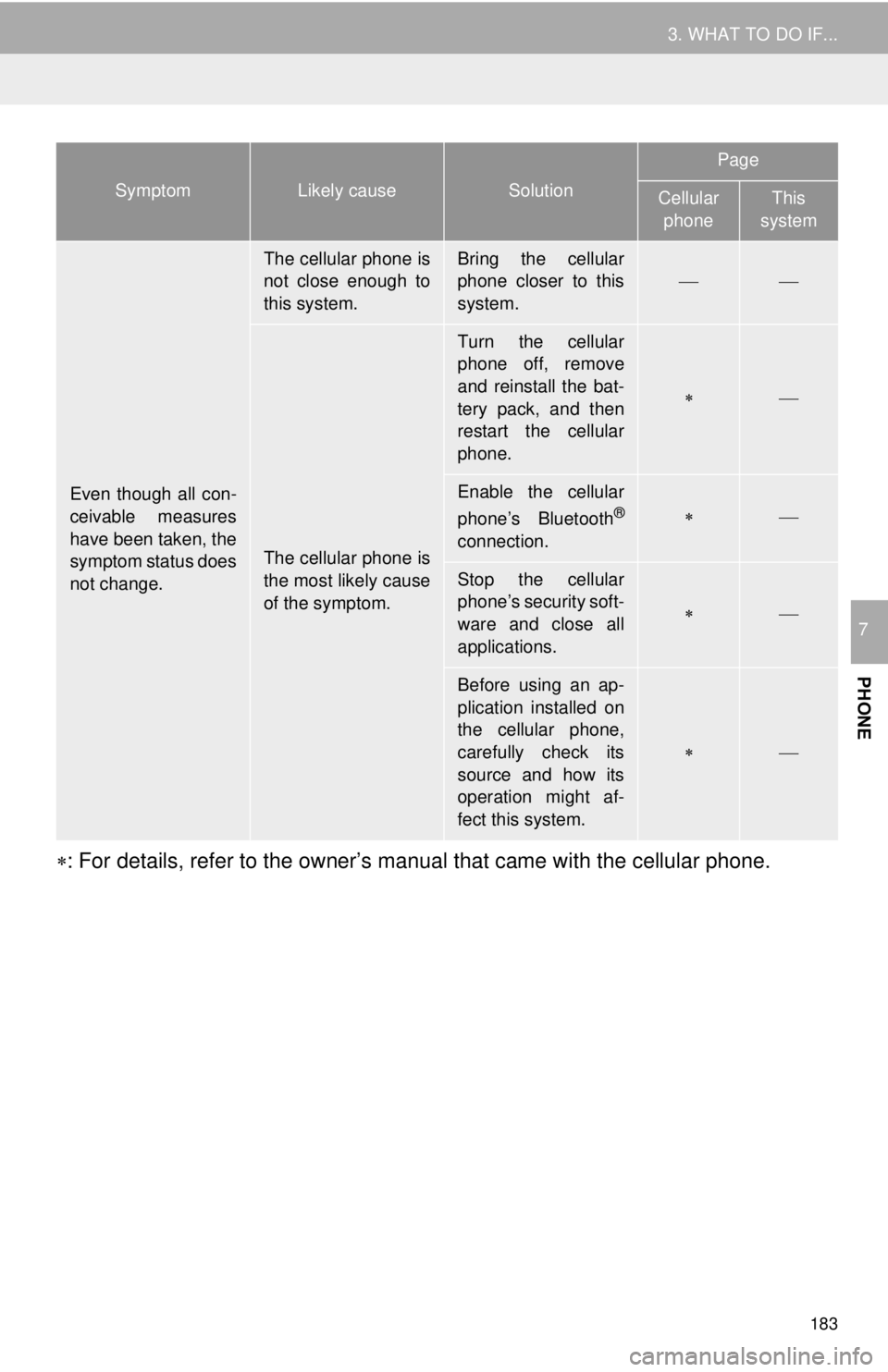

Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone is
not close enough to
this system.Bring the cellular
phone closer to this
system.

The cellular phone is
the most likely cause
of the symptom.
Turn the cellular
phone off, remove
and reinstall the bat-
tery pack, and then
restart the cellular
phone.

Enable the cellular
phone’s Bluetooth®
connection.

Stop the cellular
phone’s security soft-
ware and close all
applications.

Before using an ap-
plication installed on
the cellular phone,
carefully check its
source and how its
operation might af-
fect this system.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

184

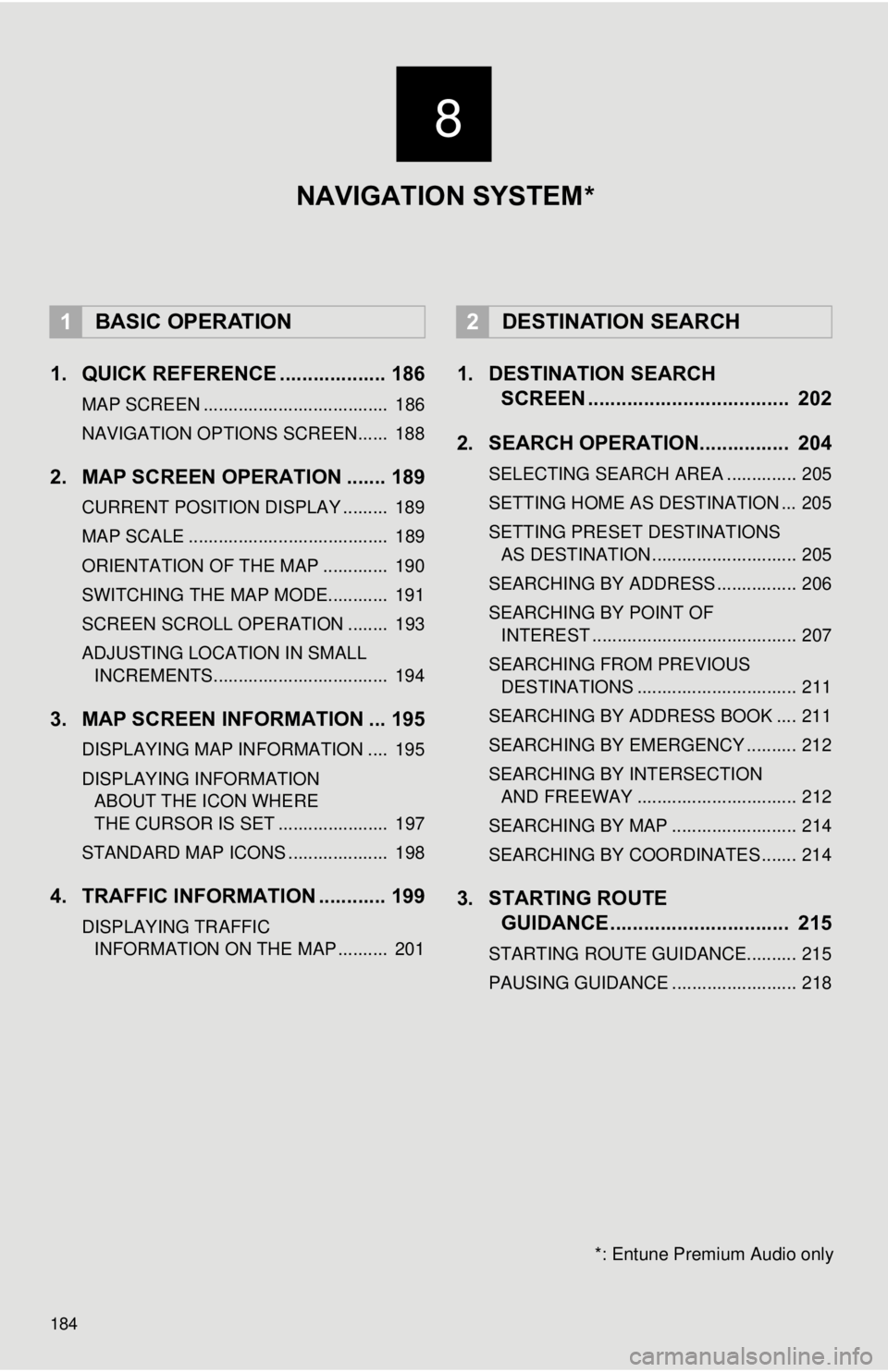

1. QUICK REFERENCE ................... 186
MAP SCREEN ..................................... 186
NAVIGATION OPTIONS SCREEN...... 188
2. MAP SCREEN OPERATION ....... 189
CURRENT POSITION DISPLAY ......... 189
MAP SCALE ........................................ 189
ORIENTATION OF THE MAP ............. 190
SWITCHING THE MAP MODE............ 191
SCREEN SCROLL OPERATION ........ 193
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 194
3. MAP SCREEN INFORMATION ... 195
DISPLAYING MAP INFORMATION .... 195
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 197
STANDARD MAP ICONS .................... 198
4. TRAFFIC INFORMATION ............ 199
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 201
1. DESTINATION SEARCH SCREEN .................................... 202
2. SEARCH OPERATION.. .............. 204
SELECTING SEARCH AREA .............. 205
SETTING HOME AS DESTINATION ... 205
SETTING PRESET DESTINATIONS
AS DESTINATION ............................. 205
SEARCHING BY ADDRESS ................ 206
SEARCHING BY POINT OF INTEREST ......................................... 207
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 211
SEARCHING BY ADDRESS BOOK .... 211
SEARCHING BY EMERGENCY .......... 212
SEARCHING BY INTERSECTION AND FREEWAY ................................ 212
SEARCHING BY MAP ......................... 214
SEARCHING BY COORDINATES ....... 214
3. STARTING ROUTE GUIDANCE ....... ......................... 215
STARTING ROUTE GUIDANCE.......... 215
PAUSING GUIDANCE ......................... 218
1BASIC OPERATION2DESTINATION SEARCH
NAVIGATION SYSTEM
*: Entune Premium Audio only
*

185
1
2
3
4
5
6
7
8
9

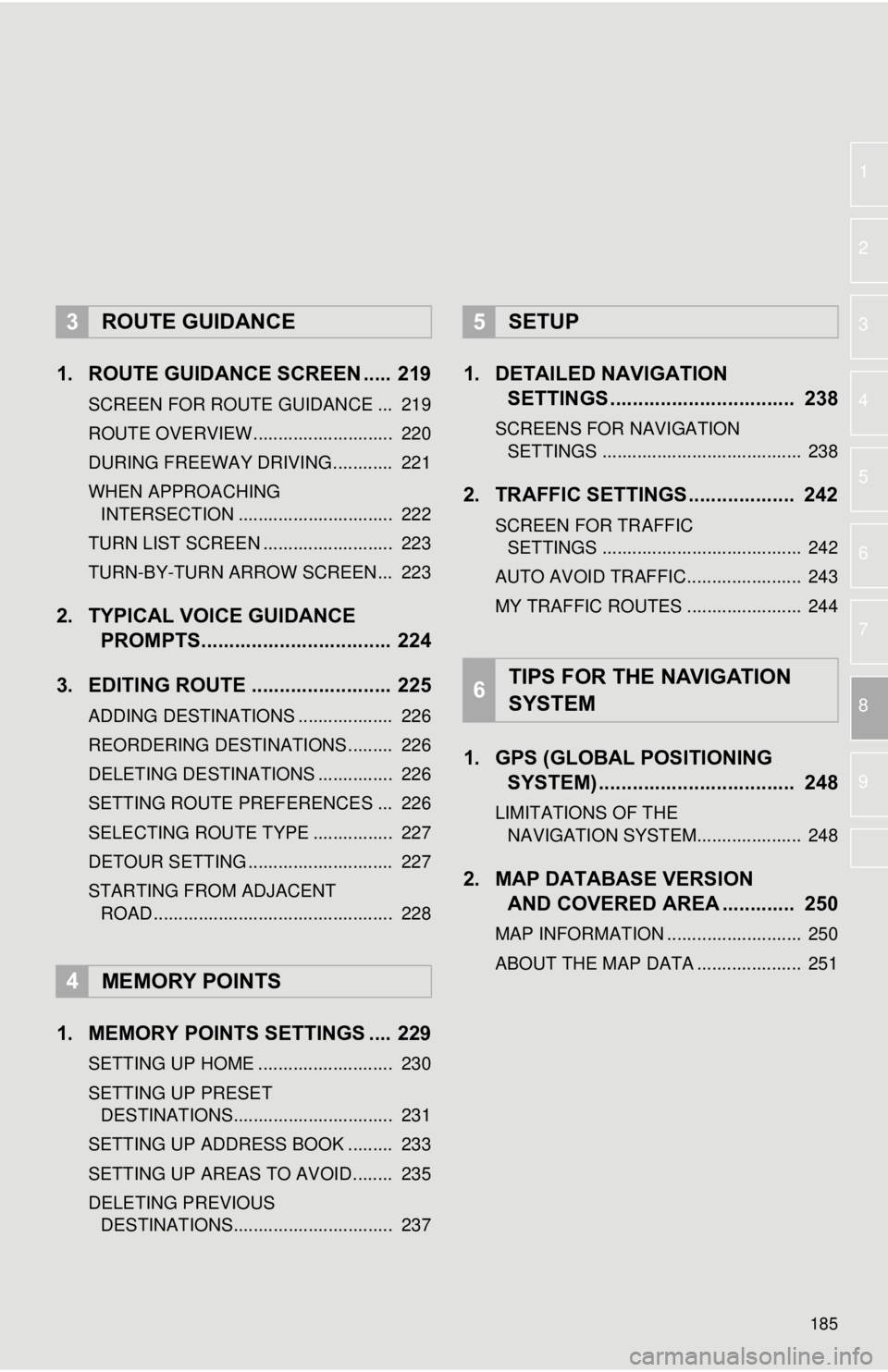

1. ROUTE GUIDANCE SCREEN ..... 219
SCREEN FOR ROUTE GUIDANCE ... 219
ROUTE OVERVIEW............................ 220
DURING FREEWAY DRIVING............ 221
WHEN APPROACHING INTERSECTION ............................... 222
TURN LIST SCREEN .......................... 223
TURN-BY-TURN ARROW SCREEN ... 223
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 224
3. EDITING ROUTE ......................... 225
ADDING DESTINATIONS ................... 226
REORDERING DESTINATIONS ......... 226
DELETING DESTINATIONS ............... 226
SETTING ROUTE PREFERENCES ... 226
SELECTING ROUTE TYPE ................ 227
DETOUR SETTING ............................. 227
STARTING FROM ADJACENT ROAD ................................................ 228
1. MEMORY POINTS SETTINGS .... 229
SETTING UP HOME ........................... 230
SETTING UP PRESET DESTINATIONS................................ 231
SETTING UP ADDRESS BOOK ......... 233
SETTING UP AREAS TO AVOID ........ 235
DELETING PREVIOUS DESTINATIONS................................ 237
1. DETAILED NAVIGATION SETTINGS ................................. 238
SCREENS FOR NAVIGATION
SETTINGS ........................................ 238
2. TRAFFIC SETTINGS................... 242
SCREEN FOR TRAFFIC SETTINGS ........................................ 242
AUTO AVOID TRAFFIC....................... 243
MY TRAFFIC ROUTES ....................... 244
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 248
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 248
2. MAP DATABASE VERSION AND COVERED AREA ............. 250
MAP INFORMATION ........................... 250
ABOUT THE MAP DATA ..................... 251
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM

186
1. BASIC OPERATION

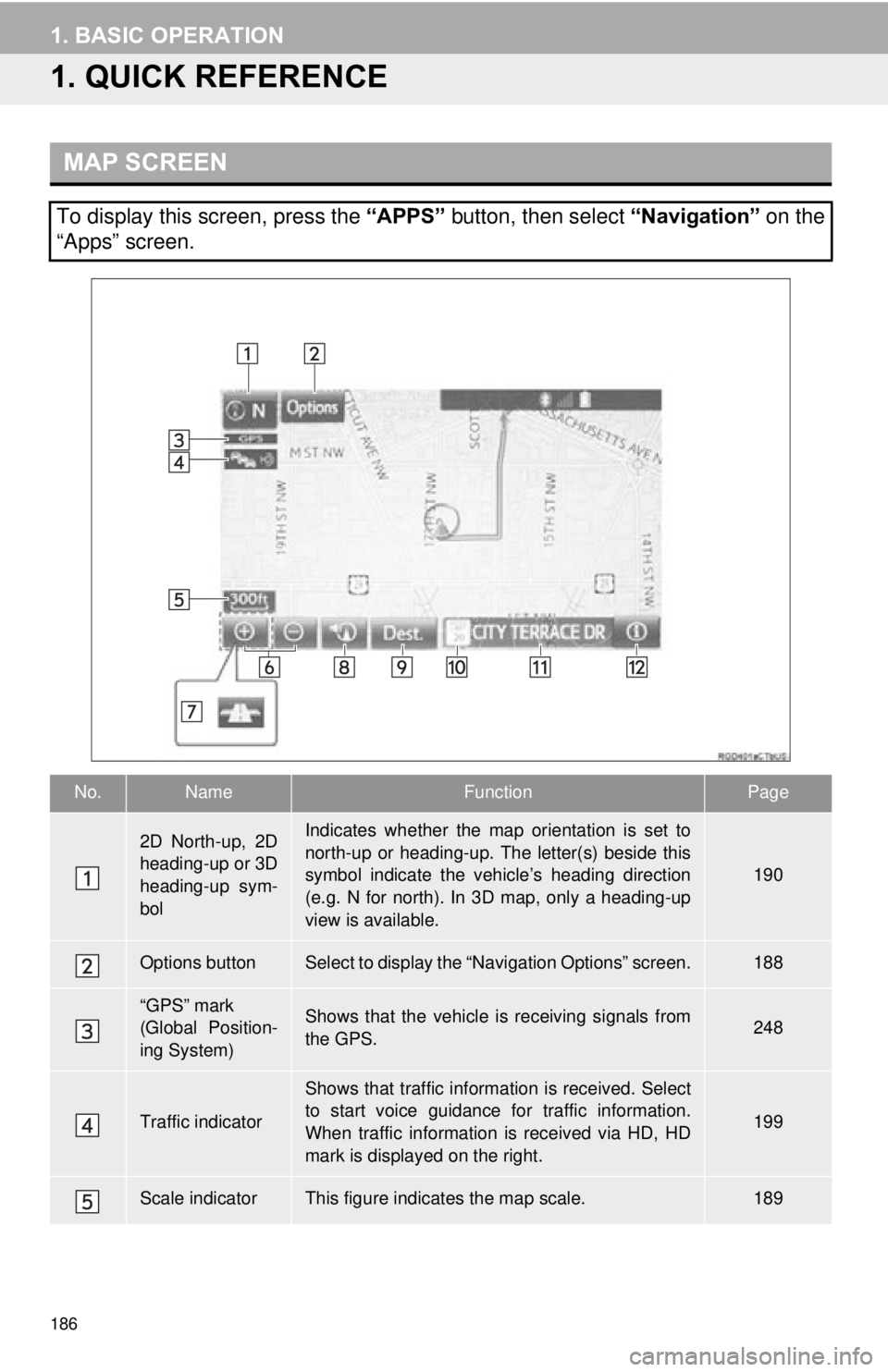

1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
190
Options buttonSelect to display the “Navigation Options” screen.188
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.248
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
199
Scale indicatorThis figure indicates the map scale.189

187
1. BASIC OPERATION
NAVIGATION SYSTEM
8

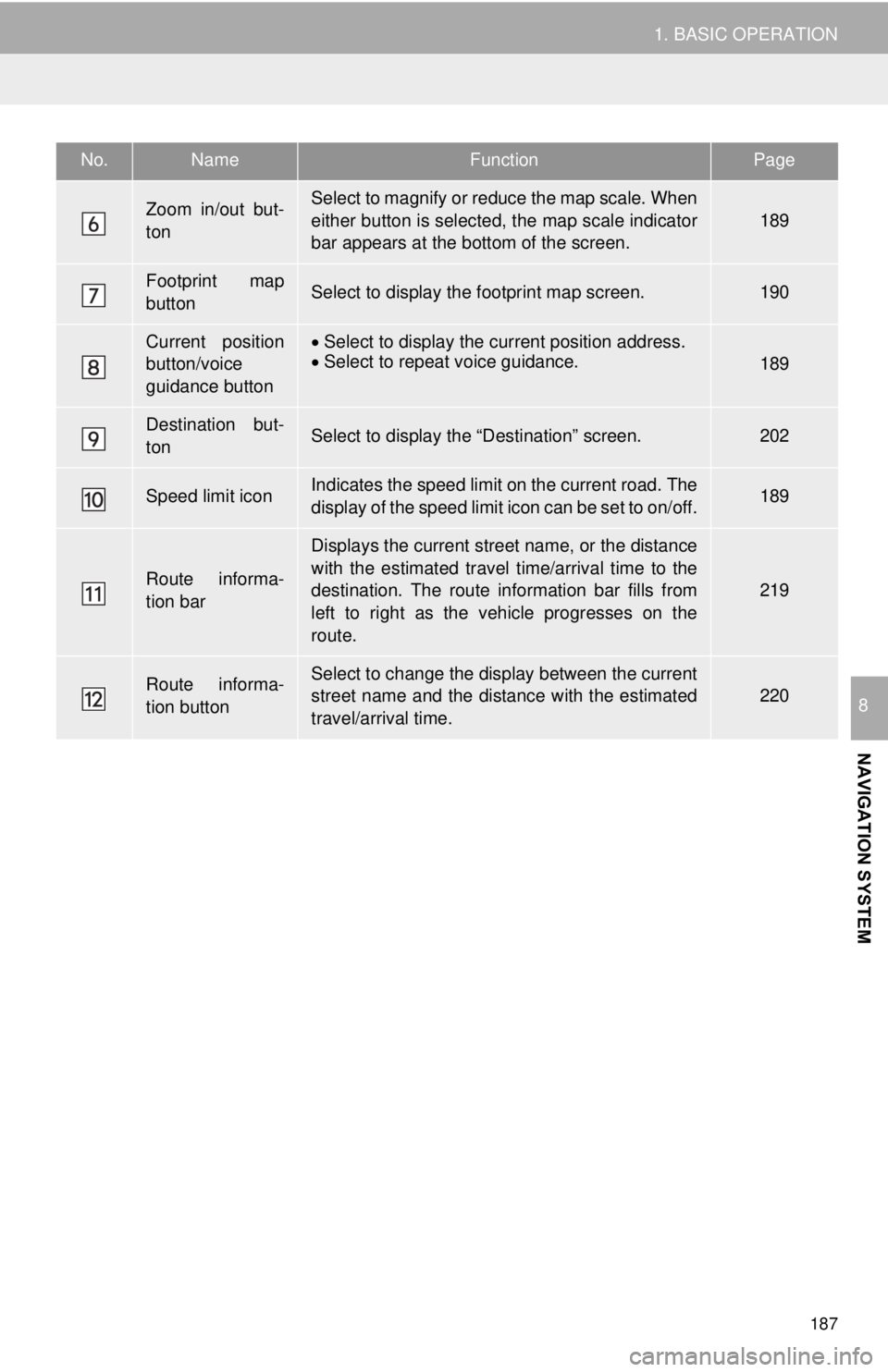

Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
189
Footprint map
buttonSelect to display the footprint map screen.190
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.189
Destination but-
tonSelect to display the “Destination” screen.202
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.189
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
219
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.220
No.NameFunctionPage

188
1. BASIC OPERATION

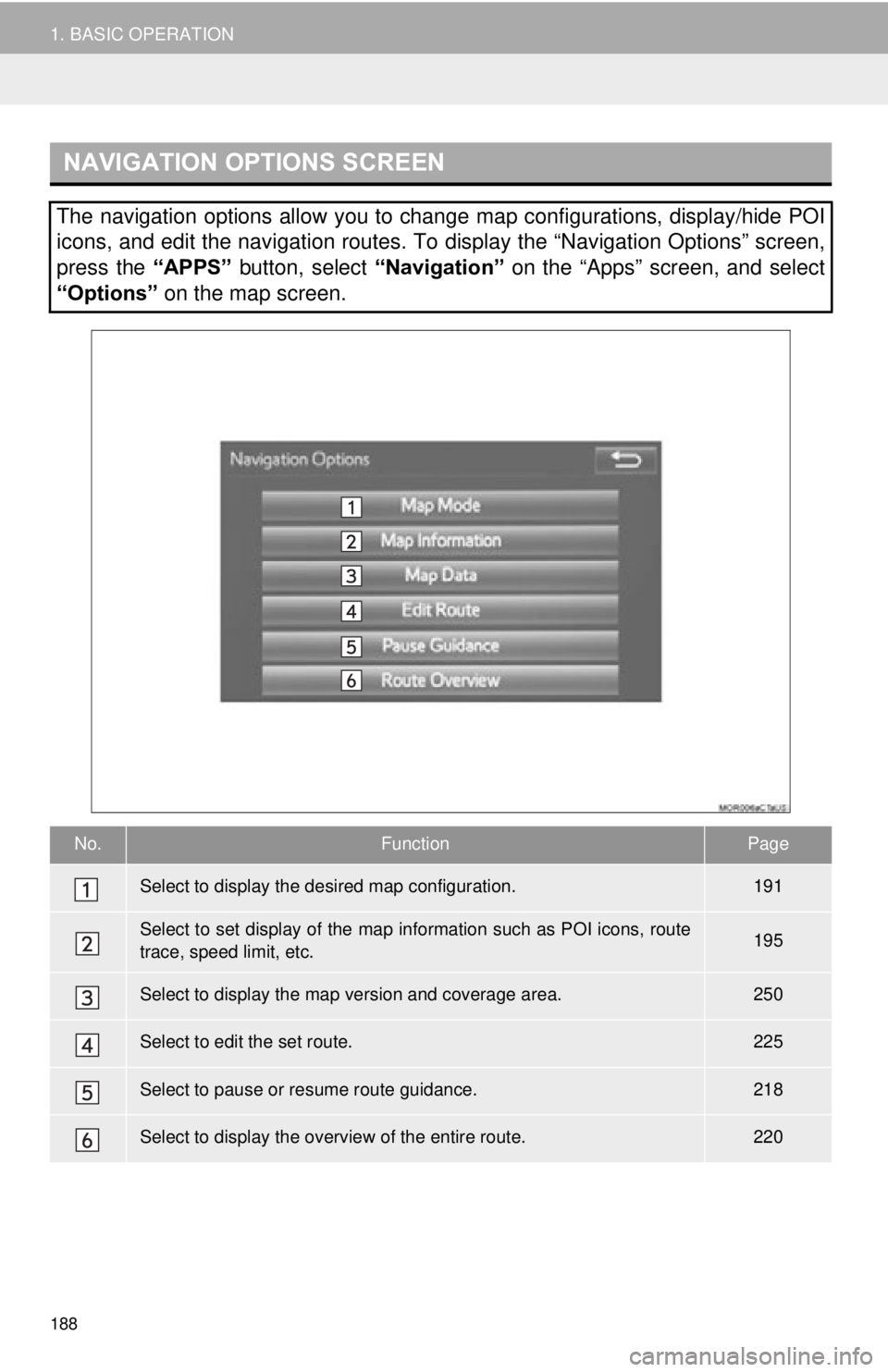

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to display the desired map configuration.191
Select to set display of the map information such as POI icons, route
trace, speed limit, etc.195
Select to display the map version and coverage area.250
Select to edit the set route.225
Select to pause or resume route guidance.218
Select to display the overview of the entire route.220

189
1. BASIC OPERATION
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 4 0
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
● In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

190
1. BASIC OPERATION
1Select on the map screen.
2Check that the footprint map is dis-
played.
To return to the normal map display, select
.
1Select , or .
 North-up screen
 Heading-up screen
 3D screen
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on
a scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the footprint
map.
INFORMATION
● If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
● On the footprint map, a one way street is
displayed by .
● Scrolling on the footprint map is not
available while driving.
Building footprints in the database
were created and provided by
NAVTEQ.
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
