TOYOTA TACOMA 2015 Owners Manual (in English)

211
2-5. Driving information
2
When driving
■
Snow chain installation
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
● Install tire chains on the rear tires only. Do not install tire chains on the
front tires.
● Install tire chains following the instructions provided in the accompanying
instructions.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified for your vehicle.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h) regardless of the type of
snow tires being used.
● Snow tires should be installed on all wheels.
● 4WD models:
Do not mix tires of different makes, models, tread patterns or treadwear.
■ Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden turns and braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

212 2-5. Driving information
CAUTION
■When parking the vehicle
Always use wheel blocks when parking without the parking brake. Failure to
do so may allow the vehicle to move, resulting in an accident.
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Toyota dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly\
when tire chains are fitted.

213
2-5. Driving information
2
When driving

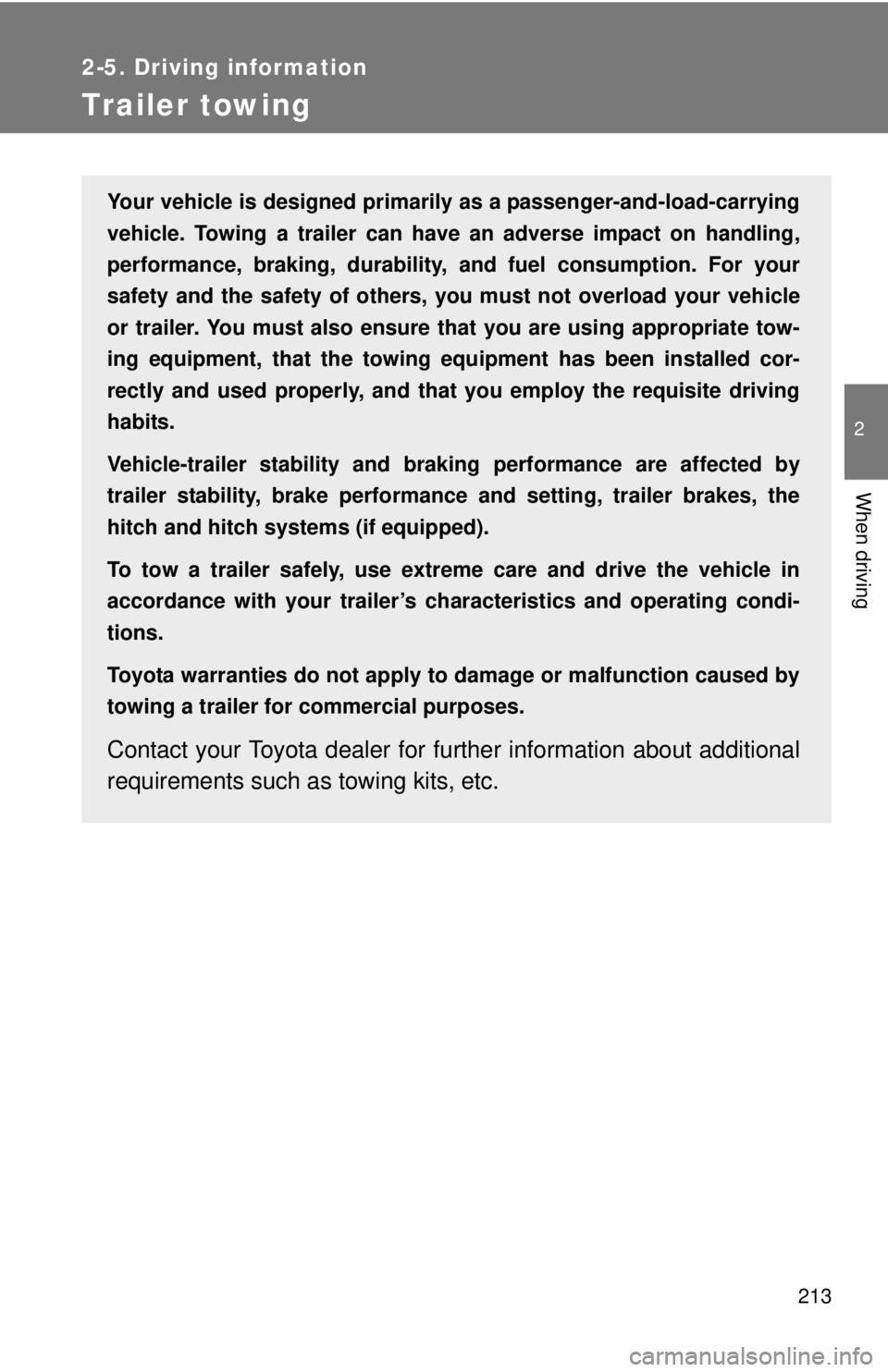

Trailer towing
Your vehicle is designed primarily as a passenger-and-load-carrying
vehicle. Towing a trailer can have an adverse impact on handling,
performance, braking, durability, and fuel consumption. For your
safety and the safety of others, yo u must not overload your vehicle
or trailer. You must also ensure that you are using appropriate tow-
ing equipment, that the towing eq uipment has been installed cor-
rectly and used properly, and that you employ the requisite driving
habits.
Vehicle-trailer stability and braki ng performance are affected by
trailer stability, brake performance and setting, trailer brakes, the
hitch and hitch systems (if equipped).
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with your trailer’s characteristics and operating condi-
tions.
Toyota warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Contact your Toyota dealer for fu rther information about additional
requirements such as towing kits, etc.

214 2-5. Driving information
Towing related terms■ GCWR (Gross Combination Weight Rating)
The maximum allowable gross
combination weight. The gross
combination weight is the sum of
the total vehicle weight (including
the occupants, cargo and any
optional equipment installed on
the vehicle) and the weight of the
trailer being towed (including the
cargo in the trailer).
■ GVWR (Gross Vehi cle Weight Rating)
The maximum allowable gross
vehicle weight. The gross vehicle
weight is the total weight of the
vehicle. When towing a trailer, it
is the sum of the vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
tongue weight.

215
2-5. Driving information
2
When driving
■
GAWR (Gross Axle Weight Rating)
The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).
■ TWR (Trailer Weight Rating)
The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the
cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver, one
front passenger, towing package
(if available), hitch and hitch sys-
tems (if required).
Additional optional equipment,
passengers and cargo in the vehi-
cle will reduce the trailer weight
rating so as not to exceed
GCWR, GVWR and GAWR.
If the gross trailer weight exceeds
3000 lb. (1360 kg), it is recom-
mended to use a trailer with 2 or
more axles.
Front GAWR
Rear GAWR
(With brakes)

216 2-5. Driving information
■Unbraked TWR (Unbraked Trailer Weight Rating)
The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.
■ Tongue Weight
The load placed on the trailer
hitch ball. (P. 221)
(Without brakes)

217
2-5. Driving information
2
When driving
Weight limits
● The gross trailer weight must never exceed the TWR described in
the table. ( P. 218, 519)
● The gross combination weight must never exceed the GCWR
described in the table. ( P. 218)
Access Cab models
●The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification
Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certi-
fication Label.
Double Cab models
● If the gross trailer weight is over the unbraked TWR, trailer service
brakes are required.
● If the gross trailer weight is over 2000 lb. (905 kg), a sway control
device with sufficient capacity is required.
● If the gross trailer weight is over 5000 lb. (2265 kg), a weight dis-
tributing hitch with sufficient capacity is required.

218 2-5. Driving information
GCWR, TWR, Unbraked TWR, Fifth wheel and Gooseneck towing TWR
Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.
■GCWR
* and TWR*
Access Cab models
*: These models meet the tow-vehicle trailering requirement of SAE
International per SAE J2807.
Model code*1EngineDriving
systemGCWRTWR
TRN225L- CRMDKA
2.7 L
4-cylinder (2TR-FE) engine 2WD
7440 lb.
(3370 kg)
3500 lb.
(1585 kg)
TRN225L-
CRPDKA 7470 lb.
(3385 kg)
TRN245L- CRMDKA 4WD7860 lb.
(3565 kg)
TRN245L- CRPDKA 7880 lb.
(3570 kg)
TRN265L- CRPDKA 2WD7640 lb.
(3465 kg)
GRN225L- CRFDKA
4.0 L V6
(1GR-FE) engine 7460 lb.
(3380 kg) 3300 lb.
(1495 kg)
GRN245L- CRADKA
4WD7970 lb.
(3615 kg)
*23500 lb.
(1585 kg)
*2
11100 lb.
(5030 kg)
*36500 lb.
(2945 kg)
*3
GRN245L- CRFDKA 7930 lb.
(3595 kg)*23500 lb.
(1585 kg)
*2
11070 lb.
(5020 kg)
*36500 lb.
(2945 kg)
*3
GRN265L- CRADKA 2WD7730 lb.
(3505 kg)*23500 lb.
(1585 kg)
*2
10860 lb.
(4925 kg)
*36500 lb.
(2945 kg)
*3

219
2-5. Driving information
2
When driving
Double Cab models
Model code*1EngineDriving
systemGCWRTWR
TRN225L- PRPDKA 2.7 L
4-cylinder (2TR-FE) engine 2WD7450 lb.
(3375 kg) 3400 lb.
(1540 kg)
TRN265L- PRPDKA 7720 lb.
(3500 kg) 3500 lb.
(1585 kg)
GRN245L- PRADKA
4.0 L V6
(1GR-FE) engine 4WD8050 lb.
(3650 kg)
*23500 lb.
(1585 kg)
*2
11180 lb.
(5070 kg)
*36500 lb.
(2945 kg)
*3
GRN245L- PRFDKA 8020 lb.
(3635 kg)*23500 lb.
(1585 kg)
*2
11160 lb.
(5060 kg)
*36500 lb.
(2945 kg)
*3
GRN250L- PRADKA 8010 lb.
(3630 kg)*23400 lb.
(1540 kg)
*2
10960 lb.
(4970 kg)
*36200 lb.
(2810 kg)
*3

220 2-5. Driving information
*1: The model code is indicated on the Certification Label. (P. 217521)
*2: Without towing package
*3: With towing package
■Unbraked TWR*
1000 lb. (450 kg)
■ Fifth wheel and gooseneck towing TWR
*
Toyota does not recommend fifth wheel and gooseneck towing.
GRN265L-
PRADKA 4.0 L V6
(1GR-FE) engine 2WD7810 lb.
(3540 kg)*23500 lb.
(1585 kg)
*2
10950 lb.
(4965 kg)
*36500 lb.
(2945 kg)
*3
GRN270L- PRADKA 7900 lb.
(3580 kg)*23500 lb.
(1585 kg)
*2
11030 lb.
(5000 kg)
*36500 lb.
(2945 kg)
*3
*: These models meet the tow-vehicle trailering requirement of SAE International per SAE J2807.
Model code*1EngineDriving
systemGCWRTWR
