TOYOTA TACOMA 2015 Owners Manual (in English)

331
3-2. Using the multimedia system
3
Interior and exterior features
■
Phone Display Settings
Display the “Phone/Message Settings” screen. ( P. 320)
Select “Phone Display Settings”.
Select the desired item to be set.
Change the incoming call dis-
play.
“Full Screen”: When a call is
received, the hands-free screen
is displayed and can be operated
on the screen.
“Drop-Down”: A message is dis-
played on the upper side of the
screen.
Set display of the contact/his-
tory transfer completion mes-
sage on/off.

332 3-2. Using the multimedia system
Voice command systemThe voice command system enables the hands-free system to be
operated using voice commands.
Operations of the voice comm and system can be performed by
selecting the menu corresponding to each function on the screen.
Even if any menu is selected, commands displayed on all menus can
be operated.
■ Using the voice command system
Press the talk switch.
To cancel the voice command
system, press and hold the talk
switch.
After a beep sounds, say the desired command.
On the list screen, you can select the desired command.
■Microphone
P. 306
■ When using the microphone
●It is unnecessary to speak directly into the microphone when giving a
command.
● It is not necessary to wait for the confirmation beep before speaking a
command.

333
3-2. Using the multimedia system
3
Interior and exterior features
■
Casual speech recognization
Due to natural language speech reco gnition technology, this system
enables recognition of a command when spoken naturally. However,
the system cannot recognize every variation of each command.
In some situations, it is possible to omit the command for the proce-
dure and directly state the desired operation.
Not all voice commands are displayed in the short cut menu.
This function is available in English, Spanish and French.
● Expression examples for each function
●Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
● In the following conditions, the system may not recognize the command
properly and using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents
or speech patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise.
CommandExpression examples
“Call
”Get me .
I need to call at right away.
“Dial ”Please dial the number <3334445555>.
Ring <3334445555>.

334
3-2. Using the multimedia system

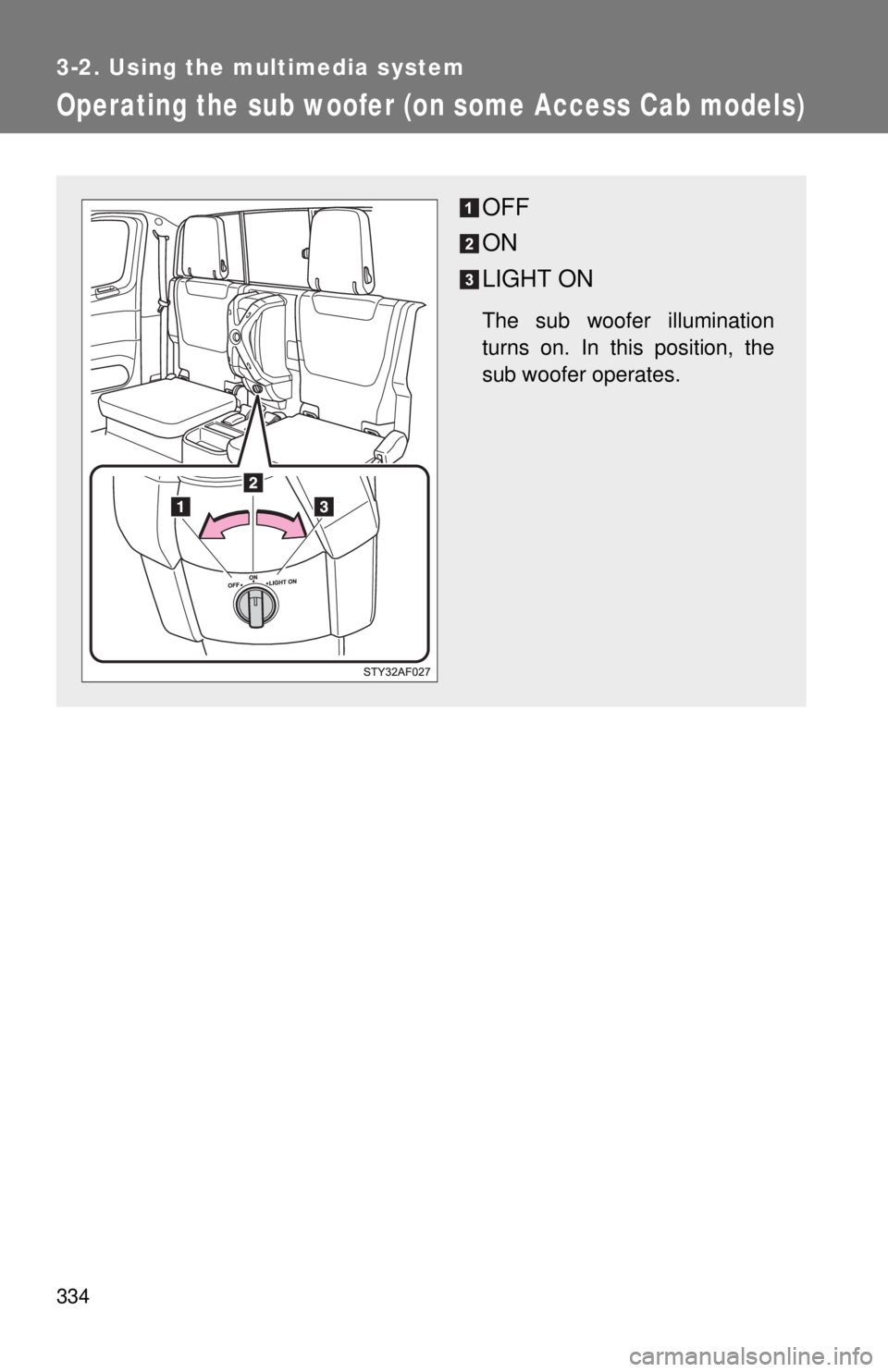

Operating the sub woofer (on some Access Cab models)
OFF
ON
LIGHT ON
The sub woofer illumination
turns on. In this position, the
sub woofer operates.

335
3-2. Using the multimedia system
3
Interior and exterior features

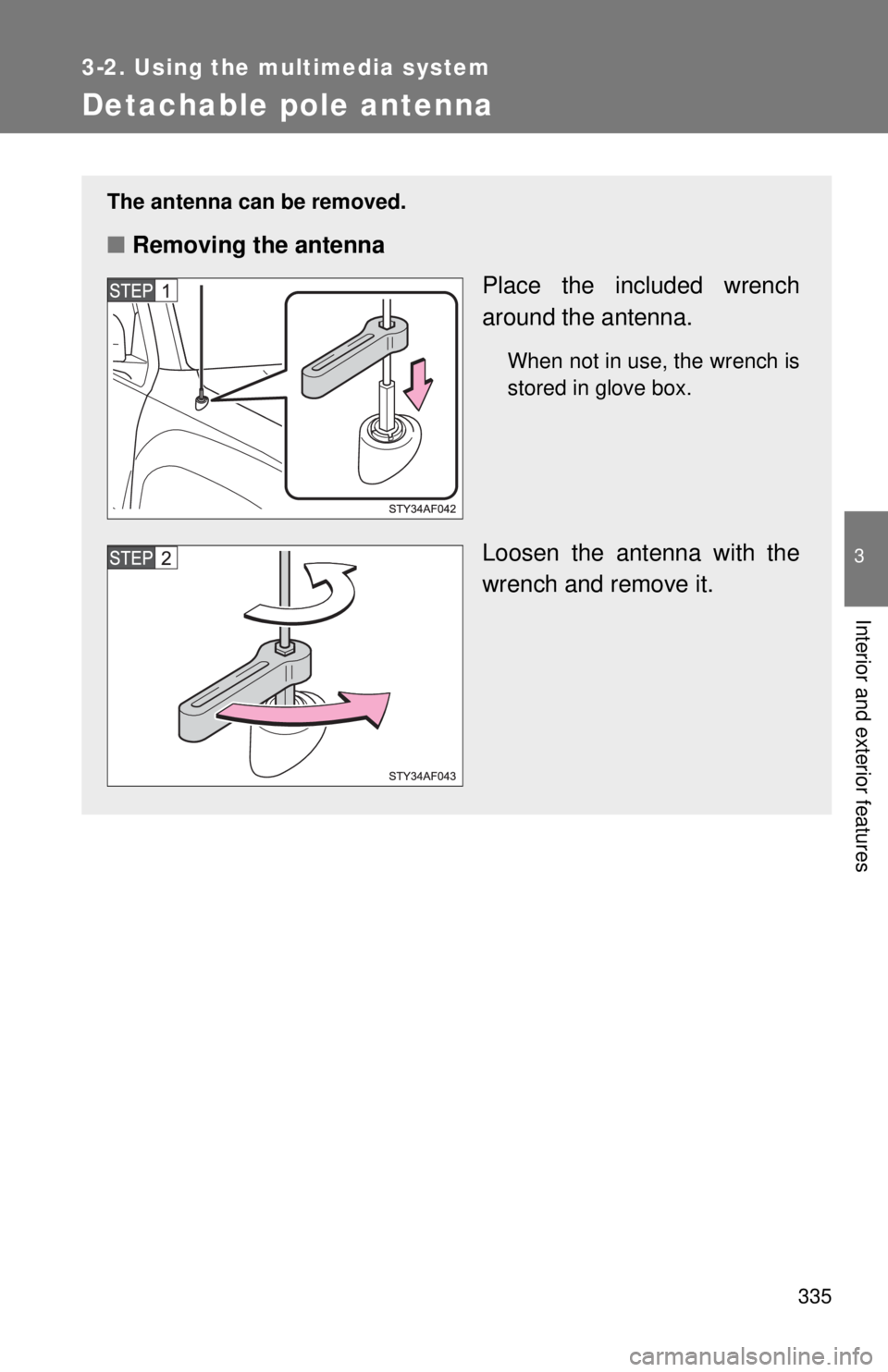

Detachable pole antenna
The antenna can be removed.
■Removing the antenna
Place the included wrench
around the antenna.
When not in use, the wrench is
stored in glove box.

Loosen the antenna with the
wrench and remove it.

336 3-2. Using the multimedia system
■About the wrench
●A standard 5/16 in. (8 mm) wrench can also be used to install or remove
the antenna.
● After using the included wrench, store it in the glove box for safekeeping.

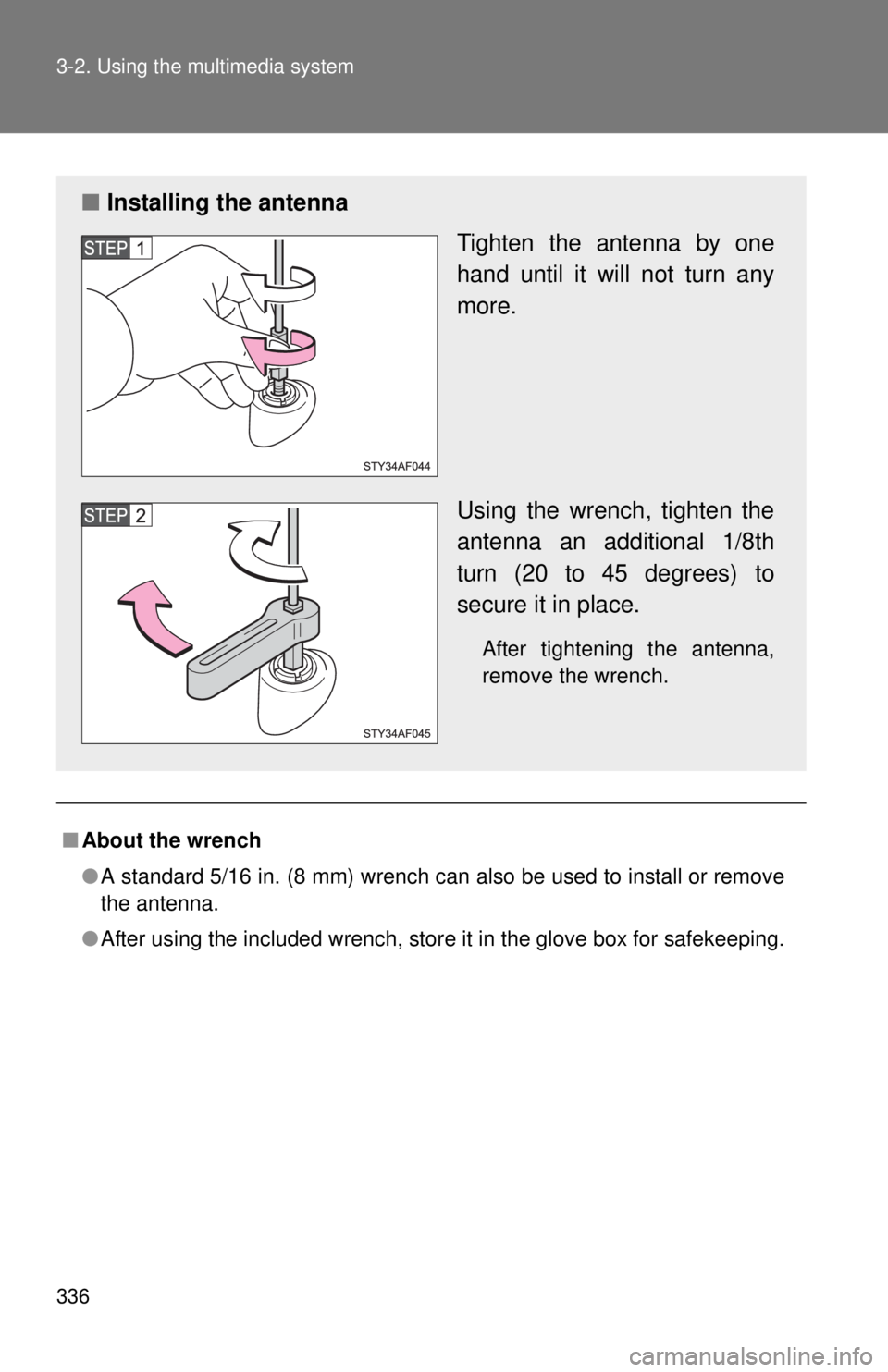

■ Installing the antenna
Tighten the antenna by one
hand until it will not turn any
more.
Using the wrench, tighten the
antenna an additional 1/8th
turn (20 to 45 degrees) to
secure it in place.
After tightening the antenna,
remove the wrench.

337
3-2. Using the multimedia system
3
Interior and exterior features
NOTICE
■
To avoid damaging the antenna
Remove the antenna in the following situations.
●When using an automatic carwash.
● When the antenna will touch the ceiling of a garage, etc.
● When covering the vehicle with a car cover.
■ Removing the antenna
●For normal driving, make sure the antenna is installed.
● When removing the antenna to use an automatic carwash, etc., be careful
not to lose the antenna. Also, make sure to reinstall the antenna before
driving the vehicle.
■ Using the wrench
●When installing or removing the antenna, use the included wrench or a
standard 5/16 in. (8 mm) wrench.
● Be careful not to scratch or damage the vehicle body with the wrench.
● Do not over-tighten the antenna.
Over-tightening may damage the antenna.
● Do not use pliers to install or remove the antenna.
Pliers may damage the antenna’s finish.

338
3-3. Using the interior lights

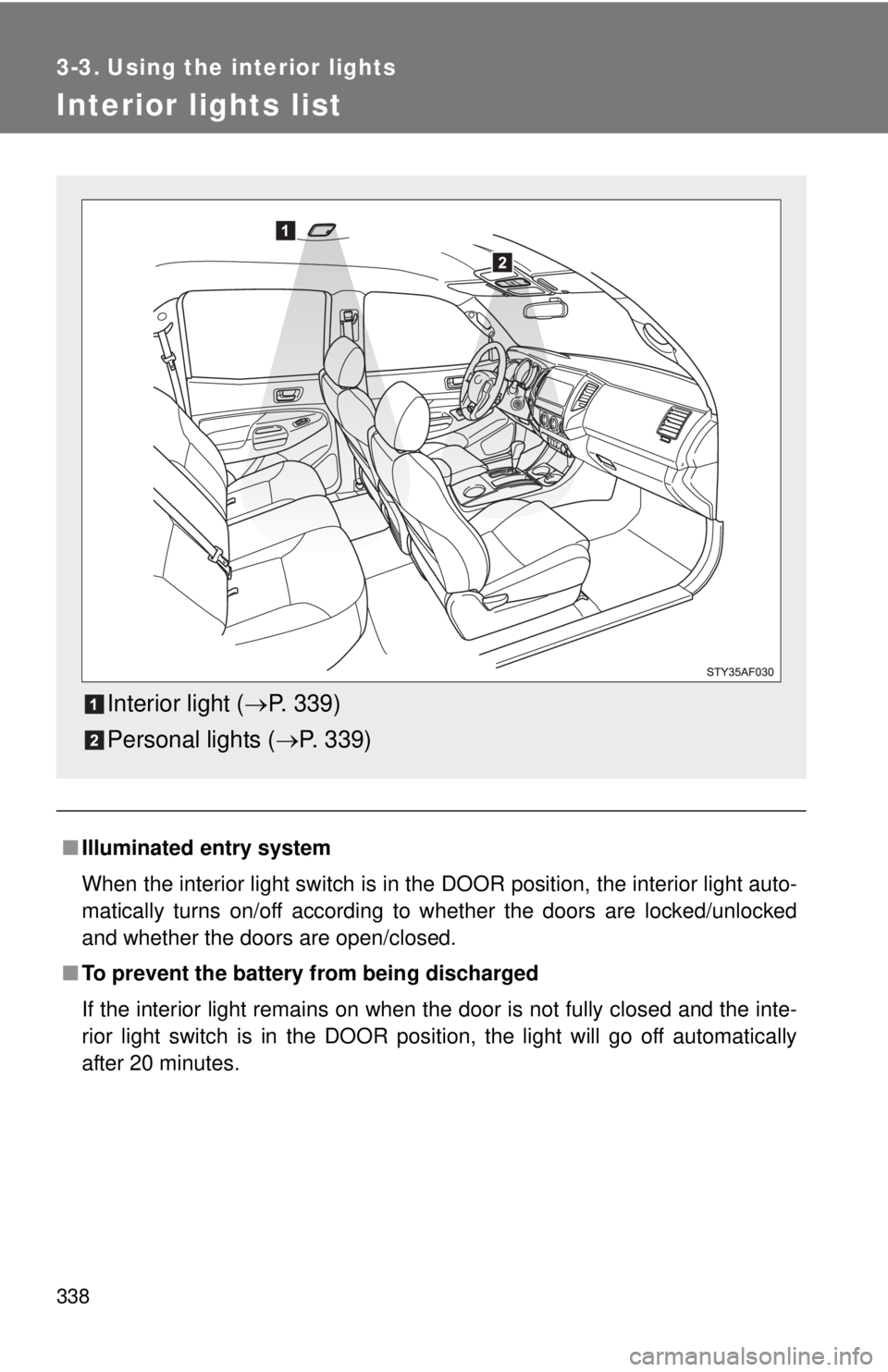

Interior lights list
■Illuminated entry system
When the interior light switch is in the DOOR position, the interior light auto-
matically turns on/off according to whether the doors are locked/unlocked
and whether the doors are open/closed.
■ To prevent the battery from being discharged
If the interior light remains on when the door is not fully closed and the inte-
rior light switch is in the DOOR position, the light will go off automatically
after 20 minutes.
Interior light ( P. 339)
Personal lights ( P. 339)

339
3-3. Using the interior lights
3
Interior and exterior features
Interior light
DOOR position
OFF
ON
Personal lightsOn/off
Interior light and personal lights

340
3-4. Using the storage features

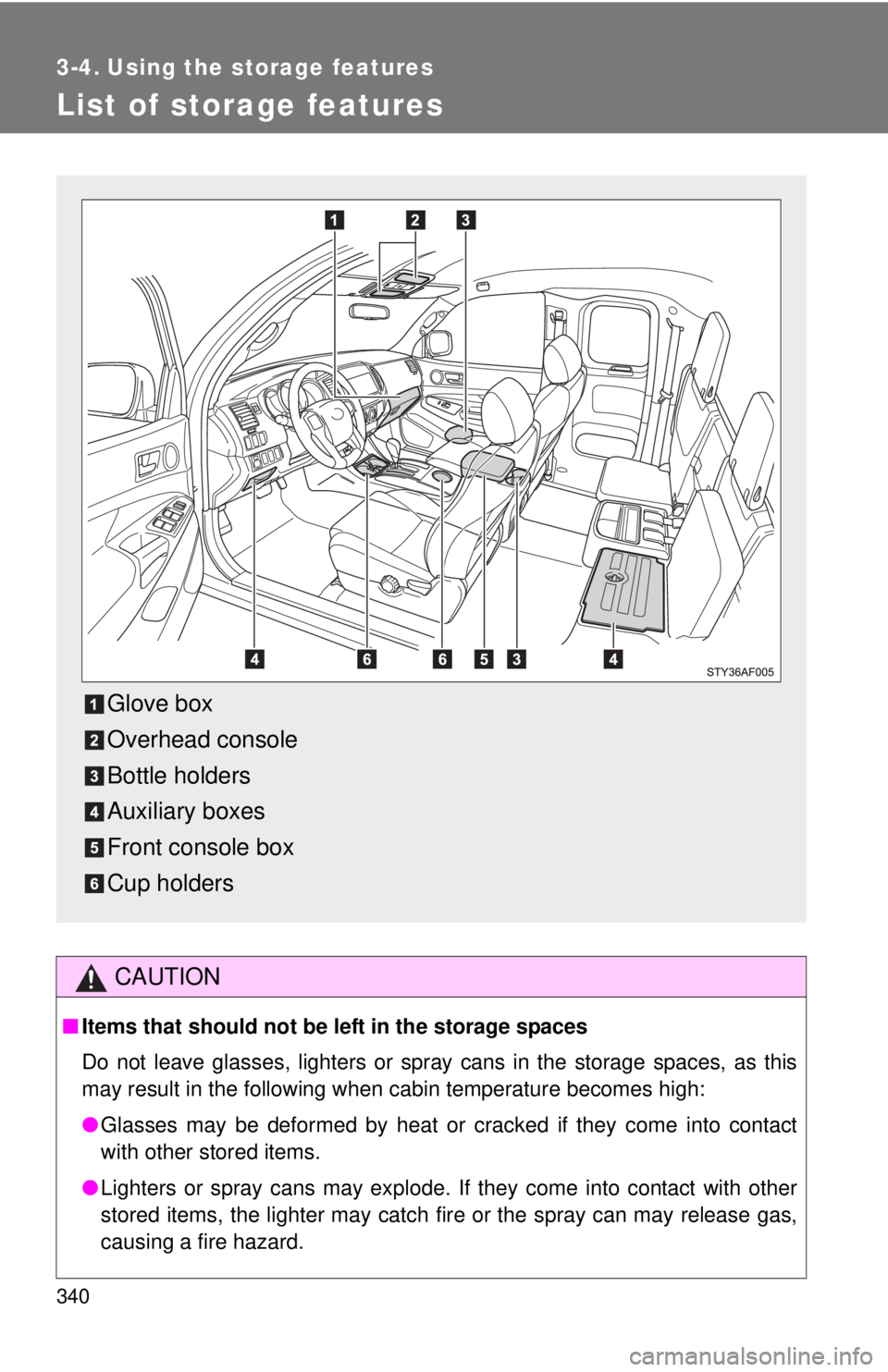

List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Overhead console
Bottle holders
Auxiliary boxes
Front console box
Cup holders
