TOYOTA TACOMA 2015 Owners Manual (in English)

569
7
For owners
■Cargo weight rating
Access Cab models
2 people, 2TR-FE engine, 2WD except PreRunner: 750 lb. (340 kg)
4 people, 2TR-FE engine, 2WD except PreRunner:
450 lb. (204 kg)
2 people, 2TR-FE engine, PreRunner: 1000 lb. (453 kg)
4 people, 2TR-FE engine, PreRunner: 700 lb. (317 kg)
2 people, 1GR-FE engine, PreRunner: 950 lb. (430 kg)
4 people, 1GR-FE engine, PreRunner: 650 lb. (294 kg)
2 people, 2TR-FE engine, 4WD: 900 lb. (408 kg)
4 people, 2TR-FE engine, 4WD: 600 lb. (272 kg)
2 people, 1GR-FE engine, 4WD: 840 lb. (381 kg)
4 people, 1GR-FE engine, 4WD: 540 lb. (244 kg)
Double Cab models with short deck
2 people, 2TR-FE engine, 2WD except PreRunner: 650 lb. (294 kg)
5 people, 2TR-FE engine, 2WD except PreRunner:
200 lb. (90 kg)
2 people, 1GR-FE engine, PreRunner: 850 lb. (385 kg)
5 people, 1GR-FE engine, PreRunner: 400 lb. (181 kg)
2 people, 1GR-FE engine, 4WD: 740 lb. (335 kg)
5 people, 1GR-FE engine, 4WD: 290 lb. (131 kg)
Double Cab models with long deck
2 people, 1GR-FE engine, PreRunner: 850 lb. (385 kg)
5 people, 1GR-FE engine, PreRunner: 400 lb. (181 kg)
2 people, 1GR-FE engine, 4WD: 740 lb. (335 kg)
5 people, 1GR-FE engine, 4WD: 290 lb. (131 kg)

570
Gross axle and vehicle weight ratingsSecure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual ax le loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicle Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. ( P. 521) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
CAUTION
■Overloading
Be careful — overloading can cause dangerous braking and handling
problems, and can damage your vehicle and its tires.

571
7
For owners
Gross axle weight ratingFront GAWR
Rear GAWR
Gross vehicle weight rating Not exceed GVWR
■ GAWR
GAWR
Front Rear
2WD models
except PreRun-
ner
Vehicles with 2.7L
4-cylinder (2TR-FE)
engine
2380 lb. (1075 kg)
Vehicles with 4.0 L
V6 (1GR-FE) engine
2400 lb. (1085 kg)
2650 lb. (1200 kg)
4WD models and
PreRunner
PreRunner
2755 lb. (1245 kg)
4WD models
2775 lb. (1255 kg)
3110 lb. (1410 kg)

572
■GVWR
2WD models except PreRunner
PreRunner
4WD models
Cab type GVWR
Access Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
4900 lb. (2220 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
4700 lb. (2130 kg)
Double Cab 4900 lb. (2220 kg)
Cab type GVWR
Access Cab and
Double Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
5250 lb. (2380 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
5400 lb. (2445 kg)
Cab type GVWR
Access Cab Vehicles with 2.7 L 4-cylinder (2TR-FE)
engine
5350 lb. (2425 kg)
Vehicles with 4.0 L V6 (1GR-FE) engine
5500 lb. (2490 kg)
Double Cab 5500 lb. (2490 kg)

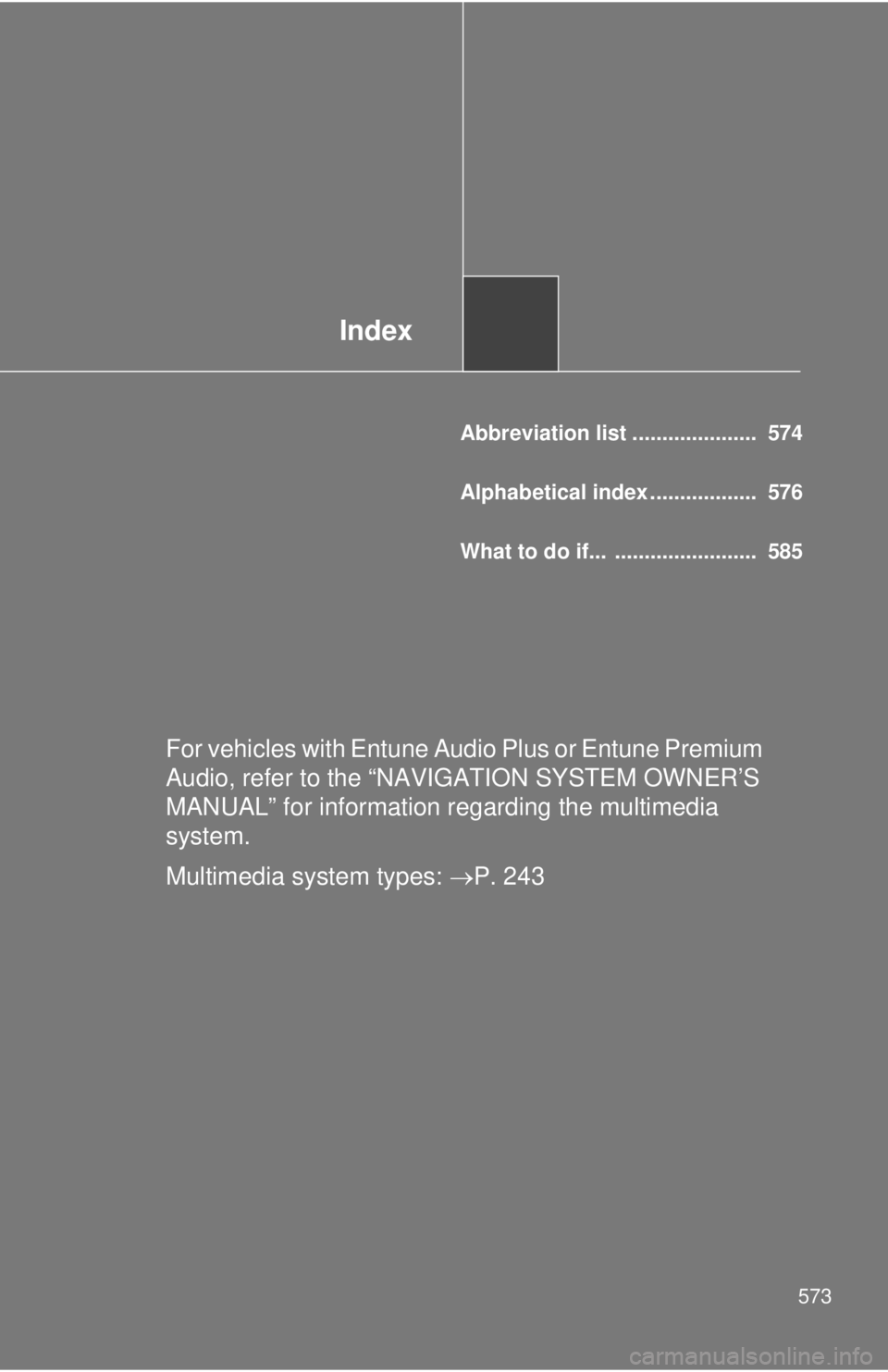

Index
573
Abbreviation list ..................... 574
Alphabetical index .................. 576
What to do if... ........................ 585
For vehicles with Entune Audio Plus or Entune Premium
Audio, refer to the “NAVIGATION SYSTEM OWNER’S
MANUAL” for information regarding the multimedia
system.
Multimedia system types: P. 243

574
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
4WD Four Wheel Drive ABS Anti-Lock Brake System
ACC Accessory ALR Automatic Locking Retractor
A-TRAC Active Traction Control
AUTO LSD Automatic Limited Slip Differential CRS Child Restraint System
DAC Downhill assist control
ECU Electronic Control Unit
EDR Event Data RecorderELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GCWR Gross Combination Weight Rating GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
LATCH Lower Anchors and Tethers for Children LED Light Emitting DiodeLT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
RR DIFF LOCK Rear differential lock RSCA Roll sensing of curtain shield airbag
SRS Supplemental Restraint SystemTIN Tire Identification Number

575
Abbreviation list
TPMS Tire Pressure Warning System
TRAC Traction Control TWI Treadwear indicators
TWR Trailer Weight Rating VIN Vehicle Identification Number
VSC Vehicle Stability Control
ABBREVIATIONSMEANING

576
Alphabetical index
Alphabetical index
A/C ............................................. 236
AAC disc ................................... 263
ABS ........................................... 191
Access doors .............................39
Active traction control system .................................... 181
Air conditioning filter............... 439
Air conditioning system
Air conditioning filter .............. 439
Manual air conditioning system ................................ 236
Airbags Airbag operating conditions.....85
Airbag precautions for your
child ......................................89
Airbag warning light............... 477
Curtain shield airbag
operating conditions..............85
Curtain shield airbag
precautions ...........................89
Front passenger occupant classification system .............95
General airbag precautions .....89
Locations of airbags ................82
Modification and disposal of airbags ..............................93
Proper driving posture .......80, 89
Roll sensing of curtain shield airbag off switch .................... 94
Side airbag operating conditions..............................85
Side airbag precautions ..........89
SRS airbags ............................82
Antenna..................... 335, 388, 390
Anti-lock brake system ABS warning light .................. 477
Anti-lock brake system .......... 191
Audio input ............................... 249 Audio system
Antenna................. 335, 388, 390
Audio input ............................ 249
AUX port ............................... 249
CD player .............................. 263
iPod ....................................... 270
MP3/WMA/AAC disc ............. 263
Portable music player .................................. 249
Steering wheel audio switch
*
Sub woofer ............................ 334
Type ...................................... 243
USB memory......................... 276
AUTO LSD system ................... 183
Automatic light off system...... 154
Automatic limited slip differential .............................. 183
Automatic transmission Automatic transmission ......... 134
If the shift lever cannot be
shifted from P ..................... 502
AUX port ................................... 249
Auxiliary box .... 340, 345, 364, 365
Back-up lights
Replacing light bulbs ............. 460
Wattage................................. 536
Back window .............................. 73
Battery Charging system warning
light ..................................... 477
Checking ............................... 418
If the vehicle battery is discharged .......................... 504
Preparing and checking before winter ....................... 209
Bluetooth
® audio ..................... 304
Bluetooth® phone .................... 305
Bottle holders................... 340, 344
Brake assist.............................. 191
A
B

577
Alphabetical index
Brakes
Brake system warning buzzer
........... 182, 184, 189, 195, 476
Brake system warning light .................................... 476
Fluid...................................... 414
Parking brake ....................... 142
Break-in tips ............................ 122
Camper information ................ 567
Care
Exterior ................................. 388
Interior .................................. 391
Seat belts ............................. 392
Cargo capacity ................ 202, 518
Cargo net hook ................ 364, 372
CD player ................................. 263
Certification label ............ 217, 521
Chains ...................................... 210
Child restraint system Booster seats, definition ....... 100
Booster seats, installation .... 113
Convertible seats, definition............................. 100
Convertible seats,
installation .......................... 110
Front passenger occupant classification system ............ 95
Infant seat, definition ............ 100
Infant seats, installation ........ 110
Installing CRS with LATCH system........................ 107, 109
Installing CRS with seat belts ................................... 110
Installing CRS with top tether straps ............... 114, 115 Child safety
Airbag precautions ..................89
Battery precautions .......419, 507
Child restraint system............100
Child-protectors .......................37
How your child should wear
the seat belt ..........................59
Installing child restraints ........104
Power window lock switch.......71
Power window precautions .....72
Removed wireless remote
control battery
precautions .........................443
Seat belt extender
precautions ...........................62
Seat belt precautions ..............60
Seat heater precautions ........360
Child-protectors .........................37
Cleaning Exterior ..................................388
Interior ...................................391
Seat belts ..............................392
Clock ........................................ 351
Clutch start cancel switch.......190
Compass ...................................381
Condenser ................................414
Console box .....................340, 341
Cooling system Engine overheating ...............508
CRS ...........................................100
Cruise control...........................162
Cup holders ......................340, 342
Curtain shield airbags ...............82
Customizable features.............551
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
C

578 Alphabetical index
Daytime running light system .................................... 154
Deck Auxiliary boxes ...................... 365
Deck ...................................... 364
Deck hooks ........................... 366
Deck rails .............................. 202
Tie-down cleats ..................... 367
Detachable pole antenna......... 335
Dimension................................. 516
Dinghy towing .......................... 233
Do-it-yourself main tenance..... 400
Doors Access doors...........................39
Door glasses ...........................71
Door lock ...........................32, 35
Open door warning light ........ 479
Side doors ...............................35
Side mirrors .............................68
Downhill Assist Control
System .................................... 188
Driver’s seat belt reminder light ......................................... 479
Driver’s seat belt reminder warning buzzer ...................... 479
Driving
Break-in tips .......................... 122
Correct posture .......................80
Driving assist systems........... 191
Procedures ............................ 120
Winter driving tips.................. 209
Emergency, in case of Blown fuse............................. 444
If the engine will not start ...... 501
If the shift lever cannot be shifted from P...................... 502
If the vehicle battery is discharged .......................... 504
If the warning buzzer
sounds ................................ 476
If the warning light turns on ... 476 If you have a flat tire ............. 486
If you lose your keys ............. 503
If you think something is
wrong .................................. 474
If the vehicle becomes
stuck ................................... 511
If your vehicle has to be stopped in an emergency ... 513
If your vehicle needs to be towed .................................. 467
If your vehicle overheats ....... 508
Emergency flashers Switch ................................... 466
Engine
Compartment ........................ 406
Engine switch ........................ 131
Exhaust gas .......................... 127
Hood ..................................... 404
How to start the engine ......... 131
Identification number............. 521
If the engine will not start ...... 501
Ignition switch ....................... 131
Immobilizer system ................. 77
Overheating .......................... 508
Warning light ......................... 477
Engine coolant
Capacity ................................ 527
Checking ............................... 412
Preparing and checking before winter ....................... 209
Temperature gauge .............. 145
Engine coolan t temperature
gauge ...................................... 145
Engine immobilizer system ...... 77
Engine oil Capacity ................................ 524
Checking ............................... 408
Preparing and checking before winter ....................... 209
Warning light ......................... 477
Engine switch........................... 131
Event data recorder ................... 24D
E
