TOYOTA TACOMA 2018 Owners Manual (in English)

6519-2. Customization
9
Vehicle specifications
*1: For details about each function: P. 97
*2: The default setting varies according to country.
*3: Speed limit display may not be available for some regions.
*4: For U.S.A. only

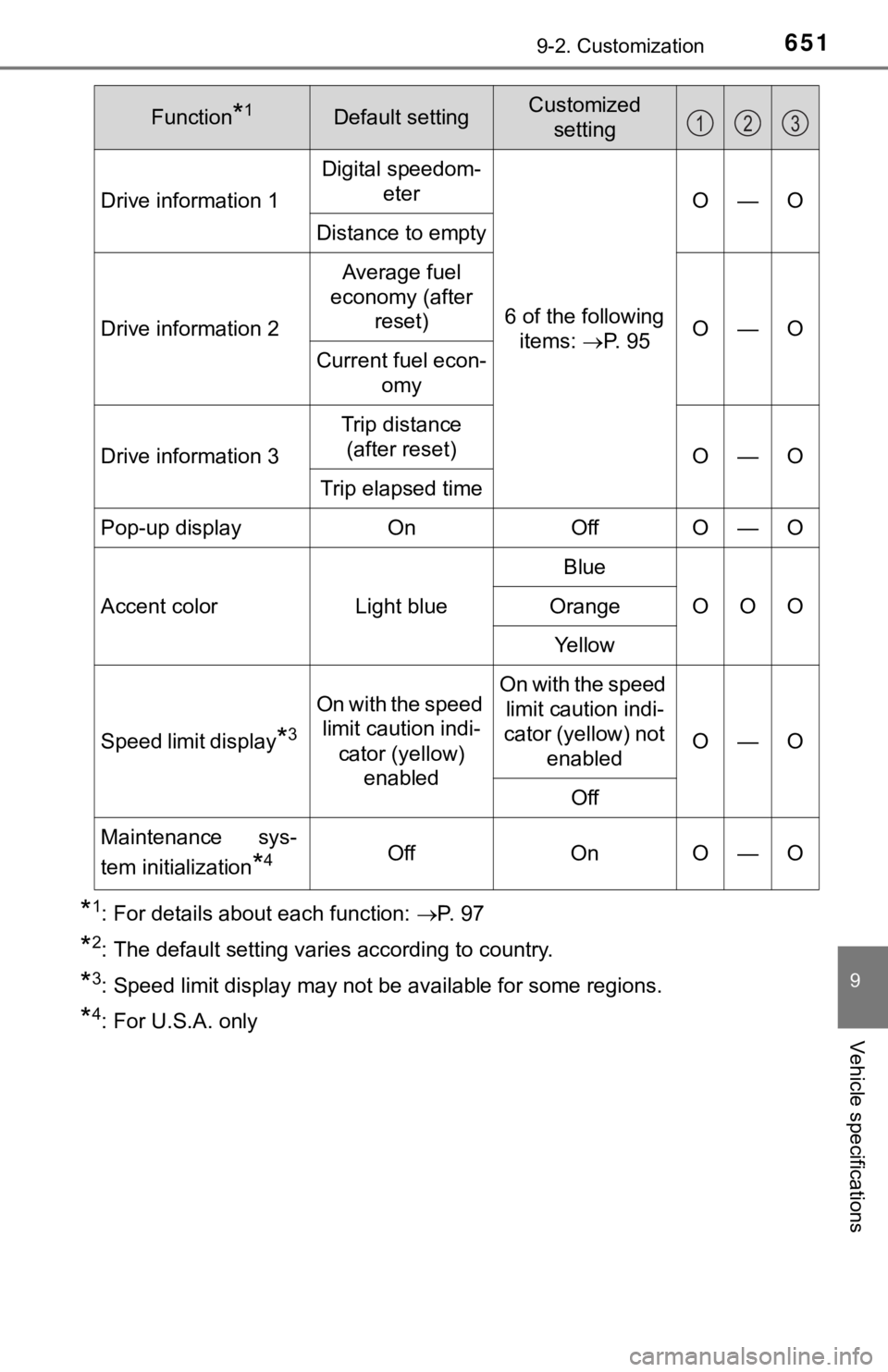

Drive information 1
Digital speedom-
eter
6 of the following
items: P. 9 5
O—O
Distance to empty
Drive information 2
Average fuel
economy (after reset)
O—O
Current fuel econ- omy
Drive information 3
Trip distance (after reset)
O—O
Trip elapsed time
Pop-up displayOnOffO—O
Accent colorLight blue
Blue
OOOOrange
Ye l l o w
Speed limit display*3
On with the speed limit caution indi-
cator (yellow) enabledOn with the speed limit caution indi-
cator (yellow) not enabled
O—O
Off
Maintenance sys-
tem initialization
*4OffOnO—O
Function*1Default settingCustomized
setting123

6529-2. Customization
■LDA (Lane Departure Alert)* ( P. 249)
*: If equipped
■
PCS (Pre-Collision System)* (  P. 235)
*: If equipped
■
Door lock ( P. 111, 611)
*: Vehicles with an automatic transmission
FunctionDefault settingCustomized
setting
LDA sensitivity 1 (Standard) 2 (High)O——
Sway warning ONOFFO——
Sway warning sensitivity 2 (Standard) 1 (Low)O——3 (High)
123
FunctionDefault settingCustomized
setting
PCS ONOFFO——
PCS sensitivity 2 (Middle)1 (Near)O——3 (Far)
123
FunctionDefault settingCustomized
setting
Unlocking using a key Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in
one step —— O
Speed-detecting auto-
matic door lock function
*On Off — O O
Shifting gears to position
other than P locks all
doors
*
Off On — O O
Shifting gears to P
unlocks all doors
*On Off — O O
Opening the driver’s door
unlocks all doors
*Off On — O O
123

6539-2. Customization
9
Vehicle specifications
■Smart key system and wireless remote control* ( P. 1 1 1 )
*: If equipped
■
Smart key system* (  P. 111 , 1 2 3 )
*: If equipped
FunctionDefault settingCustomized
setting
Operation signal
(Emergency flashers) On Off — O O
Operation signal
(Buzzer) On Off — — O
Operation buzzer volume Level 5 Off to level 7 O O O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked 60 seconds
Off
—O O
30 seconds
120 seconds
Open door warning
buzzerOnOff — —O
123
FunctionDefault settingCustomized setting
Smart key systemOnOff——O
Number of permissible
times of continuous smart
lock Twice Unlimited — — O
123

6549-2. Customization
■Wireless remote control* ( P. 105, 111)
*: If equipped
FunctionDefault settingCustomized
setting
Wireless remote control OnOff — — O
Unlocking operation Driver’s door
unlocked in one
step, all doors
unlocked in two steps All doors
unlocked in one step —O O
Automatic door lock func-
tion to be activated if door
is not opened after being
unlocked On
Off — — O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked 60 seconds0 seconds
—O O
30 seconds
120 seconds
Operation signal
(Emergency flashers) On
Off — O O
Operation signal
(Buzzer) On
Off — — O
Panic function OnOff — — O
Open door reminder
buzzer (When locking the
vehicle) On
Off — — O
123

6559-2. Customization
9
Vehicle specifications
■Automatic light off system* ( P. 211)
*: If equipped
■
Illumination ( P. 4 4 1 )
*: Vehicles with a smart key system
■
Intuitive parking assist* (  P. 275)
*: If equipped
FunctionDefault settingCustomized
setting
Light sensor sensitivity Level 3 Level 1 to 5 — O O
Time elapsed before
headlights automatically
turn off after doors are
closed 30 seconds0 seconds
—O O
60 seconds
90 seconds
123
FunctionDefault settingCustomized
setting
Time elapsed before lights
turn off 15 seconds7.5 seconds
—O O
30 seconds
Operation after the engine
is off On Off — — O
Operation when the doors
are unlocked On Off — — O
Operation when you
approach the vehicle with
the electronic key on your
person
*
On Off — — O
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensor Far Near — O O
Buzzer Volume Level 3 Level 1 to 5 — O O
Display setting All sensors
displayed Display off — O O
123

6569-2. Customization
■Seat Belt Reminder Buzzer (P. 567)
■Vehicle customization
●When the speed-detecting automatic door lock function and shift position
linked door locking function (shifting gears to a position other than P locks
all doors) are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, al l the doors will
be locked.
• If the vehicle is started with all the doors locked, the speed-detecting auto- matic door lock function would not operate.
• If the vehicle is started with any the door unlocked, the spee d-detecting
automatic door lock function will operate.
● When the doors remain closed after unlocking the doors and the automatic
door lock function (Time elapsed before the automatic door lock function is
activated if a door is not opened after being unlocked) activates, the signals
will be generated in accordance with operation signal (buzzers) and the
operation signal (emergency flashers) settings.
FunctionDefault settingCustomized
setting
Vehicle speed linked seat
belt reminder buzzerOnOff — — O
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or seriou s health haz-
ard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
123

6579-3. Items to initialize
9
Vehicle specifications

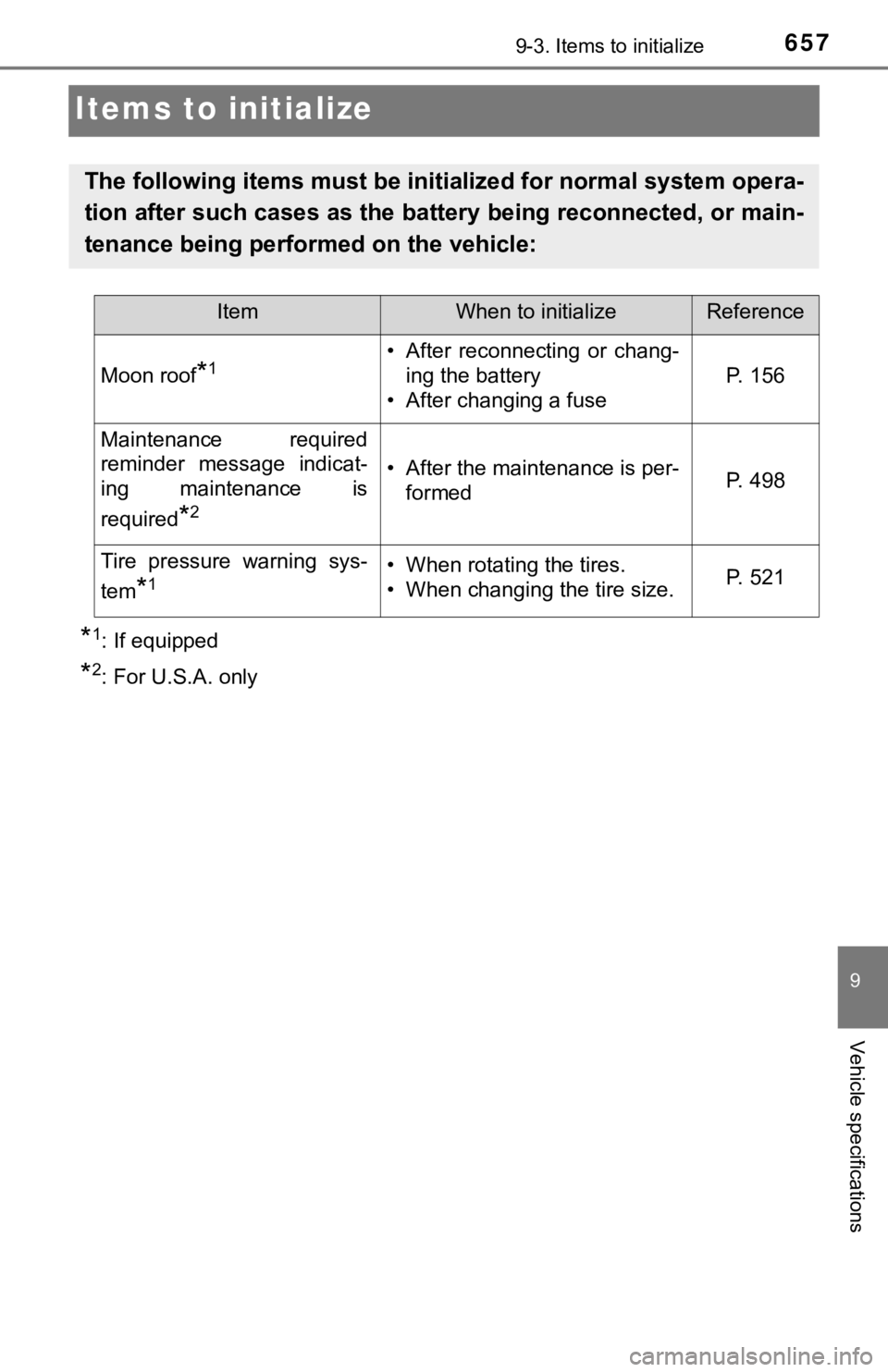

Items to initialize
*1: If equipped
*2: For U.S.A. only
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Moon roof*1• After reconnecting or chang- ing the battery
• After changing a fuse
P. 156
Maintenance required
reminder message indicat-
ing maintenance is
required
*2
• After the maintenance is per- formedP. 498
Tire pressure warning sys-
tem
*1• When rotating the tires.
• When changing the tire size.P. 521

6589-3. Items to initialize

659

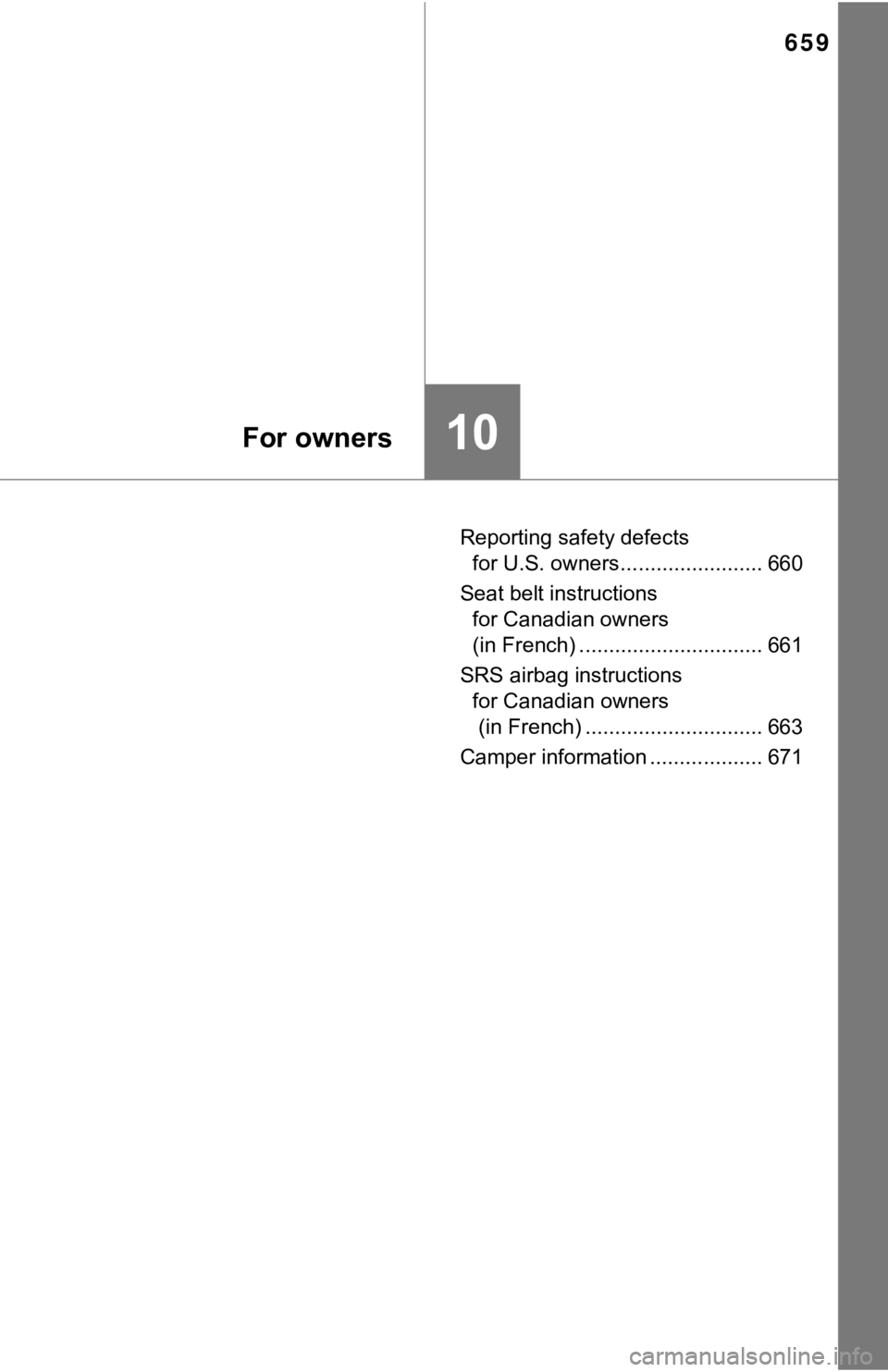

10For owners
Reporting safety defects for U.S. owners........................ 660
Seat belt instructions for Canadian owners
(in French) ............................... 661
SRS airbag instructions for Canadian owners
(in French) .............................. 663
Camper information ................... 671

660

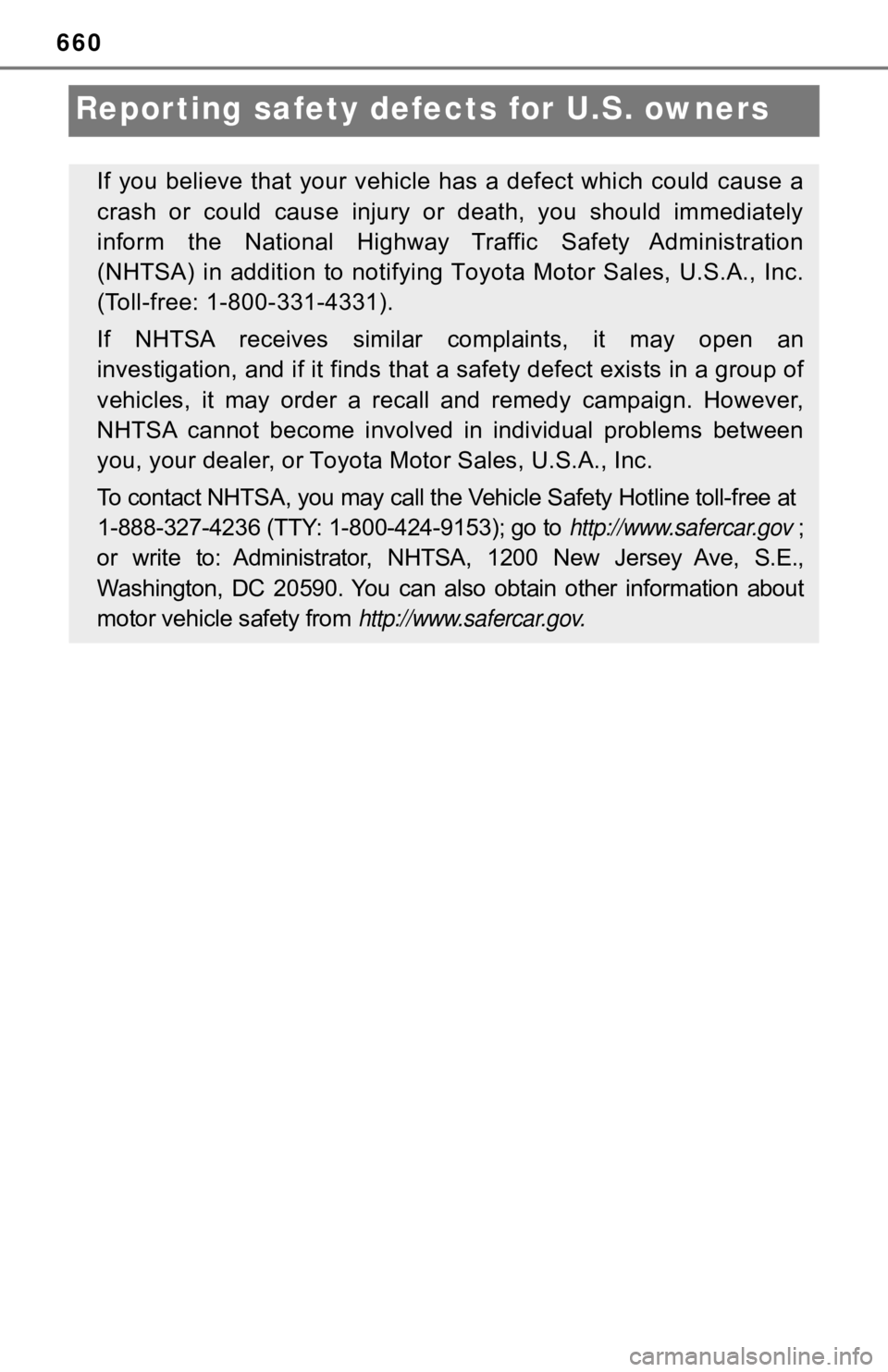

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an
investigation, and if it finds t hat a safety defect exists in a group of
vehicles, it may order a recall and remedy campaign. However,
NHTSA cannot become involved in individual problems between
you, your dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call th e Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information abo ut
motor vehicle safety from
http://www.safercar.gov.
