OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature display 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power outlet 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear console box 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tie–down hooks 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage storage box 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Side mudguard 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 1– 9

124
Clock
The digital clock indicates the time with
the ignition off. To reset the time, the
ignition key must be in the “ON” position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the key is in the “ON” position,
push the “OUTSIDE TEMP” button to
change the display from clock to outside
temperature display. (See “Outside temper-
ature display” in this page.)
19T002
The key must be in the “ON” position.
To change the display from clock to out-
side temperature display, push the “OUT-
SIDE TEMP” button. The display changes
between clock and outside temperature
display alternately each time you push the
switch. (See “Clock” in this page.)
The displayed temperature ranges from
–30C (–22 F) up to 50 C (122 F).
When you return the key to the “ACC”
position, the display returns to clock
mode.
If there is a problem with the connection
to the outside air temperature sensor,
“– –” will appear on the display. Contact
your Scion dealer.
Cigarette lighter
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a genuine cigarette lighter or equiva-
lent for replacement.
Outside temperature display

125
19T003
The power outlet located in the lower
box contained in the rear console box
is designed for power supply for car
accessories.
The ignition switch must be in the “ACC”
or “ON” position for the power outlet to be
used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Glo ve bo x
To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Power outlet

126
Auxiliary box
To use the auxiliary box, open it as
shown in the illustrations.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Do not use the auxiliary box as an
ashtray.

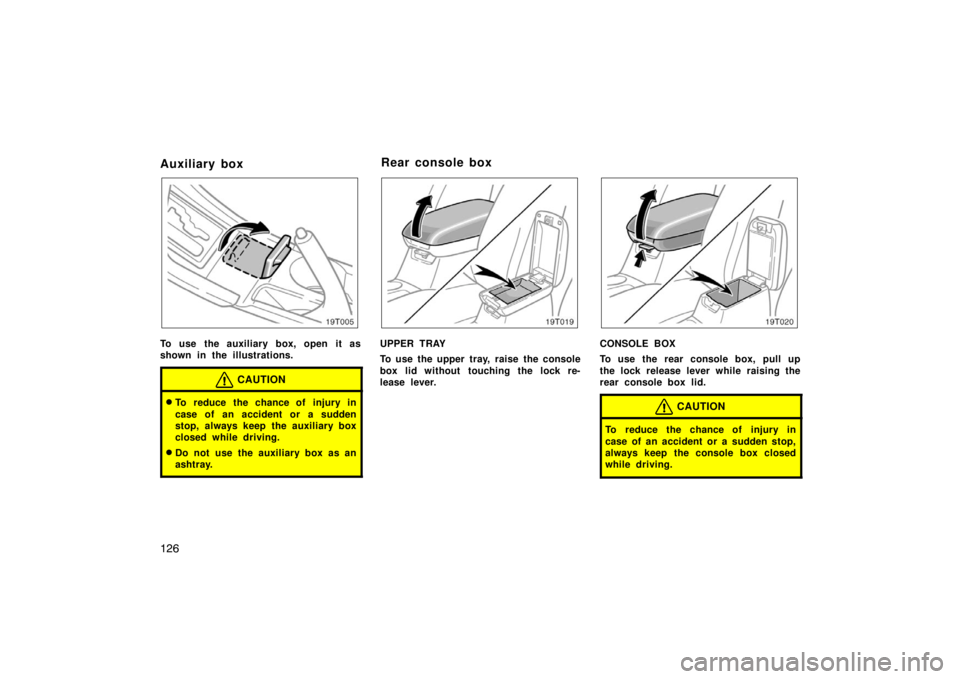

19T019
UPPER TRAY
To use the upper tray, raise the console
box lid without touching the lock re-
lease lever.
19T020
CONSOLE BOX
To use the rear console box, pull up
the lock release lever while raising the
rear console box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box

127

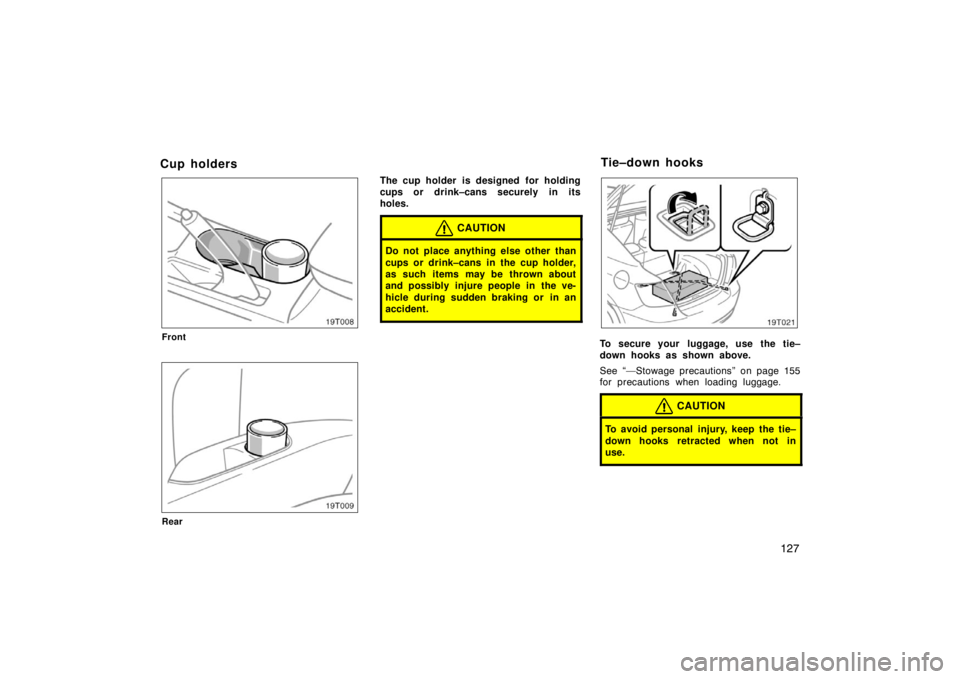

C u p ho ld ers
Front
Rear
The cup holder is designed for holding
cups or drink–cans securely in its
holes.
CAUTION
Do not place anything else other than
cups or drink–cans in the cup holder,
as such items may be thrown about
and possibly injure people in the ve-
hicle during sudden braking or in an
accident.19T021
To secure your luggage, use the tie–
down hooks as shown above.
See “—Stowage precautions” on page 155
for precautions when loading luggage.
CAUTION
To avoid personal injury, keep the tie–
down hooks retracted when not in
use.
Tie–down hooks

128

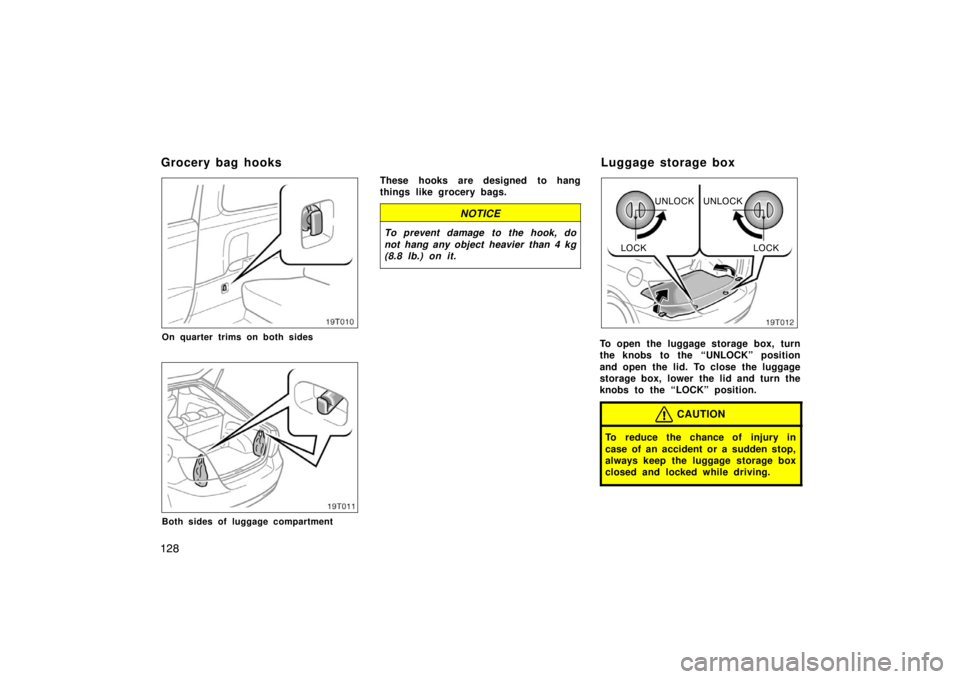

19T010
On quarter trims on both sides
19T011
Both sides of luggage compartment
These hooks are designed to hang
things like grocery bags.
NOTICE
To prevent damage to the hook, do
not hang any object heavier than 4 kg
(8.8 lb.) on it.
19T012
UNLOCK UNLOCK
LOCK LOCK
To open the luggage storage box, turn
the knobs to the “UNLOCK” position
and open the lid. To close the luggage
storage box, lower the lid and turn the
knobs to the “LOCK” position.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage box
closed and locked while driving.
Grocery bag hooks Luggage storage box

129

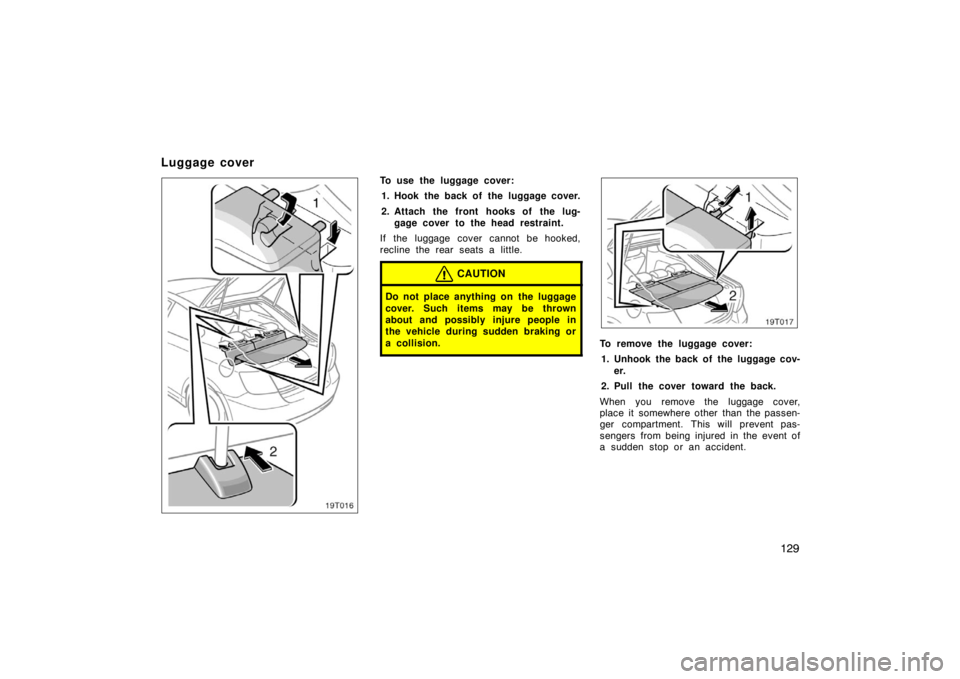

19T016
To use the luggage cover:1. Hook the back of the luggage cover.
2. Attach the front hooks of the lug- gage cover to the head restraint.
If the luggage cover cannot be hooked,
recline the rear seats a little.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
a collision.
19T017
To remove the luggage cover: 1. Unhook the back of the luggage cov- er.
2. Pull the cover toward the back.
When you remove the luggage cover,
place it somewhere other than the passen-
ger compartment. This will prevent pas-
sengers from being injured in the event of
a sudden stop or an accident.
Luggage cover

130

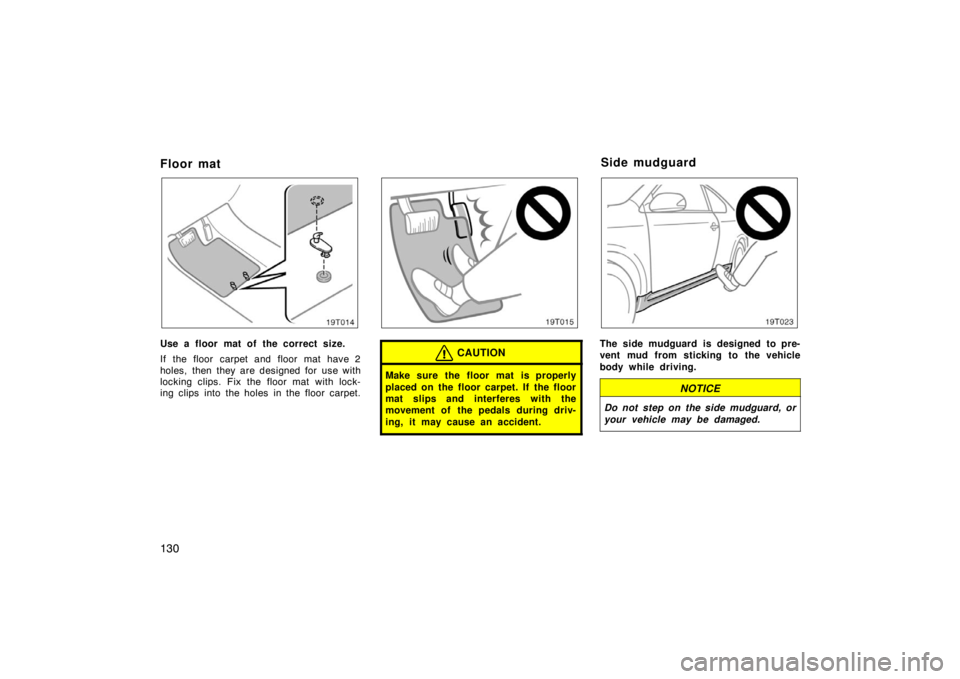

Floor mat
19T014
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.
19T015
CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
19T023
The side mudguard is designed to pre-
vent mud from sticking to the vehicle
body while driving.
NOTICE
Do not step on the side mudguard, or
your vehicle may be damaged.
Side mudguard

131
INFORMATION BEFORE DRIVING YOUR
SCION
Break–in periodd132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Fuel 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three–way catalytic converters 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 136
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium–tipped spark plugs 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Scion’s identification 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

132
Break–in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break–in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive slowly with the manual
transmission in a high gear.
Do not drive for a long time at any
single speed, either fast or slow.
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix–ups, your
Scion has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5–M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the
three–way catalytic converter to lose
its effectiveness and the emission
control system to function improperly.
Also, this can increase maintenance
costs.
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Scion dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINES CONTAINING DETERGENT
ADDITIVES
Scion recommends the use of gasoline
that contain detergent additives to
avoid build–up of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
