125
19T003

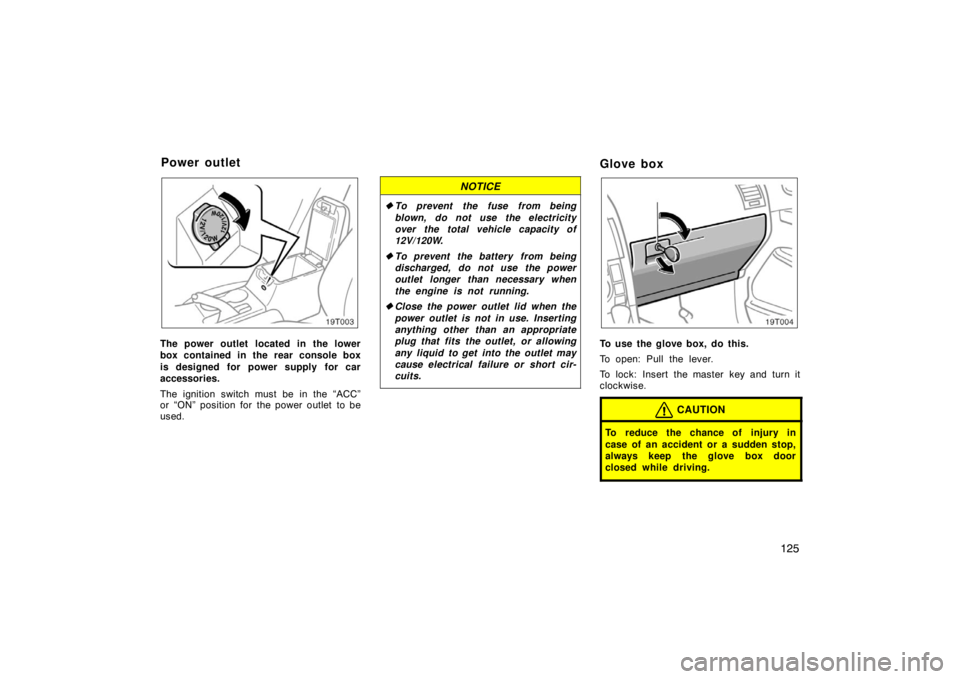

The power outlet located in the lower
box contained in the rear console box
is designed for power supply for car
accessories.
The ignition switch must be in the “ACC”
or “ON” position for the power outlet to be
used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Glo ve bo x
To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Power outlet

226

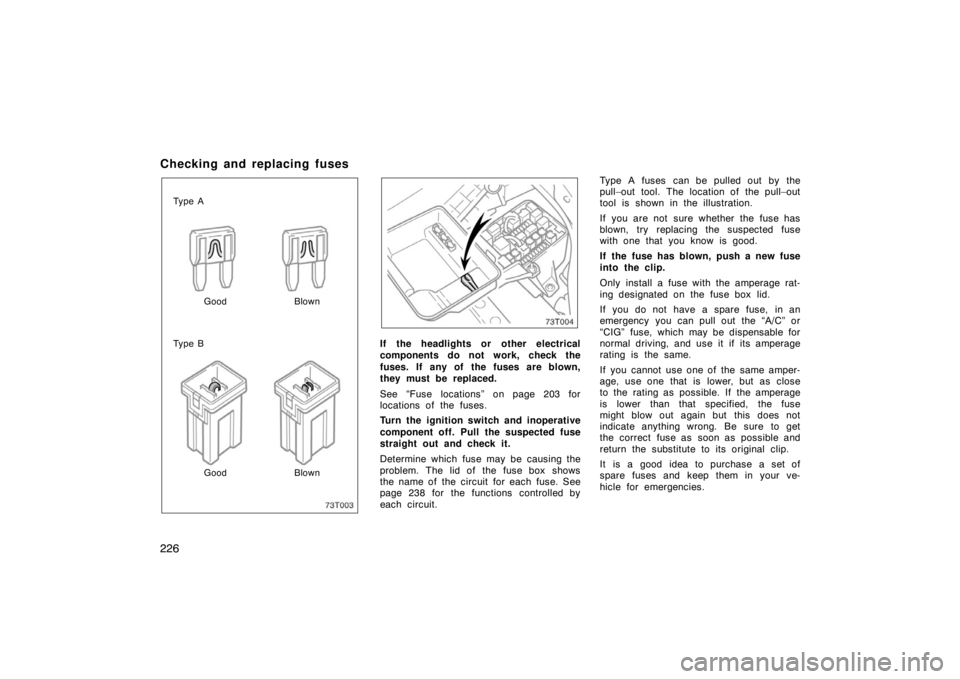

Checking and replacing fuses
Ty p e AGood Blown
Ty p e B
Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 203 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 238 for the functions controlled by
each circuit. Type A fuses can be pulled out by the
pull–out tool. The location of the pull–out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C” or
“CIG” fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.

239
24. ALT 120 A: “HTR”, “ABS NO.1”, “ABS
NO.2”, “RDI”, “CDS”, “DEF”, “TAIL”,
“PANEL”, “DOOR”, “STOP”, “ACC
SOCKET”, “GAUGE”, “ECU–IG”, “FR
WIP”, “WSH”, “AM1”, “FR DOOR”, “FL
DOOR”, “S/ROOF”, “A/C” and “FR
FOG” fuses
25. SPARE 30 A: Spare fuse
26. SPARE 20 A: Spare fuse
27. SPARE 10 A: Spare fuse
28. DEF 30 A: Rear window defogger
29. TAIL 10 A: Tail lights, parking lights,
license plate lights, front side maker
lights
30. PANEL 7.5 A: Instrument cluster lights,
instrument panel lights, gauges and
meters, audio system, console box illu-
mination
31. A/C 10 A: Air conditioning system
32. FR DOOR 20 A: Power windows
33. S/ROOF 20 A: Panorama moonroof
34. CIG 15 A: Cigarette lighter
35. ACC 7.5 A: Shift lock control system,
power outlet, car audio system, power
rear view mirrors
36. RR DEF I/UP 7.5 A: Rear window de-
fogger 37. ACC SOCKET 15 A:
Power outlet
38. FL DOOR 20 A: Power windows
39. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, security
system
40. MET IG2 10 A: Gauges and meters
41. FR WIP 30 A: Windshield wipers
42. FR WSH 15 A: Windshield washer
43. ECU–IG 7.5 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, shift lock control system,
electric cooling fan, panorama mooroof,
anti–lock brake system
44. GAUGE 10 A: Back–up lights, electric
cooling fan, air conditioning system,
emergency flasher, power windows,
power door lock system, gauges and
meters
45. STOP 10 A: Stop lights, high mounted
stoplight, shift lock control system,
multiport fuel injection system/sequen-
tial multiport fuel injection system, anti–
lock brake system
46. DOOR 20 A: Power door lock system
47. FR FOG 15 A: Fog lights
48. AM1 25 A: Starting system, “CIG” and
“ACC” fuses
