key TOYOTA tC 2008 Accessories, Audio & Navigation (in English)

7ABOUT THE AUDIO AND NAVIGATION SYSTEM
SCION V398
CD disc slot DVD disc slot
3. Load a disc into the appropriate disc
slot.
Load the map disc (DVD−ROM), CDs, or
DVDs with the label facing upwards. The
yellow indicator for the loaded disc will illu-
minate.
The navigation screen will be displayed
when the map disc (DVD−ROM) is loaded.
Audio CD, MP3, or WMA playback will
commence when a CD is loaded.
DVD video playback will commence when
a DVD is loaded.
NOTICE
DThe disc slot for both the map disc
(DVD−ROM) and DVDs is the same
and therefore this slot may be used
for either type of disc.
DDo not confuse the CD and DVD
disc slots.
DDo not touch “CLOSE” or push the
“ TILT” button while loading
discs.
INFORMATION
DAbout the map disc (DVD−ROM)
DDo not use discs other than the
dedicated DVD navigation disc
provided. (Please consult with
your dealer for further details.)
DWhen handling the map disc,
hold it with one finger in the hole
and your thumb on the edge,
with the label facing upwards.
DThe System Loading screen will
be displayed when the map disc
is loaded for the first time. This
screen will also be displayed
when loading the map DVD−
ROM after the battery power has
been cut due to battery or fuse
replacement. Under no circum-
stances should the ignition key
be turned to the “ACC” position
or the “OFF” position when the
System Loading screen is dis-
played.
DWhen discs are used for a long
time they will accumulate dust,
so be sure to regularly wipe
discs clean. Continuing to use
uncleaned discs will cause dam-
age to the DVD player.
DAbout CDs
DIt may not be possible to proper-
ly load, eject, or playback CDs
for which a transparent or trans-
lucent material has been used
for the recorded section of the
disc. Therefore such discs
should not be used.
DCopy−protected CDs do not
comply with official CD stan-
dards, and therefore there may
be times when playback is not
possible.
DMusic CDs, CD−R (CD−Record-
able) and CD−RW (CD−ReWrit-
able) discs can be used. For de-
tails, see page 174.

14BASIC FUNCTIONS
SCION V398
When searching for an address or a name,
or entering a memo, letters and numbers
can be input via the touch screen.
INFORMATION
Keyboard layout can be changed.
(See page 97.)
DTo input letters
To display the alphabet keys, touch“A−Z”
or
“”.
Enter letters by touching the alphabet keys
directly.
:Touching this button erases one
letter. By holding this button, let-
ters will continue to be erased.
On certain letter entry screens, letters can
be entered in upper or lower case.
:To enter in lower case.
:To enter in upper case.
Inputting letters and
numbers/List screen
operation

15BASIC FUNCTIONS
SCION V398
DTo input numbers and symbols
To display the number keys and symbol
keys, touch“0−9”.
Enter numbers and symbols by touching
the number keys and symbol keys directly.
:Touching this button erases
one letter. By holding this
button, letters will continue to
be erased.
:Touching this button displays
other symbols.
DTo display the list
To search for an address or a name, touch
“List”. Matching items from the database
are listed even if the entered address or
name is incomplete.
If the number of matches is four or less, the
list is displayed without touching“List”.
INFORMATION
The number of matching items is
shown to the right side of the screen.
If the number of matching items is
more than 9,999, the system displays
“




” on the screen.

30DESTINATION SEARCH
SCION V398
1“Address”
A house number and the street address
can be input by using the input keys.
35 .................................
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 39...............
3“POI Category”
A destination can be selected from the POI
category. 42........................
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point.
46 .................................
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 83.) 46.......
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected.
45 .................................
7“Map”
A destination can be selected simply by
touching the location on the displayed
map. 47............................
Quick reference (“Destination” screen)

77ADVANCED FUNCTIONS
SCION V398
1“Distance”
The distance units“km”or“miles”can be
selected. 96........................
2“Estimated Travel Time”
The system to display the travel time and
the arrival time to the destination on the
route guidance screen can be set.
96 .................................
3“Keyboard Layout”
Key layout can be changed. 97.......
4“Time Zone”
The desired time zone can be selected.
98 .................................
5“Function”
The choice whether to display each touch−
screen button and current street name on
the map screen can be set. 99........
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
99 .................................
7“Display Building Shapes”
Selection of either ON or OFF to display
the building shape on the map screen is
possible. 100.......................
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 101.......................
9“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
101 ................................
10“Auto Voice Guidance”
Automatic voice guidance can be set.
102 ................................
Quick reference (“Setup” screen)

87ADVANCED FUNCTIONS
SCION V398
DTo change “Name”
1. Touch “Name” on the “Memory
Point” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be
displayed on the map can be set.To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.

88ADVANCED FUNCTIONS
SCION V398

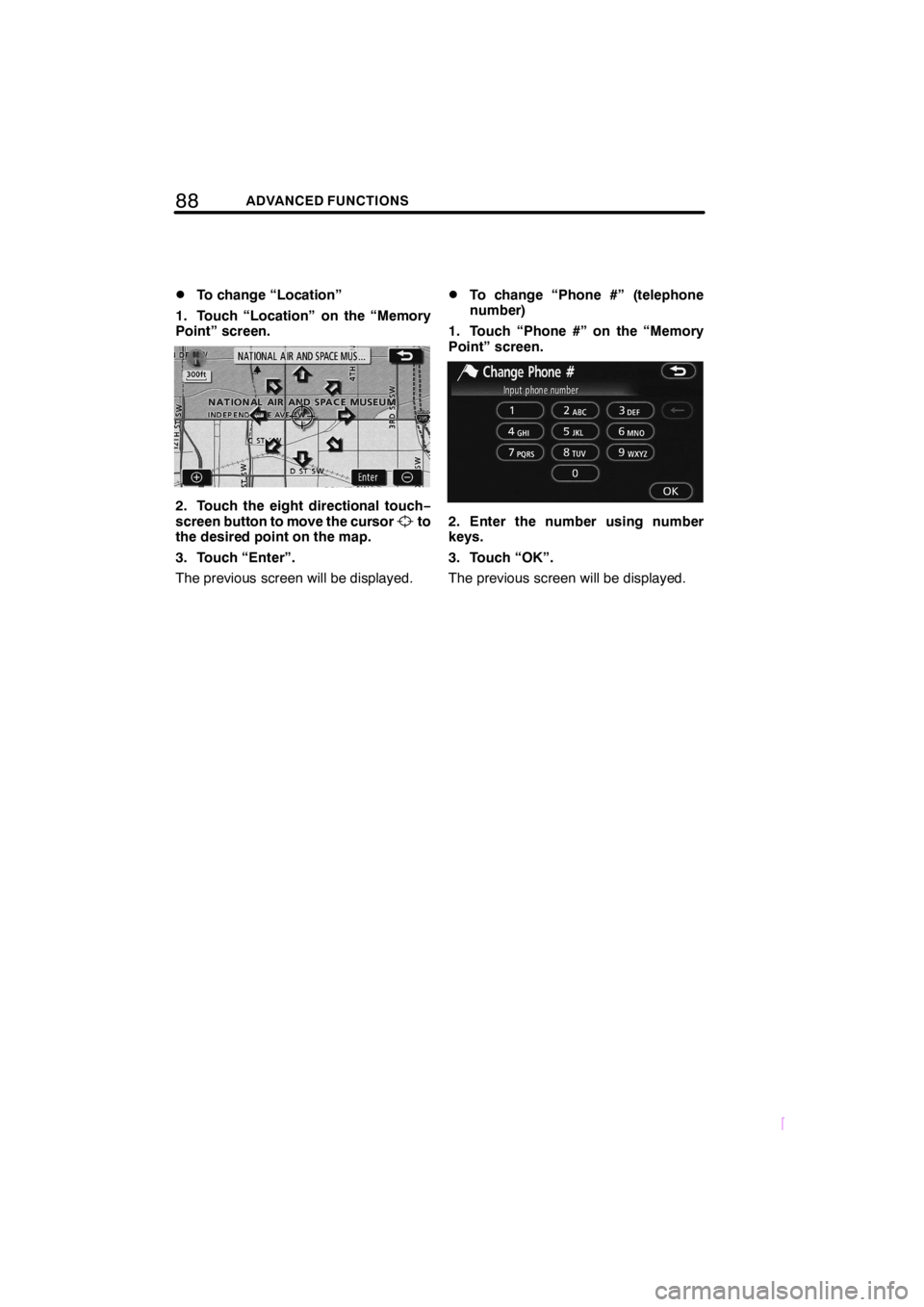

DTo change “Location”
1. Touch “Location” on the “Memory
Point” screen.
2. Touch the eight directional touch−
screen button to move the cursorto
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
DTo change “Phone #” (telephone
number)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

92ADVANCED FUNCTIONS
SCION V398

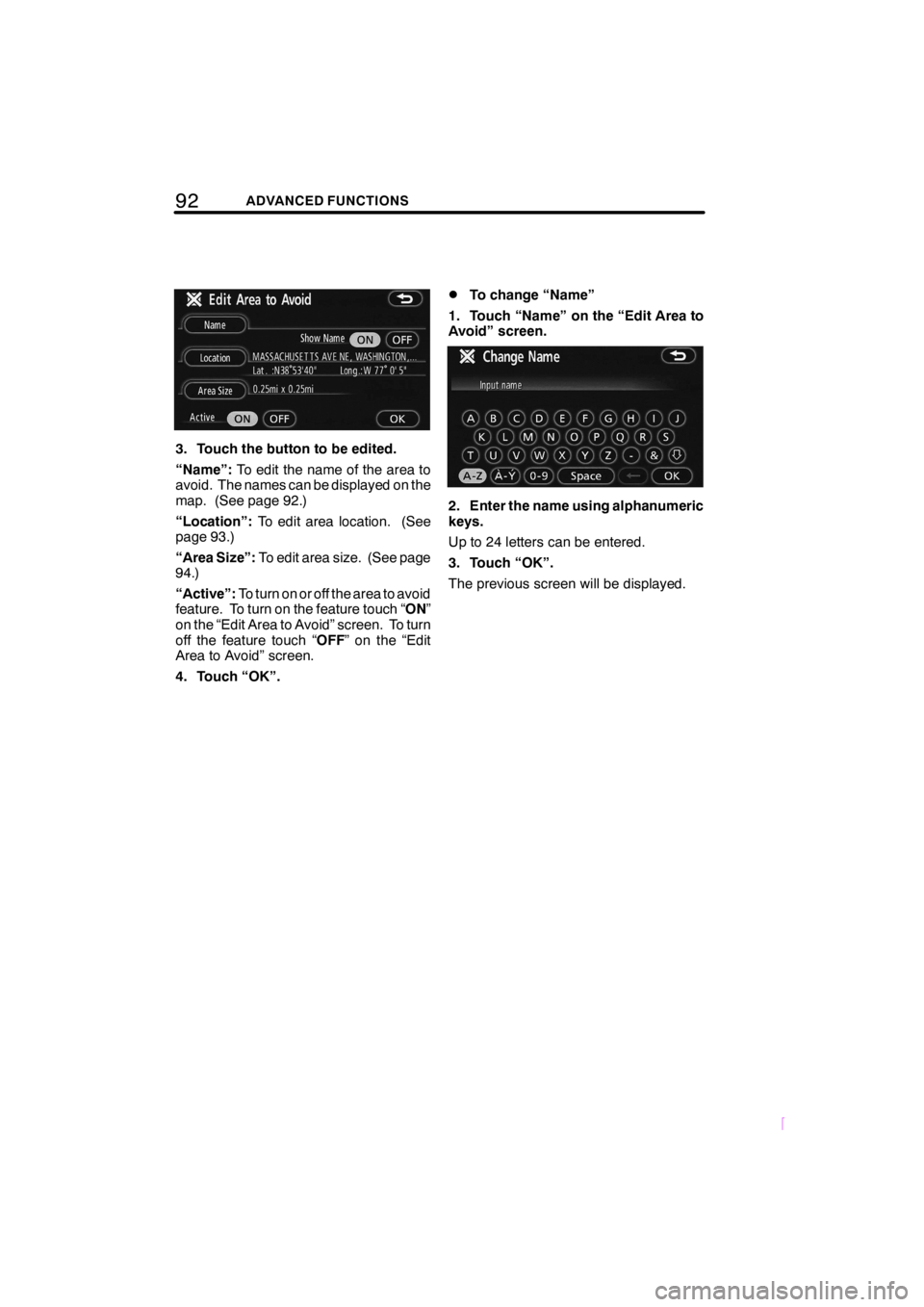

3. Touch the button to be edited.
“Name”:To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 92.)
“Location”:To edit area location. (See
page 93.)
“Area Size”:To edit area size. (See page
94.)
“Active”:To turn on or off the area to avoid
feature. To turn on the feature touch “ON”
on the “Edit Area to Avoid” screen. To turn
off the feature touch “OFF” on the “Edit
Area to Avoid” screen.
4. Touch “OK”.
DTo change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

97ADVANCED FUNCTIONS
SCION V398
INFORMATION
DThe displayed time to the destina-
tion is the approximate driving time
that is calculated based on the se-
lected speeds and the actual posi-
tion along the guidance route.
DThe time shown on the screen may
vary greatly depending on prog-
ress along the route, which may be
affected by road conditions such
as traffic jams, and construction
work.
DIt is possible to display up to 99
hours 59 minutes.

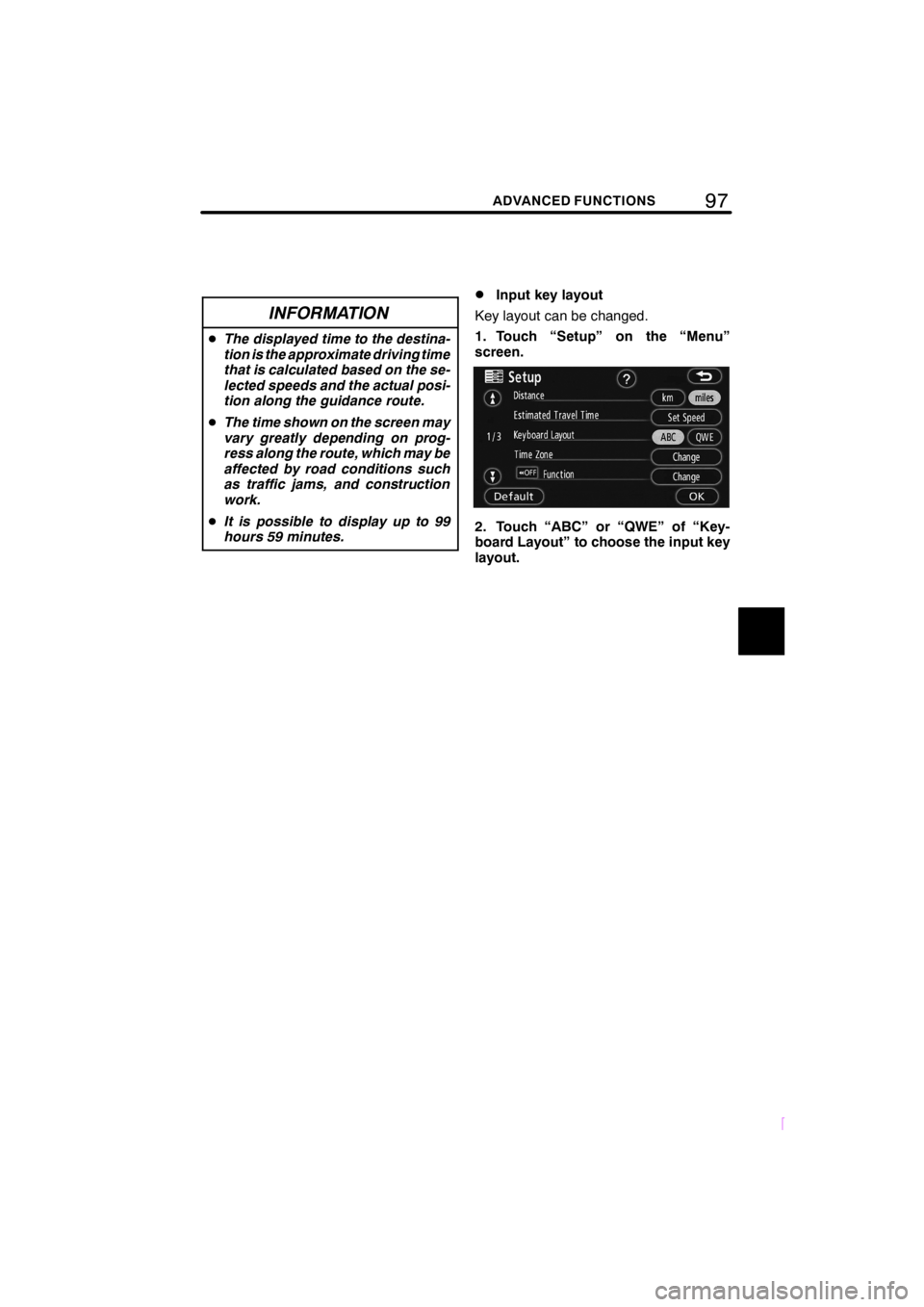

DInput key layout
Key layout can be changed.
1. Touch “Setup” on the “Menu”
screen.
2. Touch “ABC” or “QWE” of “Key-
board Layout” to choose the input key
layout.

11 0OTHER FUNCTIONS
SCION V398
DTo edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
DTo edit “Location”
1. Touch “Location” on the “Edit Deal-
er” screen.
2. Touch the eight directional touch−
screen button to move the cursorto
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
