SCION- Security systemPage 1

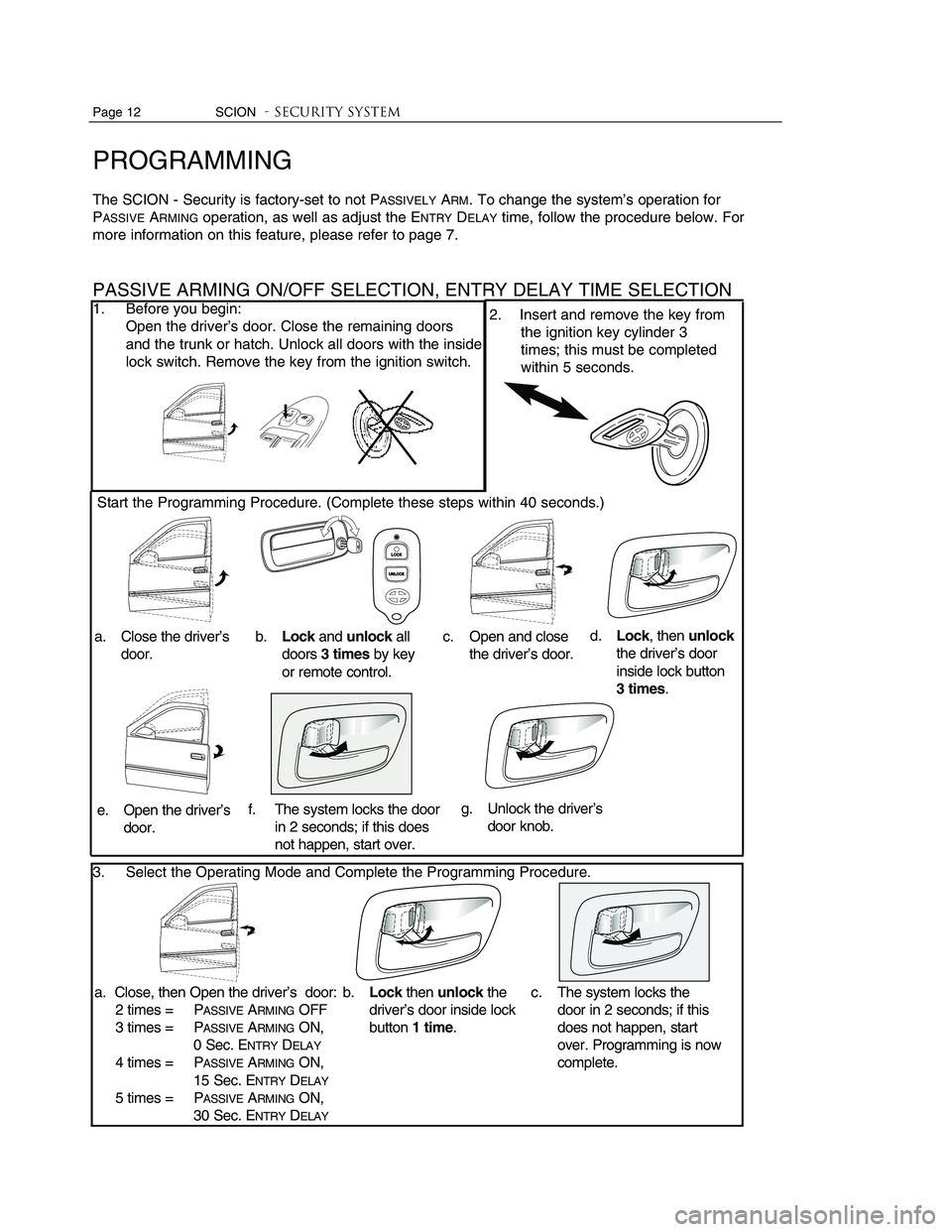

PROGRAMMING
The SCION - Security is factory-set to not PASSIVELYARM. To change the system’s operation for
PASSIVEARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For
more information on this feature, please refer to page 7.
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin:
Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 SCION - Security system
a. Close the driver’s
door.
b.Lockandunlockall
doors3 timesby key
or remote control.
b.Lockthenunlockthe
driver’s door inside lock
button1 time.
a. Close, then Open the driver’s door:
2 times = PASSIVEARMINGOFF
3 times = PASSIVEARMINGON,
0 Sec. ENTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. ENTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. ENTRYDELAY
c. Open and close
the driver’s door.
c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door.
d.Lock, then unlock
the driver’s door
inside lock button
3times.
2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.
f. The system locks the door
in 2 seconds; if this does
not happen, start over.
g. Unlock the driver’s
door knob.
Page 3 of 15
INTRODUCTION
Congratulations on your choice of the SCION add-on security system to protect your vehicle! To get
the most from the system, we strongly recommend that you read this Owner’s Guide completely to
learn all of its features and functions.
The SCION - Security provides security through point-of-entry monitoring, glass breakage detection
and ignition switch monitoring. While ARMED, the system will be TRIGGEREDand sound an ALARM
when a door is forcibly unlocked or opened*, or when a window is tapped on or broken. During the
ALARM, the vehicle’s horn sounds and the headlights, tail lights and front marker** or turn signal
lights flash.A l s o ,the vehicle’sstarter is disabled, preventing engine start. In addition to the com-
prehensive protection, the SCION - Security works in conjunction with your vehicle’s remote keyless
entry system, enabling you to ARMand DISARMthe security system at the same time the doors are
remotely locked and unlocked. In vehicles equipped with a buzzer, it will chirp when the system is
REMOTEARMEDand DISARMED.
An important note about your system:
Throughout this guide, there are references to the STATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the GLASS
BREAKAGESENSOR’Smicrophone.
*When the system is PASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an ALARMis TRIGGERED.
** Flashing of Taillights and marker lights are not available for SCION tC vehicle security.
Page 2 SCION- Security system
LIGHTSFOR 30SECONDS(PRE-ARMING)THENSTARTSFLASHING(SYSTEMISARMED)
➀➁
➀ ➁
SCION- Security systemPage 11

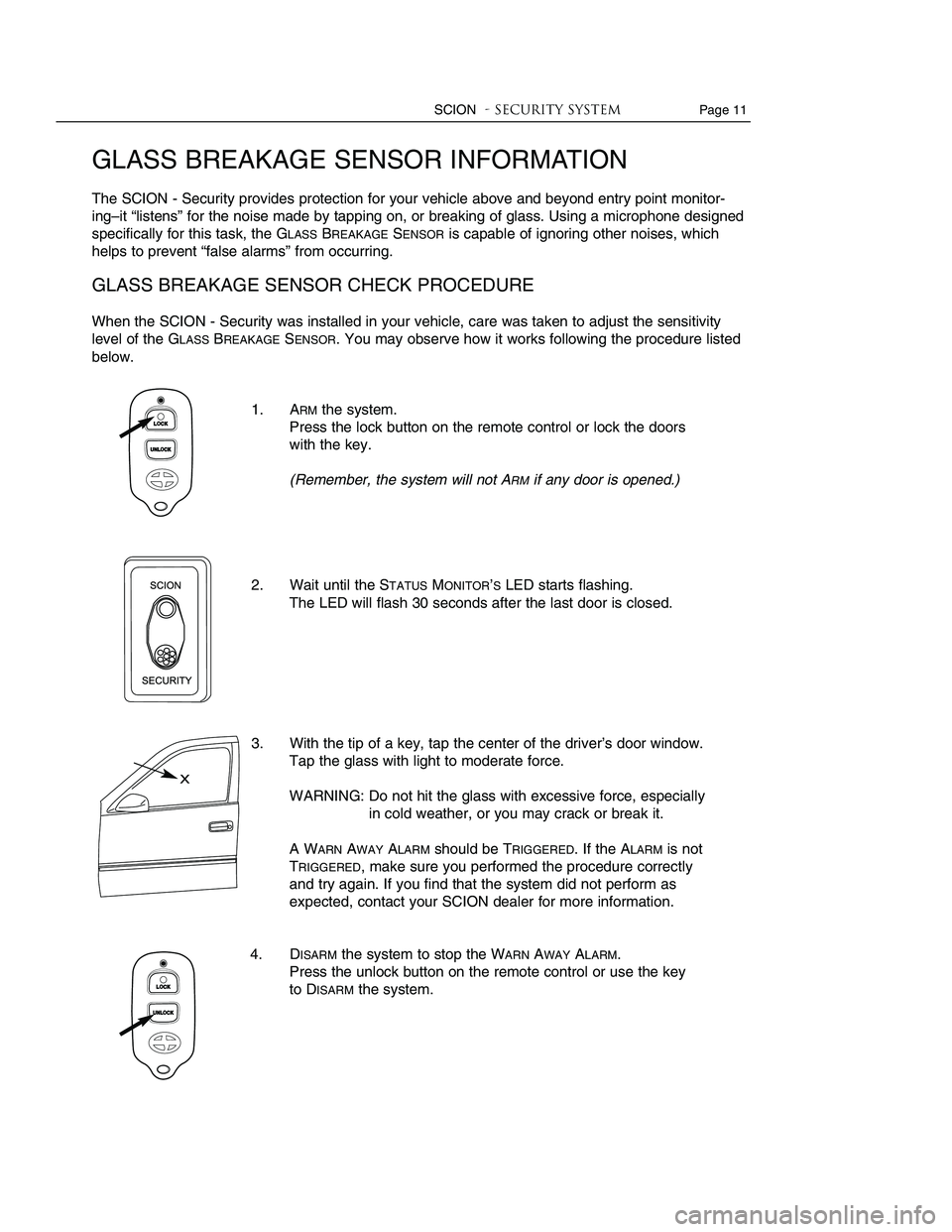

GLASS BREAKAGE SENSOR INFORMATION
The SCION - Security provides protection for your vehicle above and beyond entry point monitor-
ing–it “listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the GLASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the SCION - Security was installed in your vehicle, care was taken to adjust the sensitivity
level of the GLASSBREAKAGESENSOR. You may observe how it works following the procedure listed
below.
1. ARMthe system.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARMif any door is opened.)
2. Wait until the STATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially
in cold weather, or you may crack or break it.
A WARNAWAYALARMshould be TRIGGERED. If the ALARMis not
TRIGGERED, make sure you performed the procedure correctly
and try again. If you find that the system did not perform as
expected, contact your SCION dealer for more information.
4. DISARMthe system to stop the WARNAWAYALARM.
Press the unlock button on the remote control or use the key
to DISARMthe system.
Page 4 of 15
SCION- Security systemPage 3
BRIEF DESCRIPTION– SECURITY FEATURES
The SCION - Security will arm 30 seconds after the lock button
on the remote keyless entry system’s remote control is pressed,
and DISARM when the unlock button is pressed. If your vehicle
is equipped with a buzzer that chirps when the lock and unlock
buttons on the remote controls are pressed, the buzzer will also
chirp when the system is REMOTE ARMED and DISARMED.
The SCION - Security will automatically REARM at the same
time the vehicle’s remote keyless entry system relocks the
vehicle’s doors, if no door is opened within 30 seconds after
REMOTE DISARMING.
The SCION - Security will ARM 30 seconds after you lock the
vehicle’s doors with the key, and will DISARM when you unlock a
door with the key.
The SCION - Security may be programmed to automatically ARM
30 seconds after the ignition key is removed, the vehicle exited
and the last door closed, without the necessity of locking doors.
The SCION - Security may be DISARMED with the vehicle’s igni-
tion key after it was PASSIVELY ARMED.
When the SCION - Security has been PASSIVELY ARMED, an
ENTRY DELAY (user-selectable at 0,15, or 30 seconds) will start
when a door is opened before an ALARM is TRIGGERED.
When you lock the vehicle with the central lock switch (while a
door is open), the SCION - Security will ARM 30 seconds after
you close all the doors.
The SCION - Security may be DISARMED by inserting the key
into the ignition switch and turning it to “ON”.
Forcibly unlocking or opening a door while the SCION - Security
is ARMED will TRIGGER an ALARM immediately. (If the system
was PASSIVELY ARMED, the ENTRY DELAY must pass after
opening a door before the ALARM is TRIGGERED.)
The SCION - Security utilizes a microphone usually mounted on
the status monitor to sense the noise from tapping on window
glass, or glass breaking, and TRIGGER the system to sound an
ALARM. It is fine tuned to “listen” for this type of noise, and
ignore other sounds.
When the GLASS BREAKAGE SENSOR’S microphone picks up
tapping or breaking of window glass, it TRIGGERS a WARN
AWAY ALARM; the headlights and tail and marker* or turn signal
lights flash, and the horn sounds for 20 seconds, but the starter
is not disabled. If there is another detection of glass tapping or
breaking, or if a door is opened or unlocked without a key, the
regular ALARM is TRIGGERED.
While ARMED, the SCION - Security monitors the ignition switch.
If an attempt is made to start the vehicle without a key, an
ALARM is TRIGGERED.
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-
ENTRY
PROTECTION
GLASS
BREAKAGE
SENSOR
WARN AWAY
ALARM
IGNITION
SWITCH
MONITORING
FEATURESFUNCTIONS
*Flashing of taillights and marker lights are not available for SCION tC vehicle
security.
Page 10 SCION- Security system
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker* or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of ALARM, the system will REARMand continue to protect the vehicle.
WARN-AWAYALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker* or turn signal lights flash repeatedly for 20 seconds.
If the GLASSBREAKAGESENSORdetects noise again, or if a door is opened while the system is still
ARMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.
* Flashing of taillights and marker lights are not available for the SCION tC vehicle
security.
THE HORNSOUNDSFOR 20 SECONDS
THE HORNSOUNDSFOR 60 SECONDS
HEAD LIGHTSFLASHFOR 60 SECONDS
THE STARTER IS DIS-ABLED UNTIL THE SYSTEMIS DISARMED
MARKER* OR TURNSIGNAL LIGHTSFLASHFOR 60 SECONDS
HEADLIGHTS FLASHFOR 20 SECONDS
MARKER* OR TURNSIGNAL LIGHTS FLASH FOR 20 SECONDS
TAIL* OR TURN SIG-NAL LIGHTS FLASH FOR 60 SECONDS
TAIL* OR TURN SIG-NAL LIGHTS FLASH FOR 20 SECONDS
➀
➁
➀
➁
Page 5 of 15
Page 4 SCION- Security system
When an ALARM is TRIGGERED, the system disables the vehi-
cle’s starter and prevents engine start until the system is reset
(DISARMED).
During an ALARM, the system will lock the doors if one is
unlocked, and will continue to do so for the duration of the
ALARM.
The user is notified that an ALARM occurred. Upon DISARMING
the system after an ALARM was TRIGGERED, the vehicle’s tail
and marker lights will be turned on for 2 seconds.
The SCION - Security flashes the vehicle’s tail and marker** or
turn signal lights during REMOTE ARMING and REMOTE DIS-
ARMING, and during an ALARM. Also, during an ALARM the
headlights flash.
If your vehicle is equipped with a buzzer that chirps when the
lock and unlock buttons on the remote keyless entry system’s
remote controls are pressed, the buzzer will also chirp when the
system is REMOTE ARMED and DISARMED.
During an ALARM, the SCION - Security activates the vehicle’s
horn.
If power to the SCION - Security is disrupted while it is ARMED,
an ALARM is TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR micro-
phone and the flashing LED that indicates the operating status of
the security system.
FEATURESFUNCTIONS
STARTER
DISABLE
FORCED LOCK
DURING ALARM
TRIGGER
MEMORY*
EXTERIOR
LIGHT
ACTIVATION
BUZZER
ACTIVATION
HORN ACTIVATE
POWER LOSS
MEMORY
STATUS
MONITOR
* Trigger Memory is not available for SCION tC.
** Flashing of taillights and marker lights are not available for the SCION tC vehicle
security.
SCION- Security systemPage 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
Forcibly opening any door.
Manually unlocking a door
Manually operating an inside lock button will TRIGGERan ALARM.
Note: Because this action will TRIGGERan ALARM, it is important
that you do not ARMthe system while someone is in the
vehicle.
“Hot wiring” the vehicle
The SCION - Security can detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
Tapping on or breaking the glass
The noise from tapping on, or breaking of glass TRIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of
how the GLASSBREAKAGESENSORTRIGGERSALARMSon page 11.
Power restoration
If power to the system is interrupted while it is ARMED, an
ALARMwill be TRIGGEREDimmediately when power is restored.
Page 10 of 15
Page 4 SCION- Security system
When an ALARM is TRIGGERED, the system disables the vehi-
cle’s starter and prevents engine start until the system is reset
(DISARMED).
During an ALARM, the system will lock the doors if one is
unlocked, and will continue to do so for the duration of the
ALARM.
The user is notified that an ALARM occurred. Upon DISARMING
the system after an ALARM was TRIGGERED, the vehicle’s tail
and marker lights will be turned on for 2 seconds.
The SCION - Security flashes the vehicle’s tail and marker** or
turn signal lights during REMOTE ARMING and REMOTE DIS-
ARMING, and during an ALARM. Also, during an ALARM the
headlights flash.
If your vehicle is equipped with a buzzer that chirps when the
lock and unlock buttons on the remote keyless entry system’s
remote controls are pressed, the buzzer will also chirp when the
system is REMOTE ARMED and DISARMED.
During an ALARM, the SCION - Security activates the vehicle’s
horn.
If power to the SCION - Security is disrupted while it is ARMED,
an ALARM is TRIGGERED once power is restored.
This panel houses the GLASS BREAKAGE SENSOR micro-
phone and the flashing LED that indicates the operating status of
the security system.
FEATURESFUNCTIONS
STARTER
DISABLE
FORCED LOCK
DURING ALARM
TRIGGER
MEMORY*
EXTERIOR
LIGHT
ACTIVATION
BUZZER
ACTIVATION
HORN ACTIVATE
POWER LOSS
MEMORY
STATUS
MONITOR
* Trigger Memory is not available for SCION tC.
** Flashing of taillights and marker lights are not available for the SCION tC vehicle
security.
SCION- Security systemPage 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
Forcibly opening any door.
Manually unlocking a door
Manually operating an inside lock button will TRIGGERan ALARM.
Note: Because this action will TRIGGERan ALARM, it is important
that you do not ARMthe system while someone is in the
vehicle.
“Hot wiring” the vehicle
The SCION - Security can detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
Tapping on or breaking the glass
The noise from tapping on, or breaking of glass TRIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of
how the GLASSBREAKAGESENSORTRIGGERSALARMSon page 11.
Power restoration
If power to the system is interrupted while it is ARMED, an
ALARMwill be TRIGGEREDimmediately when power is restored.
Page 11 of 15
SCION- Security systemPage 3
BRIEF DESCRIPTION– SECURITY FEATURES
The SCION - Security will arm 30 seconds after the lock button
on the remote keyless entry system’s remote control is pressed,
and DISARM when the unlock button is pressed. If your vehicle
is equipped with a buzzer that chirps when the lock and unlock
buttons on the remote controls are pressed, the buzzer will also
chirp when the system is REMOTE ARMED and DISARMED.
The SCION - Security will automatically REARM at the same
time the vehicle’s remote keyless entry system relocks the
vehicle’s doors, if no door is opened within 30 seconds after
REMOTE DISARMING.
The SCION - Security will ARM 30 seconds after you lock the
vehicle’s doors with the key, and will DISARM when you unlock a
door with the key.
The SCION - Security may be programmed to automatically ARM
30 seconds after the ignition key is removed, the vehicle exited
and the last door closed, without the necessity of locking doors.
The SCION - Security may be DISARMED with the vehicle’s igni-
tion key after it was PASSIVELY ARMED.
When the SCION - Security has been PASSIVELY ARMED, an
ENTRY DELAY (user-selectable at 0,15, or 30 seconds) will start
when a door is opened before an ALARM is TRIGGERED.
When you lock the vehicle with the central lock switch (while a
door is open), the SCION - Security will ARM 30 seconds after
you close all the doors.
The SCION - Security may be DISARMED by inserting the key
into the ignition switch and turning it to “ON”.
Forcibly unlocking or opening a door while the SCION - Security
is ARMED will TRIGGER an ALARM immediately. (If the system
was PASSIVELY ARMED, the ENTRY DELAY must pass after
opening a door before the ALARM is TRIGGERED.)
The SCION - Security utilizes a microphone usually mounted on
the status monitor to sense the noise from tapping on window
glass, or glass breaking, and TRIGGER the system to sound an
ALARM. It is fine tuned to “listen” for this type of noise, and
ignore other sounds.
When the GLASS BREAKAGE SENSOR’S microphone picks up
tapping or breaking of window glass, it TRIGGERS a WARN
AWAY ALARM; the headlights and tail and marker* or turn signal
lights flash, and the horn sounds for 20 seconds, but the starter
is not disabled. If there is another detection of glass tapping or
breaking, or if a door is opened or unlocked without a key, the
regular ALARM is TRIGGERED.
While ARMED, the SCION - Security monitors the ignition switch.
If an attempt is made to start the vehicle without a key, an
ALARM is TRIGGERED.
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-
ENTRY
PROTECTION
GLASS
BREAKAGE
SENSOR
WARN AWAY
ALARM
IGNITION
SWITCH
MONITORING
FEATURESFUNCTIONS
*Flashing of taillights and marker lights are not available for SCION tC vehicle
security.
Page 10 SCION- Security system
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker* or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of ALARM, the system will REARMand continue to protect the vehicle.
WARN-AWAYALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker* or turn signal lights flash repeatedly for 20 seconds.
If the GLASSBREAKAGESENSORdetects noise again, or if a door is opened while the system is still
ARMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.
* Flashing of taillights and marker lights are not available for the SCION tC vehicle
security.
THE HORNSOUNDSFOR 20 SECONDS
THE HORNSOUNDSFOR 60 SECONDS
HEAD LIGHTSFLASHFOR 60 SECONDS
THE STARTER IS DIS-ABLED UNTIL THE SYSTEMIS DISARMED
MARKER* OR TURNSIGNAL LIGHTSFLASHFOR 60 SECONDS
HEADLIGHTS FLASHFOR 20 SECONDS
MARKER* OR TURNSIGNAL LIGHTS FLASH FOR 20 SECONDS
TAIL* OR TURN SIG-NAL LIGHTS FLASH FOR 60 SECONDS
TAIL* OR TURN SIG-NAL LIGHTS FLASH FOR 20 SECONDS
➀
➁
➀
➁
Page 12 of 15
INTRODUCTION
Congratulations on your choice of the SCION add-on security system to protect your vehicle! To get
the most from the system, we strongly recommend that you read this Owner’s Guide completely to
learn all of its features and functions.
The SCION - Security provides security through point-of-entry monitoring, glass breakage detection
and ignition switch monitoring. While ARMED, the system will be TRIGGEREDand sound an ALARM
when a door is forcibly unlocked or opened*, or when a window is tapped on or broken. During the
ALARM, the vehicle’s horn sounds and the headlights, tail lights and front marker** or turn signal
lights flash.A l s o ,the vehicle’sstarter is disabled, preventing engine start. In addition to the com-
prehensive protection, the SCION - Security works in conjunction with your vehicle’s remote keyless
entry system, enabling you to ARMand DISARMthe security system at the same time the doors are
remotely locked and unlocked. In vehicles equipped with a buzzer, it will chirp when the system is
REMOTEARMEDand DISARMED.
An important note about your system:
Throughout this guide, there are references to the STATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the GLASS
BREAKAGESENSOR’Smicrophone.
*When the system is PASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an ALARMis TRIGGERED.
** Flashing of Taillights and marker lights are not available for SCION tC vehicle security.
Page 2 SCION- Security system
LIGHTSFOR 30SECONDS(PRE-ARMING)THENSTARTSFLASHING(SYSTEMISARMED)
➀➁
➀ ➁
SCION- Security systemPage 11
GLASS BREAKAGE SENSOR INFORMATION
The SCION - Security provides protection for your vehicle above and beyond entry point monitor-
ing–it “listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the GLASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the SCION - Security was installed in your vehicle, care was taken to adjust the sensitivity
level of the GLASSBREAKAGESENSOR. You may observe how it works following the procedure listed
below.
1. ARMthe system.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARMif any door is opened.)
2. Wait until the STATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door is closed.
3. With the tip of a key, tap the center of the driver’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially
in cold weather, or you may crack or break it.
A WARNAWAYALARMshould be TRIGGERED. If the ALARMis not
TRIGGERED, make sure you performed the procedure correctly
and try again. If you find that the system did not perform as
expected, contact your SCION dealer for more information.
4. DISARMthe system to stop the WARNAWAYALARM.
Press the unlock button on the remote control or use the key
to DISARMthe system.
Page 13 of 15
To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTIONPAGE
INTRODUCTION2
BRIEF DESCRIPTION– SECURITY FEATURES3, 4
OPERATION
ARMING THE SECURITY (except PASSIVE ARMING) 5
DISARMING THE SECURITY (except PASSIVE DISARMING) 6
PASSIVE (AUTOMATIC) ARMING & DISARMING7
AUTOMATIC REARMING8
ARMING SUSPENSION8
ALARM INFORMATION9
ALARM TRIGGERS9
ALARM DESCRIPTIONS10
STOPPING AN ALARM 10
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 12
WARNING and CAUTION INFORMATION13
SCION- Security systemPage 1
PROGRAMMING
The SCION - Security is factory-set to not PASSIVELYARM. To change the system’s operation for
PASSIVEARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For
more information on this feature, please refer to page 7.
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin:
Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 SCION - Security system
a. Close the driver’s
door.
b.Lockandunlockall
doors3 timesby key
or remote control.
b.Lockthenunlockthe
driver’s door inside lock
button1 time.
a. Close, then Open the driver’s door:
2 times = PASSIVEARMINGOFF
3 times = PASSIVEARMINGON,
0 Sec. ENTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. ENTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. ENTRYDELAY
c. Open and close
the driver’s door.
c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door.
d.Lock, then unlock
the driver’s door
inside lock button
3times.
2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.
f. The system locks the door
in 2 seconds; if this does
not happen, start over.
g. Unlock the driver’s
door knob.
