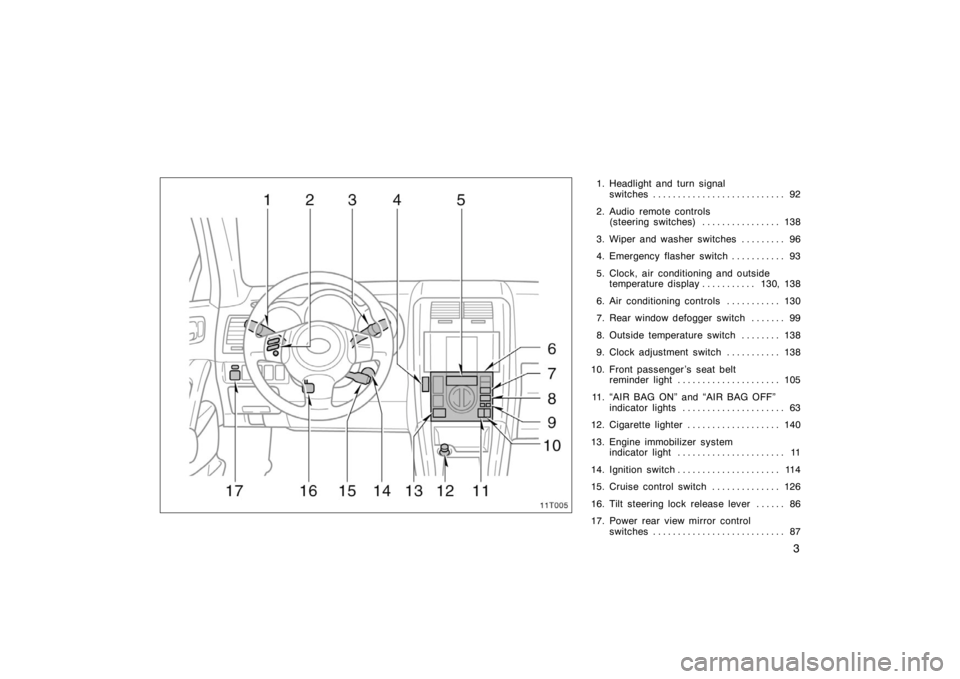

1. Headlight and turn signal switches 92 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Audio remote controls (steering switches) 138 . . . . . . . . . . . . . . . .
3. Wiper and washer switches 96 . . . . . . . . .
4. Emergency flasher switch 93 . . . . . . . . . . .
5. Clock, air conditioning and outside temperature display 130, 138 . . . . . . . . . . .
6. Air conditioning controls 130 . . . . . . . . . . .
7. Rear window defogger switch 99 . . . . . . .
8. Outside temperature switch 138 . . . . . . . .
9. Clock adjustment switch 138 . . . . . . . . . . .
10. Front passenger ’s seat belt reminder light 105 . . . . . . . . . . . . . . . . . . . . .
11. “AIR BAG ON” and “AIR BAG OFF” indicator lights 63
. . . . . . . . . . . . . . . . . . . . .
12. Cigarette lighter 140
. . . . . . . . . . . . . . . . . . .
13. Engine immobilizer system indicator light 11
. . . . . . . . . . . . . . . . . . . . . .
14. Ignition switch 114
. . . . . . . . . . . . . . . . . . . . .
15. Cruise control switch 126
. . . . . . . . . . . . . .
16. Tilt steering lock release lever 86 . . . . . .
17. Power rear view mirror control switches 87
. . . . . . . . . . . . . . . . . . . . . . . . . . .
11T005

4
1. Engine coolant temperature gauge 102 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Fuel gauge 102 . . . . . . . . . . . . . . . . . . . . . .
3. Speedometer
4. Tachometer 103 . . . . . . . . . . . . . . . . . . . . . . 5. Service reminder indicators and
indicator lights 105 . . . . . . . . . . . . . . . . . . .
6. Automatic transmission shift range position display 115 . . . . . . . . . . . .
7. Trip meter reset knob 103 . . . . . . . . . . . . 8. Odometer and two trip meters 103
. . . .
9. Low fuel level warning light 102 . . . . . .
10. Instrument panel light control knob 94 . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview

5
Indicator symbols on the instrument cluster
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti–lock brake system warning light∗1
SRS warning light∗1
Tire pressure warning light∗1
Turn signal indicator lights Headlight high beam indicator light
Cruise control indicator light
∗2
Front passenger ’s seat belt reminder light∗1
Open door warning light∗1 ∗
1
: For details, see “Service reminder indicators and warning
buzzers” on page 105.
∗2: If this light flashes, see “Cruise control” on page 126.
Engine oil replacement reminder light∗1Automatic transmission indicator lights

6

7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Engine immobilizer system 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Panorama moonroof 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 1– 2

8
12T051
These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 12.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
12T052

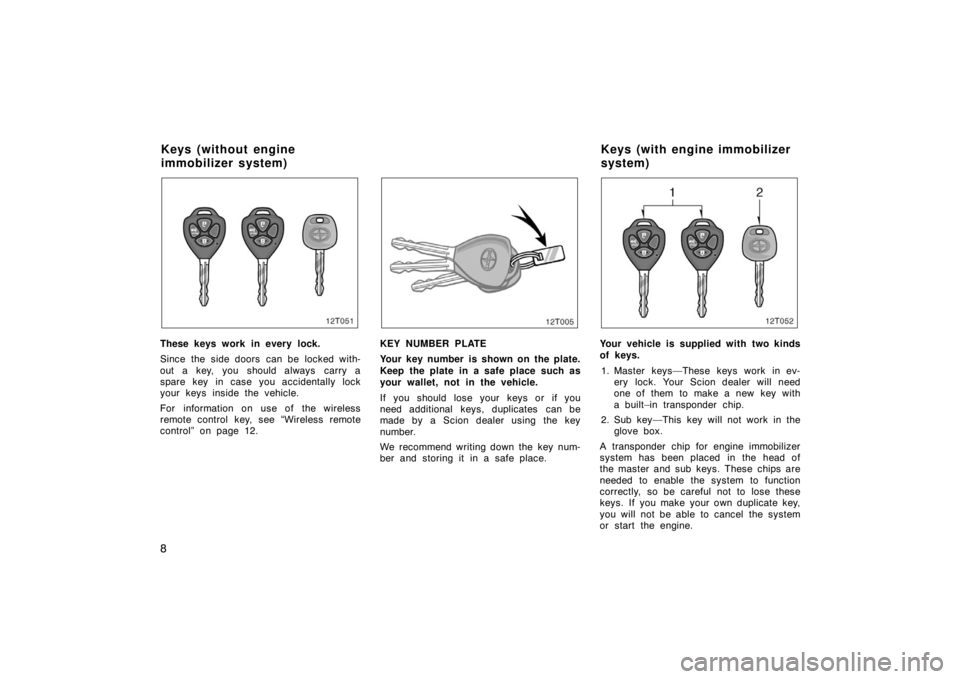

Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock. Your Scion dealer will need
one of them to make a new key with
a built–in transponder chip.
2. Sub key—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

9
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 12.
12T002
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
12T003
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

10
12T004
Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
12T005
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

11
12T006

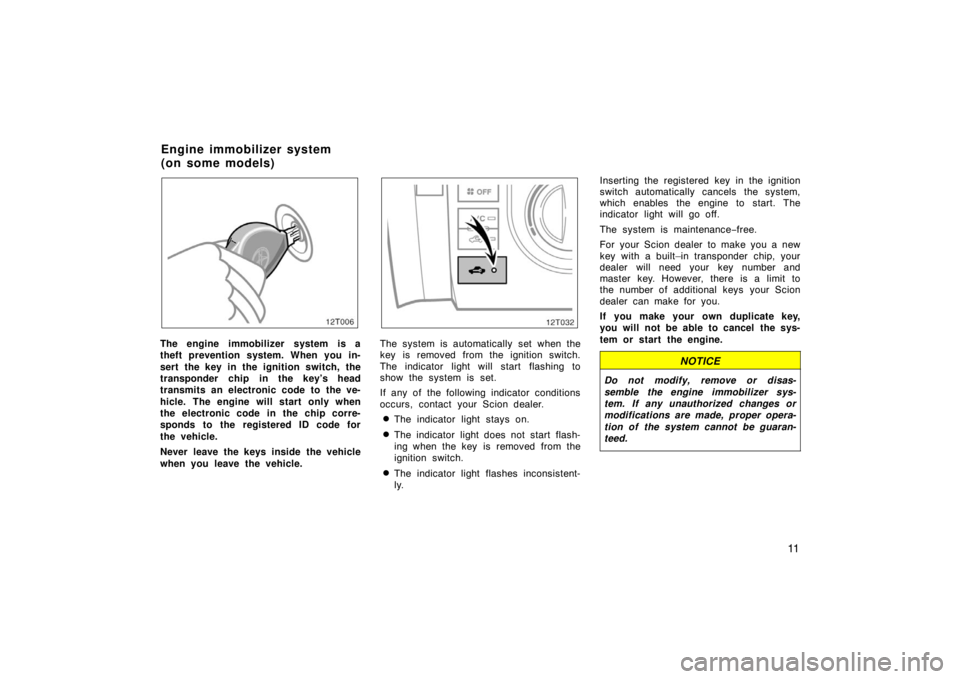

The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Scion dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−
free.
For your Scion dealer to make you a new
key with a built–in transponder chip, your
dealer will need your key number and
master key. However, there is a limit to
the number of additional keys your Scion
dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system
(on some models)

12
FCC ID: MOZRI–20BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
12T055

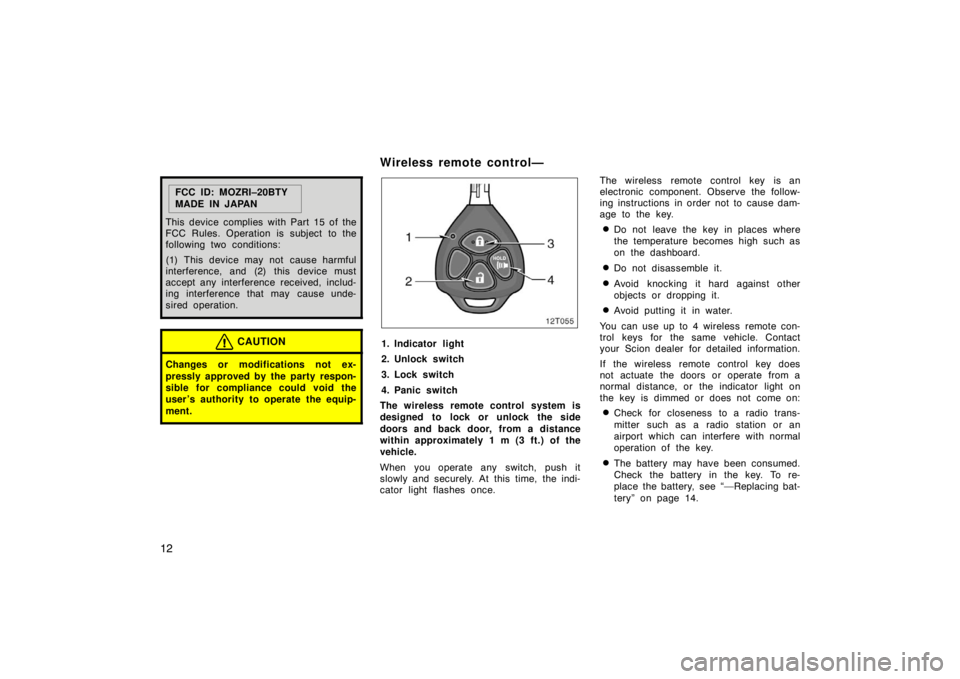

1. Indicator light
2. Unlock switch
3. Lock switch
4. Panic switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once. The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 14.
Wireless remote control—
