OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument cluster 5
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1– 1

2
Instrument panel overview
1. Side vent135
. . . . . . . . . . . . . . . . . . . . . . . . .
2. Side defroster outlet
3. Instrument cluster 4
. . . . . . . . . . . . . . . . . . .
4. Center vents 135
. . . . . . . . . . . . . . . . . . . . . .
5. Panorama moonroof switch, interior light and
personal light 26, 94, 96
. . . . . . . . . . . . . . .
6. Power door lock switch 17
. . . . . . . . . . . . .
7. Power window switches 18
. . . . . . . . . . . . .
8. Glove box 141
. . . . . . . . . . . . . . . . . . . . . . . .
9. Tire pressure warning reset switch 124
. . . . . . . . . . . . . . . . . . . . . . .
10. Cup holders 143
. . . . . . . . . . . . . . . . . . . . . . .
11. Parking brake lever 125
. . . . . . . . . . . . . . . .
12. Auxiliary box 141
. . . . . . . . . . . . . . . . . . . . . .
13. Automatic transmission selector lever or manual transmission
gear shift lever 115, 118
. . . . . . . . . . . . . . . .
14. Hood lock release lever 23
. . . . . . . . . . . . .
15. Window lock switch 19
. . . . . . . . . . . . . . . .
11T004

4

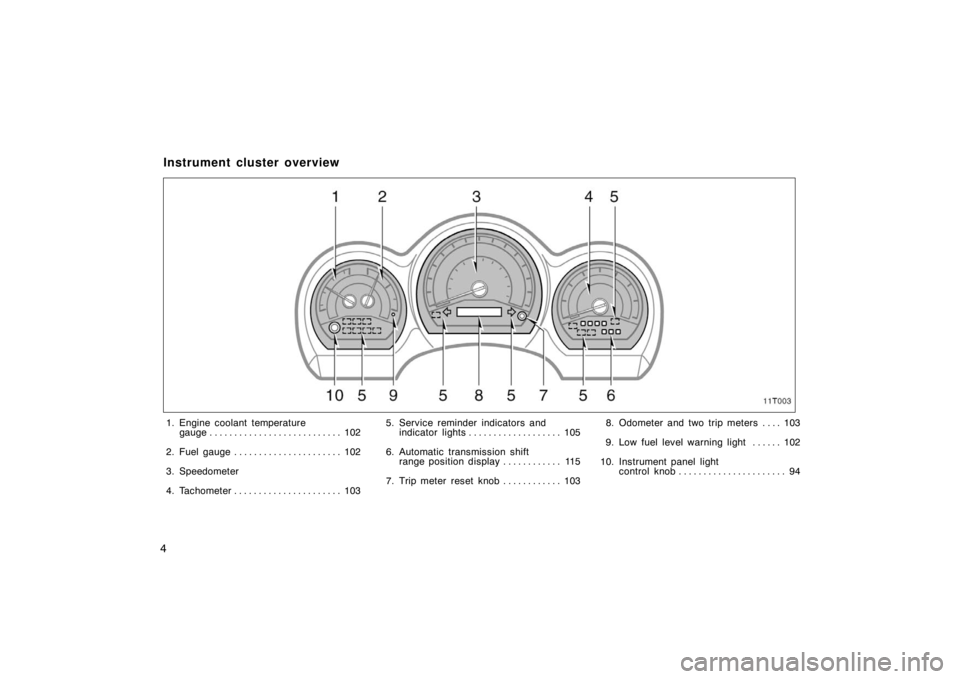

1. Engine coolant temperature gauge 102 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Fuel gauge 102 . . . . . . . . . . . . . . . . . . . . . .
3. Speedometer
4. Tachometer 103 . . . . . . . . . . . . . . . . . . . . . . 5. Service reminder indicators and
indicator lights 105 . . . . . . . . . . . . . . . . . . .
6. Automatic transmission shift range position display 115 . . . . . . . . . . . .
7. Trip meter reset knob 103 . . . . . . . . . . . . 8. Odometer and two trip meters 103
. . . .
9. Low fuel level warning light 102 . . . . . .
10. Instrument panel light control knob 94 . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview

30
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded–down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50–75 mm (2–3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non–slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Front seats—
—Front seat precautions

51
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, lower portion of instrument panel, air-
bag cover and inflator) may be hot for
several minutes after deployment, so do
not touch! The airbags inflate only once.
The windshield may be damaged by ab-
sorbing some of the force of the inflating
airbag.CAUTION
The driver or front passenger who is
too close to the steering wheel, lower
portion of instrument panel or
dashboard during airbag deployment
can be killed or seriously injured.
Scion strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of a collision. Be sure to
wear the seat belt with the seat belt
extender. Otherwise, there will also
not be any effective protection in a
sudden stop or a collision provided
by the seat belt.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
30.

53
If a vinyl cover is put on the area
where the SRS knee airbag will
deploy, be sure to remove it.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag, driver knee air-
bag or airbag sensor assembly. Do-
ing so may prevent the front airbag
system from activating correctly,
cause sudden activation of the sys-
tem or disable the system, which
could result in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Scion dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Scion dealer. It may dan-
gerously interfere with the SRS front
airbags operation.
13T077
Do not attach any heavy, sharp or
hard objects such as keys or acces-
sories to the ignition key. The ob-
jects may restrict the SRS knee air-
bag inflation or be thrust into the
driver’s seat area by the force of
the deploying airbag, thus causing
a danger.
NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel, lower portion of instrument
panel or dashboard near the front
passenger airbag

91
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Ignition switch light 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Personal lights 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage compartment light 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting the windshield wiper position 97
. . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1– 5

92
Headlights and turn signals
HEADLIGHTS

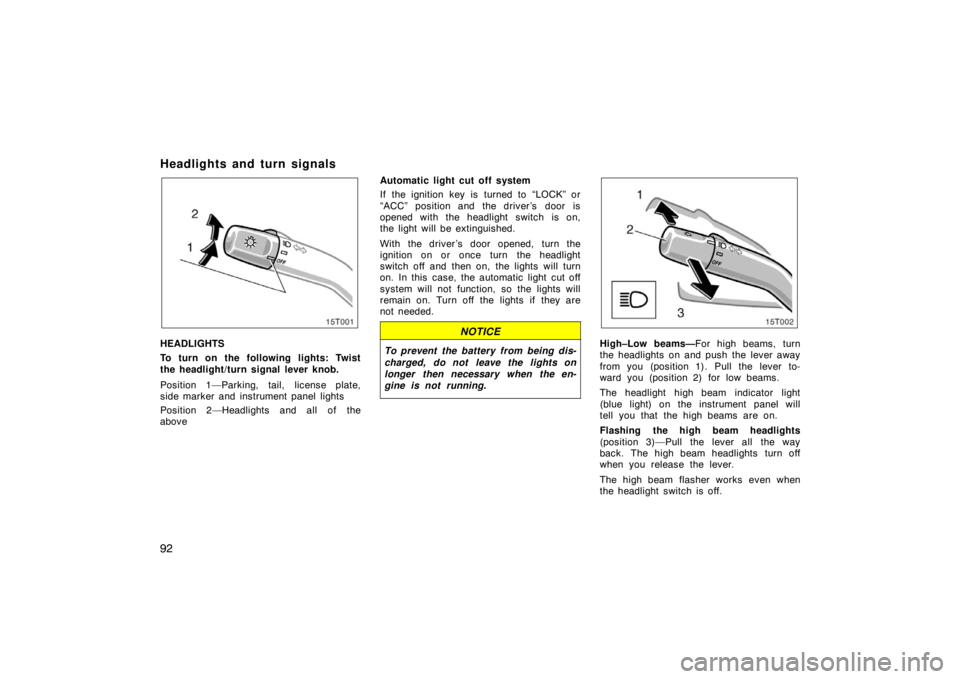

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveAutomatic light cut off system
If the ignition key is turned to “LOCK” or
“ACC” position and the driver’s door is
opened with the headlight switch is on,
the light will be extinguished.
With the driver ’s door opened, turn the
ignition on or once turn the headlight
switch off and then on, the lights will turn
on. In this case, the automatic light cut off
system will not function, so the lights will
remain on. Turn off the lights if they are
not needed.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
longer then necessary when the en-
gine is not running.High–Low beams—
For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
The high beam flasher works even when
the headlight switch is off.

93
TURN SIGNALS

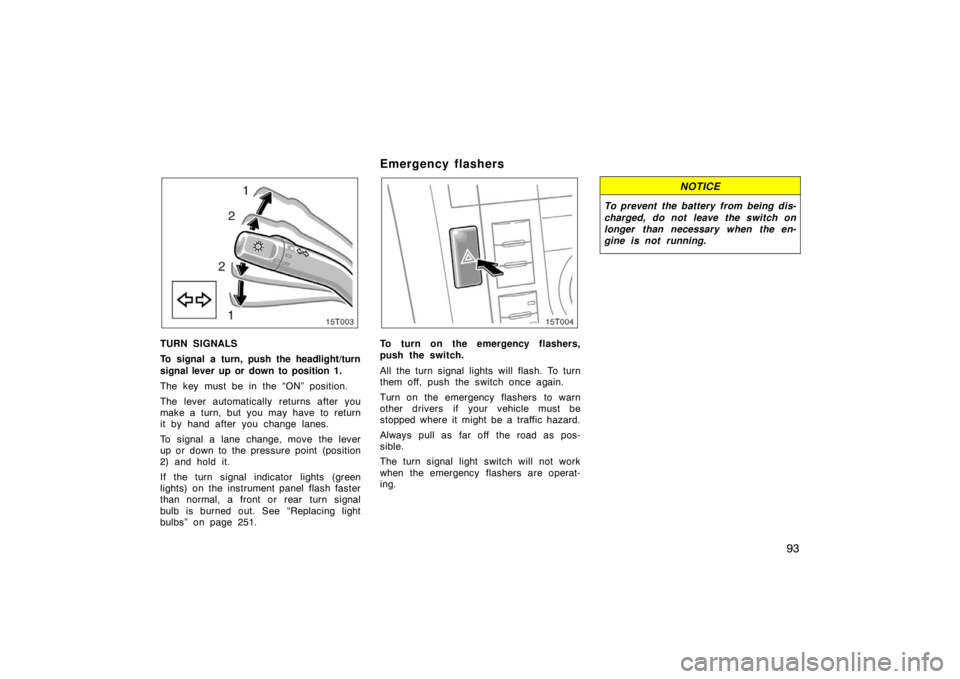

To signal a turn, push the headlight/turn
signal lever up or down to position 1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 251.
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

94
Instrument panel light control

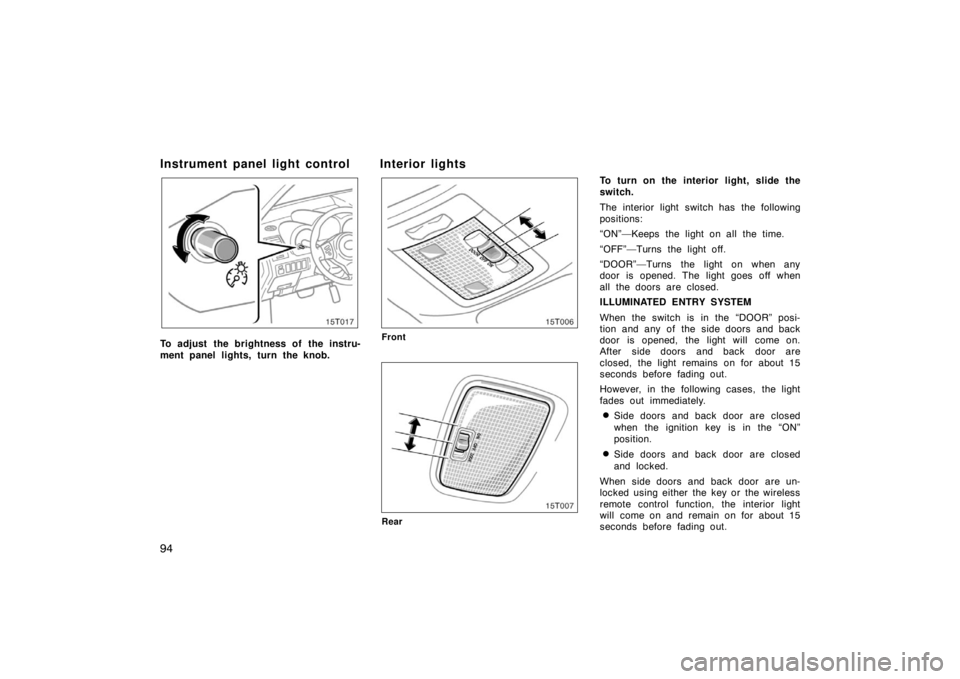

To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior lights
Front
15T007
Rear
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
door is opened. The light goes off when
all the doors are closed.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately.
Side doors and back door are closed
when the ignition key is in the “ON”
position.
Side doors and back door are closed
and locked.
When side doors and back door are un-
locked using either the key or the wireless
remote control function, the interior light
will come on and remain on for about 15
seconds before fading out.
