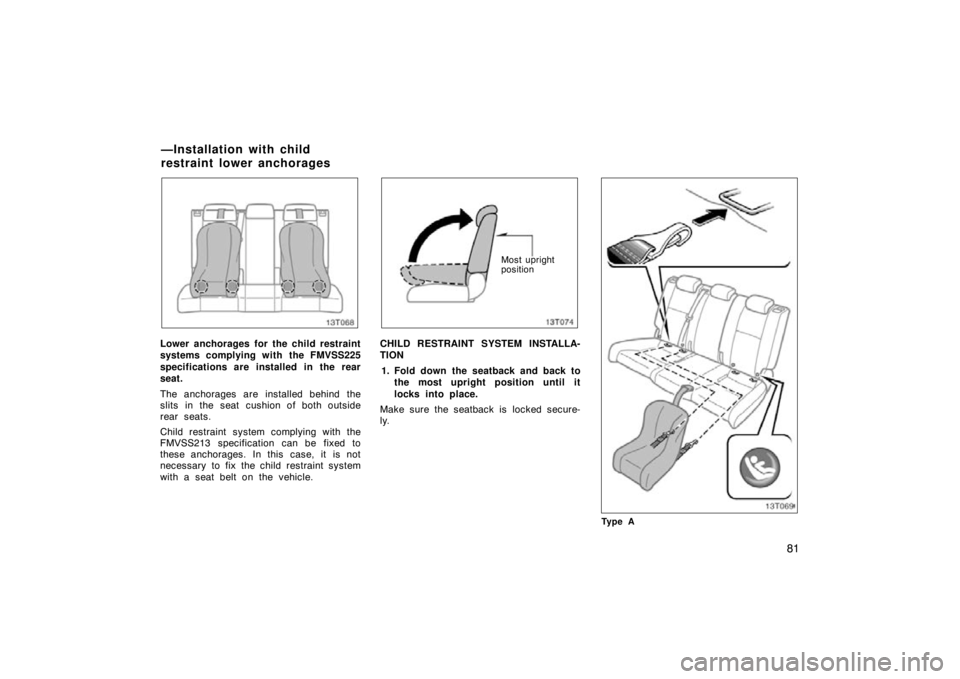

Lower anchorages for the child restraint
systems complying with the FMVSS225
specifications are installed in the rear
seat.
The anchorages are installed behind the
slits in the seat cushion of both outside
rear seats.
Child restraint system complying with the
FMVSS213 specification can be fixed to
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
13T074Most upright
position
CHILD RESTRAINT SYSTEM INSTALLA-
TION1. Fold down the seatback and back to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.
Ty p e A
—Installation with child
restraint lower anchorages

82
Ty p e B
2. Widen the slits in the seat cushionslightly and confirm the position of
the lower anchorages below the but-
ton in the seatback.

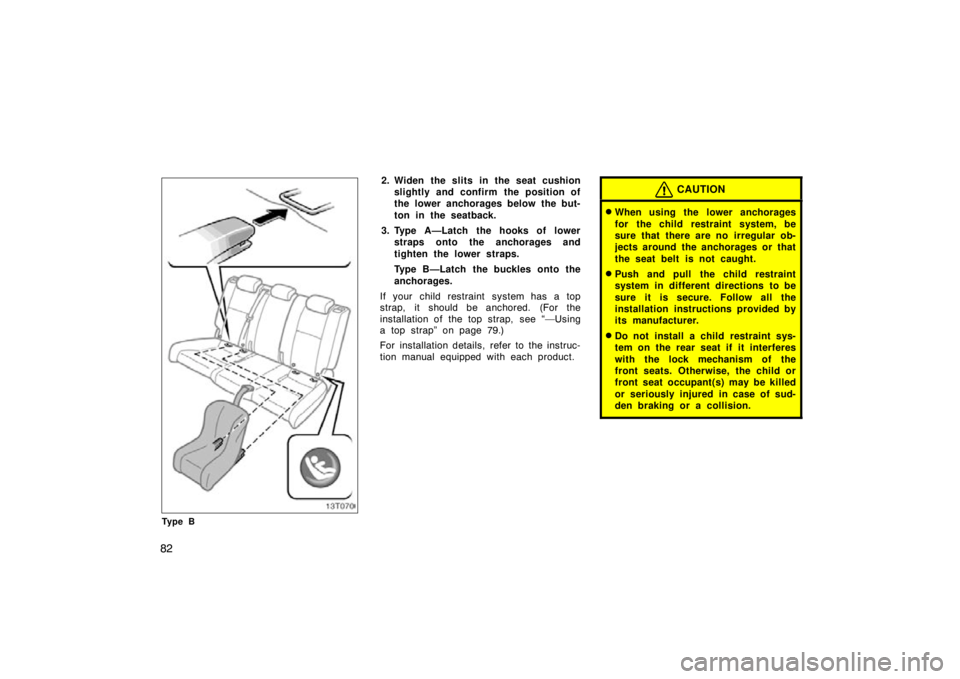

3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 79.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

83
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti–glare inside rear view mirror 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1– 4

84
Tilt steering wheel
14T007

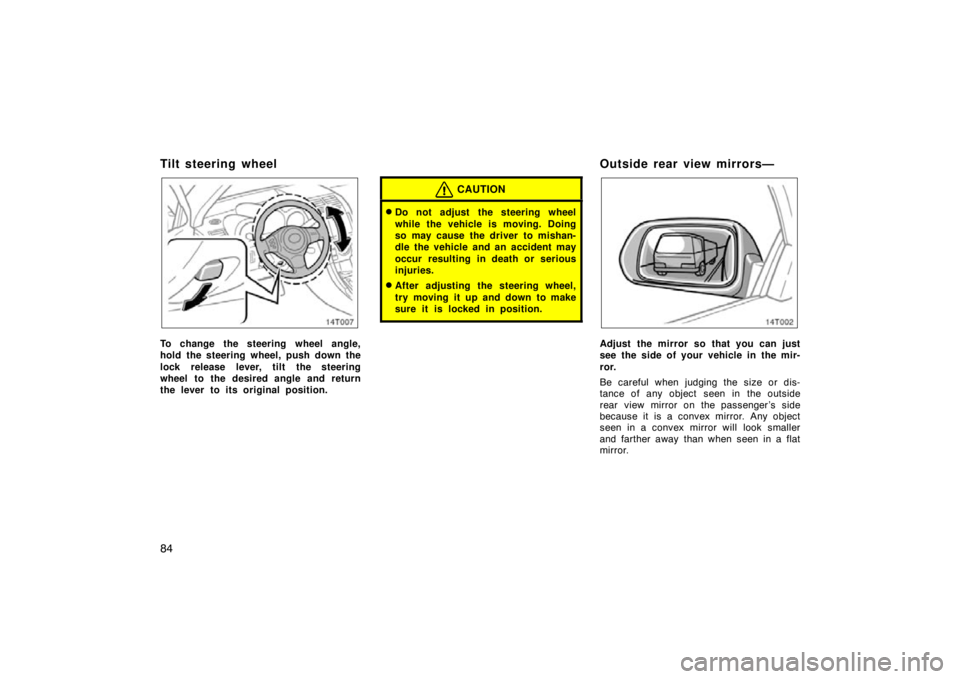

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
14T002
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.

85
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
14T008

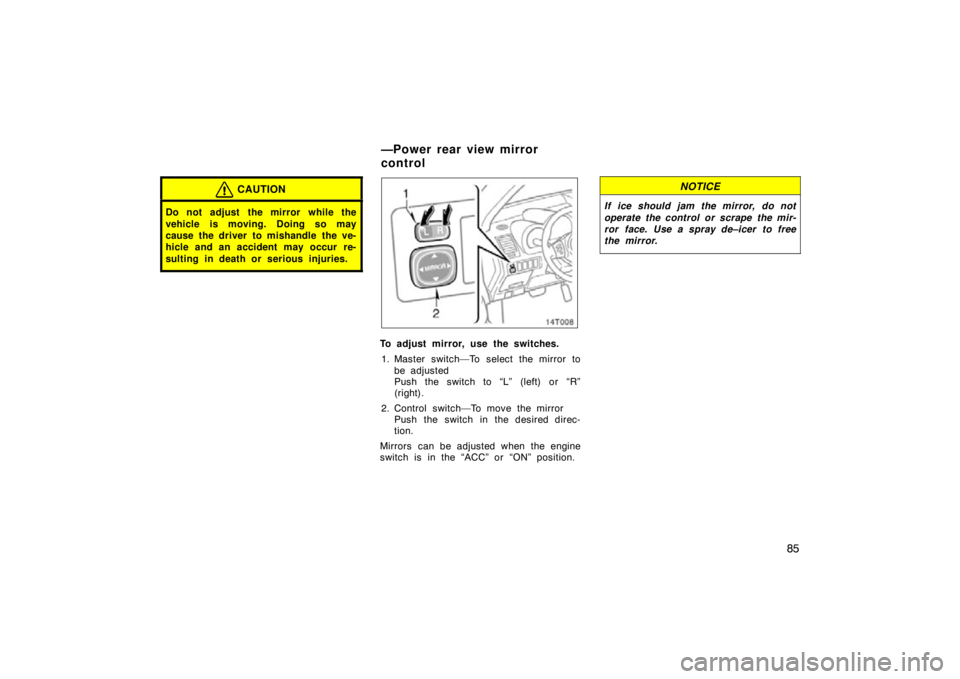

To adjust mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the engine
switch is in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de–icer to free
the mirror.
—Power rear view mirror
control

86
14T005

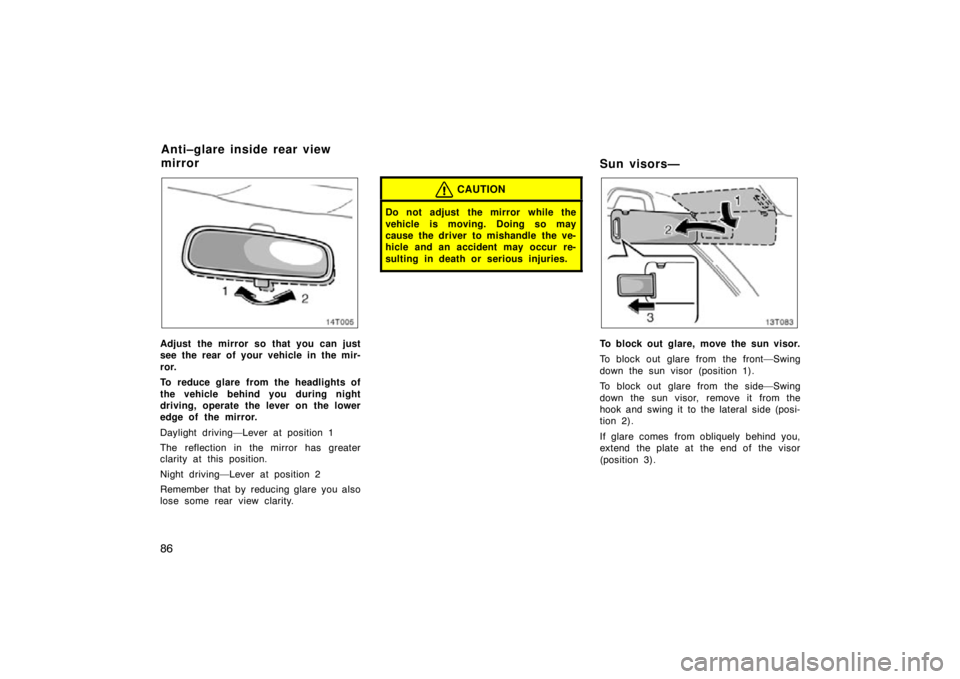

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Sun visors—
13T083
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(position 3).
Anti–glare inside rear view
mirror

87
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
14T006
To use the vanity mirror, swing down
the sun visor and slide the cover.
—Vanity mirrors

88

89
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Engine (ignition) switch light 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage compartment light 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting the windshield wiper position 95
. . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1– 5

90
Headlights and turn signals
HEADLIGHTS

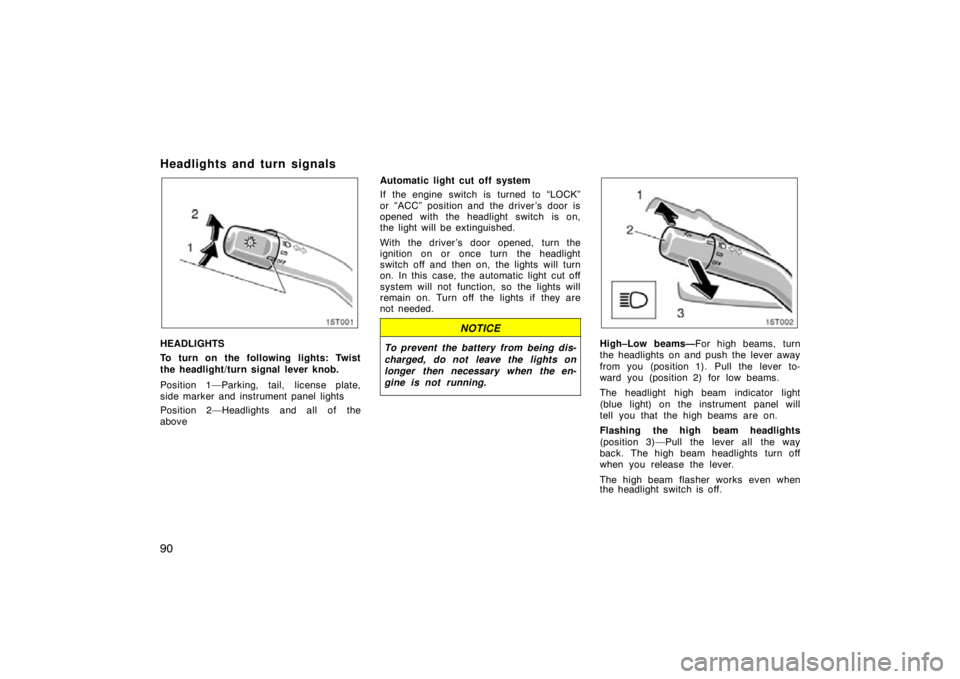

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveAutomatic light cut off system
If the engine switch is turned to “LOCK”
or “ACC” position and the driver’s door is
opened with the headlight switch is on,
the light will be extinguished.
With the driver ’s door opened, turn the
ignition on or once turn the headlight
switch off and then on, the lights will turn
on. In this case, the automatic light cut off
system will not function, so the lights will
remain on. Turn off the lights if they are
not needed.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
longer then necessary when the en-
gine is not running.High–Low beams—
For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
The high beam flasher works even when
the headlight switch is off.
