10
FEATURES/OPERATIONS

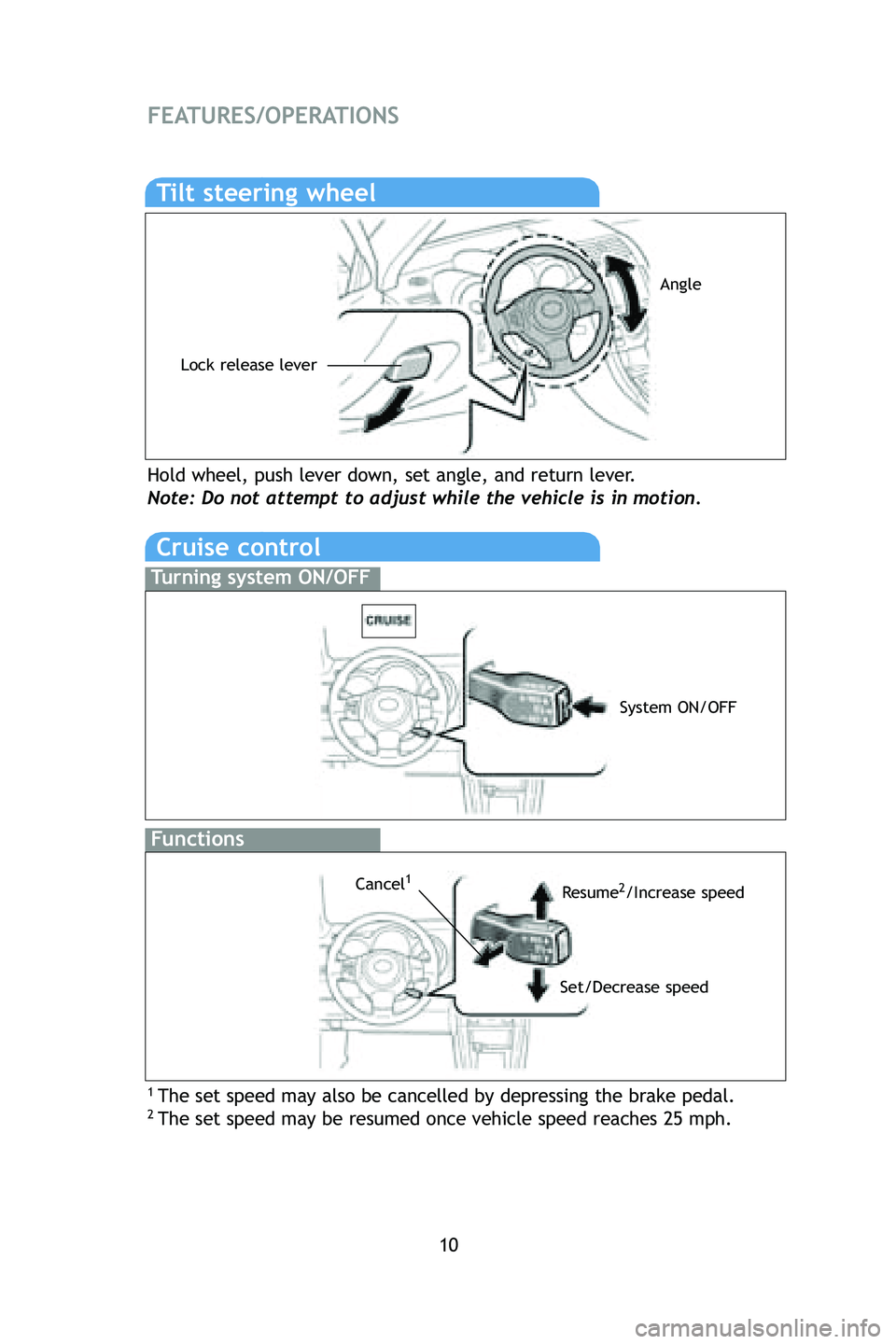

Tilt steering wheel
Lock release lever
Angle
Hold wheel, push lever down, set angle, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speedCancel1
412376M2.qxd 4/15/08 10:28 AM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

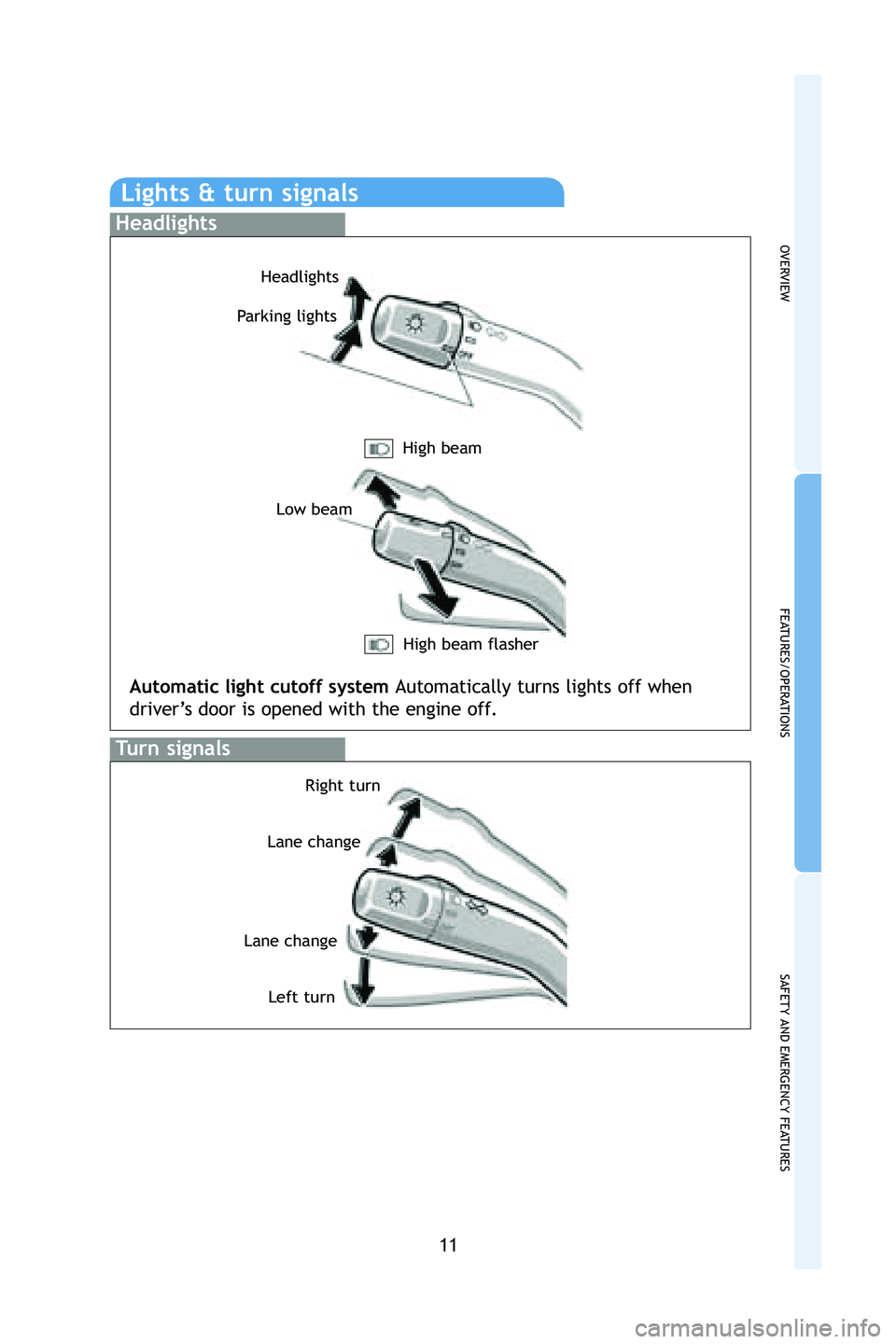

Lights & turn signals
Headlights
Turn signals
Parking lightsHigh beam
Low beam
Headlights
Automatic light cutoff system
Automatically turns lights off when
driver’s door is opened with the engine off.
Right turn
Left turn
Lane change
Lane change
High beam flasher
412376M2.qxd 4/15/08 10:28 AM Page 11

12
FEATURES/OPERATIONS

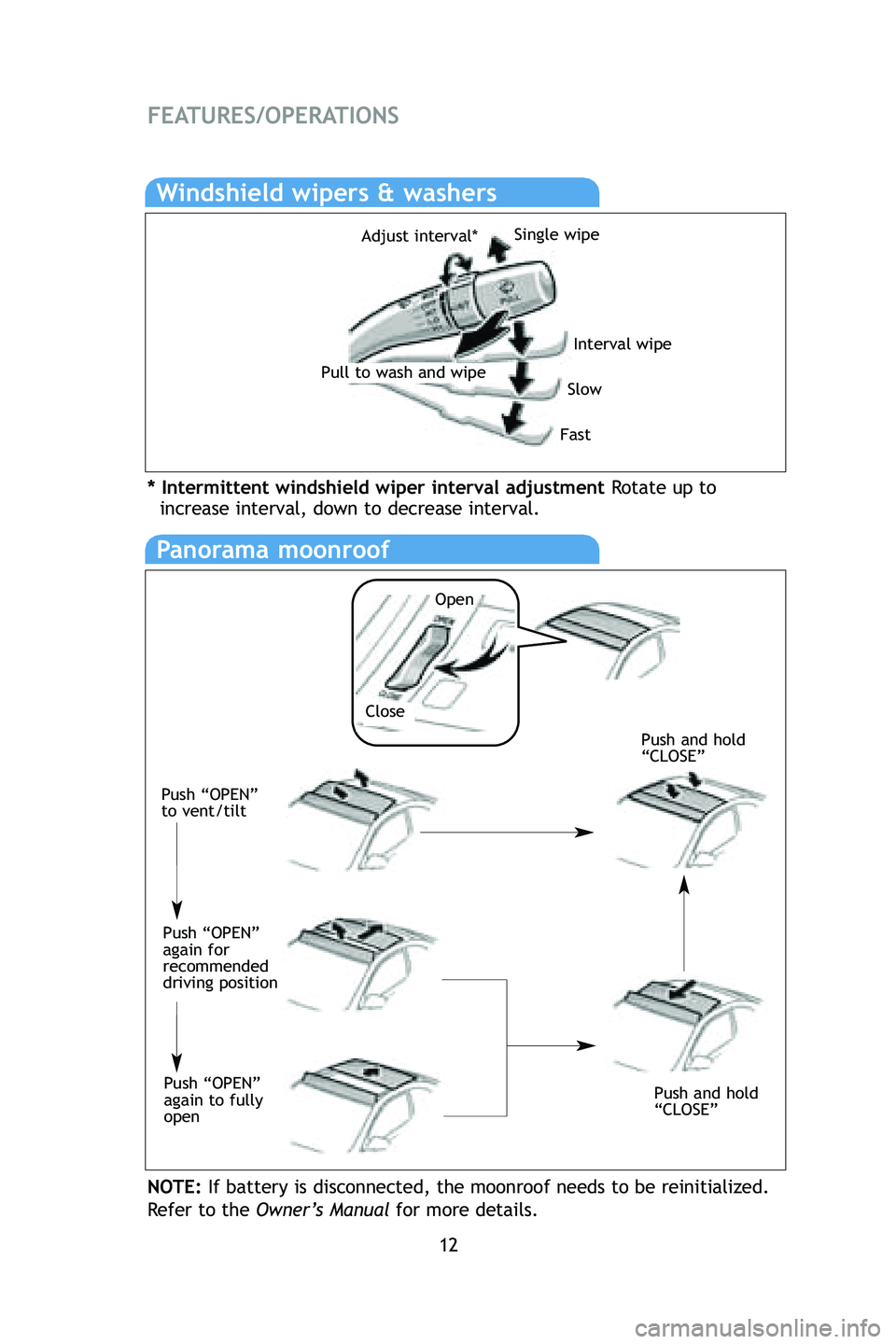

Windshield wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipeAdjust interval*
Single wipe
Panorama moonroof
NOTE:
If battery is disconnected, the moonroof needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Open
Close
Push and hold
“CLOSE”
Push and hold
“CLOSE”
Push “OPEN”
to vent/tilt
Push “OPEN”
again for
recommended
driving position
Push “OPEN”
again to fully
open
* Intermittent windshield wiper interval adjustment Rotate up to
increase interval, down to decrease interval.
412376M2.qxd 4/15/08 10:28 AM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

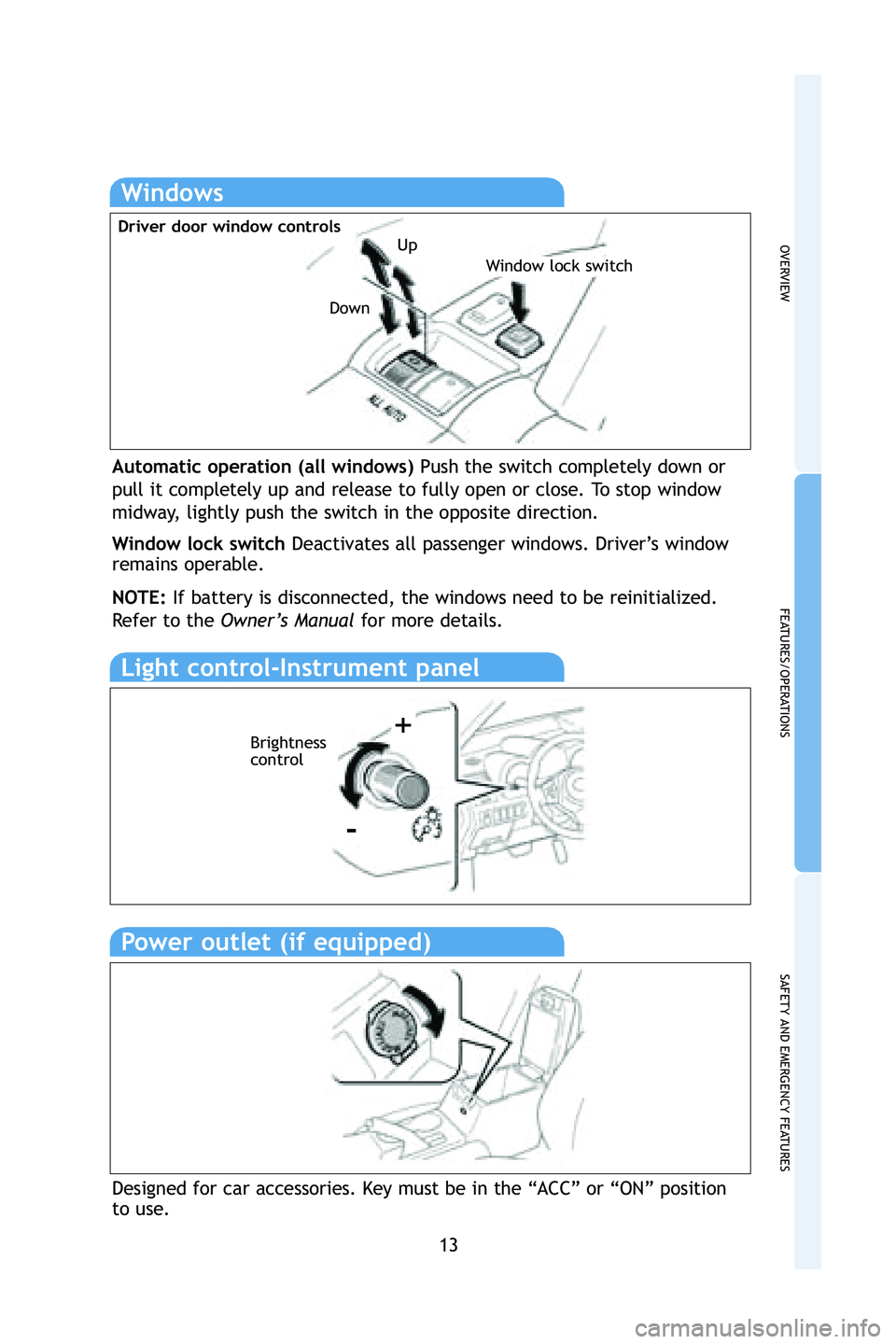

Windows
Window lock switch
Driver door window controls
Automatic operation (all windows) Push the switch completely down or
pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE: If battery is disconnected, the windows need to be reinitialized.
Refer to the Owner’s Manual for more details.
Up
Down
Power outlet (if equipped)
Designed for car accessories. Key must be in the “ACC” or “ON” position
to use.
Light control-Instrument panel
+
-
Brightness
control
412376M2.qxd 4/15/08 10:28 AM Page 13

14
Clock
H-Hour set
M-Minute set
Air Conditioning/Heating
Fan speed
Air Conditioning/Heating system “OFF”
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to \
reduce
window fogging.
Windshield airflow
Rear window defogger
Temperature
AUX audio jack
By inserting a mini plug into the AUX jack, you can listen to music from\
a
portable audio device through the vehicle’s speaker system. If you do not
have a SCION genuine audio system, you will not be able to use the AUX
jack.
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation
System Owner’s Manual for more details.
FEATURES/OPERATIONS
412376M2.qxd 4/15/08 10:28 AM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

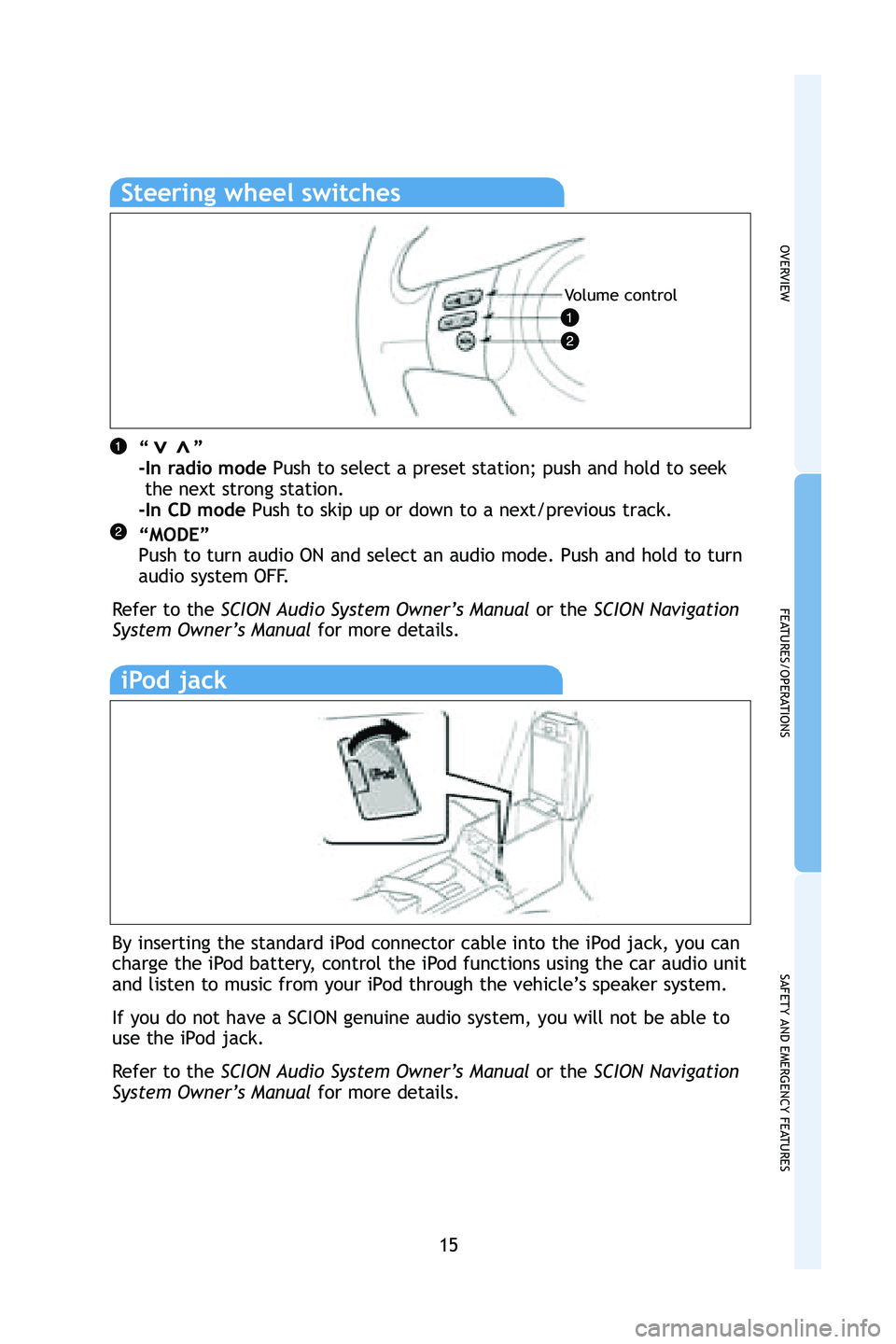

Steering wheel switches
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation
System Owner’s Manual for more details.>>
iPod jack
By inserting the standard iPod connector cable into the iPod jack, you can
charge the iPod battery, control the iPod functions using the car audio unit
and listen to music from your iPod through the vehicle’s speaker system.
If you do not have a SCION genuine audio system, you will not be able to\
use the iPod jack.
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation
System Owner’s Manual for more details.
Volume control
412376M2.qxd 4/15/08 10:28 AM Page 15

16
SAFETY AND
EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Then allow the vehicl\
e
to sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Lock
Unlock
Door locks
Tire Pressure Monitoring (warning)
System
If tire pressure indicator
light is on, check/adjust
each tire.
412376M2.qxd 4/15/08 10:28 AM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

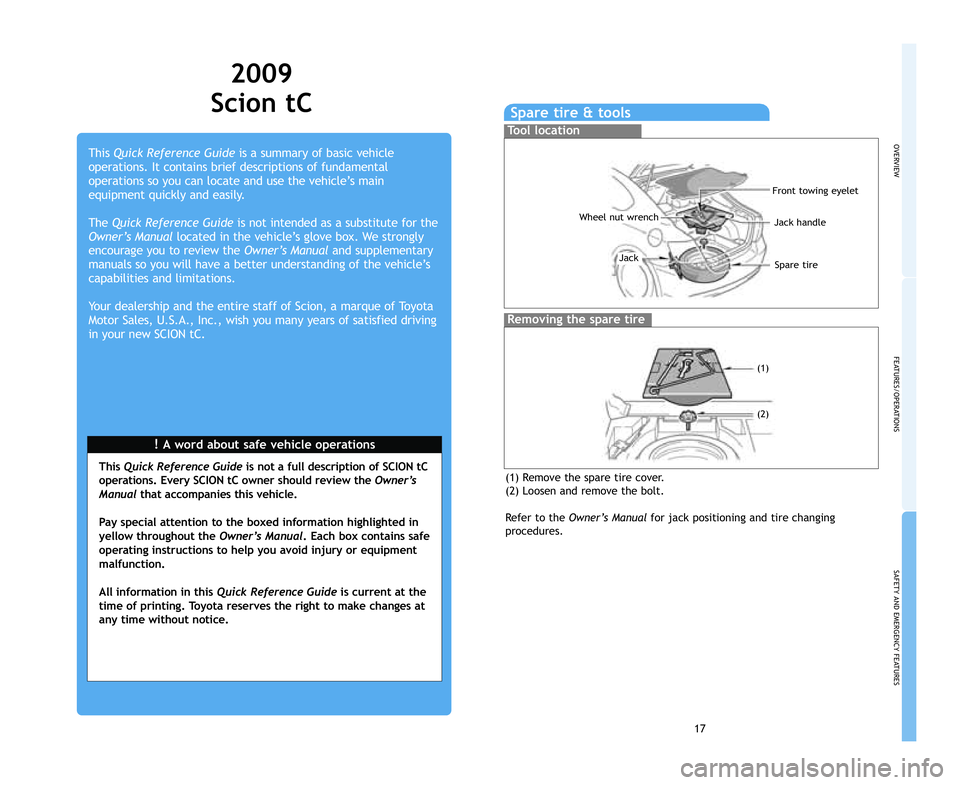

!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving
in your new SCION tC.
This Quick Reference Guide is not a full description of SCION tC
operations. Every SCION tC owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
yellow throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2009
Scion tC
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
Wheel nut wrench
Front towing eyelet
Jack handle
Spare tireJack
(1)
(2)
