warning TOYOTA tC 2009 Owners Manual (in English)

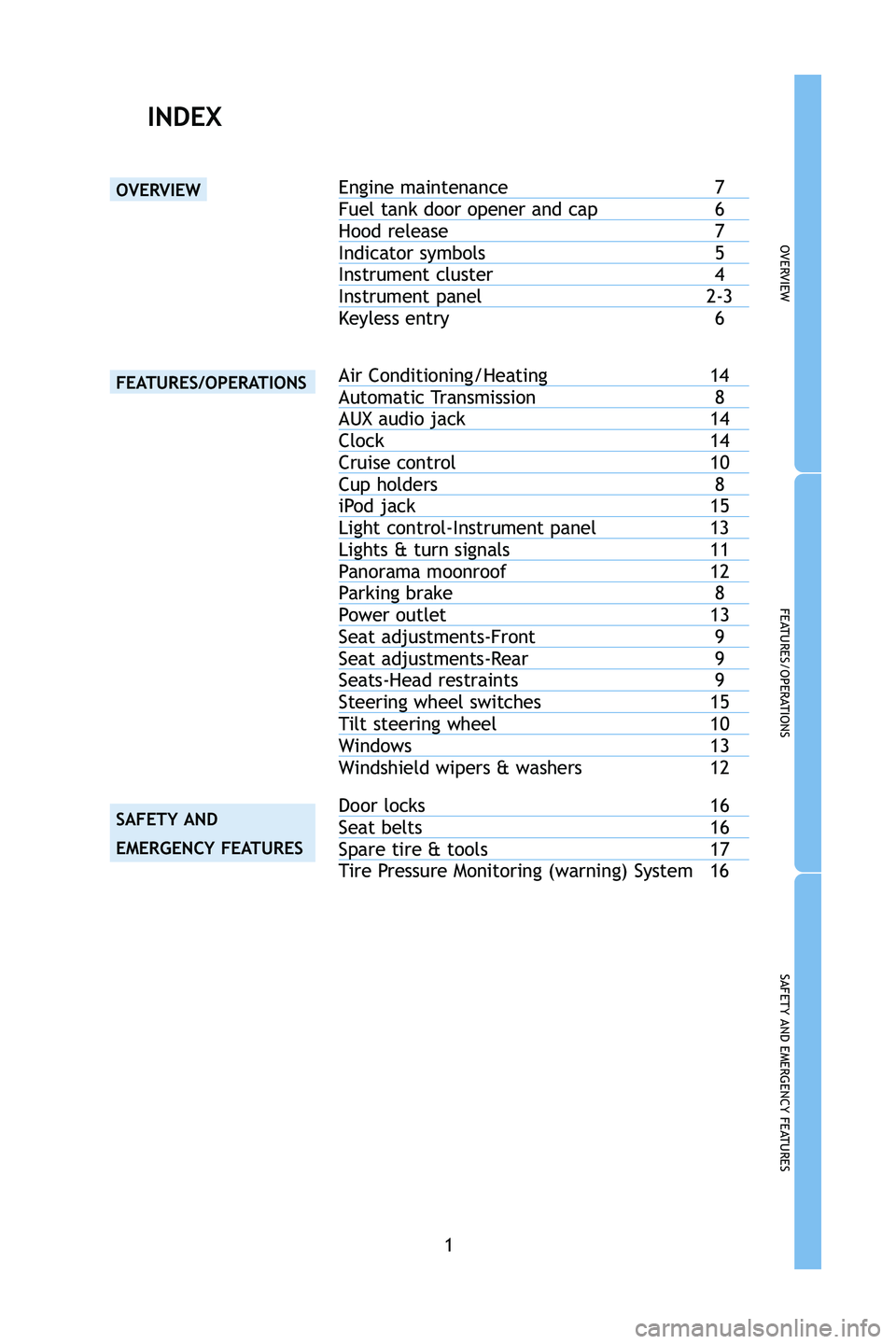

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7
Fuel tank door opener and cap 6
Hood release 7
Indicator symbols 5
Instrument cluster4
Instrument panel2-3
Keyless entry 6
Air Conditioning/Heating 14
Automatic Transmission 8
AUX audio jack14
Clock 14
Cruise control10
Cup holders 8
iPod jack15
Light control-Instrument panel13
Lights & turn signals 11
Panorama moonroof 12
Parking brake 8
Power outlet13
Seat adjustments-Front 9
Seat adjustments-Rear9
Seats-Head restraints 9
Steering wheel switches15
Tilt steering wheel 10
Windows 13
Windshield wipers & washers 12
Door locks 16
Seat belts16
Spare tire & tools 17
Tire Pressure Monitoring (warning) System 16
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
412376M2.qxd 4/15/08 10:28 AM Page 1

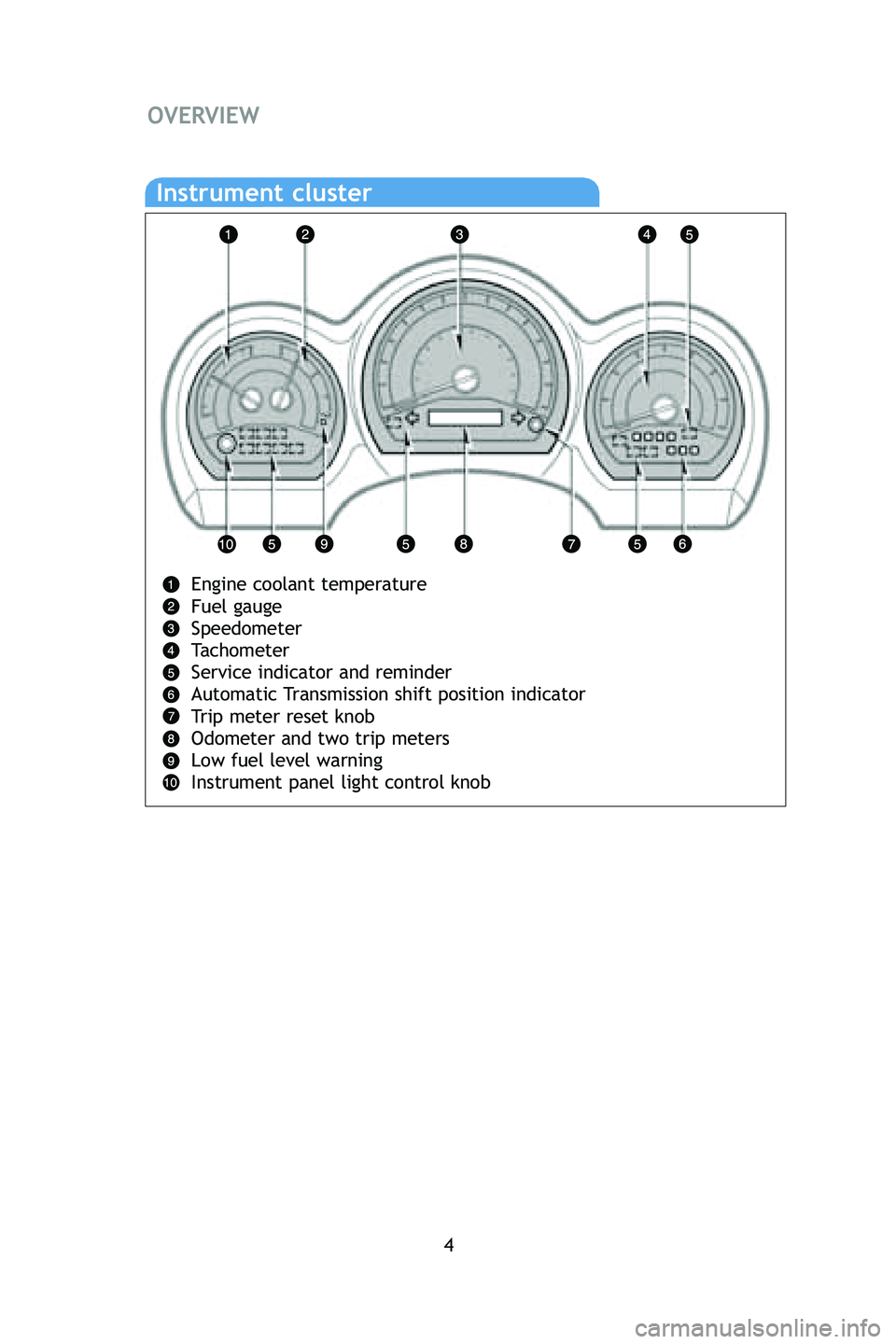

4
OVERVIEW
Engine coolant temperature
Fuel gauge
Speedometer
Tachometer
Service indicator and reminder
Automatic Transmission shift position indicator
Trip meter reset knob
Odometer and two trip meters
Low fuel level warning
Instrument panel light control knob
Instrument cluster
412376M2.qxd 4/15/08 10:28 AM Page 4

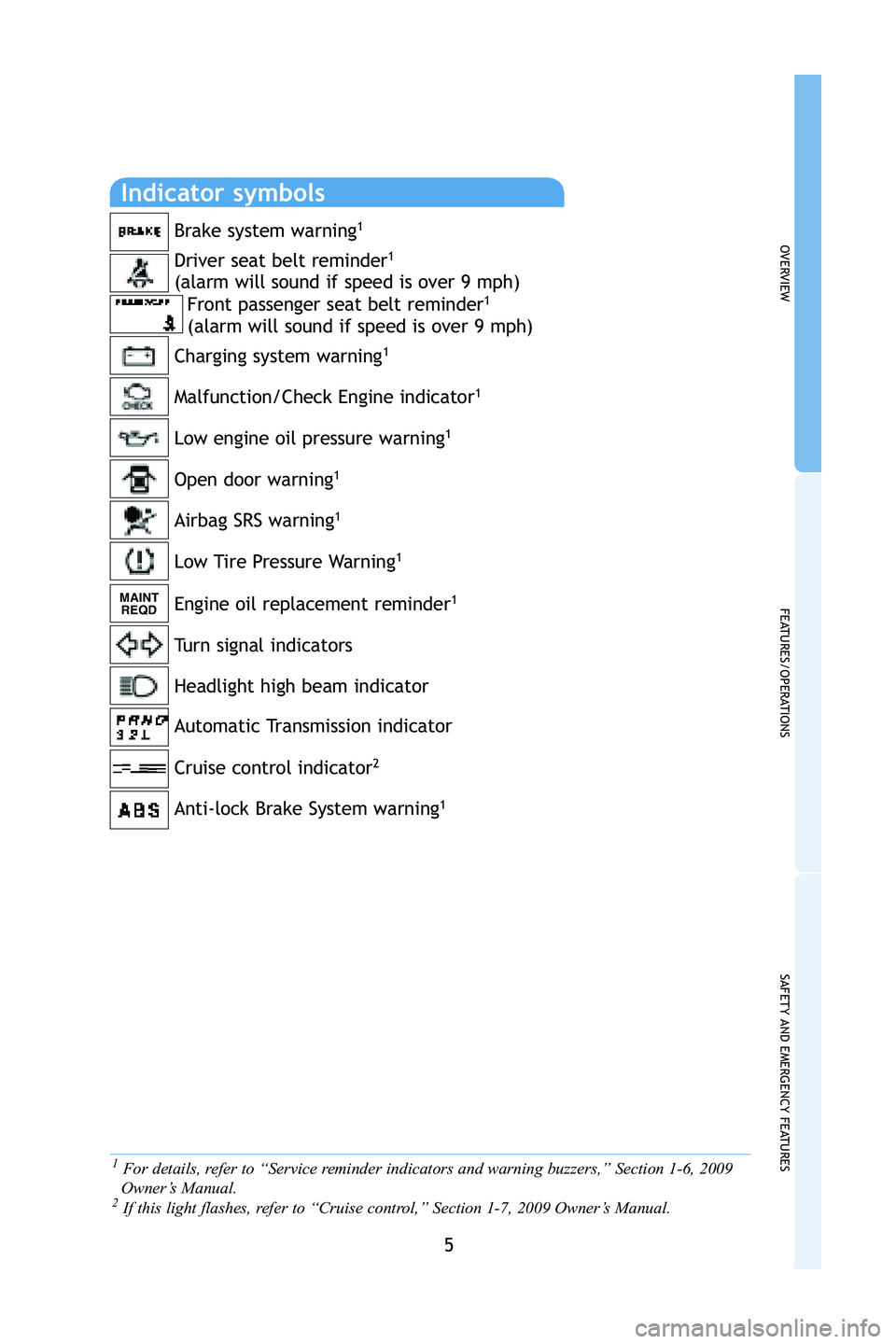

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6, 2009
Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2009 Owner’s Manual.
Driver seat belt reminder1
(alarm will sound if speed is over 9 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 9 mph)
Brake system warning
1
Charging system warning1
Low engine oil pressure warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning1
Engine oil replacement reminder1
Turn signal indicators
Headlight high beam indicator Airbag SRS warning
1
Low Tire Pressure Warning1
MAINT REQD
Automatic Transmission indicator
Cruise control indicator2
412376M2.qxd 4/15/08 10:28 AM Page 5

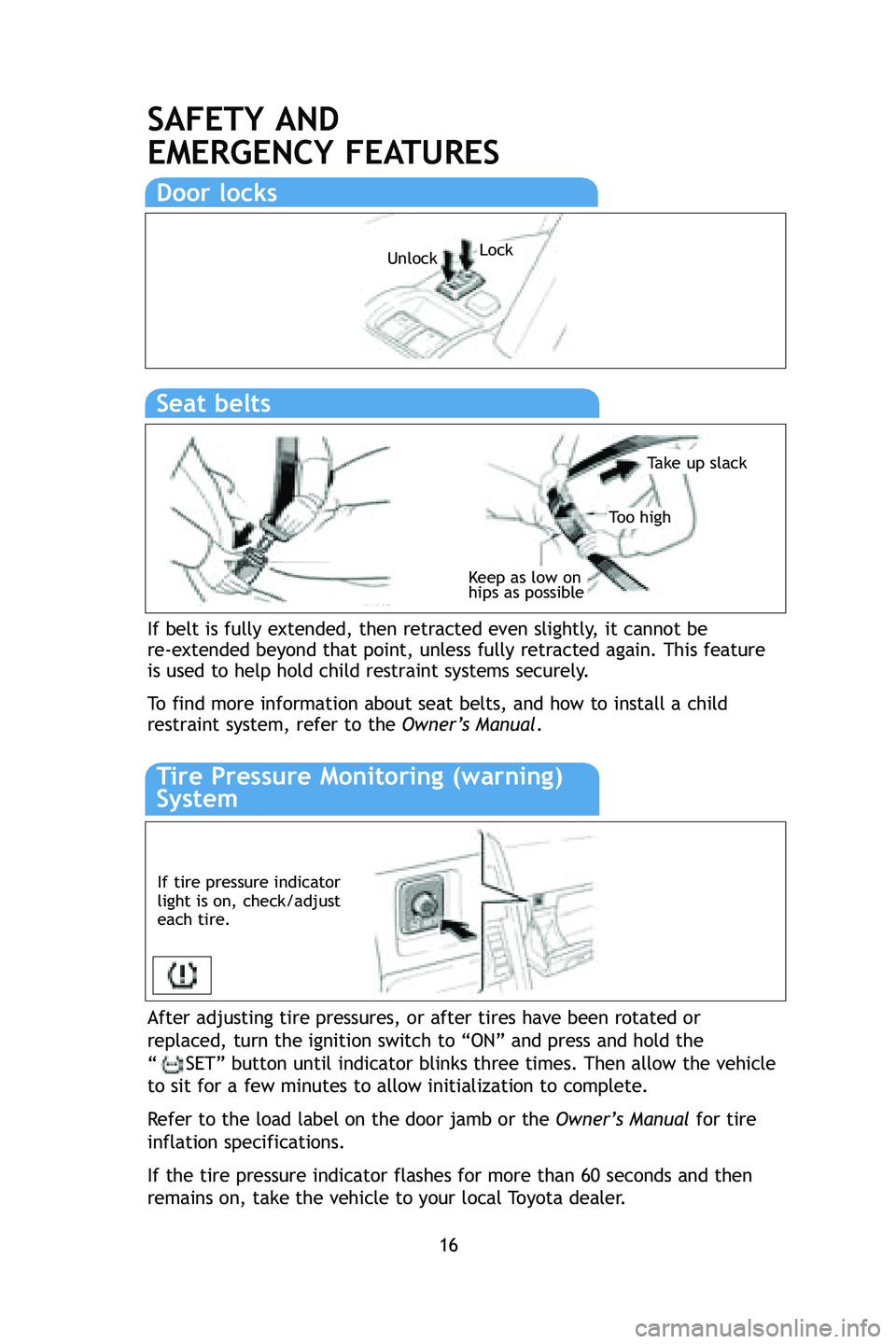

16
SAFETY AND
EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Then allow the vehicl\
e
to sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Lock
Unlock
Door locks
Tire Pressure Monitoring (warning)
System
If tire pressure indicator
light is on, check/adjust
each tire.
412376M2.qxd 4/15/08 10:28 AM Page 16
