302
4-3. Do-it-yourself maintenance
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “ ” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and pressure if not rotated.
■Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Scion recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Do not fail to initialize the tire
pressure warning system
after tire rotation. (U.S.A.
only)
Front

374
5-2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare tire provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack handle
Jack
Wheel nut
wrench
Spa r e tire
Towing eyelet

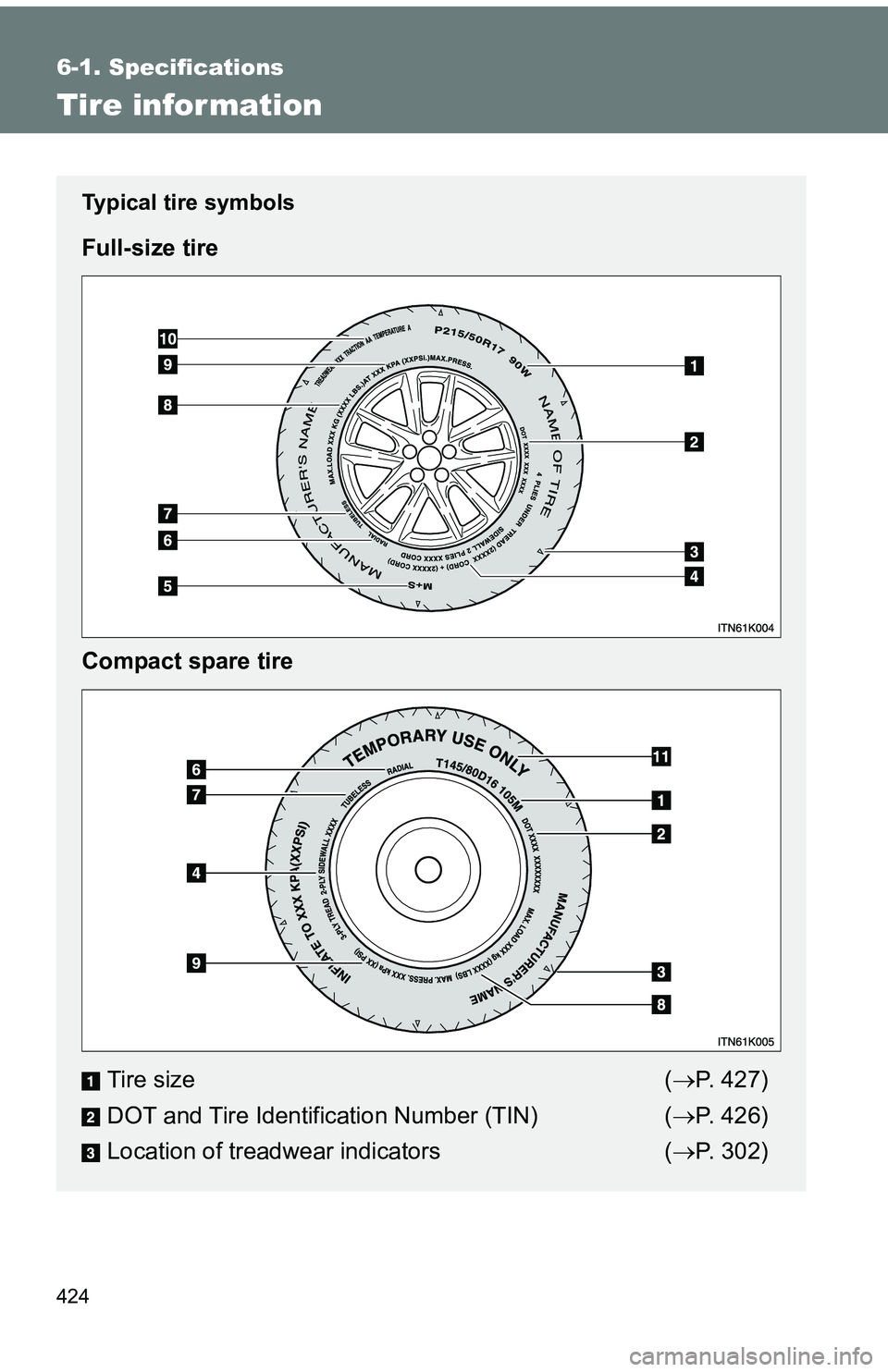

424
6-1. Specifications
Tire infor mation
Typical tire symbols
Full-size tire
Compact spare tireTire size ( P. 427)
DOT and Tire Identification Number (TIN) ( P. 426)
Location of treadwear indicators ( P. 302)

464 Alphabetical index
Seat belt reminder light ........... 361
Seat beltsAdjusting the seat belt .............76
Automatic Locking Retractor ...............................78
Child restraint system installation ........................... 129
Cleaning and maintaining
the seat belts ...................... 267
Emergency Locking Retractor ...............................78
How to wear your seat belt......76
How your child should wear the seat belt ..........................79
Pregnant women, proper seat belt use .................................78
Reminder light ....................... 361
Seat belt extenders .................79
Seat belt pretensioners ...........77
Seat heaters.............................. 251
Seating capacity....................... 214
Seats Adjustment ........................66, 72
Adjustment precautions.....71, 73
Child seats/child restraint system installation .............. 129
Cleaning ................................ 266
Head restraint..........................74
Properly sitting in the seat ..... 101
Seat heaters .......................... 251
Service reminder indicators .............................. 188
Shift lever Automatic transmission ......... 172
If the shift lever cannot be shifted from P................. 392
Manual transmission ............. 179
Shift lock system ..................... 392
Side airbags.............................. 103
Side marker lights Replacing light bulbs ............. 333
Switch.................................... 193
Wattage ................................. 420 Side mirrors
Adjusting and folding............... 85
Side turn signal lights Wattage................................. 420
Smart key system
Entry function .......................... 30
Starting the engine ................ 163
Spare tire
Inflation pressure .................. 312
Storage location .................... 374
Spark plug ................................ 415
Specifications .......................... 410
Speedometer ............................ 184
Steering
Column lock release ..... 159, 163
Steering wheel Adjustment .............................. 83
Audio switches ...................... 236
Stop lights Replacing light bulbs ............. 333
Wattage................................. 420
Storage feature ........................ 242
Stuck If the vehicle becomes stuck ................................... 405
Sunshades................................ 253
Sun visors ................................ 247
Switch Engine switch ................ 159, 163
Ignition switch ............... 159, 163
Light switches ....................... 193
Power door lock switch ........... 54
Power window switch .............. 87
Rear window wiper and washer switch ..................... 198
Tire pressure warning reset switch......................... 303
Window lock switch ................. 87
Wiper and washer switch ...... 196S
