spare wheel TOYOTA tC 2011 Owners Manual (in English)

5
When trouble arises
371
5-2. Steps to take in an emergency
CAUTION
■
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■
If the tire pressure warning light comes on (U.S.A. only)
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If a tire is flat, change it with th e spare tire and have the flat tire
repaired by the nearest Scion dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (U.S.A. only)
The tire pressure warning syste m may not activate immediately.

374
5-2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare tire provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack handle
Jack
Wheel nut
wrench
Spa r e tire
Towing eyelet

5
When trouble arises
379
5-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2 Tapered portion
Disc wheel
seat
STEP 3

5
When trouble arises
383
5-2. Steps to take in an emergency
■After completing the tire change (U.S.A. only)
The tire pressure warning
system must be reset. (P. 303)
■When using the compact spare tire (U.S.A. only)
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
STEP 1
STEP 2
STEP 3

388 5-2. Steps to take in an emergency
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires (U.S.A. only)
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters (U.S.A. only)
Do not use liquid sealants on flat tires.

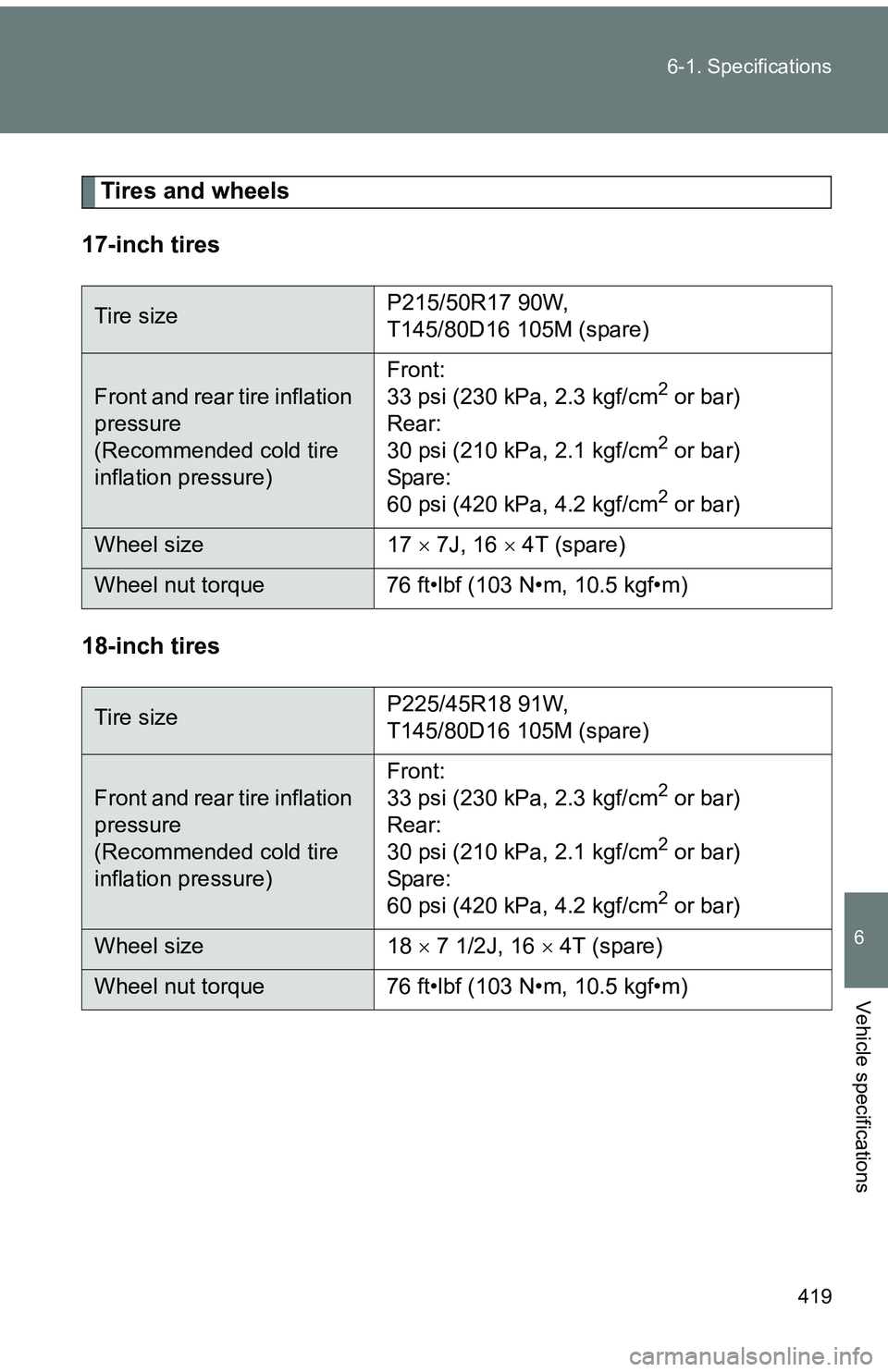

419
6-1. Specifications
6
Vehicle specifications
Tires and wheels
17-inch tires
18-inch tires
Tire size P215/50R17 90W,
T145/80D16 105M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Front:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17  7J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P225/45R18 91W,
T145/80D16 105M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Front:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 18  7 1/2J, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

464 Alphabetical index
Seat belt reminder light ........... 361
Seat beltsAdjusting the seat belt .............76
Automatic Locking Retractor ...............................78
Child restraint system installation ........................... 129
Cleaning and maintaining
the seat belts ...................... 267
Emergency Locking Retractor ...............................78
How to wear your seat belt......76
How your child should wear the seat belt ..........................79
Pregnant women, proper seat belt use .................................78
Reminder light ....................... 361
Seat belt extenders .................79
Seat belt pretensioners ...........77
Seat heaters.............................. 251
Seating capacity....................... 214
Seats Adjustment ........................66, 72
Adjustment precautions.....71, 73
Child seats/child restraint system installation .............. 129
Cleaning ................................ 266
Head restraint..........................74
Properly sitting in the seat ..... 101
Seat heaters .......................... 251
Service reminder indicators .............................. 188
Shift lever Automatic transmission ......... 172
If the shift lever cannot be shifted from P................. 392
Manual transmission ............. 179
Shift lock system ..................... 392
Side airbags.............................. 103
Side marker lights Replacing light bulbs ............. 333
Switch.................................... 193
Wattage ................................. 420 Side mirrors
Adjusting and folding............... 85
Side turn signal lights Wattage................................. 420
Smart key system
Entry function .......................... 30
Starting the engine ................ 163
Spare tire
Inflation pressure .................. 312
Storage location .................... 374
Spark plug ................................ 415
Specifications .......................... 410
Speedometer ............................ 184
Steering
Column lock release ..... 159, 163
Steering wheel Adjustment .............................. 83
Audio switches ...................... 236
Stop lights Replacing light bulbs ............. 333
Wattage................................. 420
Storage feature ........................ 242
Stuck If the vehicle becomes stuck ................................... 405
Sunshades................................ 253
Sun visors ................................ 247
Switch Engine switch ................ 159, 163
Ignition switch ............... 159, 163
Light switches ....................... 193
Power door lock switch ........... 54
Power window switch .............. 87
Rear window wiper and washer switch ..................... 198
Tire pressure warning reset switch......................... 303
Window lock switch ................. 87
Wiper and washer switch ...... 196S
