TOYOTA tC 2011 (in English) User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

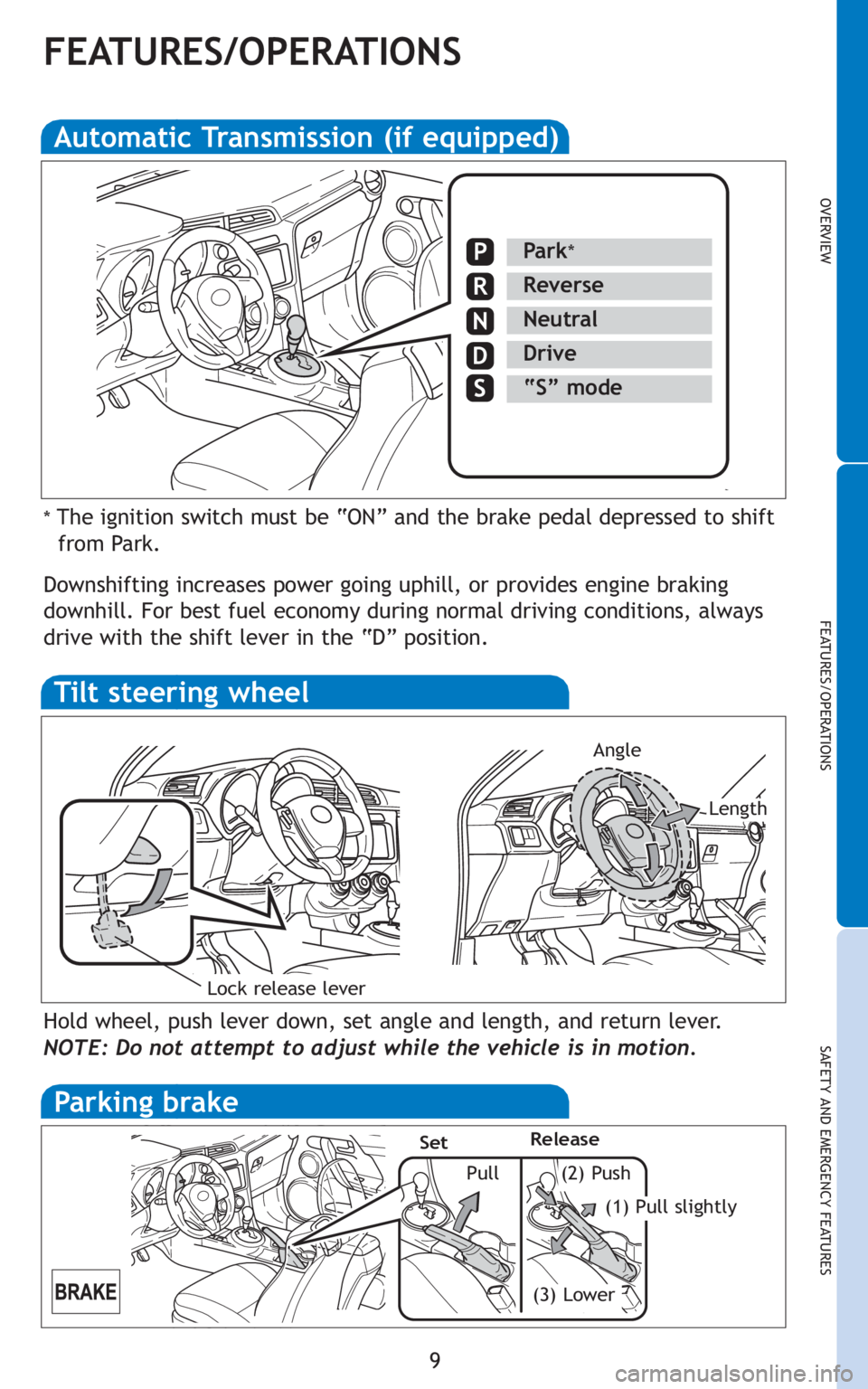

FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Park*
Reverse
Neutral
Drive
P
R
N
D
N

10

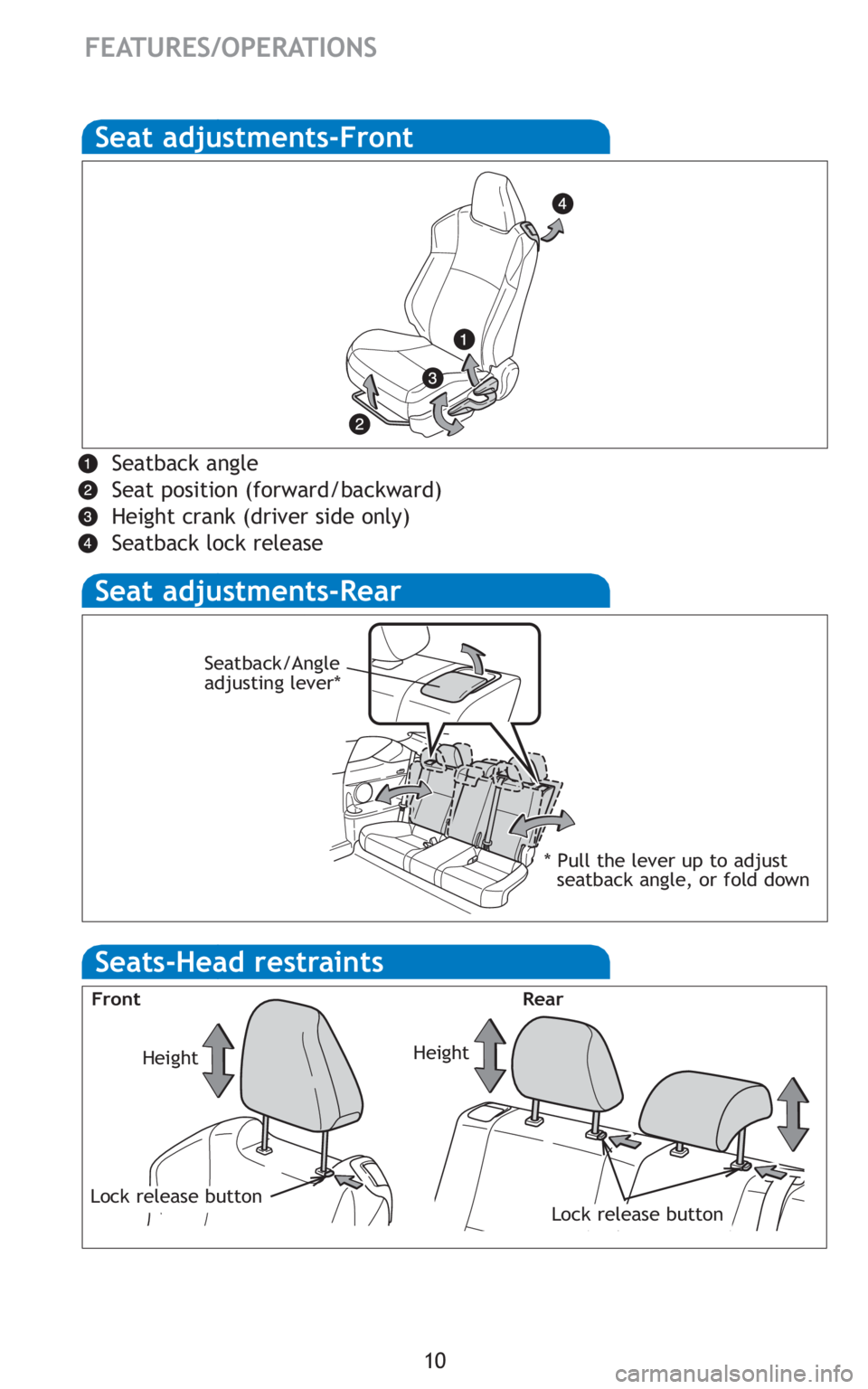

FEATURES/OPERATIONS
Seat adjustments-Front
Seatback angle
Seat position (forward/backward)
Height crank (driver side only)
Seatback lock release
Seat adjustments-Rear
Seatback/Angle
adjusting lever*
* Pull the lever up to adjust
seatback angle, or fold down
Seats-Head restraints
Height
Lock release buttonLock release button
Front Rear
Height

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

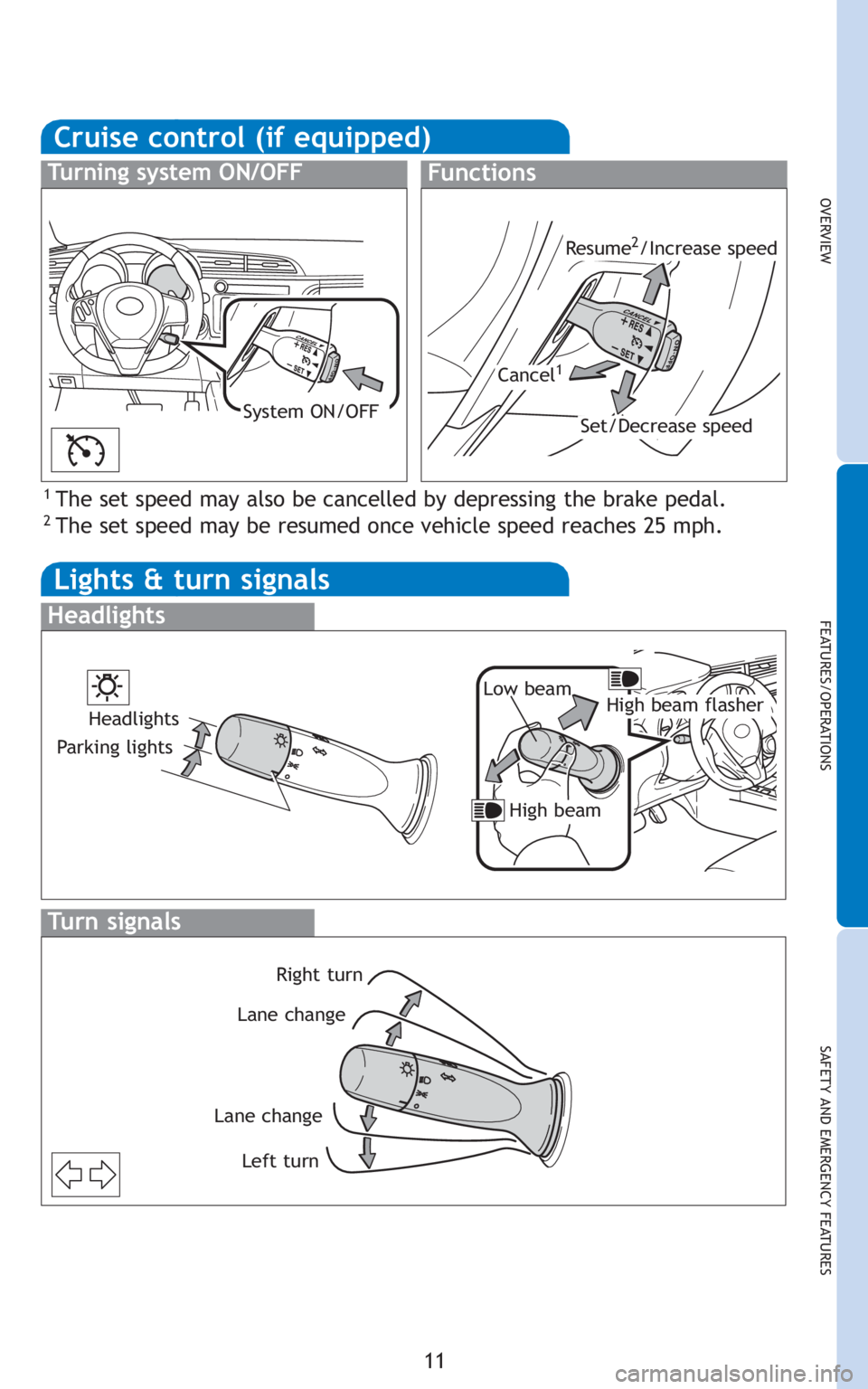

Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
Turning system ON/OFFFunctions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Lights & turn signals
Headlights
Turn signals
Parking lights
High beam flasher Low beam
Headlights
Right turn
Left turn Lane change
Lane change
High beam

12
FEATURES/OPERATIONS

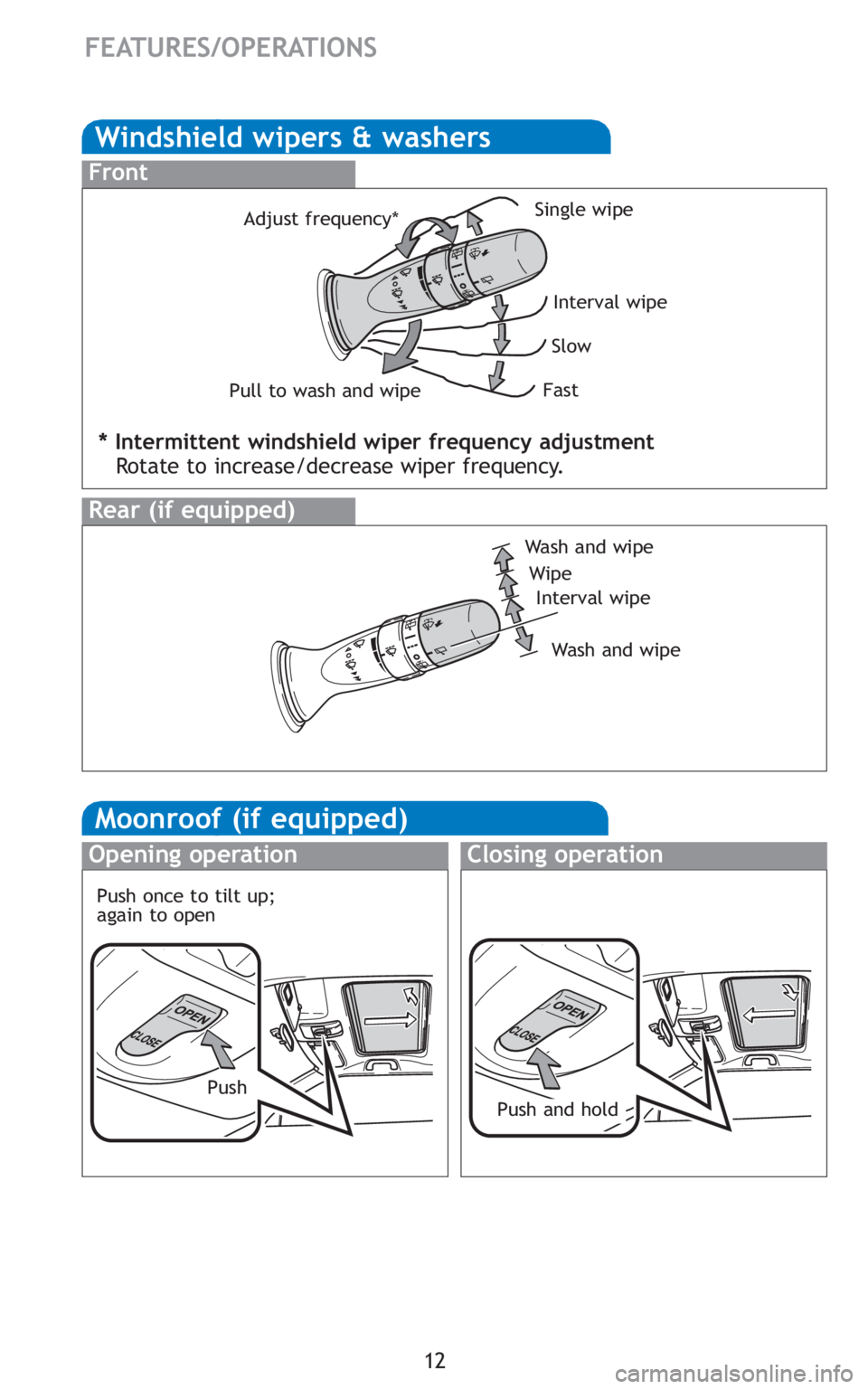

Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wiper frequency.
Windshield wipers & washers
Front
Rear (if equipped)
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Interval wipe Wipe
Wash and wipe
Wash and wipe
Moonroof (if equipped)
Opening operationClosing operation
Push and hold Push once to tilt up;
again to openPush

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

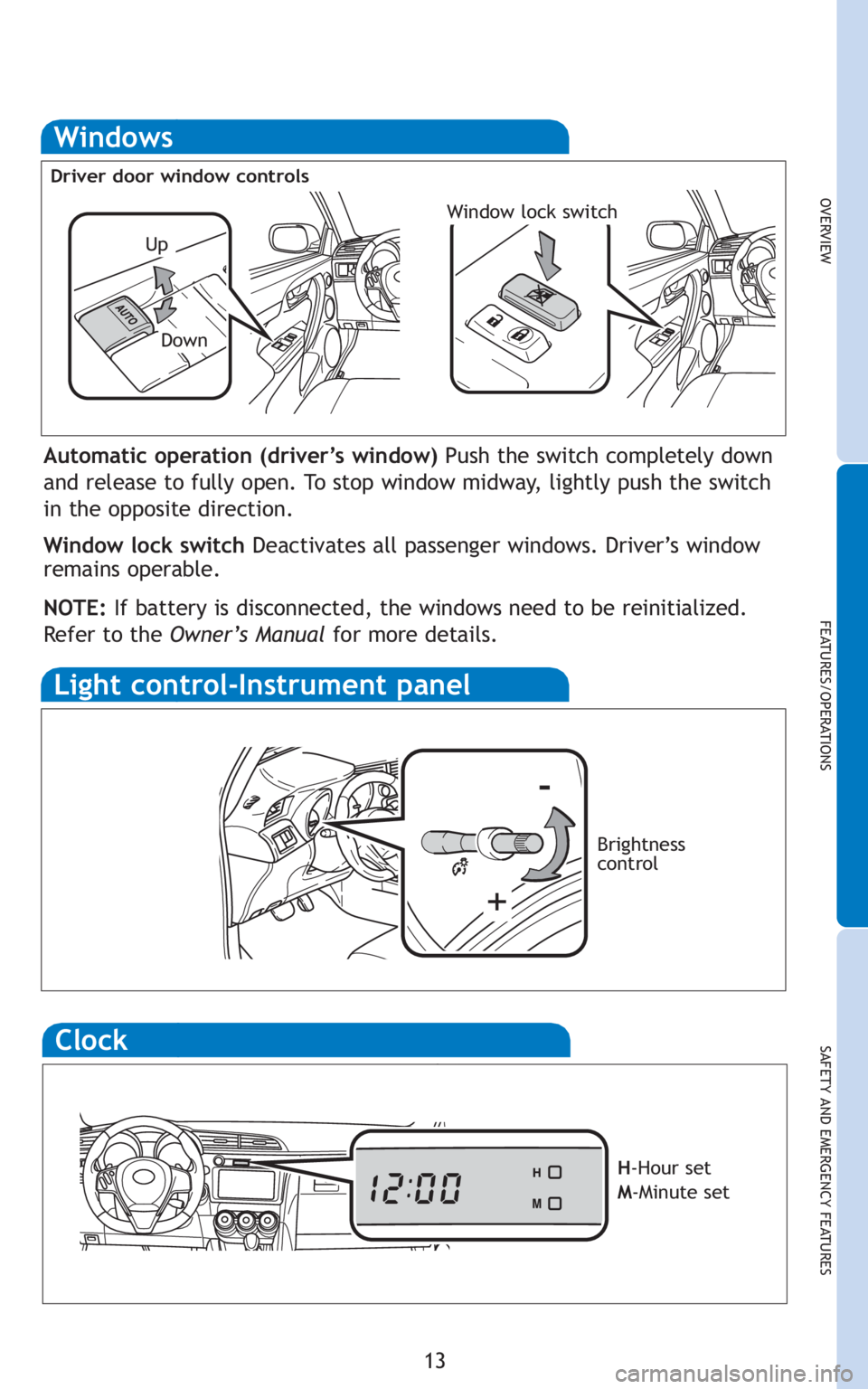

Windows
Automatic operation (driver’s window) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE:If battery is disconnected, the windows need to be reinitialized.
Refer to the Owner’s Manualfor more details.
Window lock switch
Driver door window controls
Up
Down
Clock
H-Hour set
M-Minute set
Light control-Instrument panel
+
-
Brightness
control

14

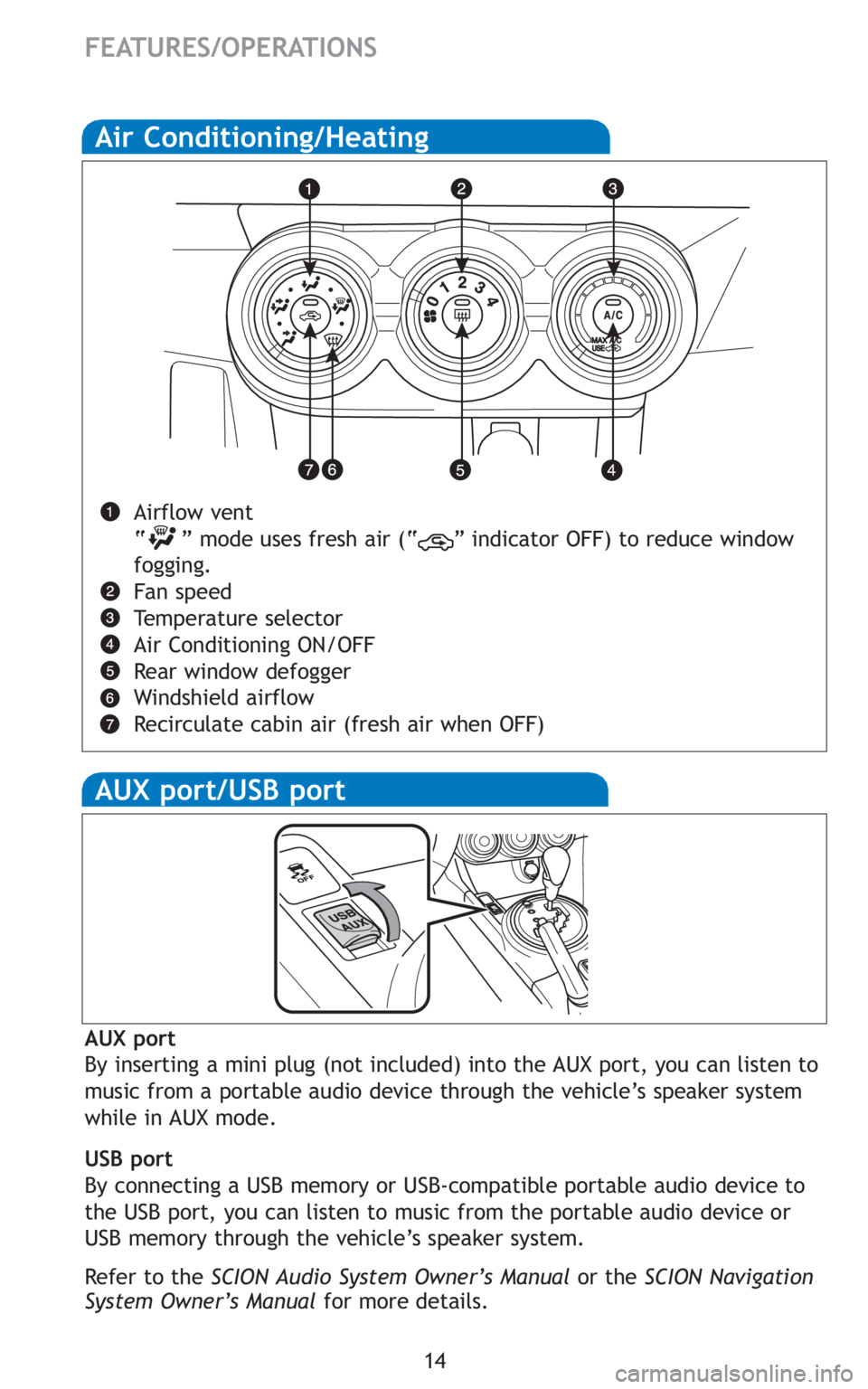

Air Conditioning/Heating
Airflow vent
“ ” mode uses fresh air (“ ” indicator OFF) to reduce window
fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Rear window defogger
Windshield airflow
Recirculate cabin air (fresh air when OFF)
AUX port/USB port
FEATURES/OPERATIONS
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to
music from a portable audio device through the vehicle’s speaker system
while in AUX mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to
the USB port, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system.
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation
System Owner’s Manual for more details.

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

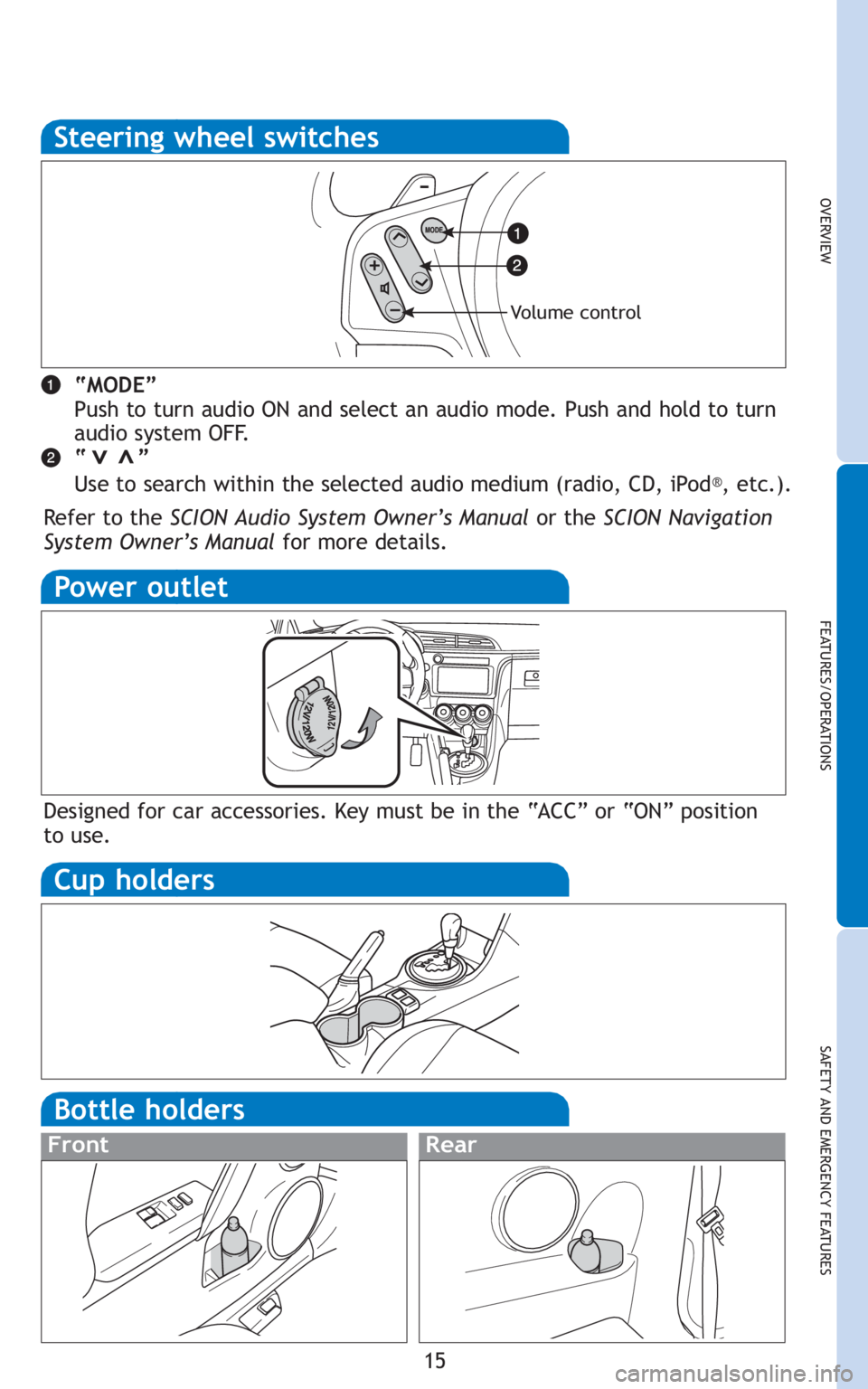

Steering wheel switches
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation
System Owner’s Manual for more details.
>>
Volume control
Bottle holders
FrontRear
Cup holders
Power outlet
Designed for car accessories. Key must be in the “ACC” or “ON” position
to use.

16

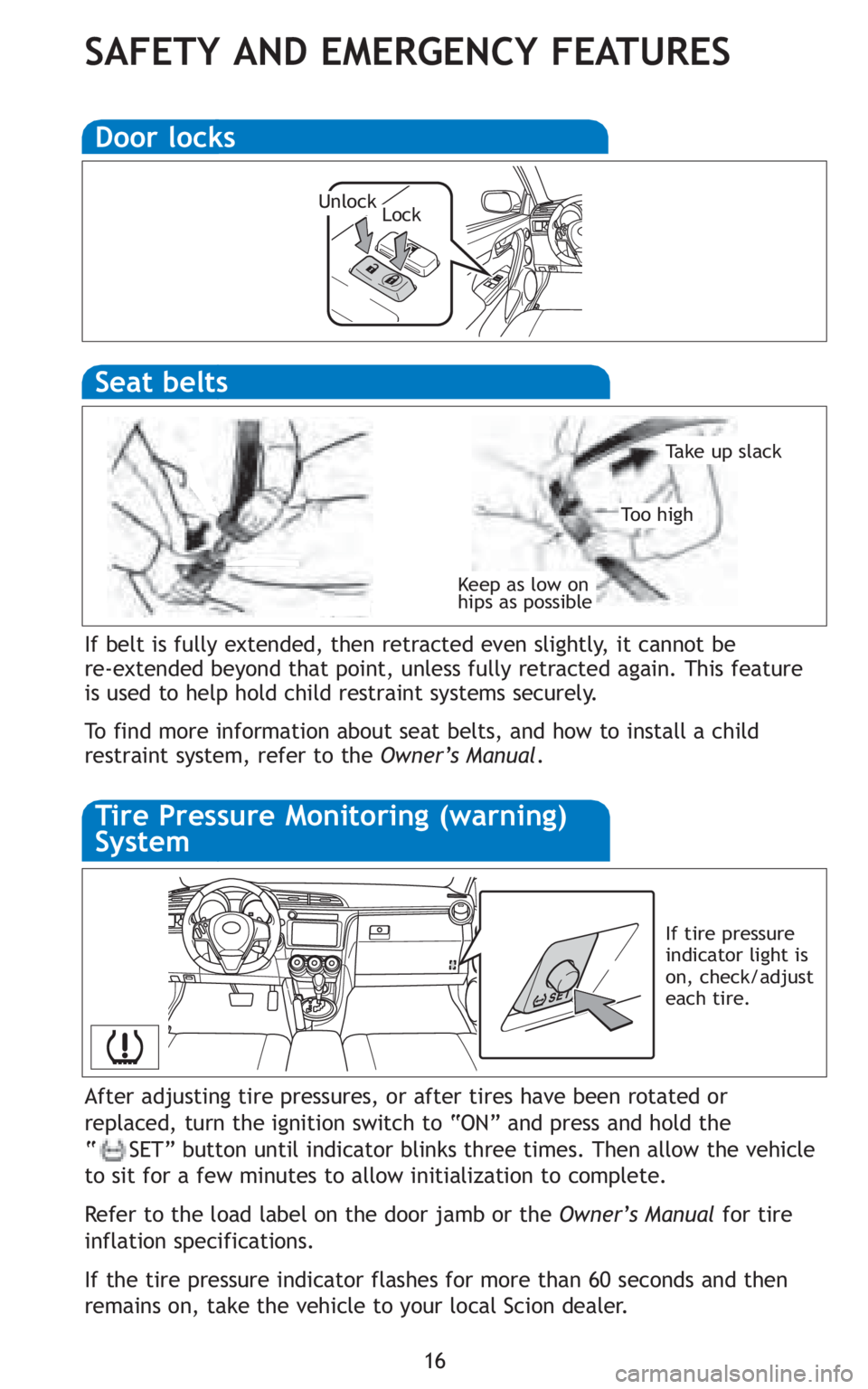

SAFETY AND EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Then allow the vehicle
to sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Scion dealer.
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
LockUnlock
Door locks
Tire Pressure Monitoring (warning)
System
If tire pressure
indicator light is
on, check/adjust
each tire.

!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review theOwner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving
in your new SCION tC.
This Quick Reference Guideis not a full description of SCION tC
operations. Every SCION tC owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2011
Scion tC
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

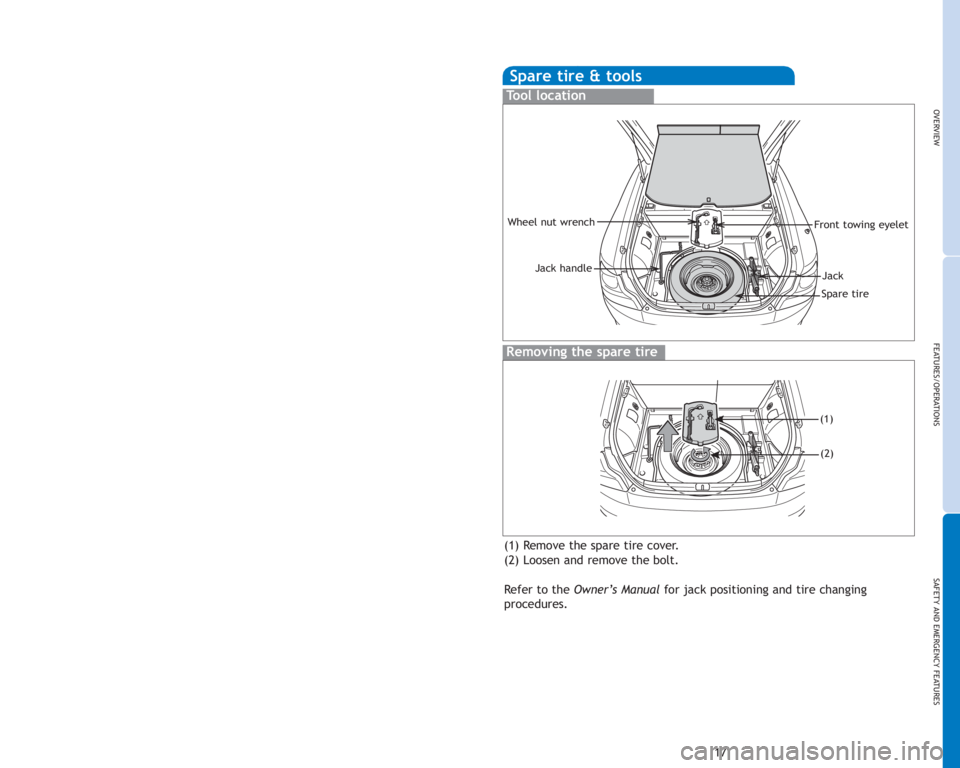

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manualfor jack positioning and tire changing
procedures.
Wheel nut wrenchFront towing eyelet
Jack handle
Spare tire
Jack
(1)
(2)

QUICK
REFERENCE
GUIDE
tC2011
EMAIL
w w w.scion.com
´ Contact
-
CHAT
w w w.scion.com
´ Have a Question?
´ Contact
-
PHONE
1.866.70.SCION
-
MAIL
SCION
19001 S. Western Ave.
D102, P. O. Box 2742
Torrance, CA 90509-2742
USA
-
WEB
w w w.scion.com
-
© 2010 Scion, a marque of Toyota Motor Sales, U.S.A., Inc.
Printed in U.S. A. 8/10
10-TCS-03985 00505-QRG11-TC
