TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

SCION SECURITY SYSTEM Page 10
ALARM INFORMATION

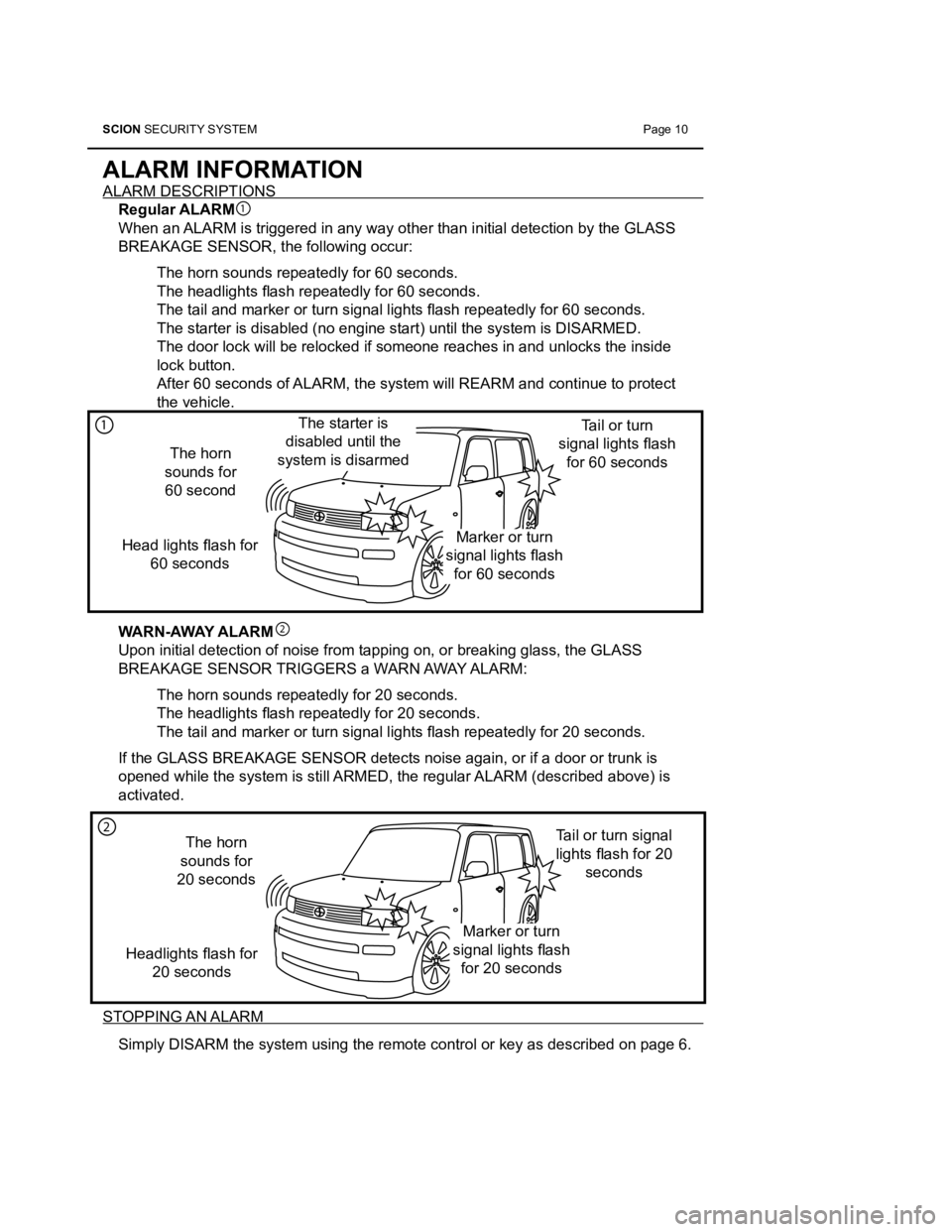

ALARM DESCRIPTIONS
Regular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS \
BREAKAGE SENSOR, the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED\
.
The door lock will be relocked if someone reaches in and unlocks the ins\
ide
lock button.
After 60 seconds of ALARM, the system will REARM and continue to protect
the vehicle.










WARN-AWAY ALARM
Upon initial detection of noise from tapping on, or breaking glass, the \
GLASS
BREAKAGE SENSOR TRIGGERS a WARN AWAY ALARM: The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker or turn signal lights flash repeatedly for 20 seconds.
If the GLASS BREAKAGE SENSOR detects noise again, or if a door or trunk \
is
opened while the system is still ARMED, the regular ALARM (described above) is
activated.










STOPPING AN ALARM Simply DISARM the system using the remote control or key as described on\
page 6.
123
123
The horn
sounds for
20 seconds Tail or turn signal
lights flash for 20
seconds
123
Headlights flash for 20 seconds
Marker or turn
signal lights flash for 20 seconds
The horn
sounds for 60 second
The starter is
disabled until the
system is disarmed
Marker or turn
signal lights flash for 60 seconds Tail or turn
signal lights flash for 60 seconds
123
Head lights flash for 60 seconds

Page 11 SCION SECURITY SYSTEM
GLASS BREAKAGE SENSOR INFORMATION
The Scion Security provides protection for your vehicle above and beyond\
entry point
monitoring–it “listens” for the noise made by tapping on, or br\
eaking of glass. Using a
microphone designed specifically for this task, the GLASS BREAKAGE SENSOR is
capable of ignoring other noises, which helps to prevent “false alarm\
s” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the Scion Security was installed in your vehicle, care was taken to\
adjust the
sensitivity level of the GLASS BREAKAGE SENSOR. You may observe how it works
following the procedure listed below.
ARM the system.
1.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door, the trunk or
hatch is open.)


Wait until the STATUS MONITOR’S LED starts flashing. The
2.
LED will flash 30 seconds after the last door, the trunk or
hatch is closed.
* for some vehicles the LED will turn off instead of flashing after the 30 seconds.

With the tip of a key, tap the center of the driver’s door
3.
window. Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in cold weather, or you may crack or break it.
A WARN AWAY ALARM should be TRIGGERED. If the
ALARM is not TRIGGERED, make sure you performed the
procedure correctly and try again. If you find that the system
did not perform as expected, contact your Scion dealer for
more information.
DISARM the system to stop the WARN AWAY ALARM. Press
4.
the unlock button
SCION
SECURITY

SCION SECURITY SYSTEM Page 12
PROGRAMMING
The Scion Security is factory-set to not PASSIVELY ARM. To change the system’s
operation for PASSIVE ARMING operation, as well as adjust the ENTRY DELAY time,
follow the procedure below. For more information on this feature, please refer to page 7.
(Not applicable to vehicles with Smart Key system. Please consult your \
Scion
Dealer for programming information.)
PA S SIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
DISARM the Security system before proceeding below by using the remote c\
ontrol or
key as described on page 6.
Before you begin:
1.
Open the driver’s door. Close the remaining
doors and the trunk or hatch. Unlock all doors
with the inside lock switch. Remove the key
from the
ignition
switch.
Lock
d. , then unlock
the driver’s door
inside lock button
3 times .
The system locks the door
f.
in 2 seconds; if this does not
happen, start over.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
Lock
b. then unlock the
driver’s door inside lock
button 1 time.The system locks the door
c.
in 2 seconds; if this does
not happen, start over.
Programming is now
complete.
Select the Operating Mode and Complete the Programming Procedure.
3.
Close, then Open the driver’s
a.
door:
2 times = PASSIVE ARMING OFF
3 times = PASSIVE ARMING ON,
0 Sec. ENTRY DELAY
4 times = PASSIVE ARMING ON,
15 Sec. ENTRY DELAY
5 times = PASSIVE ARMING ON,
30 Sec. ENTRY DELAY
Close the
a.
driver’s door. Lock
b. and unlock all doors
3 times by key or remote
control.Open and close
c.
the driver’s
door.
Open the
e.
driver’s door.
Unlock the driver’s
g.
door.
Insert and remove the key from the igni -
2.
tion key cylinder 3 times; this must be
completed within 5 seconds.

Page 13 SCION SECURITY SYSTEM
Warning
This product is applicable only to vehicles with 12V DC, negative ground\
ing
•
specifications. Do not use in vehicles with 24V specifications. Otherwis\
e, damage
to the unit or a fire may result.
Never attempt to disassemble or modify the product. Otherwise, an accide\
nt, fire
•
or electric shock may result.
When replacing fuses, be sure to use fuses with the same specified capac\
ity
•
(amperage.) Otherwise, damage to the unit or vehicle, fire or electric\
shock may
result.
If an abnormal condition occurs, such as liquids spilling onto the produ\
ct, or the
•
product emitting smoke or strange odors, stop using it immediately and c\
onsult
the dealer from whom you purchased the product. Continued use of the pro\
duct
before corrective actions are taken may result in an accident, injury or\
fire.
Never pull the plastic bag over your head. Otherwise, a serious injury o\
r death
•
from suffocation may occur.

Caution
Do not use this product for applications other than in-vehicle use. Othe\
rwise, an
•
electric shock or injury may result.
Do not allow children to play with the remote controls. Otherwise, the d\
oors may
•
be locked or unlocked, the security system armed or disarmed, or an alar\
m
triggered unintentionally.
If this product is dropped or its case is damaged, disconnect the power \
supply
•
lead and contact the dealer from whom you purchased it to obtain service\
.
Otherwise, a fire or electric shock may result.
All features may not be applicable to all vehicle models.
•
Content is subject to change without notice.
•
