TOYOTA tC 2013 Owners Manual (in English)

Vehicle specifications6
421
tC_OM_OM21050U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 422
Fuel information ............... 433
Tire information ................ 436
6-2. Customization Customizable features ..... 450
6-3. Initialization Items to initialize .............. 454

422
tC_OM_OM21050U_(U)

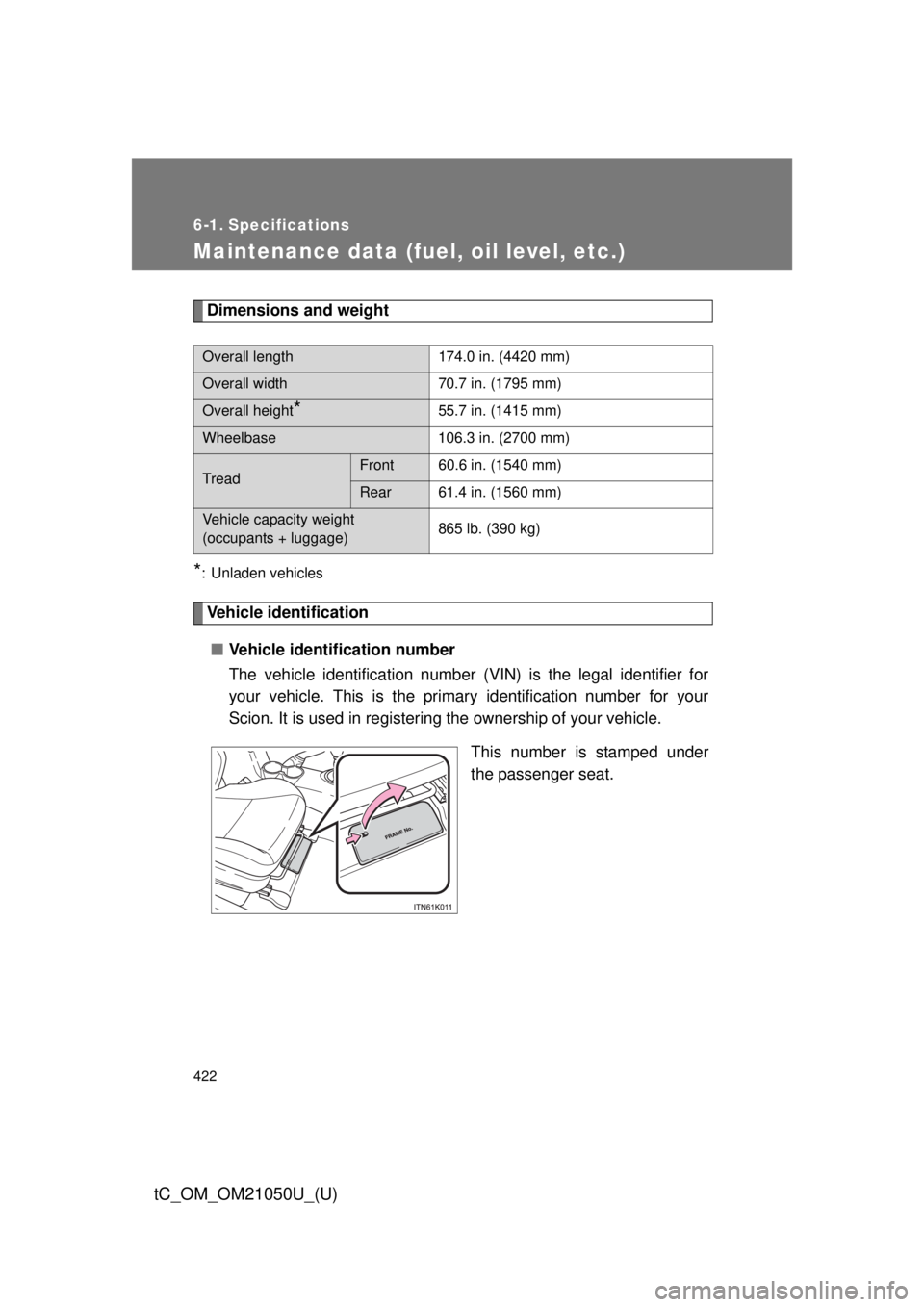

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped under
the passenger seat.
Overall length 174.0 in. (4420 mm)
Overall width70.7 in. (1795 mm)
Overall height*55.7 in. (1415 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront 60.6 in. (1540 mm)
Rear 61.4 in. (1560 mm)
Vehicle capacity weight
(occupants + luggage) 865 lb. (390 kg)

423
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21050U_(U)

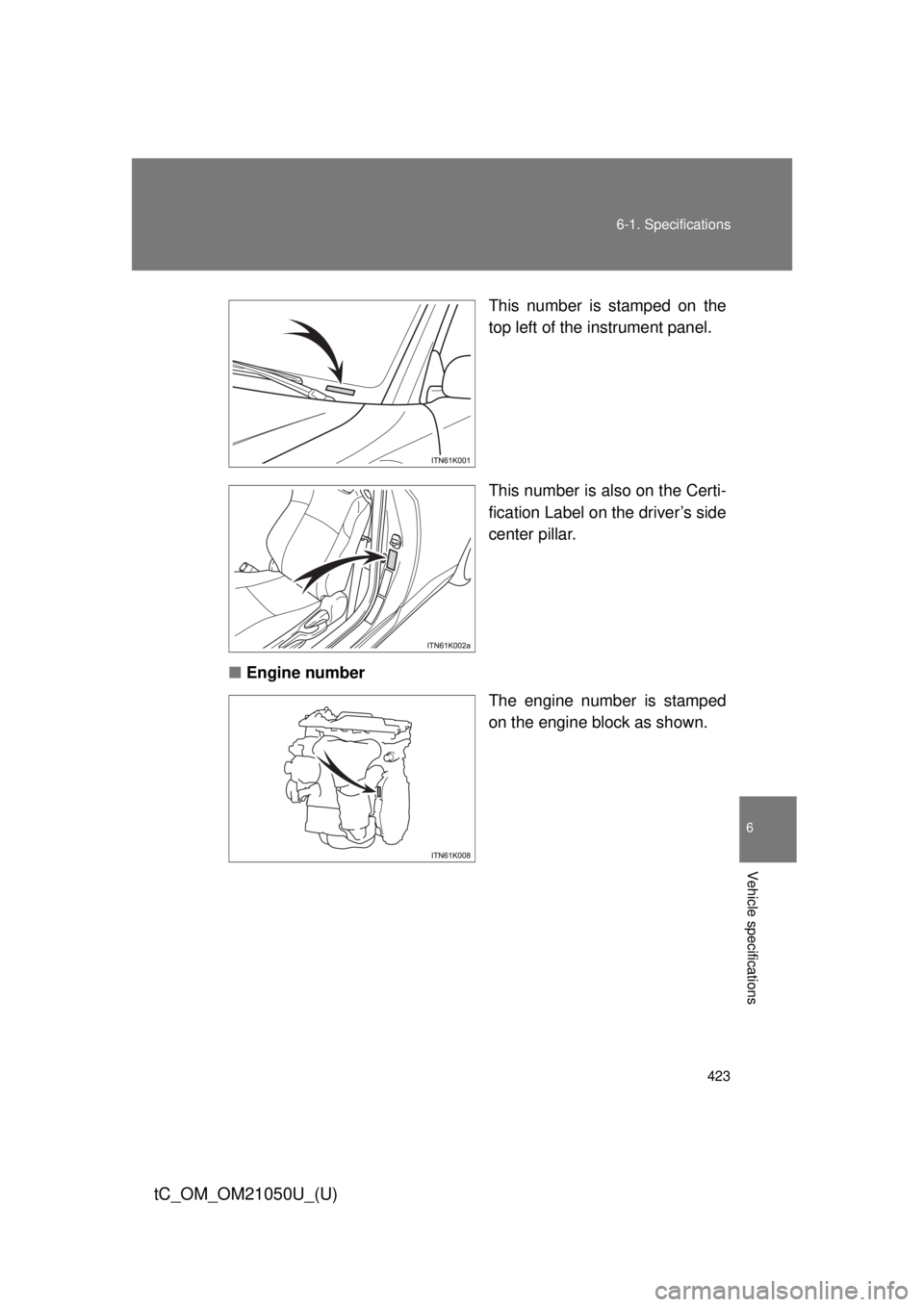

This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

424 6-1. Specifications
tC_OM_OM21050U_(U)
Engine
Fuel
Model2.5 L 4-cylinder (2AR-FE)
Type 4 cylinder in line, 4 cycle, gasoline
Bore and stroke 3.54  3.86 in. (90.0  98.0 mm)
Displacement 152.2 cu.in. (2494 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold) Automatic adjustment
Fuel type
Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

425
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21050U_(U)
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.

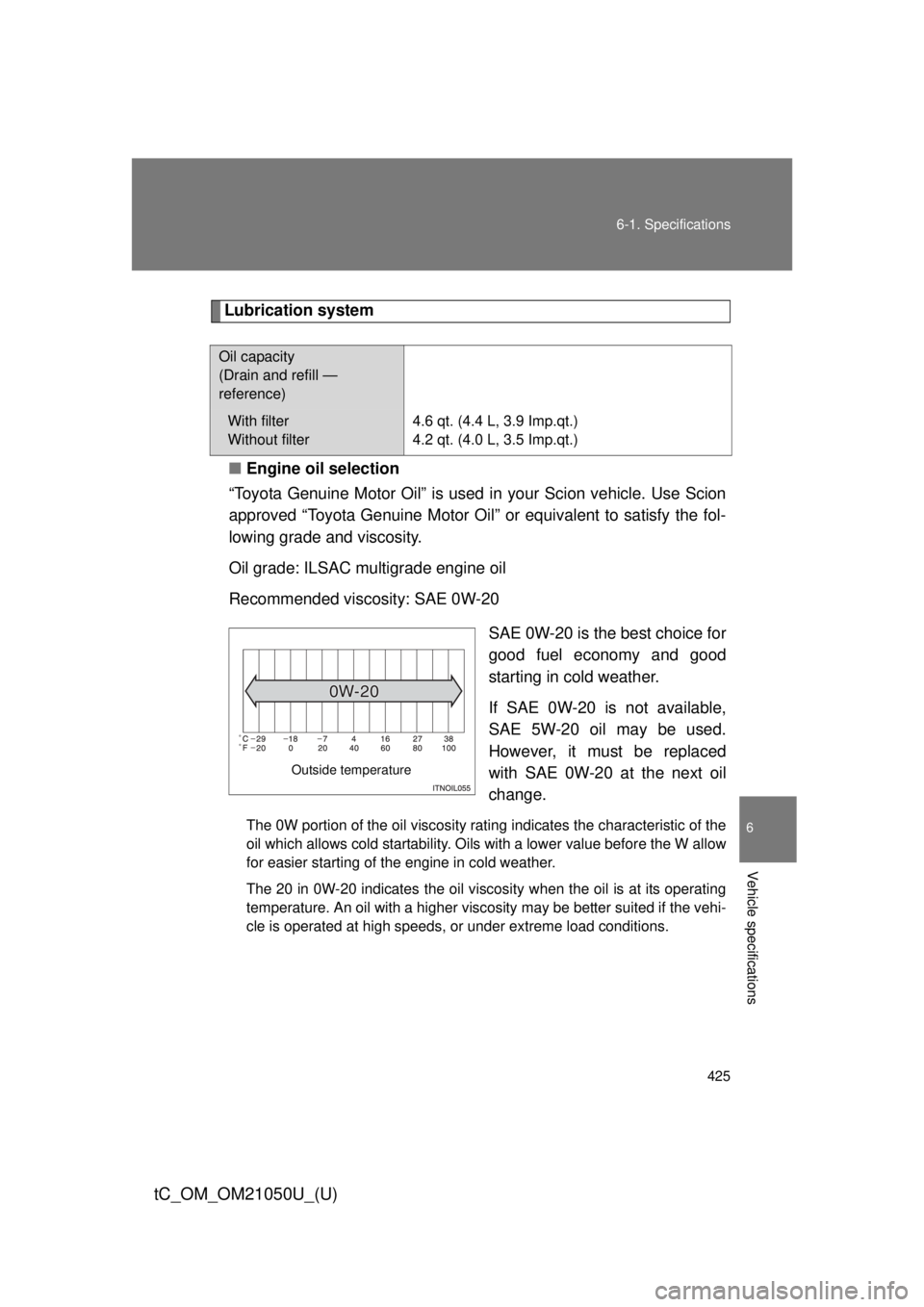

Oil capacity
(Drain and refill —
reference)
With filter
Without filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)
Outside temperature

426 6-1. Specifications
tC_OM_OM21050U_(U)

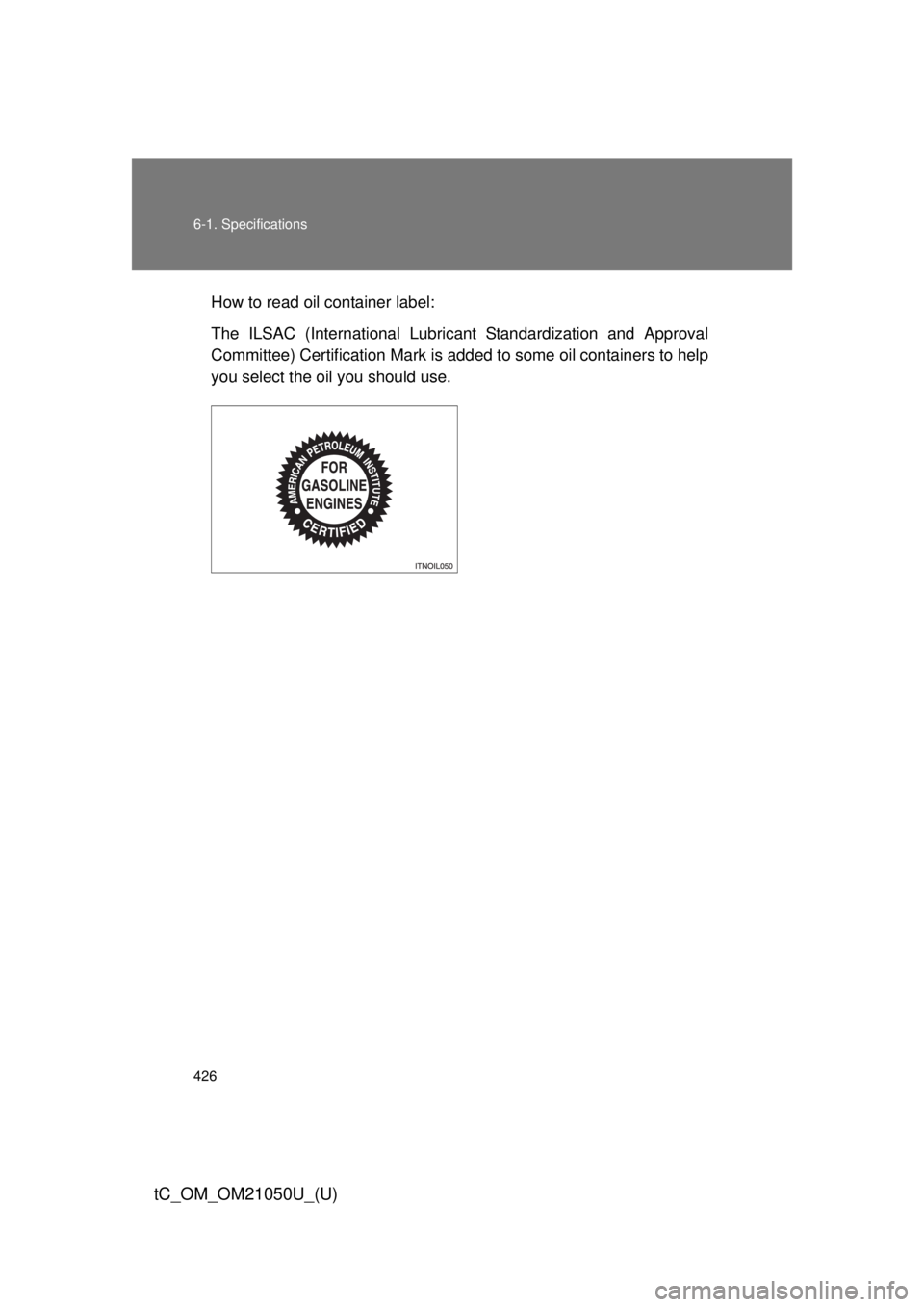

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

427
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21050U_(U)
Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Vehicles with a manual transmission 6.1 qt. (5.8 L, 5.1 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK16HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

428 6-1. Specifications
tC_OM_OM21050U_(U)
Electrical system
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Scion dealer.
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using a transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

429
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21050U_(U)
Manual transmission
Clutch
Gear oil capacity (reference) 2.4 qt. (2.3 L, 2.0 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

430 6-1. Specifications
tC_OM_OM21050U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 67.5 lbf (300 N,30.6 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Pedal clearance*13.86 in. (98 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
