TOYOTA tC 2014 Owners Manual (in English)

5
When trouble arises
391
5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)

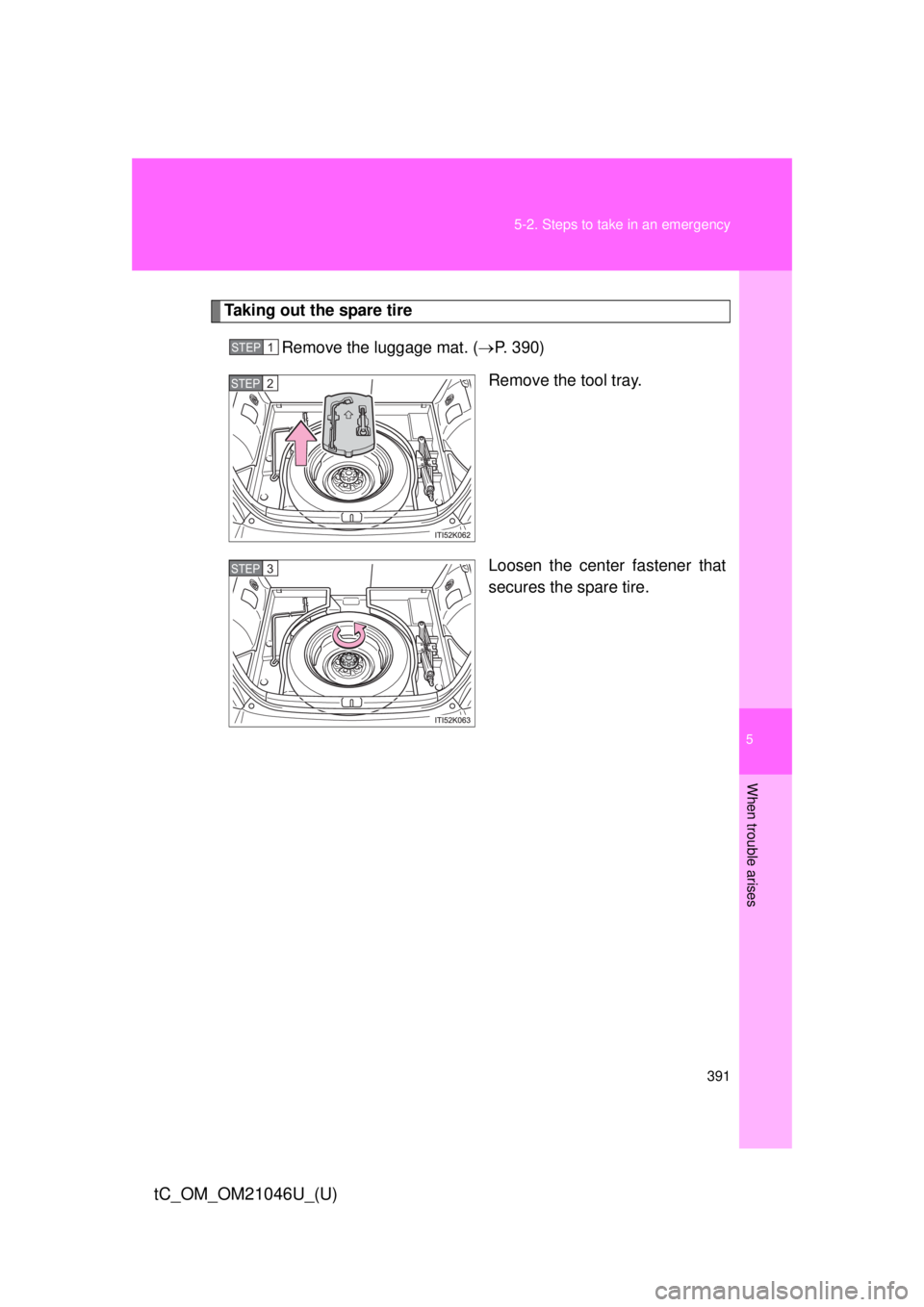

Taking out the spare tire
Remove the luggage mat. ( P. 390)
Remove the tool tray.
Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2
STEP 3

392 5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)

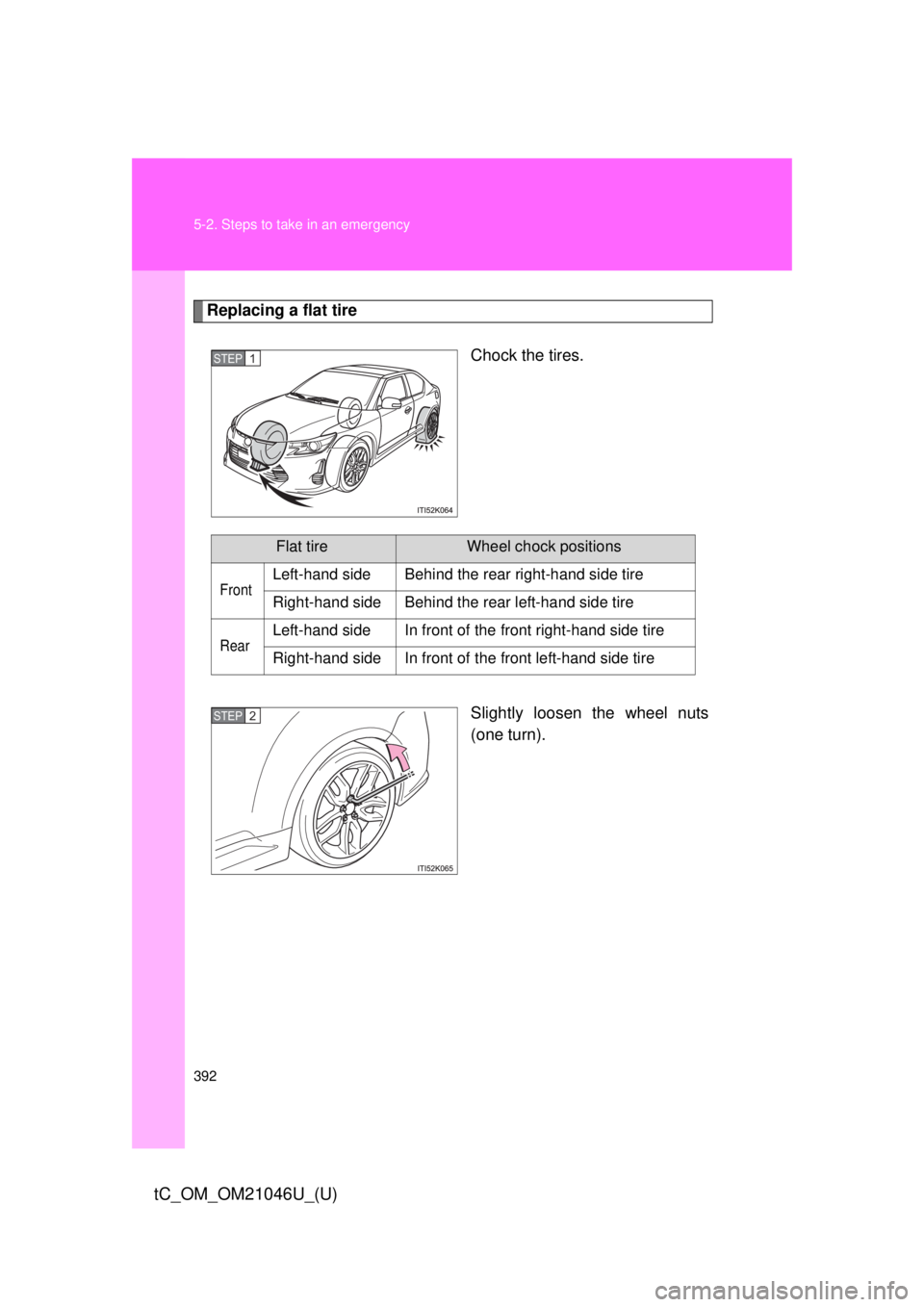

Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2

5
When trouble arises
393
5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)

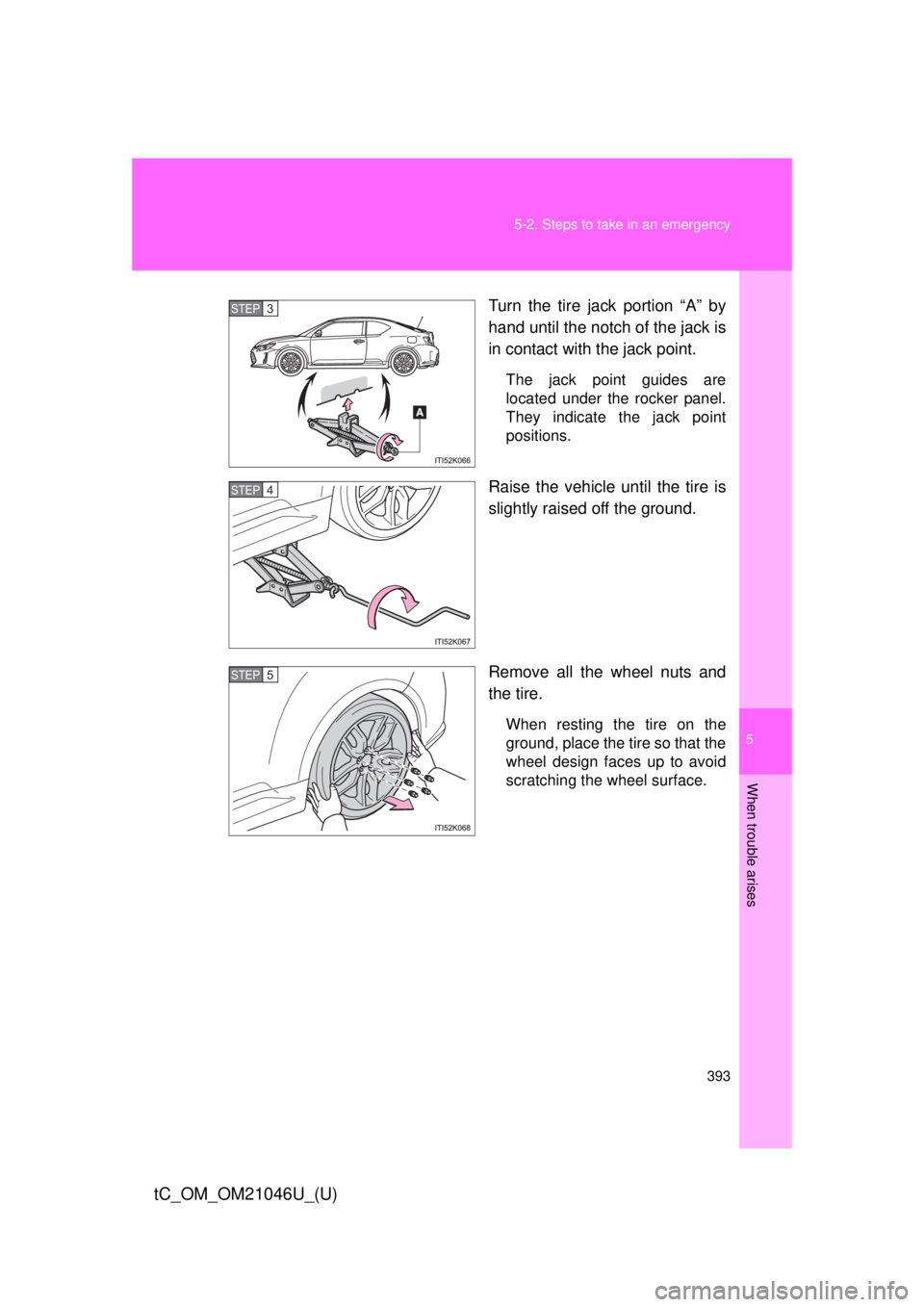

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are
located under the rocker panel.
They indicate the jack point
positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 3
STEP 4
STEP 5

394 5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)
Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2 Tapered portion
Disc wheel
seat
STEP 3

5
When trouble arises
395
5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)

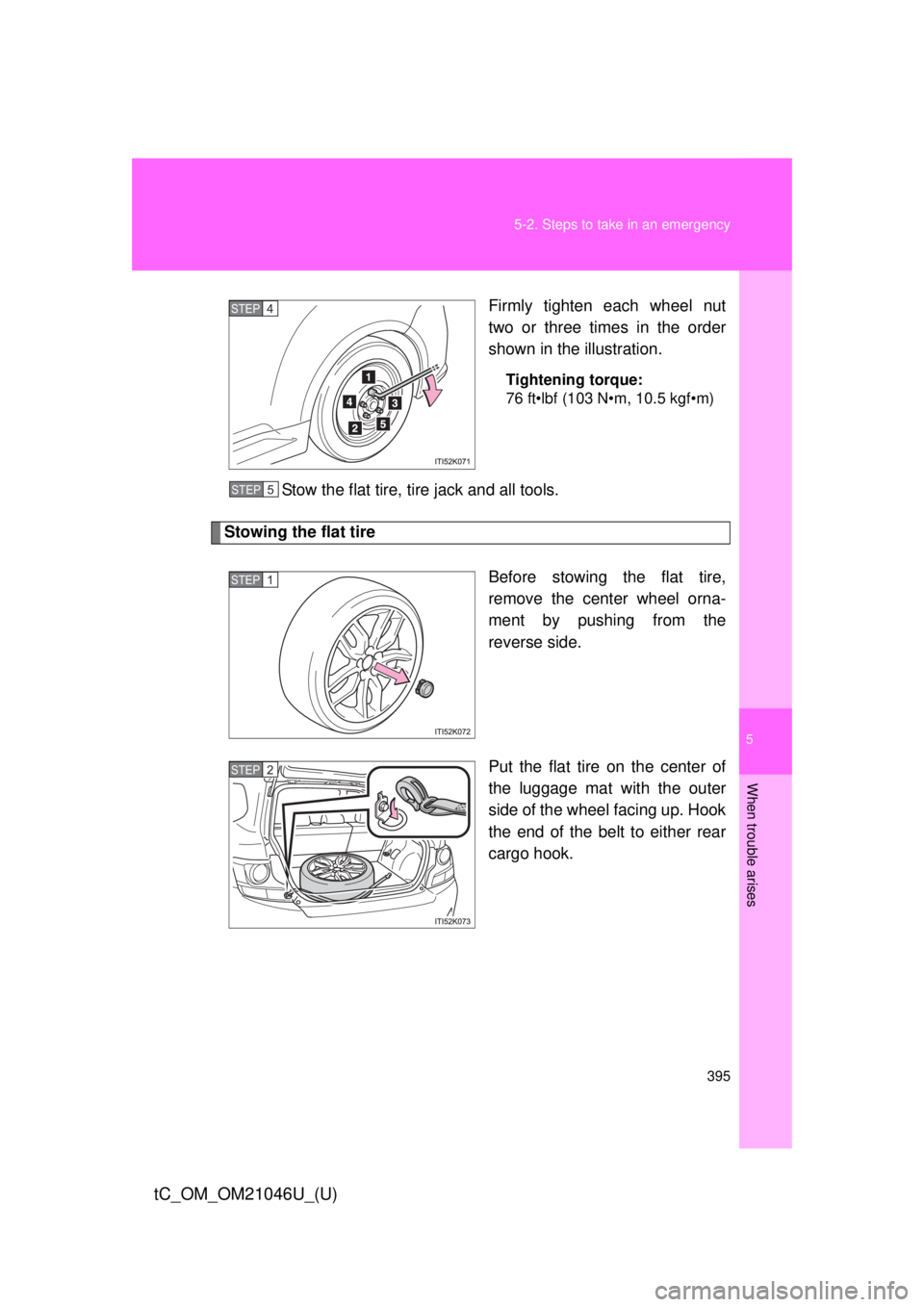

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
Stowing the flat tire
Before stowing the flat tire,
remove the center wheel orna-
ment by pushing from the
reverse side.
Put the flat tire on the center of
the luggage mat with the outer
side of the wheel facing up. Hook
the end of the belt to either rear
cargo hook.
STEP 4
STEP 5
STEP 1
STEP 2

396 5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)
Pass the belts from between the
wheel spokes through the cen-
ter hole of the wheel.
Hook the other end of the belt to
the front cargo hook located
diagonally to the used rear hook.STEP 3
STEP 4

5
When trouble arises
397
5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)

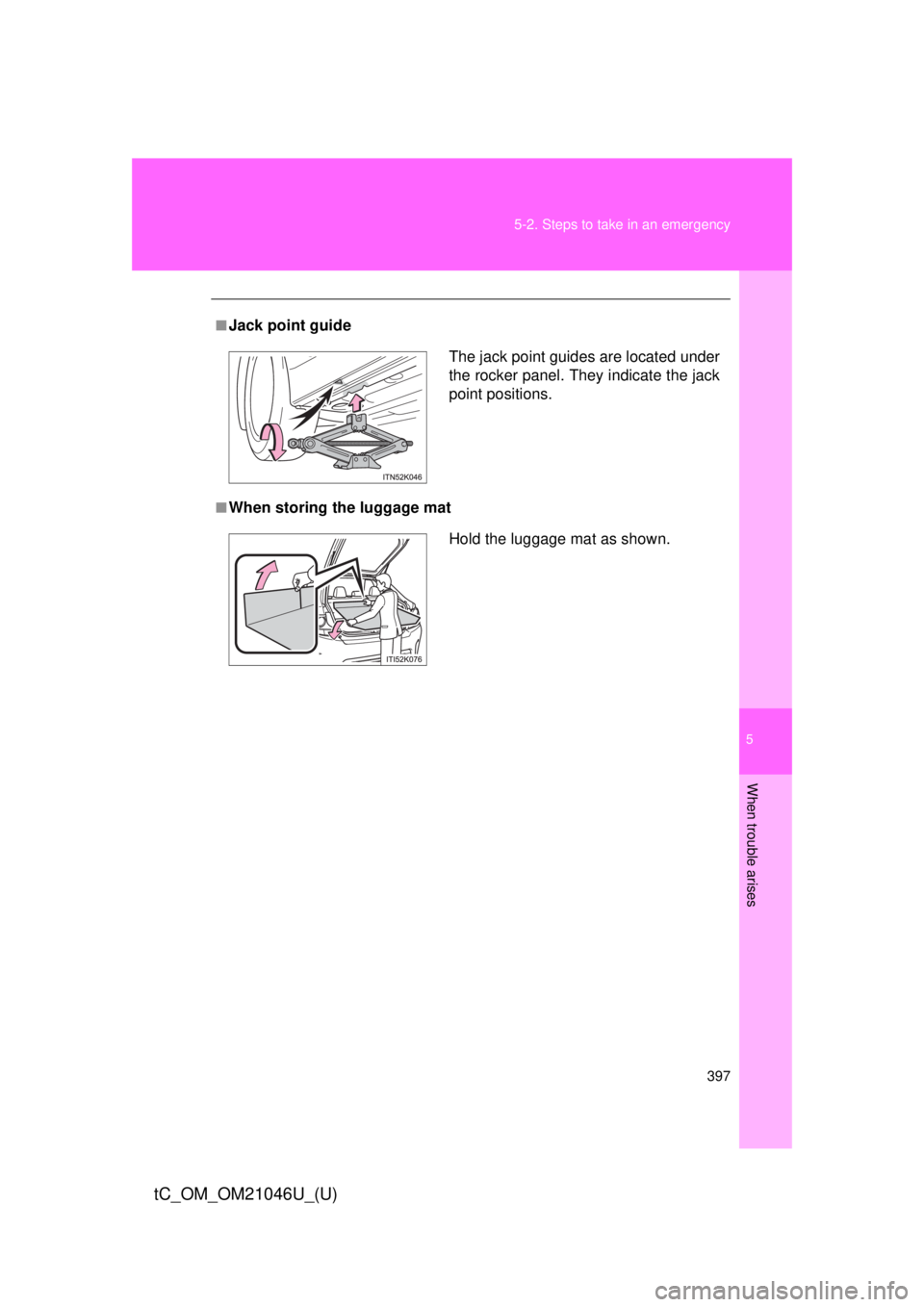

■Jack point guide
■When storing the luggage mat
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Hold the luggage mat as shown.

398 5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressu re of the compact spare
tire. ( P. 433)
■After completing the tire change (U.S.A. only)
The tire pressure warnin g system must be reset. ( P. 313)
■When using the compact spare tire (U.S.A. only)
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
STEP 1
STEP 2
STEP 3

5
When trouble arises
399
5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)
CAUTION
■When using the compact spare tire
●Remember that the compact spare
tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
●Cruise control
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.

400 5-2. Steps to take in an emergency
tC_OM_OM21046U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
