1-2. Opening, closing and locking the doors
Before driving
tC_OM_OM21053U_(U)
Back door

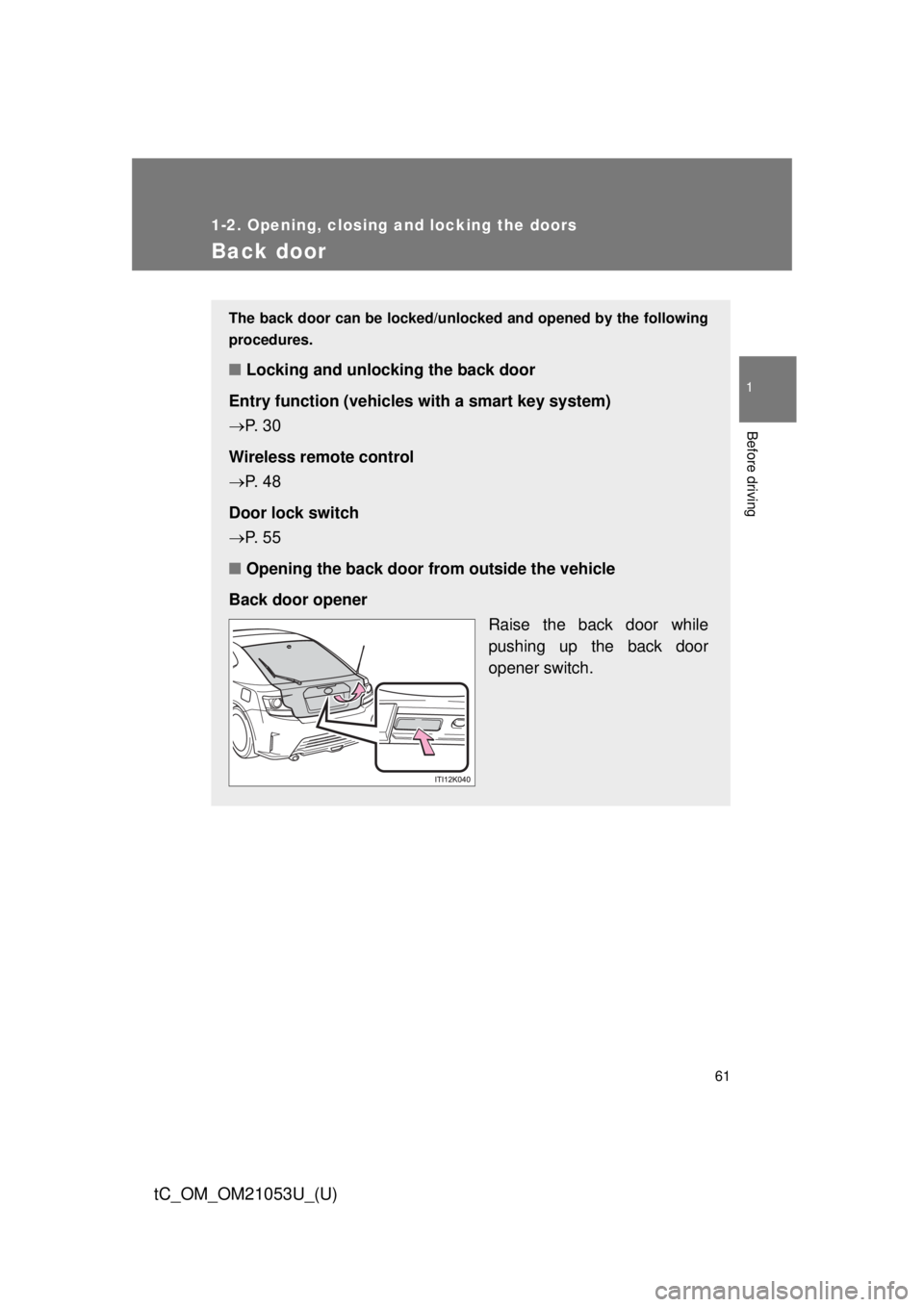

The back door can be locked/unlocked and opened by the following
procedures.
■Locking and unlocking the back door
Entry function (vehicles with a smart key system)
P. 3 0
Wireless remote control
P. 4 8
Door lock switch
P. 5 5
■Opening the back door from outside the vehicle
Back door opener
Raise the back door while
pushing up the back door
opener switch.

62 1-2. Opening, closing and locking the doors
tC_OM_OM21053U_(U)

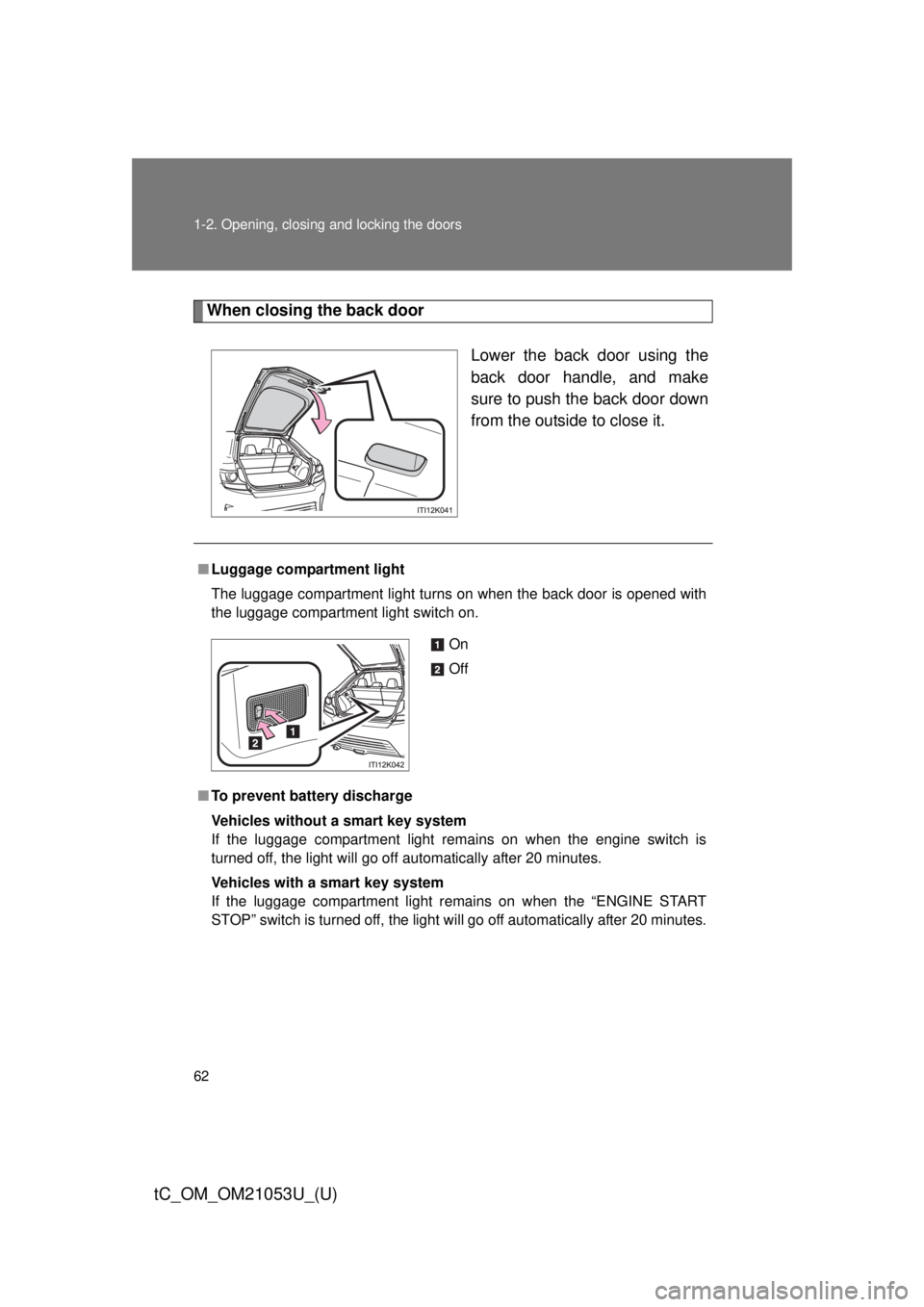

When closing the back door
Lower the back door using the
back door handle, and make
sure to push the back door down
from the outside to close it.
■Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
■To prevent battery discharge
Vehicles without a smart key system
If the luggage compartment light remains on when the engine switch is
turned off, the light will go off automatically after 20 minutes.
Vehicles with a smart key system
If the luggage compartment light remains on when the “ENGINE START
STOP” switch is turned off, the light will go off automatically after 20 minutes.
On
Off

63 1-2. Opening, closing and locking the doors
1
Before driving
tC_OM_OM21053U_(U)

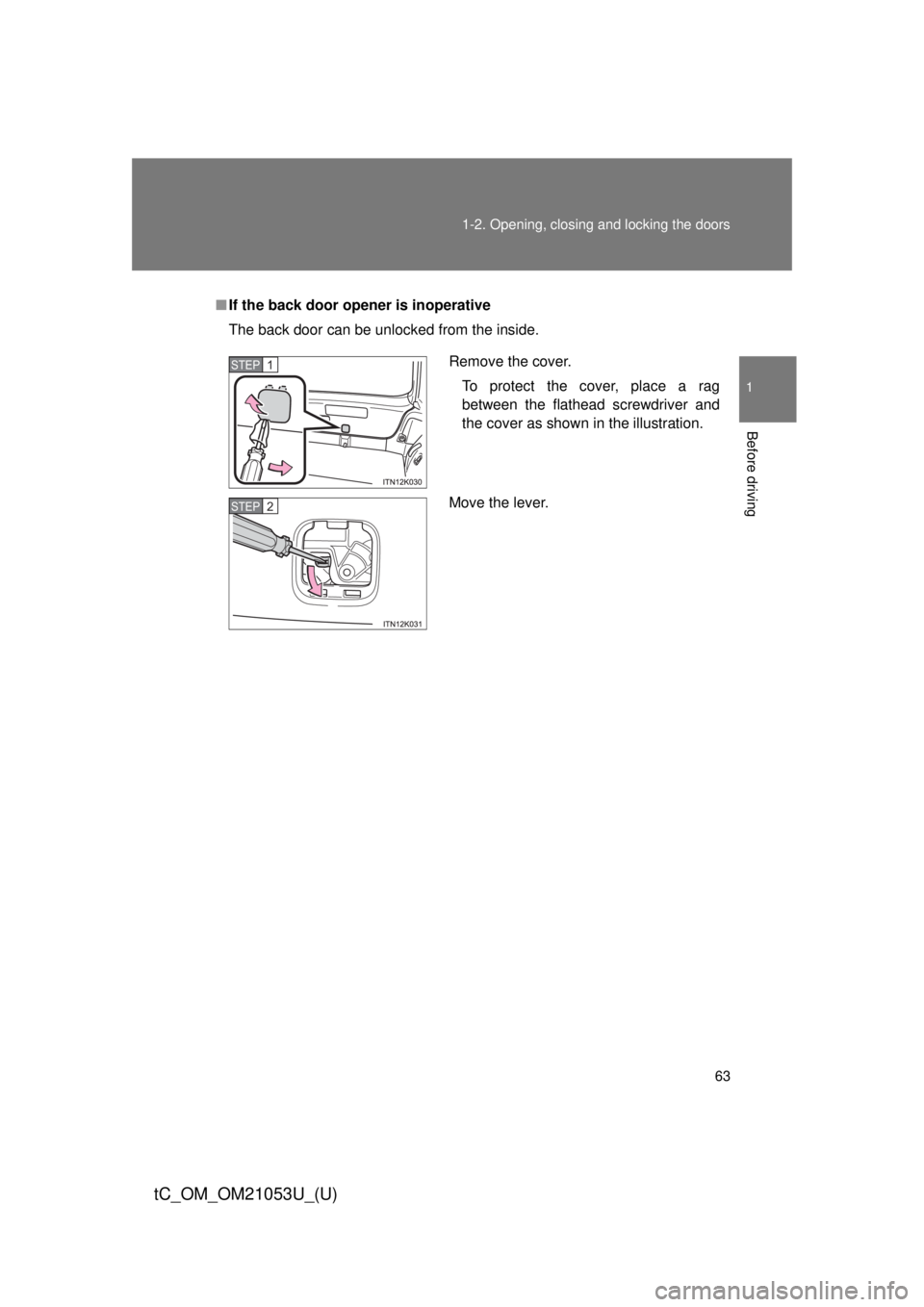

■If the back door opener is inoperative
The back door can be unlocked from the inside.
Remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.
Move the lever.STEP 1
STEP 2

64 1-2. Opening, closing and locking the doors
tC_OM_OM21053U_(U)
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
●Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
●Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

65 1-2. Opening, closing and locking the doors
1
Before driving
tC_OM_OM21053U_(U)
CAUTION

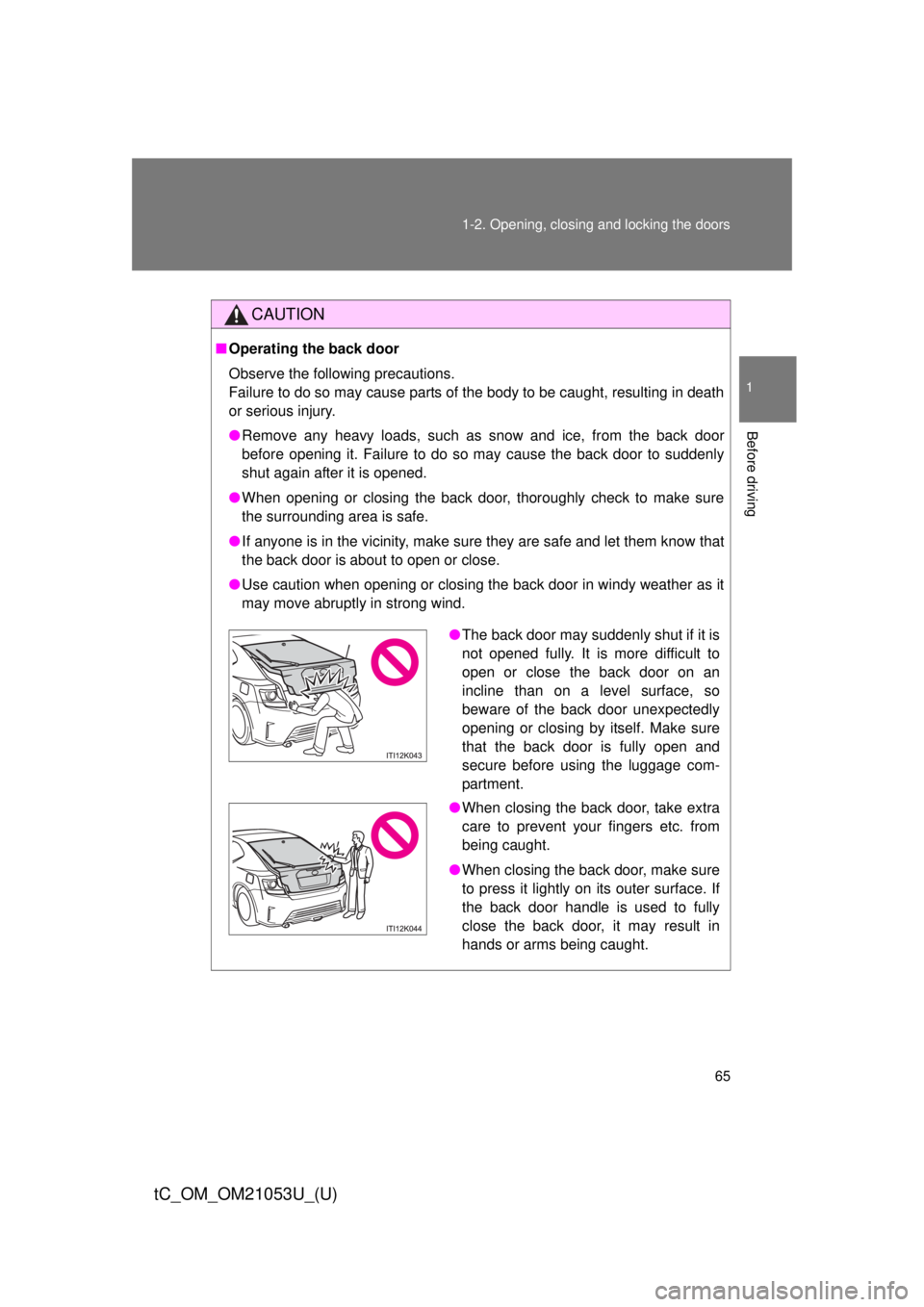

■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
●When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
●Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
●When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
●When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

66 1-2. Opening, closing and locking the doors
tC_OM_OM21053U_(U)
CAUTION

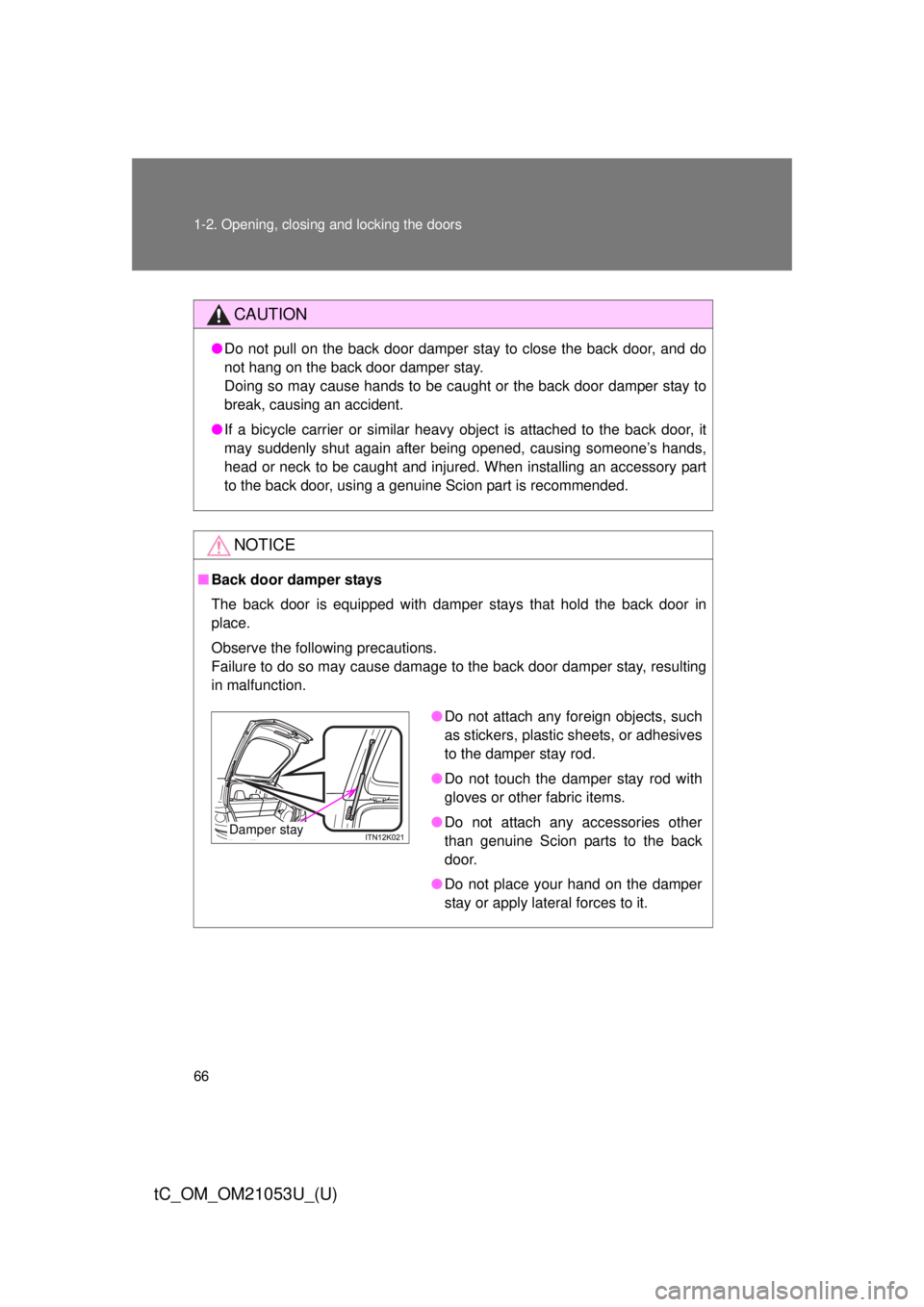

●Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
●If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Scion part is recommended.
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
●Do not touch the damper stay rod with
gloves or other fabric items.
●Do not attach any accessories other
than genuine Scion parts to the back
door.
●Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stay

67
1
Before driving
tC_OM_OM21053U_(U)
1-3. Adjustable components (seats, mirrors, steering wheel)

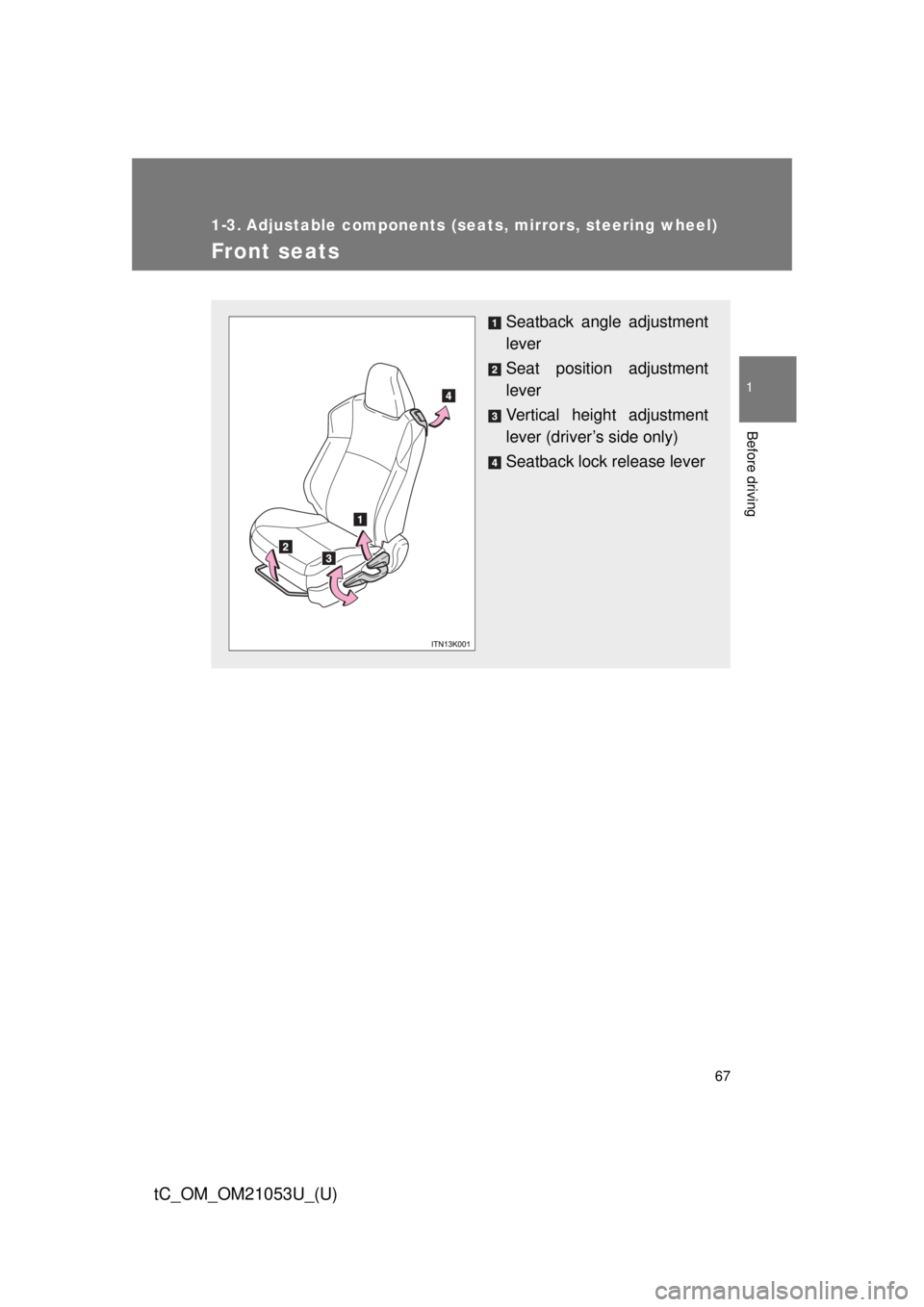

Front seats
Seatback angle adjustment
lever
Seat position adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Seatback lock release lever

68 1-3. Adjustable components (seats, mirrors, steering wheel)
tC_OM_OM21053U_(U)

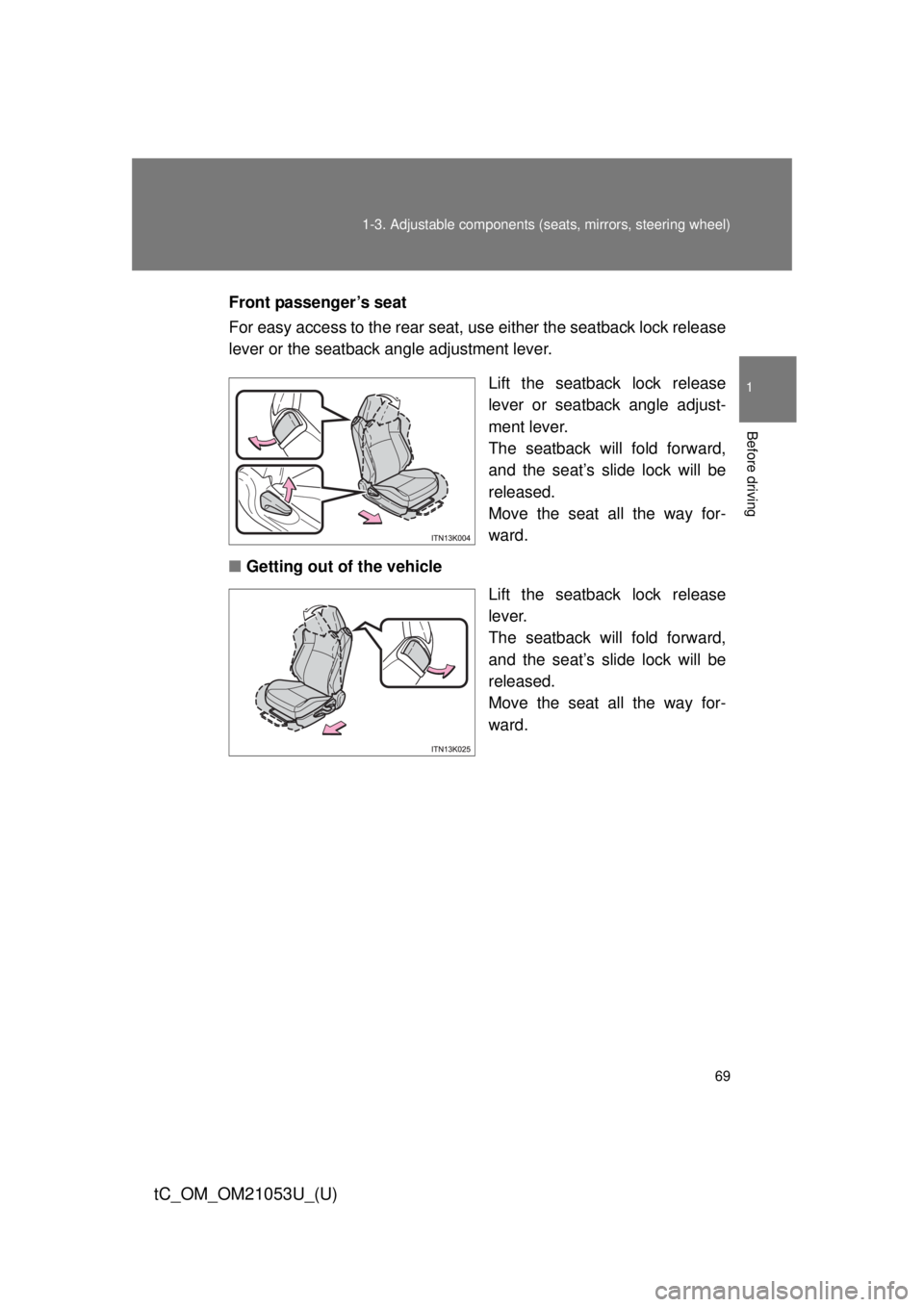

Moving front seats for rear seat entry
■Getting in the vehicle
Driver’s seat
For easy access to the rear seat, use the seatback lock release lever.
When the seatback lock release lever is used, the seat’s original
position is memorized, so the seat may be returned to that original
position. However, if the seatback angle adjustment lever is used, the
seat will not return to its original position.
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.

69 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
tC_OM_OM21053U_(U)

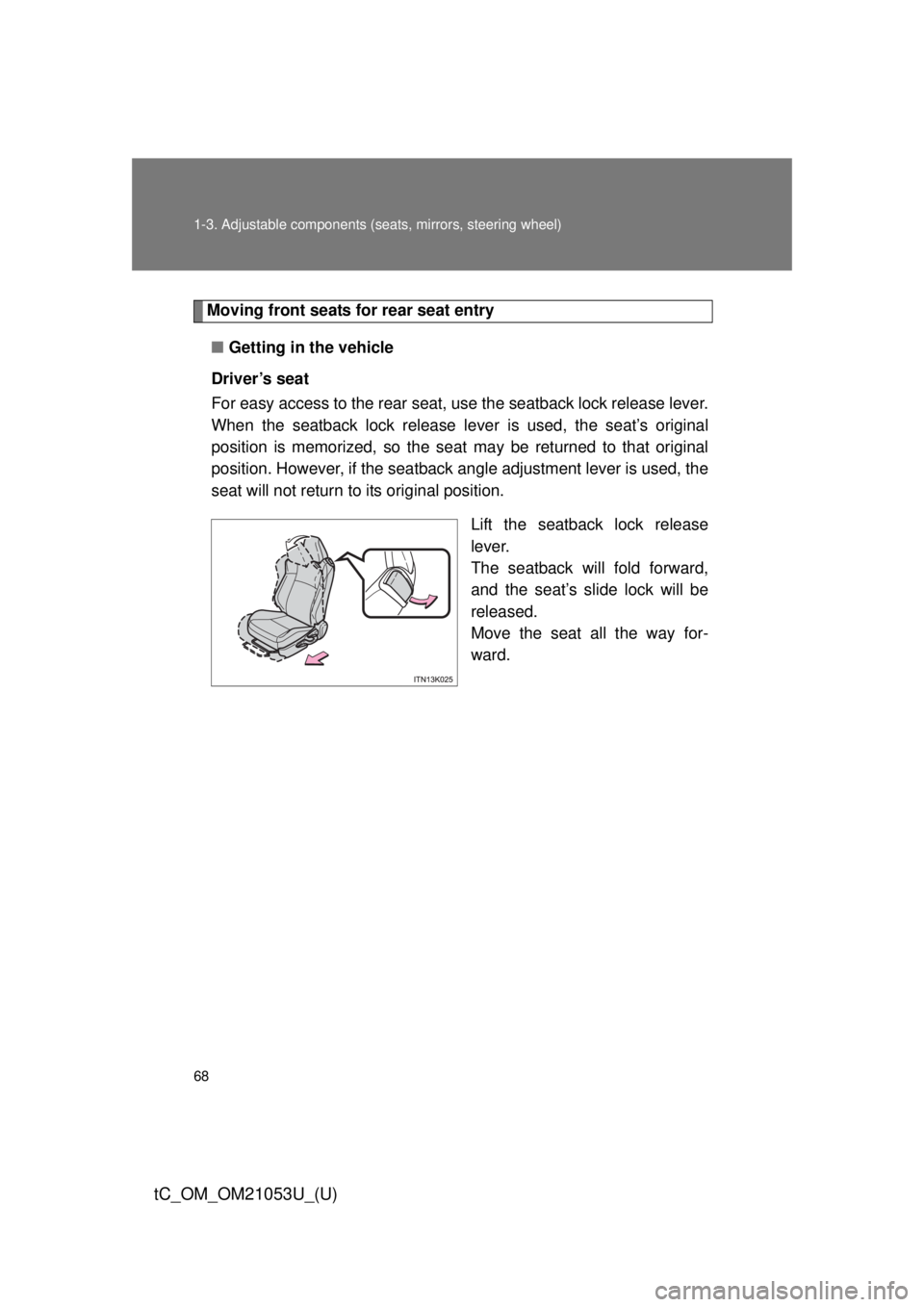

Front passenger’s seat
For easy access to the rear seat, use either the seatback lock release
lever or the seatback angle adjustment lever.
Lift the seatback lock release
lever or seatback angle adjust-
ment lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.
■Getting out of the vehicle
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.

70 1-3. Adjustable components (seats, mirrors, steering wheel)
tC_OM_OM21053U_(U)
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
■After passengers have entered the vehicle
Driver’s seat
Slide the seat backward and then lift the seatback. The seat will be set and
locked to its previous position automatically. If the seat cannot be slid back to
the previous position due to the rear passenger or luggage, the seat will be
locked in that position, disabling the seat position memory system.
To recall the previous position, lift the seatback lock release lever after
removing the luggage, or after having the passenger get out or sit properly
so that the seat can be slid back to the previous position. However, if you
slide the seat further backwards than the previous position using the seat
position adjustment lever, the memory of previous position will be overwrit-
ten.
