TOYOTA TUNDRA 2002 1.G Owners Manual

’02 TUNDRA_U (L/O 0108)
942002 MY TUNDRA_U (OM 34417U)
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after the
several trips, contact your Toyota dealer
as soon as possible. If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(OnBoard Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual. (h) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
lock brake system works properly, the
light turns off after a few seconds. There-
after, if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on while you are driv-
ing.

’02 TUNDRA_U (L/O 0108)
952002 MY TUNDRA_U (OM 34417U)
A warning light turning on briefly during
operation does not indicate a problem.
(i) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, front seat belt pretensioner assem-
blies, inflators, warning light,
interconnecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on or flashes while
driving. (k) Unengaged “Park” Warning Light
(with automatic transmission and
front drive control lever)
This light warns that the transmission
“Park” mechanism is not engaged. If the
front drive control lever is in the “N” posi-
tion while the selector lever is in the “P”
position, the transmission will disengage
and the wheels will not lock.
CAUTION
To restore the park function, shift the
front drive control lever out of “N”,
or the vehicle can move.
(l) Automatic Transmission Fluid Temperature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance. (m) Low Windshield Washer Fluid Level
Warning Light (with daytime running
light system)
This light warns that the windshield wash-
er fluid level is too low. Add washer fluid
at your earliest opportunity. (For instruc-
tions, see “Adding washer fluid” in Section
73.)
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.
(o) Fourwheel drive system warning buzzer
This buzzer reminds you that the transfer
mode is not selected correctly.
If the buzzer sounds when you shift the
transfer from “2WD” to “4HI”, “4LO” to
“4HI”, “4HI” to “4LO”, or “4LO” to “2WD”
mode, follow the instructions in “Four
wheel drive system” in Section 16.

’02 TUNDRA_U (L/O 0108)
962002 MY TUNDRA_U (OM 34417U)
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ACC”. The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light goes off after a
few seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’02 TUNDRA_U (L/O 0108)
972002 MY TUNDRA_U (OM 34417U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .

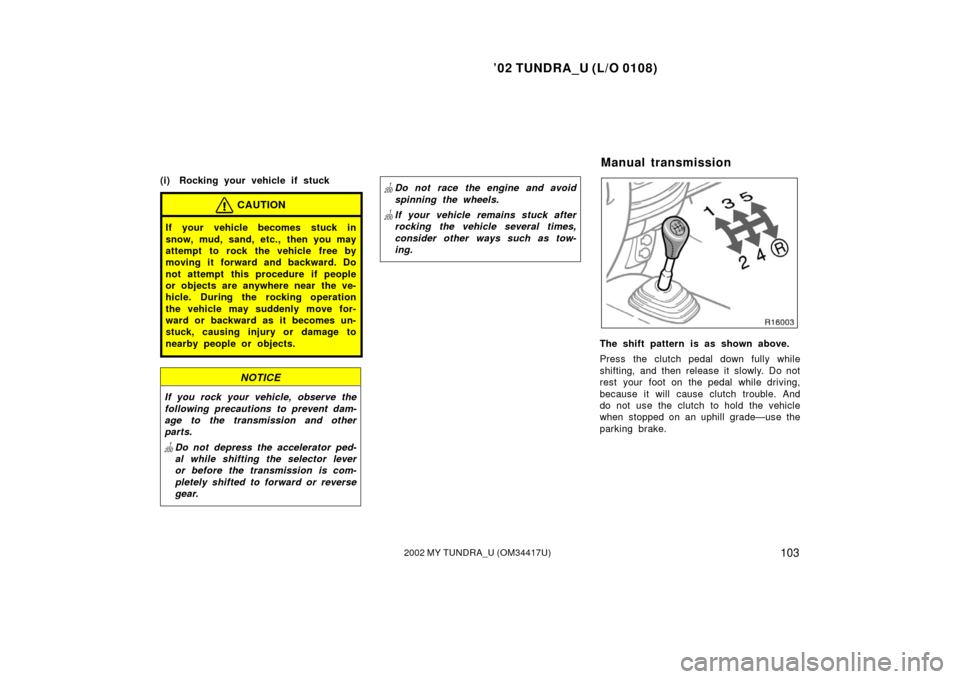

Manual transmission 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Fourwheel drive system 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Parking brake 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Clutch start cancel switch 112
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
SECTION 1 6

’02 TUNDRA_U (L/O 0108)
982002 MY TUNDRA_U (OM 34417U)
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see Section 3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position. You must push in the key to turn the key
from “ACC” to the “LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be in the “P” posi-
tion before pushing the key.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

’02 TUNDRA_U (L/O 0108)
992002 MY TUNDRA_U (OM 34417U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” or “ACC” position and the
selector lever pulled toward you).
(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
Selector lever Overdrive switch
With the brake pedal
depressed, shift while pulling
the selector lever toward you.
(The ignition switch must be
in “ON” or “ACC” position.)
Shift while pulling
the selector lever
toward you.
Shift normally.

’02 TUNDRA_U (L/O 0108)
1002002 MY TUNDRA_U (OM 34417U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on. Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Twowheel drive models
5VZFE engine 115 km/h (71 mph)
2UZFE engine 120 km/h (75 mph)

’02 TUNDRA_U (L/O 0108)
1012002 MY TUNDRA_U (OM 34417U)
Fourwheel drive models
5VZFE engine Front drive control lever in “H2” or
“H4” 109 km/h (68 mph)
Front drive control lever in “L4”
37 km/h (23 mph)
2UZFE engine “2WD” or “4HI” mode is selected 120 km/h (75 mph)
“4LO” mode is selected
41 km/h (25 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Twowheel drive models
5VZFE engine 55 km/h (34 mph)
2UZFE engine 58 km/h (36 mph) Fourwheel drive models
5VZFE engine Front drive control lever in “H2” or
“H4” 52 km/h (32 mph)
Front drive control lever in “L4”
10 km/h (6 mph)
2UZFE engine “2WD” or “4HI” mode is selected 58 km/h (36 mph)
“4LO” mode is selected
11 km/h (7 mph)
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using “2” and “L” positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
NOTICE
 Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
Twowheel drive models
5VZFE engine— “2” 115 km/h (71 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
2UZFE engine— “2” 120 km/h (75 mph) . . . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . . . .

’02 TUNDRA_U (L/O 0108)
1022002 MY TUNDRA_U (OM 34417U)
Fourwheel drive models
5VZFE engine—
Front control lever in “H2” or
“H4” “2” 110 km/h (68 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
Front control lever in “L4”
“2” 40 km/h (25 mph) . . . . . . . . . .
“L” 20 km/h (12 mph) . . . . . . . . . .
2UZFE engine—
“2WD” or “4HI” mode is selected “2” 120 km/h (75 mph) . . . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . . . .
“4LO” mode is selected “2” 45 km/h (28 mph) . . . . . . . . . .
“L” 25 km/h (16 mph) . . . . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.

’02 TUNDRA_U (L/O 0108)
1032002 MY TUNDRA_U (OM 34417U)
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Manual transmission
