The cargo lamp is designed to light up
the rear deck of your vehicle.
CARGO LAMP OPERATION
By pushing “CARGO LAMP” switch
To turn on: Push the “CARGO LAMP”
switch once.
At this time, the indicator light on the
instrument panel will come on.
To turn off: Push the “CARGO LAMP”
switch once again.
By locking and unlocking doors (ve-
hicles with the power door lock system)
You can operate the cargo lump by this
method when all the doors are closed and
the ignition switch is in the “ACC” or
“LOCK” position or the key is removed.
To turn on: Unlock the doors with the key
or the power door lock switch.
The cargo lamp will automatically turn off
after 20 seconds.
To turn off: Lock the doors with the key
or the power door lock switch. By opening and closing doors
To turn on: Open any of the doors.
To turn off: Close all the doors:
When the ignition switch is in the “ON”
position, the cargo lamp will go off im-
mediately.
When the ignition switch is in the
“ACC” or “LOCK” position or the key is
removed, the cargo lamp will automati-
cally go off after 20 seconds.
CARGO LAMP AUTOMATIC POWEROFF
FUNCTION
When the vehicle speed exceeds
approximately 5 km/h (3 mph), the car-
go lamp will go off.
To prevent the battery being dis-
charged, the cargo lamp will automati-
cally go off when the lamp remains on
for 30 minutes or more.

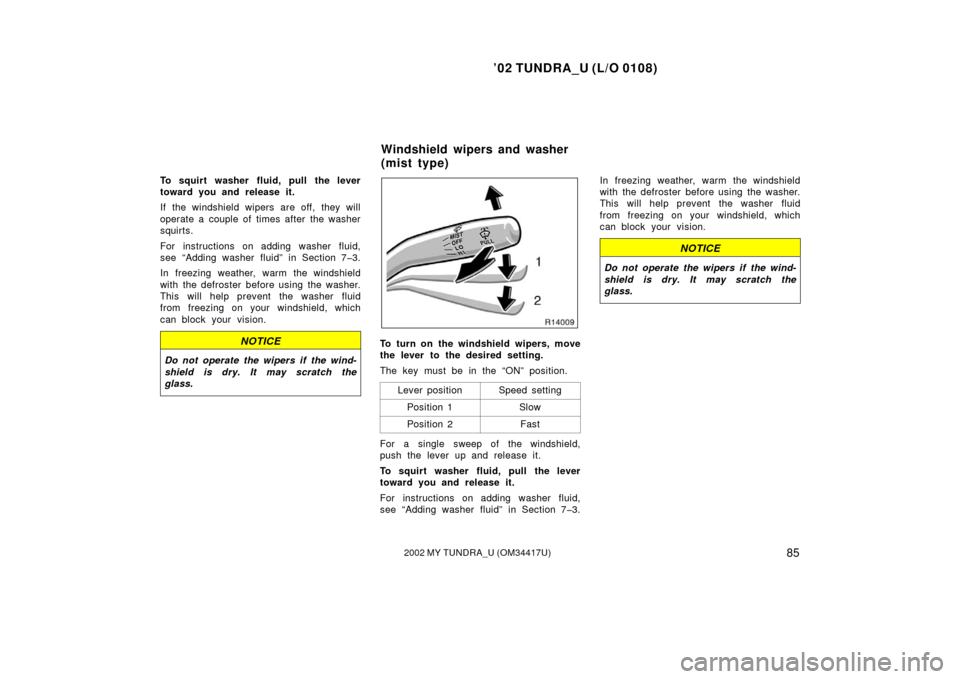

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The “INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
Windshield wipers and washer
(intermittent type)

’02 TUNDRA_U (L/O 0108)
852002 MY TUNDRA_U (OM 34417U)
To squirt washer fluid, pull the lever
toward you and release it.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you and release it.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73. In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer
( mist typ e)

’02 TUNDRA_U (L/O 0108)
2822002 MY TUNDRA_U (OM 34417U)
11. HEAD (LH) 10 A (without daytime
running light system): Lefthand
headlight
HEAD (HI LH) 10 A (with daytime
running light system): Lefthand
headlight (high beam)
12. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system and emission control sys-
tem
13. A/C 10 A: Air conditioning system
14. DRL 7.5 A (with daytime running light system): Daytime running light
system
15. HEAD (LO RH) 10 A (with daytime running light system): Righthand
headlight (low beam)
16. HEAD (LO LH) 10 A (with daytime running light system): Lefthand
headlight (low beam)
17. WIP 20 A: Windshield wipers and
washer
18. TURN 5 A: Turn signal lights
19. ECU IG 5 A: Antilock brake system
and cruise control system
20. 4WD 20 A: Fourwheel drive control
system and A.D.D. control system 21. ACC 15 A:
Cigarette lighter, audio sys-
tem, SRS airbag system and power
rear view mirrors
22. GAUGE 10 A: Gauges and meters,
backup lights, starting system, day-
time running light system and air condi-
tioning system
23. IGN 5 A: SRS airbag system, multiport
fuel injection system/sequential multi-
port fuel injection system, discharge
system and ignition system
24. CARGO LP 5 A: Cargo lamp
25. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, parking
lights and glove box light
26. ECUB 5 A: SRS warning light
27. HORNHAZ 20 A: Emergency flashers
and horns
28. STA 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, g auges and meters
29. STOP 15 A: Stoplights and high
mounted stoplight
Fuses (type B)
30. ABS 1 40 A: Antilock brake system
31. ABS 2 40 A: Antilock brake system 32. J/B 50 A:
All components in “POWER”,
“HORNHAZ”, “TAIL”, “CARGO LP”,
“STOP” and “ECUB” fuses
33. AM2 30 A: Ignition system
34. AM1 40 A: Starting system
35. HTR 50 A: Air conditioning system
36. POWER 30 A: Power door lock sys-
tem, power windows and power seat
37. FL 30 A: Trailer lights
Fuse (type C)
38. ALT 120 A: All components in “AM1”,
“ALTS”, “HTR”, “FR FOG”, “PWR
OUTLET 1” and “PWR OUTLET 2”
fuses
