TOYOTA TUNDRA 2003 1.G Owners Manual

’03 TUNDRA_U (L/O 0307)
172
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

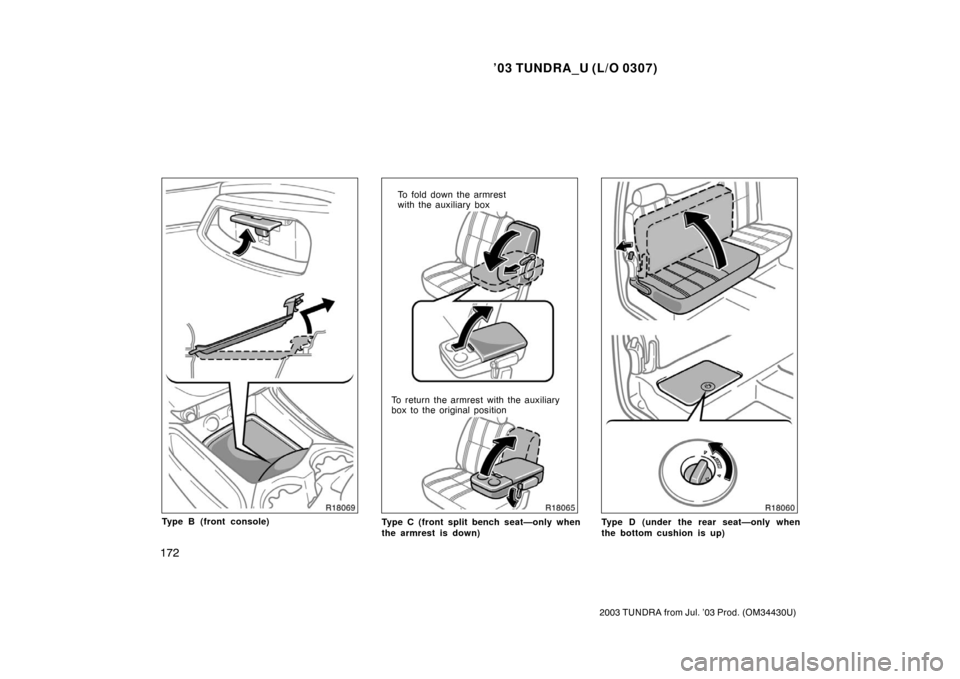

Type B (front console)
To fold down the armrest
with the auxiliary box
To return the armrest with the auxiliary
box to the original position
Type C (front split bench seat—only when
the armrest is down)
Type D (under the rear seat—only when
the bottom cushion is up)

’03 TUNDRA_U (L/O 0307)
173
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

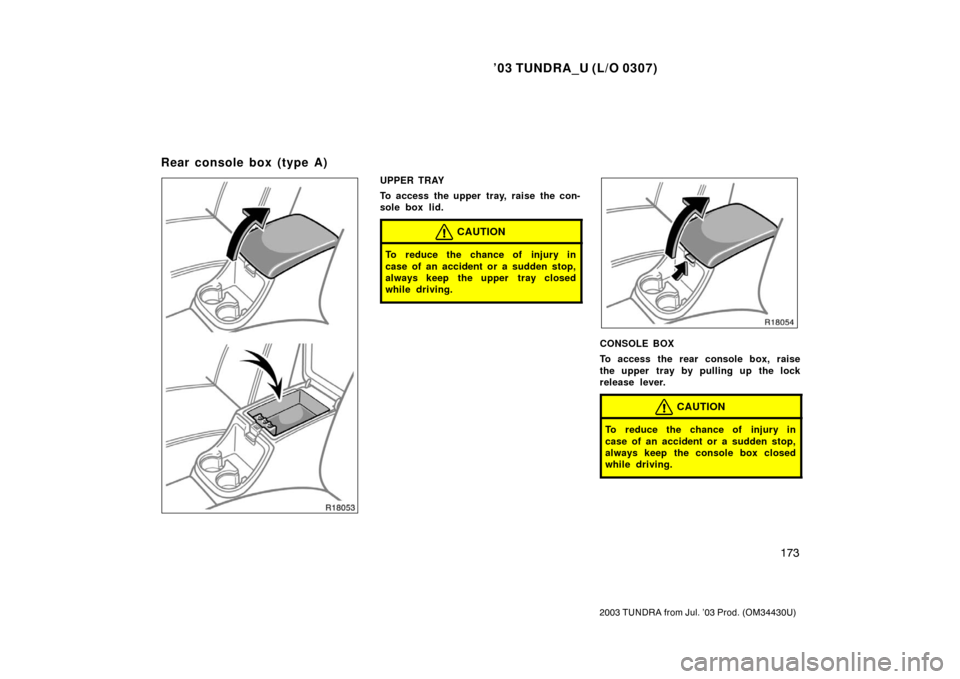

UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type A)

’03 TUNDRA_U (L/O 0307)
174
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

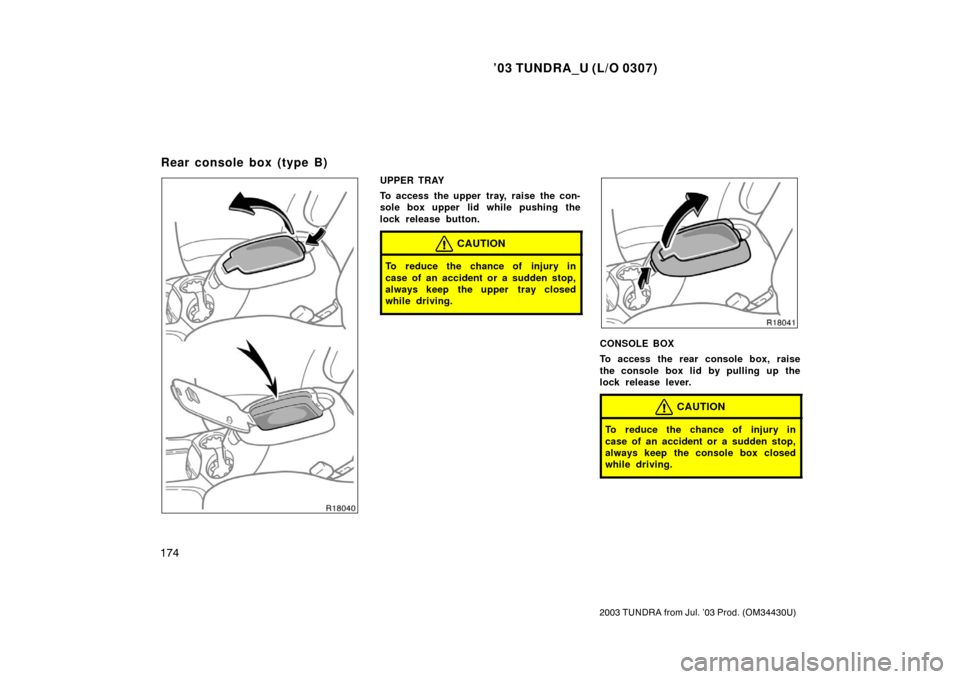

UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type B)

’03 TUNDRA_U (L/O 0307)
175
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

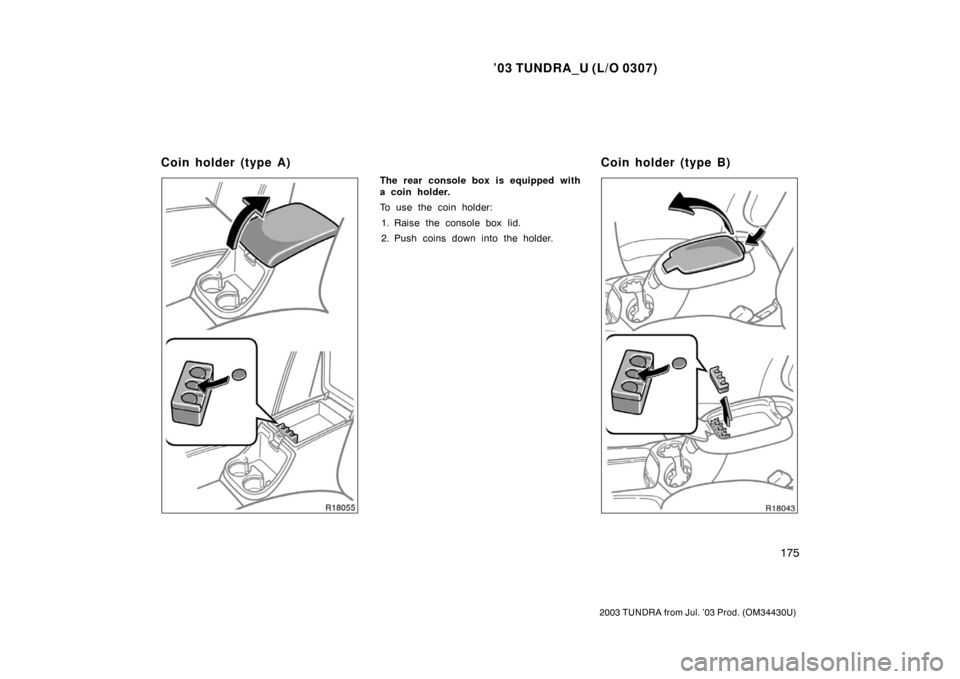

The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.
Coin holder (type A) Coin holder (type B)

’03 TUNDRA_U (L/O 0307)
176
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

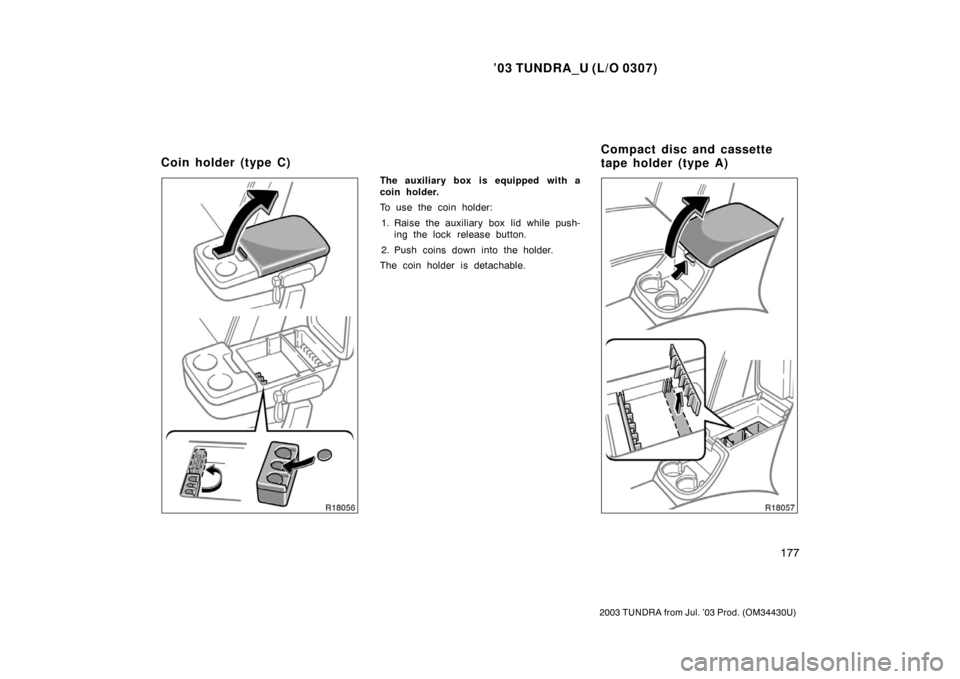

The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.The coin holder can be set in the con-
sole box.

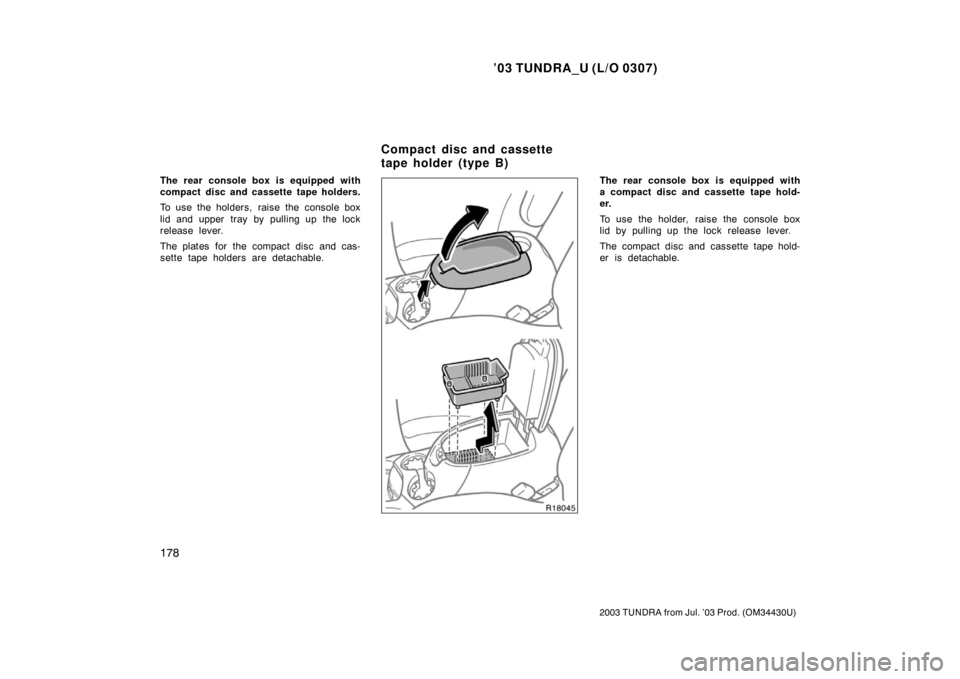

To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.

’03 TUNDRA_U (L/O 0307)
177
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
The auxiliary box is equipped with a
coin holder.
To use the coin holder:
1. Raise the auxiliary box lid while push- ing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder (type C) Compact disc and cassette
tape holder (type A)

’03 TUNDRA_U (L/O 0307)
178
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

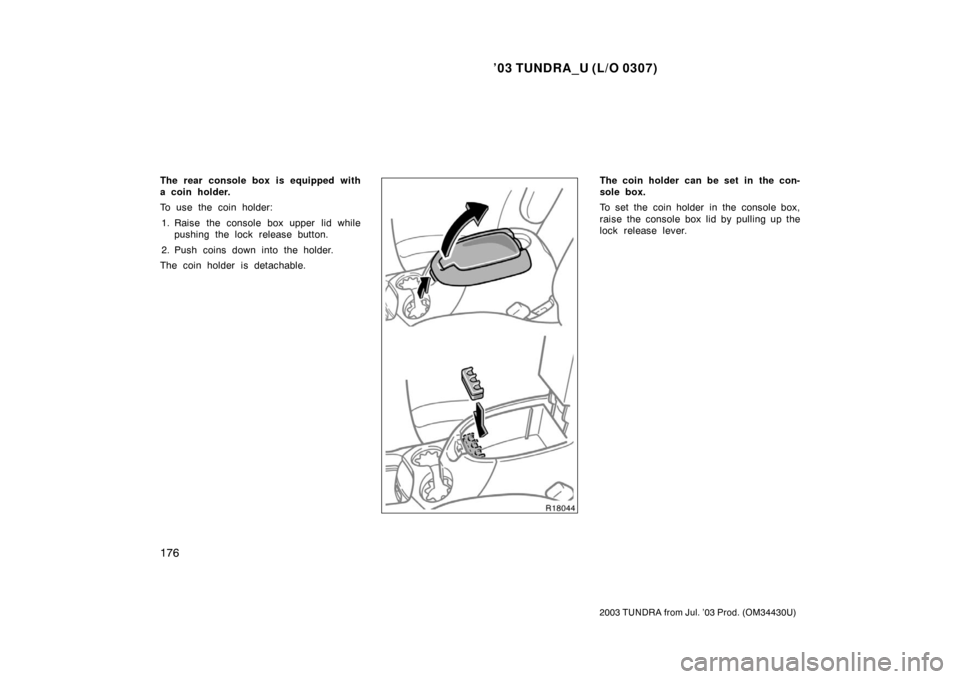

The rear console box is equipped with
compact disc and cassette tape holders.
To use the holders, raise the console box
lid and upper tray by pulling up the lock
release lever.
The plates for the compact disc and cas-
sette tape holders are detachable.The rear console box is equipped with
a compact disc and cassette tape hold-
er.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.
Compact disc and cassette
tape holder (type B)

’03 TUNDRA_U (L/O 0307)
179
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

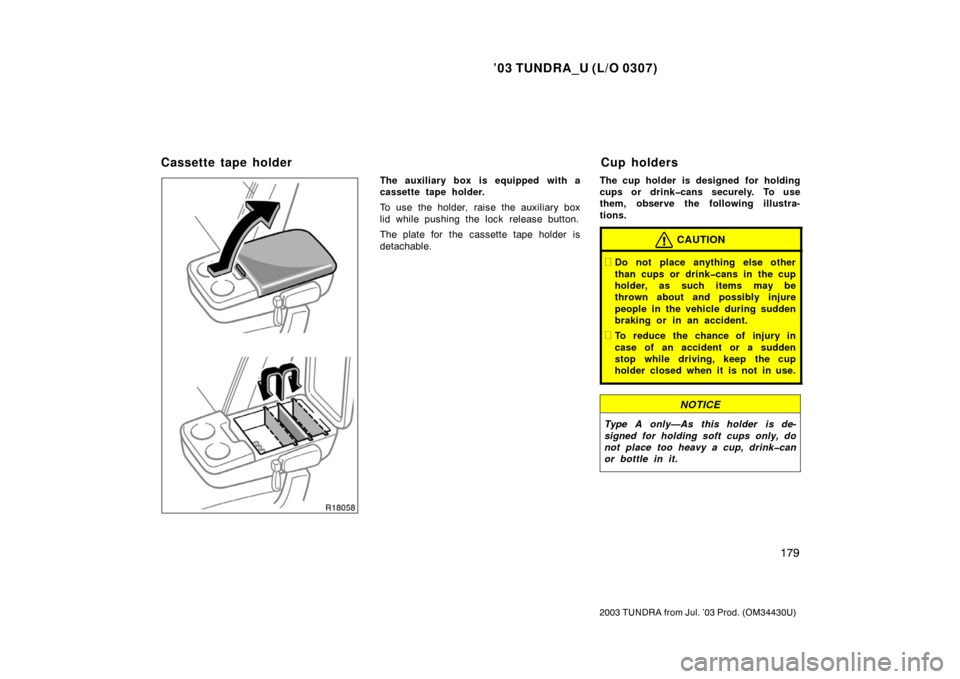

The auxiliary box is equipped with a
cassette tape holder.
To use the holder, raise the auxiliary box
lid while pushing the lock release button.
The plate for the cassette tape holder is
detachable. The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
NOTICE
Type A only—As this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drinkcan
or bottle in it.
Cassette tape holder
Cup holders

’03 TUNDRA_U (L/O 0307)
180
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

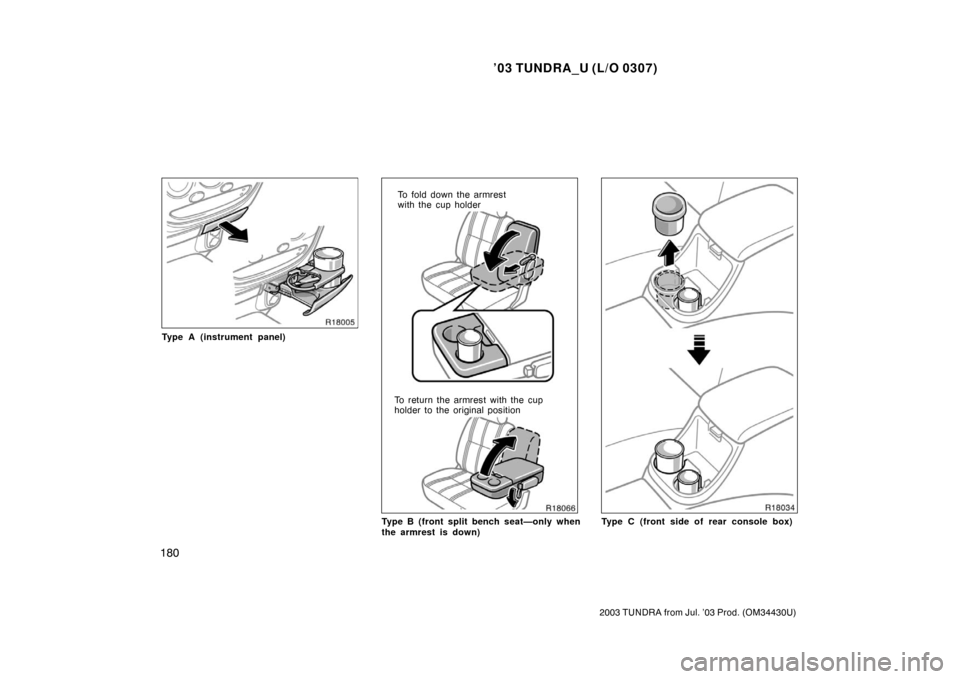

Type A (instrument panel)
To fold down the armrest
with the cup holder
To return the armrest with the cup
holder to the original position
Type B (front split bench seat—only when
the armrest is down)
Type C (front side of rear console box)

’03 TUNDRA_U (L/O 0307)
181
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Type C cup holders are equipped with
a detachable adapter for each holder.
When you remove the adapter, a bigger
cup can be held in the holder.

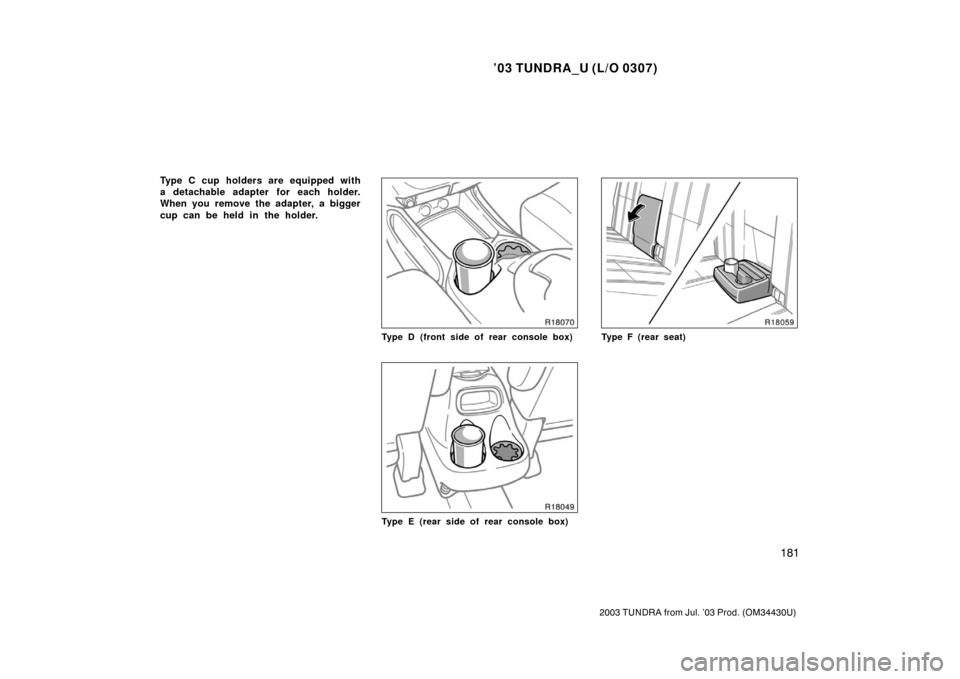

Type D (front side of rear console box)
Type E (rear side of rear console box)
Type F (rear seat)
