TOYOTA TUNDRA 2004 1.G Owners Manual

’04 TUNDRA_U (L/O 0309)
162
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
“VSC OFF” indicator light
(four−wheel drive models)
Slip indicator light
There may be the case that the “ABS”
warning light (brake assist system
warning light), “VSC TRAC” warning
light and “VSC OFF” (four −wheel drive
models) indicator light stay on for
about 60 seconds after the ignition key
is turned to the “ON” position. It is
normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’04 TUNDRA_U (L/O 0309)
163
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Manual transmission 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Four −wheel drive system 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Traction control system 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
”AUTO LSD” system 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Vehicle stability control system 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Clutch start cancel switch 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
SECTION 1 7

’04 TUNDRA_U (L/O 0309)
164
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

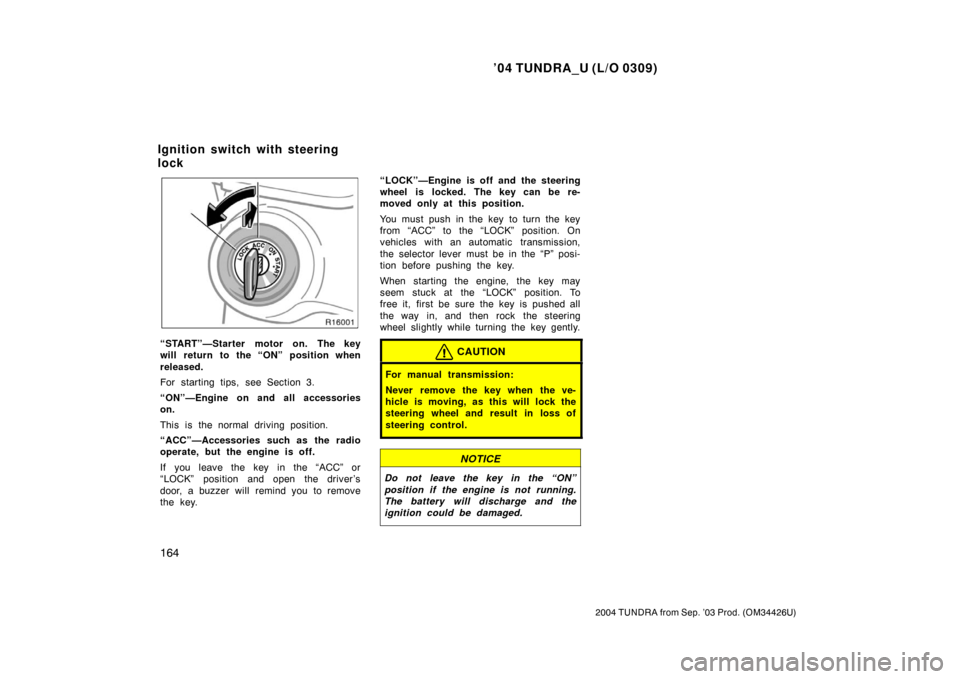

“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see Section 3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key. “LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the key
from “ACC” to the “LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be in the “P” posi-
tion before pushing the key.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

’04 TUNDRA_U (L/O 0309)
165
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” or “ACC” position and the
selector lever pulled toward you).

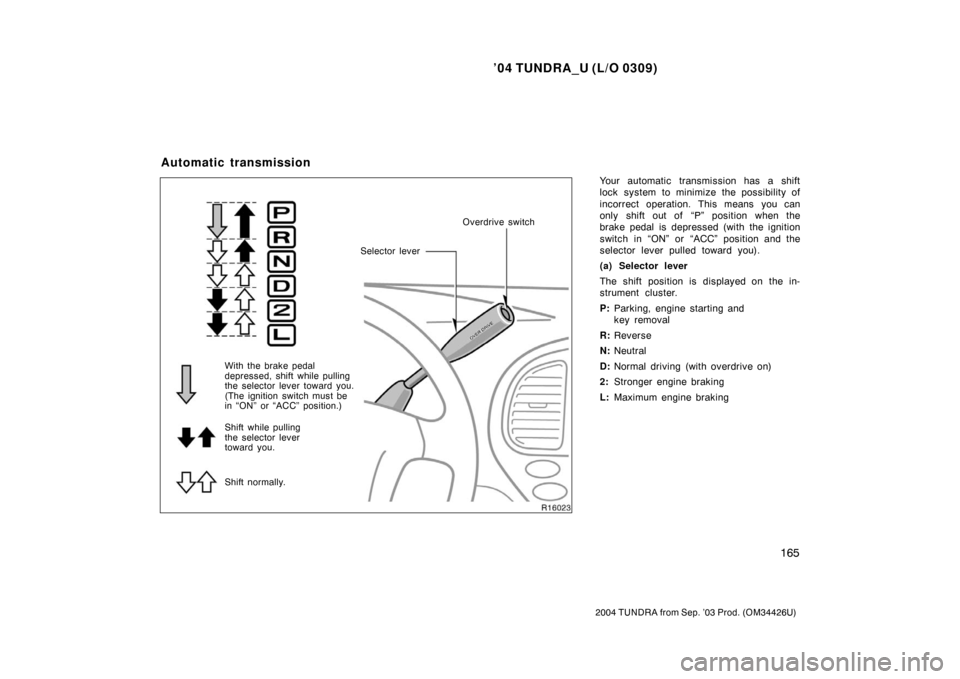

(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
Selector lever Overdrive switch
With the brake pedal
depressed, shift while pulling
the selector lever toward you.
(The ignition switch must be
in “ON” or “ACC” position.)
Shift while pulling
the selector lever
toward you.
Shift normally.

’04 TUNDRA_U (L/O 0309)
166
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

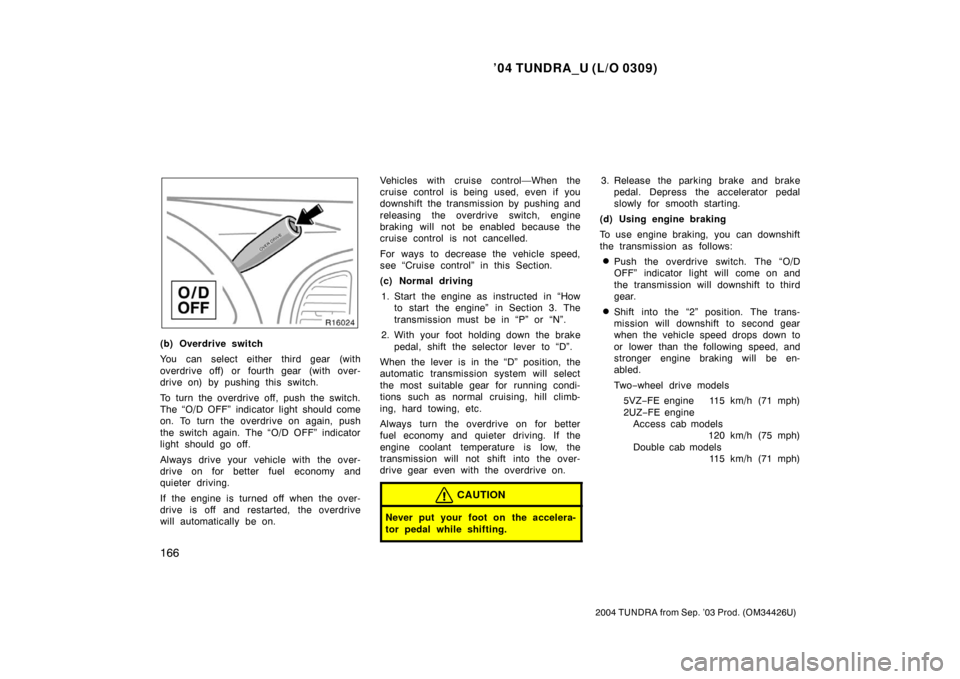

(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on. Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this Section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Tw o −wheel drive models
5VZ− FE engine 115 km/h (71 mph)
2UZ− FE engine
Access cab models 120 km/h (75 mph)
Double cab models 115 km/h (71 mph)

’04 TUNDRA_U (L/O 0309)
167
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Four−wheel drive models
5VZ− FE engine
Front drive control lever in “H2” or
“H4” 109 km/h (68 mph)
Front drive control lever in “L4”
37 km/h (23 mph)
2UZ− FE engine
Standard and access cab models “2WD” or “4HI” mode is selected 120 km/h (75 mph)
“4LO” mode is selected 41 km/h (25 mph)
Double cab models “2WD” or “4HI” mode is selected 115 km/h (71 mph)
“4LO” mode is selected 40 km/h (25 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled. Tw o
−wheel drive models
5VZ− FE engine 55 km/h (34 mph)
2UZ− FE engine
Access cab models 58 km/h (36 mph)
Double cab models 55 km/h (34 mph)
Four −wheel drive models
5VZ− FE engine
Front drive control lever in “H2” or
“H4” 52 km/h (32 mph)
Front drive control lever in “L4”
10 km/h (6 mph)
2UZ− FE engine
Standard and access cab models “2WD” or “4HI” mode is selected
58 km/h (36 mph)
“4LO” mode is selected 11 km/h (7 mph)
Double cab models “2WD” or “4HI” mode is selected 55 km/h (34 mph)
“4LO” mode is selected 11 km/h (7 mph) Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using “2” and “L” positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.

’04 TUNDRA_U (L/O 0309)
168
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
Twowheel drive models
5VZFE engine— “2” 115 km/h (71 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
2UZFE engine—
Access cab models“2” 120 km/h (75 mph) . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . .
Double cab models “2” 115 km/h (72 mph) . . . . . . .
“L” 60 km/h (38 mph) . . . . . . . .
Fourwheel drive models
5VZFE engine—
Front control lever in “H2” or
“H4”“2” 110 km/h (68 mph) . . . . . . . . .
“L” 60 km/h (37 mph) . . . . . . . . . .
Front control lever in “L4”
“2” 40 km/h (25 mph) . . . . . . . . . .
“L” 20 km/h (12 mph) . . . . . . . . . .
2UZFE engine—
“2WD” or “4HI” mode is selected Standard and access cab mod-
els“2” 120 km/h (75 mph) . . . . . . .
“L” 65 km/h (40 mph) . . . . . . . .
Double cab models “2” 115 km/h (72 mph) . . . . . . .
“L” 60 km/h (38 mph) . . . . . . . .
“4LO” mode is selected “2” 45 km/h (28 mph) . . . . . . . . . .
“L” 25 km/h (16 mph) . . . . . . . . . . Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.

’04 TUNDRA_U (L/O 0309)
169
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.

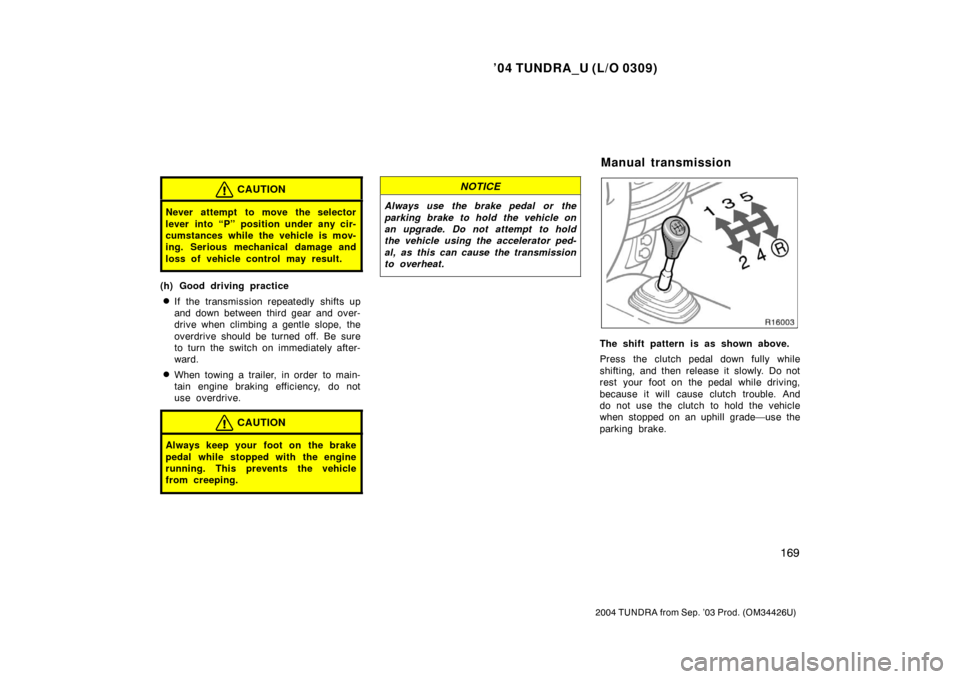

The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Manual transmission

’04 TUNDRA_U (L/O 0309)
170
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption. Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
Tw o
−wheel drive models
gear km/h (mph)
1 45 (28)
2 85 (53)
3 125 (78)
4 165 (112)
Four −wheel drive models
gear km/h (mph)
“H2” or “H4” “L4”
1 45 (28) 15 (9)
2 85 (53) 30 (18)
3 125 (78) 45 (28)
4 165 (103) 70 (43)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.

’04 TUNDRA_U (L/O 0309)
171
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Use the front drive control lever to se-
lect the following transfer modes.
“H2” (high speed position, twowheel
drive): Lever at “H2”
Use this for normal driving on dry, hard −
surfaced roads. This position gives greater
economy, the quietest ride and least wear.
“H4” (high speed position, fourwheel
drive): Lever at “H4”
Use this for normal driving on wet, icy or
snow −covered roads. This position pro-
vides greater traction than two− wheel
drive. “N” (neutral position): Lever at “N”
No power is delivered to the wheels. The
vehicle must be stopped.
“L4” (low speed position, fourwheel
drive):
Lever at “L4”
Use this for maximum power and traction.
Use “L4” for climbing or descending steep
hills, off −road driving, and hard pulling in
sand, mud or deep snow.
The “4WD” (four −wheel drive) indicator
light comes on when the “H4”, “N” or “L4”
mode is selected.
See “(c) Shifting procedure (lever type)”
for further instructions.
Advice for driving on slippery roads in
“L4” (low speed position, four wheel
drive) mode
If you shift the front drive control lever to
“L4” and the automatic transmission lever
to “2” when you drive in steep off −road
areas, the output of the brake can be
controlled effectively by the traction con-
trol system, which assists the driver to
control the driving power of 4 wheels. Use the “L” position of the automatic
transmission lever for maximum power
and traction when your wheels get stuck
or when you drive down a steep incline.
In the following cases, the output of the
brake can be controlled by the traction
control system if the engine speed is un-
der 3000 rpm (normally engine speed is
under 3000 rpm when the wheels get un-
stuck).
The front drive control lever in the “L4”
position and the automatic transmission
lever in the “L” position or the automat-
ic transmission lever in the “D” or “2”
with the transmission downshifting to
the first gear
The front drive control lever in the “L4”
position and the automatic transmission
lever in the “R” position
(As for the automatic transmission lever
positions, see “Automatic transmission” in
this Section.)
Fourwheel drive system—
(a) Front drive control
(lever type)
