TOYOTA TUNDRA 2004 1.G Owners Manual

’04 TUNDRA_U (L/O 0309)
302
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
Standard and access cab models only—
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one at a time as
shown above.
Do not remove the cover forcibly.

’04 TUNDRA_U (L/O 0309)
303
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Installing the cover—
Align the hinges to the pivots, and press
each hinge until you hear a click.
Make sure that the cover opens and
closes smoothly. To use the auxiliary bo
xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B only—As these hold-
ers are designed for holding a light
object such as an eyeglass, do not
place any heavy objects in them.
Heavy objects may cause the holder
to open and contents to fly out re-
sulting in injuries.
NOTICE
Type A and B only—During hot weath-
er, the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.

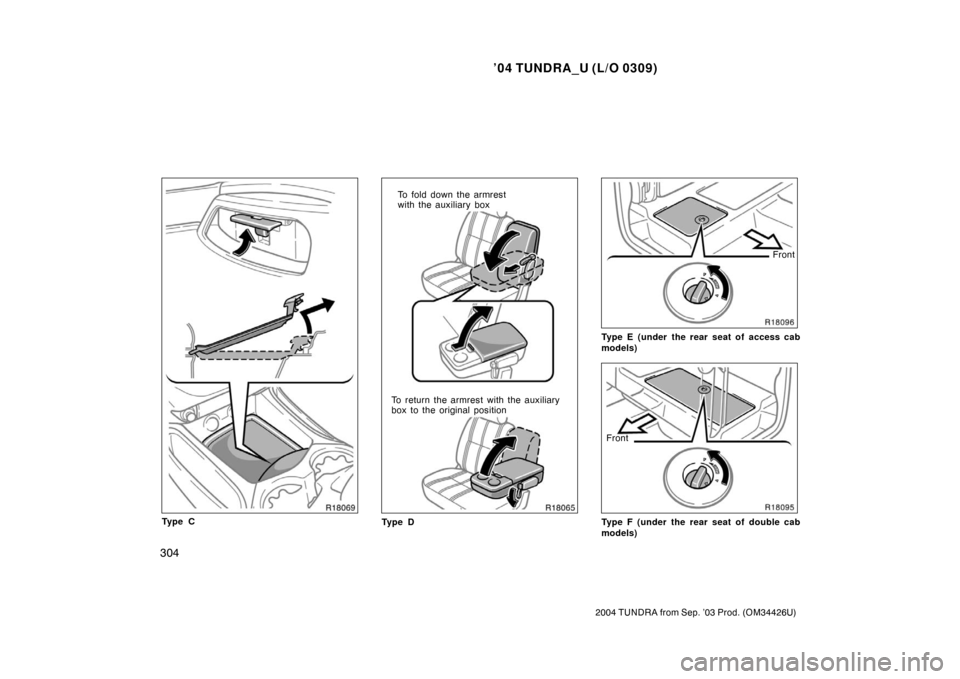

Ty p e A
Ty p e B
Auxiliary boxes

’04 TUNDRA_U (L/O 0309)
304
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Ty p e C
To fold down the armrest
with the auxiliary box
To return the armrest with the auxiliary
box to the original position
Ty p e D
Front
Type E (under the rear seat of access cab
models)
Front
Type F (under the rear seat of double cab
models)

’04 TUNDRA_U (L/O 0309)
305
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type A)

’04 TUNDRA_U (L/O 0309)
306
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type B)

’04 TUNDRA_U (L/O 0309)
307
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.
Coin holder (type A) Coin holder (type B)

’04 TUNDRA_U (L/O 0309)
308
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

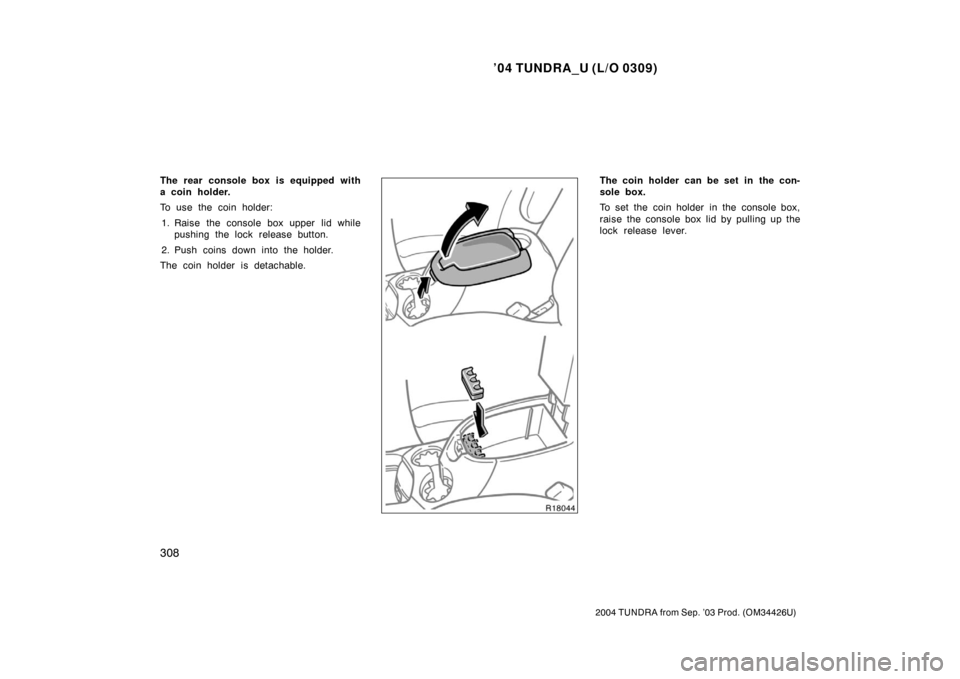

The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.The coin holder can be set in the con-
sole box.
To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.

’04 TUNDRA_U (L/O 0309)
309
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

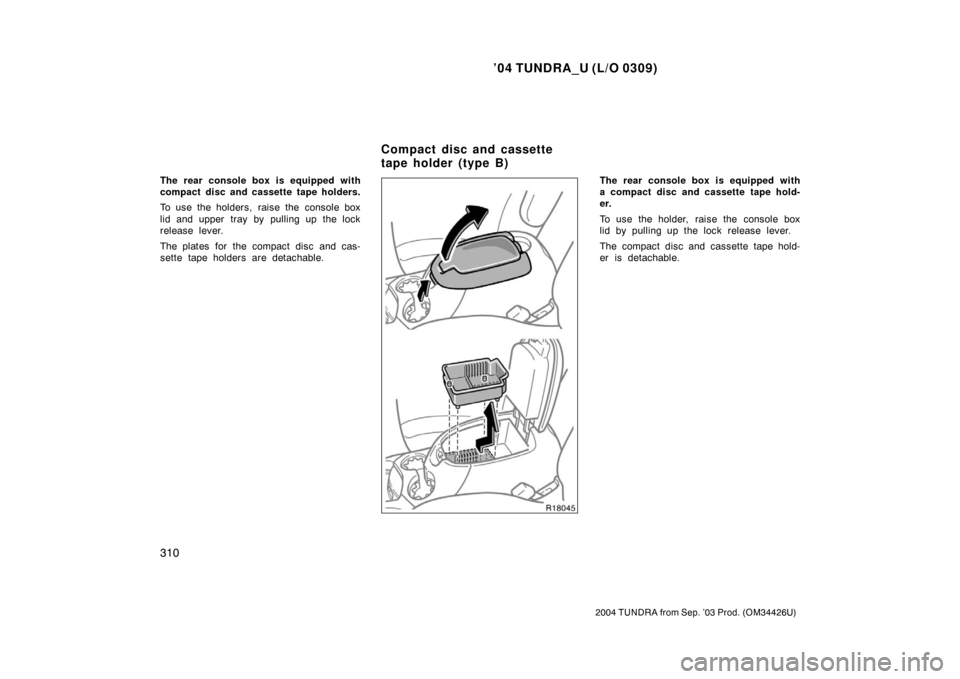

The auxiliary box is equipped with a
coin holder.
To use the coin holder:
1. Raise the auxiliary box lid while push- ing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder (type C) Compact disc and cassette
tape holder (type A)

’04 TUNDRA_U (L/O 0309)
310
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

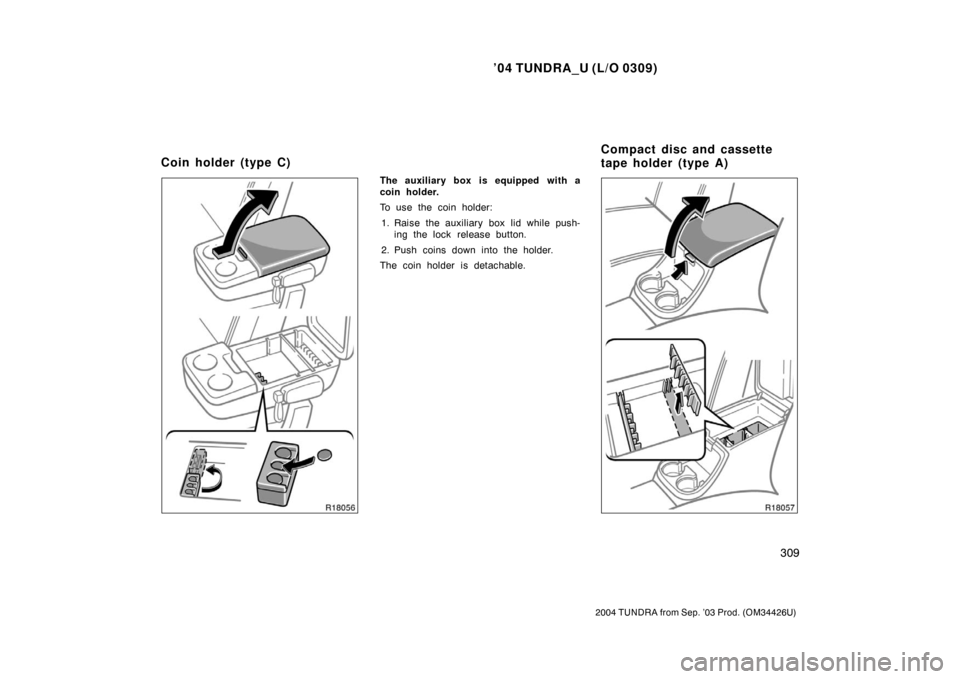

The rear console box is equipped with
compact disc and cassette tape holders.
To use the holders, raise the console box
lid and upper tray by pu lling up the lock
release lever.
The plates for the compact disc and cas-
sette tape holders are detachable.The rear console box is equipped with
a compact disc and cassette tape hold-
er.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.
Compact disc and cassette
tape holder (type B)

’04 TUNDRA_U (L/O 0309)
311
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

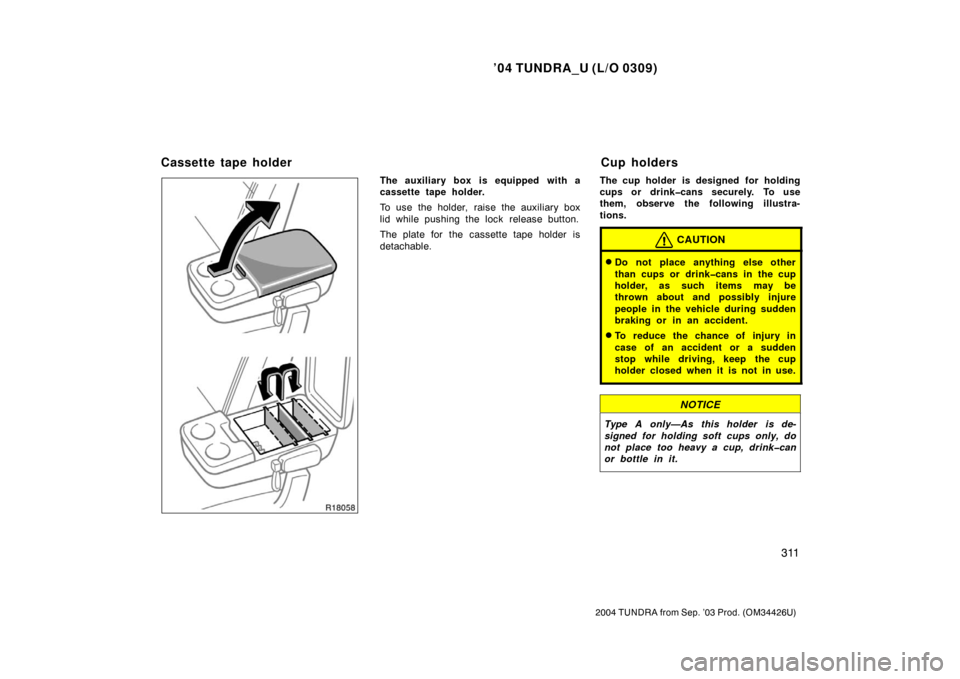

The auxiliary box is equipped with a
cassette tape holder.
To use the holder, raise the auxiliary box
lid while pushing the lock release button.
The plate for the cassette tape holder is
detachable. The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
NOTICE
Type A only—As this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drinkcan
or bottle in it.
Cassette tape holder
Cup holders
