CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

’05 TUNDRA_U (L/O 0408)
121
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
ward −facing or rear −facing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.

’05 TUNDRA_U (L/O 0408)
122
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Vehicles with separate seat only—
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward −facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the “ON” posi- tion.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer. The occupant classification indicator light
should indicate “OFF” when the ignition
key is in the “ON” position and the child
is in the child restraint system after fol-
lowing these procedures. The “OFF” indi-
cator indicates the SRS front passenger
airbag and side airbag on the passenger
side will not deploy. If the indicator light
indicates “ON”, remove the child restraint
system and reinstall it with the ignition
key in the “ACC” or “LOCK” position. If
the indicator light still indicates “ON” when
the ignition key is turned to the “ON” posi-
tion, then the SRS front passenger airbag
and side airbag on the passenger side
may deploy in an accident. Do not drive
the vehicle in this condition. Remove the
child restraint system and contact your
Toyota dealer.

’05 TUNDRA_U (L/O 0408)
123
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

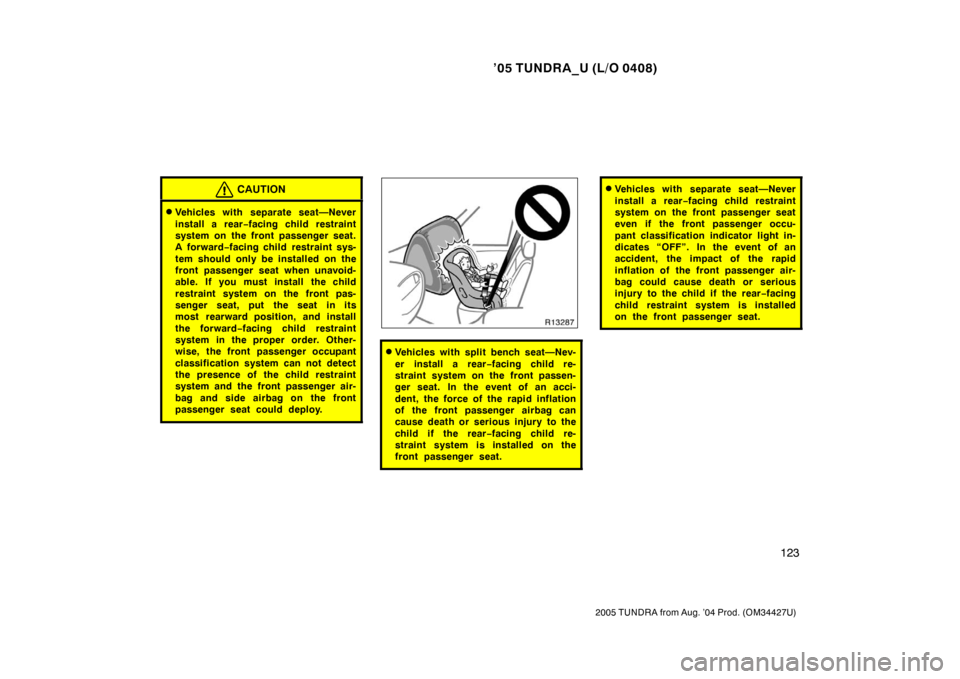

CAUTION
Vehicles with separate seat—Never
install a rear −facing child restraint
system on the front passenger seat.
A forward −facing child restraint sys-
tem should only be installed on the
front passenger seat when unavoid-
able. If you must install the child
restraint system on the front pas-
senger seat, put the seat in its
most rearward position, and install
the forward −facing child restraint
system in the proper order. Other-
wise, the front passenger occupant
classification system can not detect
the presence of the child restraint
system and the front passenger air-
bag and side airbag on the front
passenger seat could deploy.
Vehicles with split bench seat—Nev-
er install a rear −facing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rear −facing child re-
straint system is installed on the
front passenger seat.
Vehicles with separate seat—Never
install a rear −facing child restraint
system on the front passenger seat
even if the front passenger occu-
pant classification indicator light in-
dicates “OFF”. In the event of an
accident, the impact of the rapid
inflation of the front passenger air-
bag could cause death or serious
injury to the child if the rear −facing
child restraint system is installed
on the front passenger seat.

’05 TUNDRA_U (L/O 0408)
124
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

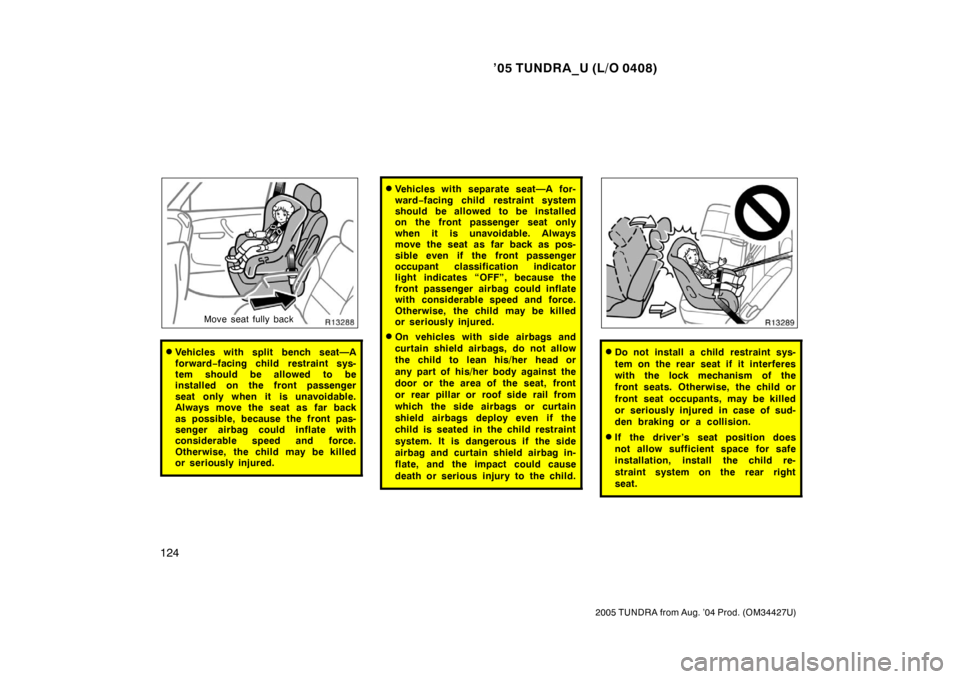

Move seat fully back
Vehicles with split bench seat—A
forward −facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Vehicles with separate seat—A for-
ward −facing child restraint system
should be allowed to be installed
on the front passenger seat only
when it is unavoidable. Always
move the seat as far back as pos-
sible even if the front passenger
occupant classification indicator
light indicates “OFF”, because the
front passenger airbag could inflate
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants, may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.

’05 TUNDRA_U (L/O 0408)
125
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

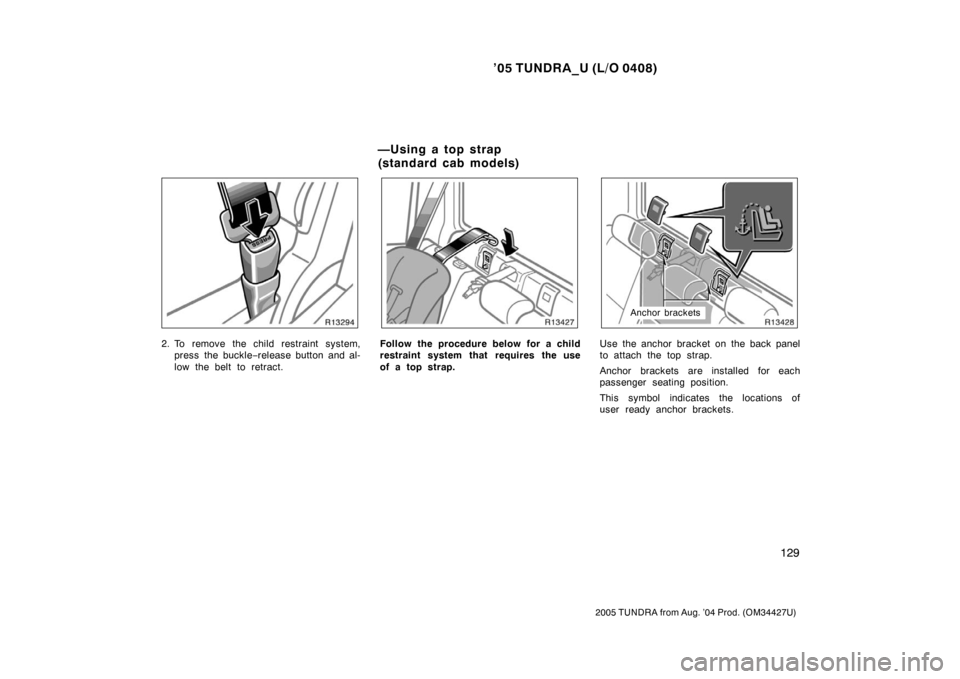

1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

’05 TUNDRA_U (L/O 0408)
126
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

’05 TUNDRA_U (L/O 0408)
127
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
ward−facing position only.

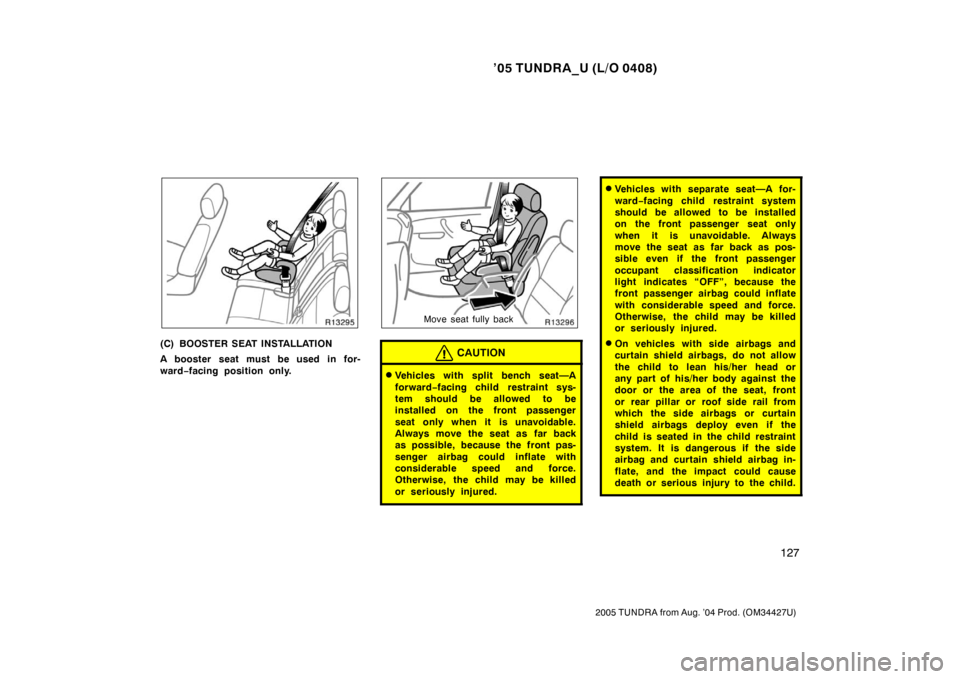

Move seat fully back
CAUTION
Vehicles with split bench seat—A
forward −facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Vehicles with separate seat—A for-
ward −facing child restraint system
should be allowed to be installed
on the front passenger seat only
when it is unavoidable. Always
move the seat as far back as pos-
sible even if the front passenger
occupant classification indicator
light indicates “OFF”, because the
front passenger airbag could inflate
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

’05 TUNDRA_U (L/O 0408)
128
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” in
this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both high −positioned lap belts and
loose −fitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’05 TUNDRA_U (L/O 0408)
129
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
2. To remove the child restraint system,
press the buckle− release button and al-
low the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for each
passenger seating position.
This symbol indicates the locations of
user ready anchor brackets.
— U sin g a to p st rap
(standard cab models)
