TOYOTA TUNDRA 2005 1.G Owners Manual

’05 TUNDRA_U (L/O 0408)
320
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Ty p e E
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
This power outlet (115 VAC) is designed
for use as a power supply for electric
appliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet (115 VAC)

’05 TUNDRA_U (L/O 0408)
321
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet may cause
electrical failure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode −ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.

’05 TUNDRA_U (L/O 0408)
322
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

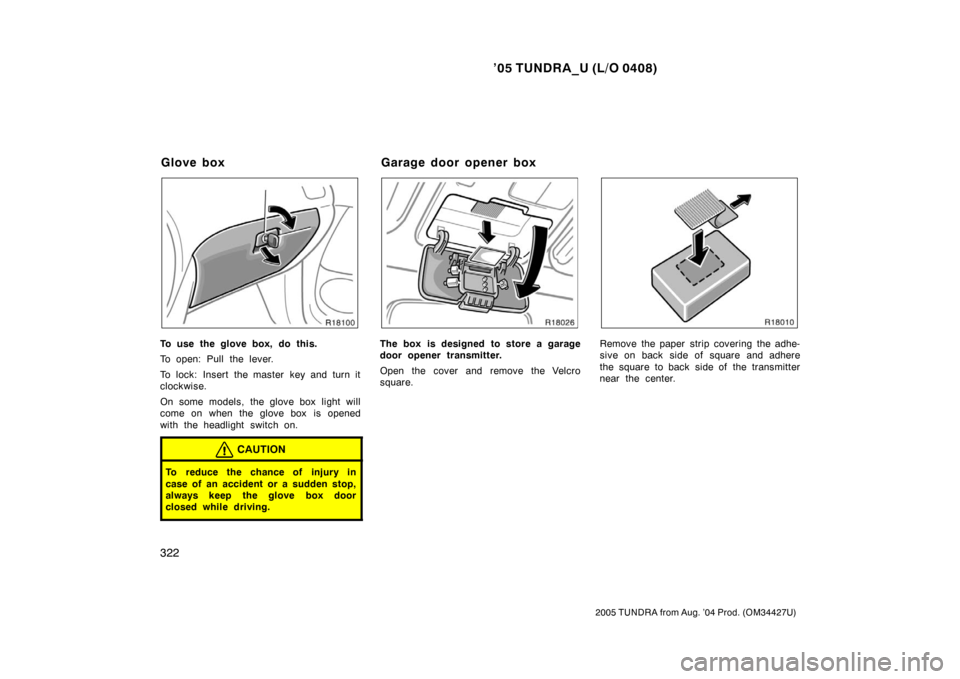

To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
On some models, the glove box light will
come on when the glove box is opened
with the headlight switch on.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
square.Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.
Glove box Garage door opener box

’05 TUNDRA_U (L/O 0408)

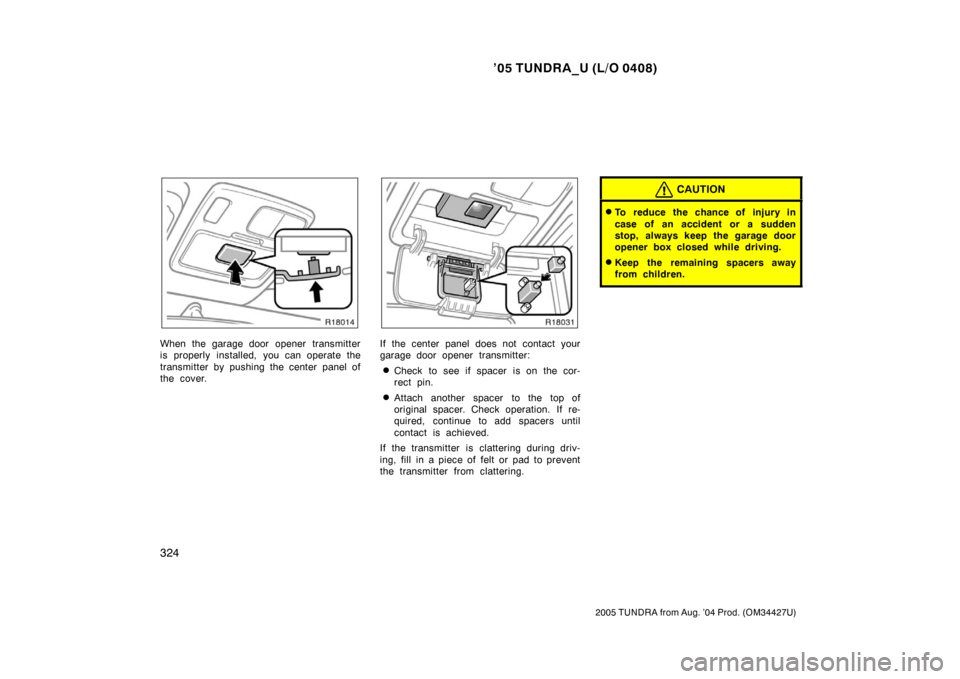

323
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.

’05 TUNDRA_U (L/O 0408)
324
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.

’05 TUNDRA_U (L/O 0408)
325
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Standard and access cab models only—
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one at a time as
shown above.
Do not remove the cover forcibly.Installing the cover—
Align the hinges to the pivots, and press
each hinge until you hear a click.
Make sure that the cover opens and
closes smoothly. To use the auxiliary bo
xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B only—As these hold-
ers are designed for holding a light
object such as an eyeglass, do not
place any heavy objects in them.
Heavy objects may cause the holder
to open and contents to fly out re-
sulting in injuries.
NOTICE
Type A and B only—During hot weath-
er, the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxes

’05 TUNDRA_U (L/O 0408)
326
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Ty p e A
Ty p e BTy p e C
Ty p e D
Front
Type E (under the rear seat of access cab
models)

’05 TUNDRA_U (L/O 0408)
327

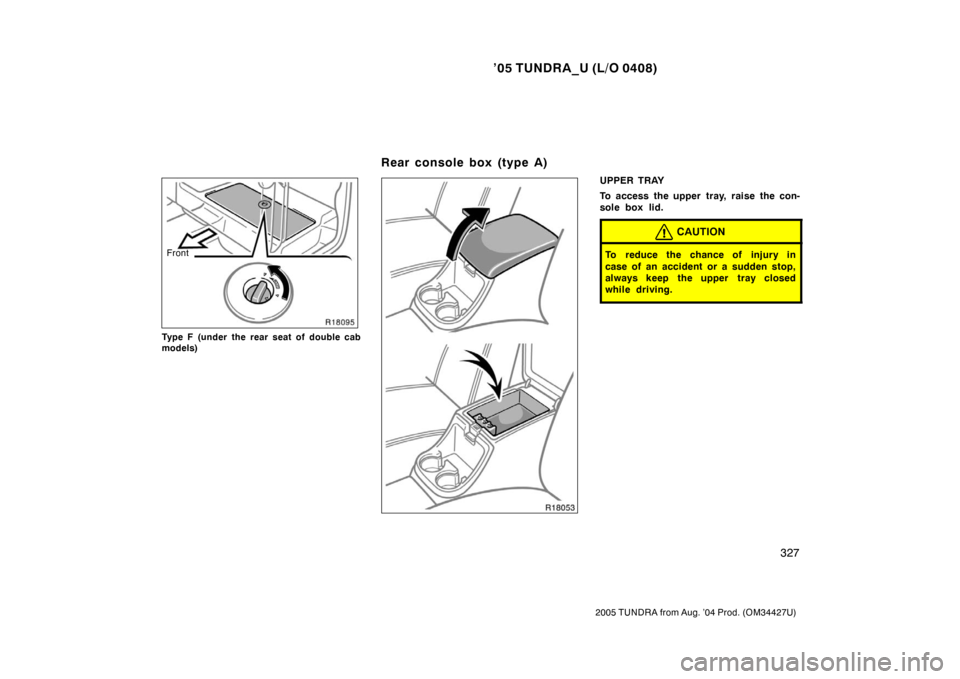

2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Front
Type F (under the rear seat of double cab
models)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
Rear console box (type A)

’05 TUNDRA_U (L/O 0408)

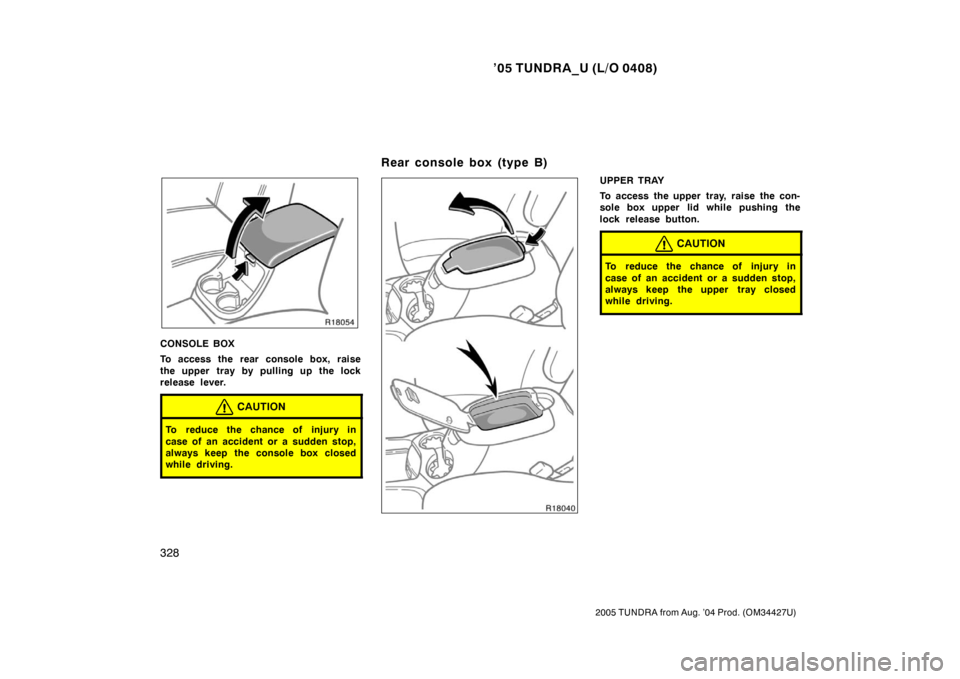

328
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
Rear console box (type B)

’05 TUNDRA_U (L/O 0408)

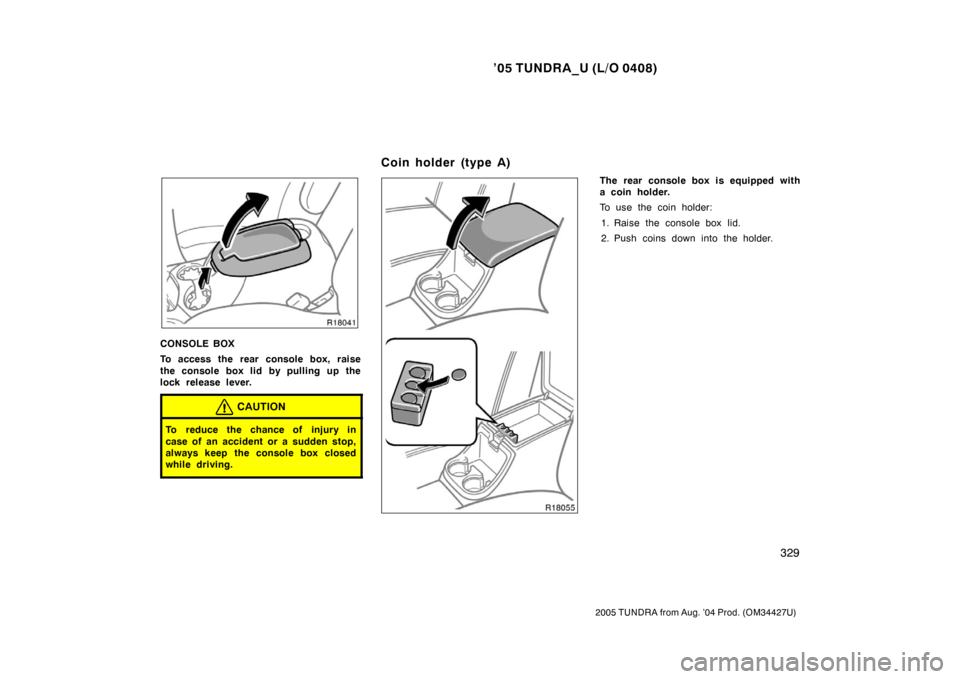

329
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.
Coin holder (type A)
