TOYOTA TUNDRA 2006 1.G Owners Manual

’06 TUNDRA_U (L/O 0508)
299
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact
on the human body.
NOTICE
To ensure correct audio/video system
operations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 Do not put anything other than a
DVD video, DVD audio, video CD,
dtsCD and audio CD into the DVD
player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle. For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Audio/video system operating
hints

’06 TUNDRA_U (L/O 0508)
300
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static. CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use high
−quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.

’06 TUNDRA_U (L/O 0508)
301
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Type 2 and 3—Your compact disc play-
er is intended for use with 12 cm (4.7
in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
cause your compact disc player to
skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
Compact disc player
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROM
& '
 (
\b
DVD audio discs
Video '

’06 TUNDRA_U (L/O 0508)
302
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
DVD player
Use only discs marked as shown
above. The following products may not
be playable on your DVD player.
SACD
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROM
DVD −R
DVD+R
DVD+RW
DVD −RW
DVD −ROM
DVD −RAM
Special shaped discs
Transparent/tr anslucent discs
Low quality discs
Labeled discs

’06 TUNDRA_U (L/O 0508)
303
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or la-
beled discs such as those shown in
the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the disc.
 This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.
Correct Wrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

’06 TUNDRA_U (L/O 0508)
304
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

’06 TUNDRA_U (L/O 0508)
305
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Air flow selector settings 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Operating tips 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Instrument panel and rear vents 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 9

’06 TUNDRA_U (L/O 0508)
306
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

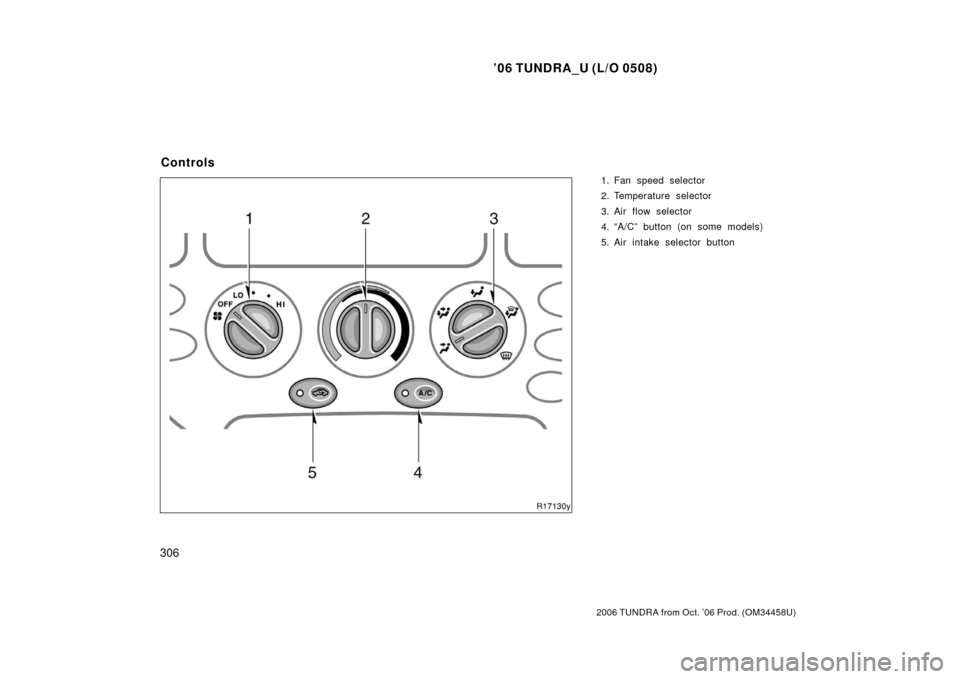

1. Fan speed selector
2. Temperature selector
3. Air flow selector
4. “A/C” button (on some models)
5. Air intake selector button
Controls

’06 TUNDRA_U (L/O 0508)
307
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel and rear vents” in
this Section. 4. Floor/Windshield—
Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel and rear vents” in
this Section.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.

’06 TUNDRA_U (L/O 0508)
308
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
5. Windshield—Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel and rear vents” in
this Section.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
For details about air flow selector settings,
see “Air flow selector settings” described
below. Air intake selector button
The air intake selector button is used to
switch the air intake
FRESH mode that
draws outside air into the system and
RECIRCULATED mode that recirculates
the air inside vehicle.
To turn the air source to RECIRCULATED
mode, press the button. The indicator will
come on. To turn the air source to FRESH
mode, press the button again. The indica-
tor will go off.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
“A/C” button (on some models)
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your
vehicle to a Toyota dealer for service.
