TOYOTA TUNDRA 2006 1.G Owners Manual

’06 TUNDRA_U (L/O 0508)
499
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc. (Toll−free:
1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may call
the Vehicle Safety Hotline toll
−free
at 1 −888 −327 −4236 (TTY:
1 −800 −424 −9153); go to
http://www.safercar.gov ; or write
to: Administrator, NHTSA, 400
Seventh Street, SW., Washington,
DC 20590. You can also obtain
other information about motor
vehicle safety from
http://www.safercar.gov .This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truck −camper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.
Reporting safety defects for
U.S. owners Camper information—

’06 TUNDRA_U (L/O 0508)
500
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

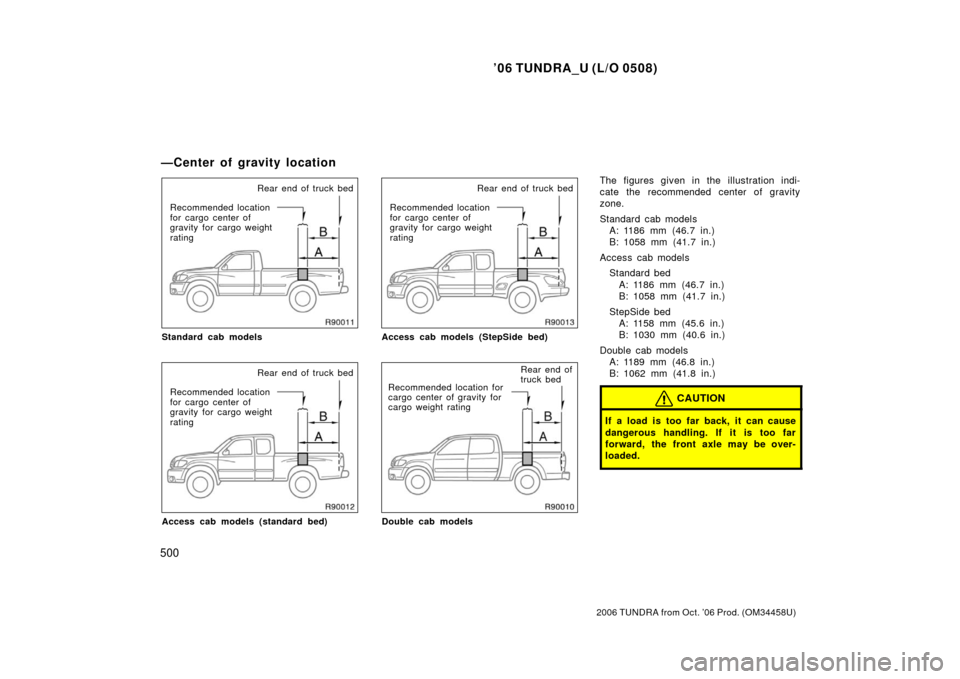

Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Standard cab models
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (standard bed)
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (StepSide bed)
Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of
truck bed
Double cab models
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
Standard cab models A: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
Access cab models Standard bedA: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
StepSide bed A: 1158 mm (45.6 in.)
B: 1030 mm (40.6 in.)
Double cab models A: 1189 mm (46.8 in.)
B: 1062 mm (41.8 in.)
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.
—Center of gravity location

’06 TUNDRA_U (L/O 0508)
501
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

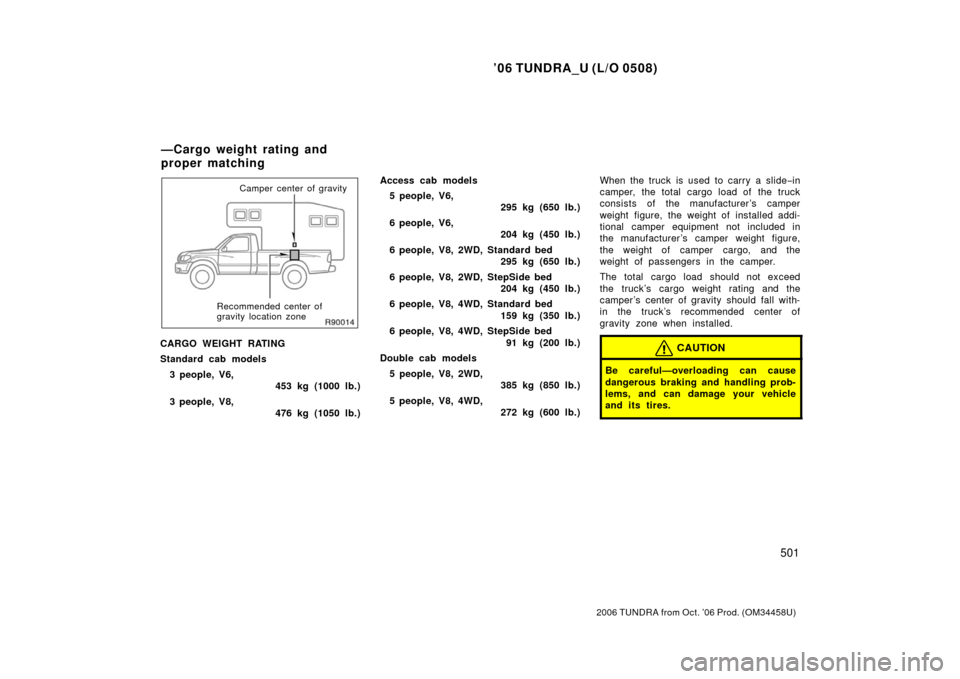

Camper center of gravity
Recommended center of
gravity location zone
CARGO WEIGHT RATING
Standard cab models 3 people, V6, 453 kg (1000 lb.)
3 people, V8, 476 kg (1050 lb.)Access cab models
5 people, V6, 295 kg (650 lb.)
6 people, V6, 204 kg (450 lb.)
6 people, V8, 2WD, Standard bed 295 kg (650 lb.)
6 people, V8, 2WD, StepSide bed 204 kg (450 lb.)
6 people, V8, 4WD, Standard bed 159 kg (350 lb.)
6 people, V8, 4WD, StepSide bed 91 kg (200 lb.)
Double cab models
5 people, V8, 2WD, 385 kg (850 lb.)
5 people, V8, 4WD, 272 kg (600 lb.)When the truck is used to carry a slide
−in
camper, the total cargo load of the truck
consists of the manufacturer ’s camper
weight figure, the weight of installed addi-
tional camper equipment not included in
the manufacturer ’s camper weight figure,
the weight of camper cargo, and the
weight of passengers in the camper.
The total cargo load should not exceed
the truck’s cargo weight rating and the
camper ’s center of gravity should fall with-
in the truck’s recommended center of
gravity zone when installed.CAUTION
Be careful—overloading can cause
dangerous braking and handling prob-
lems, and can damage your vehicle
and its tires.
—Cargo weight rating and
proper matching

’06 TUNDRA_U (L/O 0508)
502
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

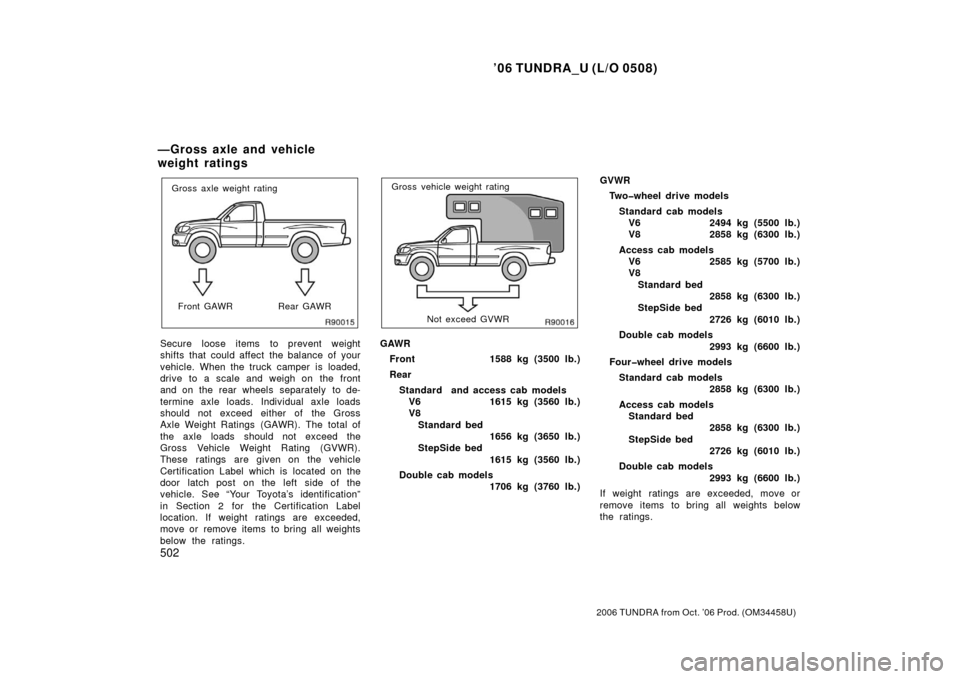

Gross axle weight rating
Front GAWR Rear GAWR
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the truck camper is loaded,
drive to a scale and weigh on the front
and on the rear wheels separately to de-
termine axle loads. Individual axle loads
should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).
These ratings are given on the vehicle
Certification Label which is located on the
door latch post on the left side of the
vehicle. See “Your Toyota’s identification”
in Section 2 for the Certification Label
location. If weight ratings are exceeded,
move or remove items to bring all weights
below the ratings.
Gross vehicle weight rating
Not exceed GVWR
GAWRFront 1588 kg (3500 lb.)
Rear
Standard and access cab modelsV6 1615 kg (3560 lb.)
V8
Standard bed 1656 kg (3650 lb.)
StepSide bed
1615 kg (3560 lb.)
Double cab models 1706 kg (3760 lb.) GVWR
Twowheel drive models
Standard cab modelsV6 2494 kg (5500 lb.)
V8 2858 kg (6300 lb.)
Access cab models V6 2585 kg (5700 lb.)
V8
Standard bed 2858 kg (6300 lb.)
StepSide bed
2726 kg (6010 lb.)
Double cab models 2993 kg (6600 lb.)
Fourwheel drive models
Standard cab models 2858 kg (6300 lb.)
Access cab models Standard bed 2858 kg (6300 lb.)
StepSide bed 2726 kg (6010 lb.)
Double cab models 2993 kg (6600 lb.)
If weight ratings are exceeded, move or
remove items to bring all weights below
the ratings.
—Gross axle and vehicle
weight ratings

’06 TUNDRA_U (L/O 0508)
503
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

’06 TUNDRA_U (L/O 0508)
504
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
INDEX
Index
SECTION 10

’06 TUNDRA_U (L/O 0508)
505
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
A
“AUTO LSD” system 201
. . . . . . . . . . . . . . . . . .
Access doors 24
. . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 469
. . . . . . . . . . . . . . . . . .
Adjustment
Front seats 54,55
. . . . . . . . . . . . . . . . . . . . . .
Seat belt 63
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system 306
. . . . . . . . . . . . . . .
Airbags 75,85,92,102,108
. . . . . . . . . . . . . . . .
Aluminum wheel precautions 464
. . . . . . . . . .
Anti −glare inside rear view mirror 156 . . . . . .
Anti −lock brake system
warning light 178
. . . . . . . . . . . . . . . . . . . . . . .
Anti −theft steering column lock 190 . . . . . . . .
Appearance care
Cleaning the interior 431
. . . . . . . . . . . . . . . .
Protecting your Toyota from corrosion 428
. . . . . . . . . . . . . . . . . . .
Washing and waxing 429
. . . . . . . . . . . . . . . .
Armrest 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system 218,242
. . . . . . . . . . . . . . . . . . . .
Audio/video system 251
. . . . . . . . . . . . . . . . . .
Audio/video system operating tips 299 . . . . . .
Automatic transmission
Driving with an automatic transmission 191
. . . . . . . . . . . . . . . . . . . . .
Shift pattern 191
. . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 191
. . . . . . . . . . . . . . . . . . . . .
Automatic transmission fluid temperature warning light 178
. . . . . . . . . . .
Auxiliary boxes 335
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 42
. . . . . . . . . . .
B
Back window 38
. . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defogger switch 171
. . . . . . . . .
Battery
Checking battery condition 466
. . . . . . . . . .
Gas caution 466
. . . . . . . . . . . . . . . . . . . . . . .
Handling safety 466
. . . . . . . . . . . . . . . . . . . .
Recharging precautions 467
. . . . . . . . . . . . .
Winter driving tips 386
. . . . . . . . . . . . . . . . . .
Before starting the engine 382
. . . . . . . . . . . . .
Brake pad wear limit indicators 364 . . . . . . . .
Brake system 358
. . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light and buzzer 178
. . . . . . . . . . . . . . . . . . . .
Brakes
Fluid level 453,454
. . . . . . . . . . . . . . . . . . . . .
Pad wear limit indicators 364
. . . . . . . . . . . .
Parking 213
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in tips 351
. . . . . . . . . . . . . . . . . . . . . . . .
Brightness control 164
. . . . . . . . . . . . . . . . . . . .
C
Carbon monoxide caution 355
. . . . . . . . . . . . .
Cargo and luggage
Capacity 376
. . . . . . . . . . . . . . . . . . . . . . . . . .
Capacity and distribution 377
. . . . . . . . . . . .
Stowage precautions 377
. . . . . . . . . . . . . . .
Cargo lamp 168
. . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo net hooks 346
. . . . . . . . . . . . . . . . . . . . .
Cassette player 218
. . . . . . . . . . . . . . . . . . . . . .
Cassette tape holder 342
. . . . . . . . . . . . . . . . .
Center vents 313
. . . . . . . . . . . . . . . . . . . . . . . . . Certification label
365
. . . . . . . . . . . . . . . . . . . .
Charging system warning light 178
. . . . . . . . .
Checking and replacing fuses 468
. . . . . . . . .
Checking brake fluid 453,454
. . . . . . . . . . . . . .
Checking the engine oil level 450
. . . . . . . . . .
Checking the radiator and condenser 453
. . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint
Child restraint system 117
. . . . . . . . . . . . . .
Installation 119,128
. . . . . . . . . . . . . . . . . . . .
Installation with child restraint lower anchorages 146,148,150 . . . . . . . .
Precautions 115
. . . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 118 . . . . . . .
Using a top strap 138,140,144
. . . . . . . . . . .
Cigarette lighter 327
. . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 431
. . . . . . . . . . . . . . . . . .
Clock 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin holder 338,339,340
. . . . . . . . . . . . . . . . . .
Cold weather
Operation 386
. . . . . . . . . . . . . . . . . . . . . . . . .
Compact disc and cassette tape holder
Cassette tape holder 341,342
. . . . . . . . . . .
Compact disc holder 341,342
. . . . . . . . . . . .
Compact disc changer 218
. . . . . . . . . . . . . . . .
Compact disc changer controller 218 . . . . . . .
Compact disc player 218
. . . . . . . . . . . . . . . . . .
Compass 323
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Condenser
Checking the condenser 453
. . . . . . . . . . . .
Console box
Rear 336,337
. . . . . . . . . . . . . . . . . . . . . . . . . .
Controls, Instrument panel 2,7,11
. . . . . . . . . .

’06 TUNDRA_U (L/O 0508)
506
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Cooling system
Coolant level 452 . . . . . . . . . . . . . . . . . . . . . .
Engine overheating 407 . . . . . . . . . . . . . . . . .
Radiator and reservoir 452 . . . . . . . . . . . . . .
Radiator cap 407 . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 386 . . . . . . . . . . . . . . . . . .
Corrosion prevention 428 . . . . . . . . . . . . . . . . .
Cranking hold function 382 . . . . . . . . . . . . . . . .
Cruise control 214 . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 343 . . . . . . . . . . . . . . . . . . . . . . . . .
D
Defogger
Back window 171 . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror 171 . . . . . . . . . . . .
Differential, Limited slip 365 . . . . . . . . . . . . . . .
Dimmer switch, Headlight 162 . . . . . . . . . . . . .
Dinghy towing 387 . . . . . . . . . . . . . . . . . . . . . . .
Directional signals 162 . . . . . . . . . . . . . . . . . . .
Do −it−yourself maintenance
Parts and tools 447 . . . . . . . . . . . . . . . . . . . . .
Service precautions 445 . . . . . . . . . . . . . . . .
Does your vehicle need repairing? 439 . . . . .
Doors
Access door 24 . . . . . . . . . . . . . . . . . . . . . . . .
Front door 20 . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 21 . . . . . . . . . . . . . . . . . . . . . . . . .
Driver ’s seat belt reminder buzzer 178 . . . . . .
Driver ’s seat belt reminder light 178 . . . . . . . .
Driving
Automatic transmission 191 . . . . . . . . . . . . .
Driving tips 382 . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 195 . . . . . . . . . . . . . . . Driving tips
Driving tips in various conditions 383 . . . . .
Driving with a manual transmission 195 . . . . . . . . . . . . . . . . . . . . .
Driving with an automatic transmission 191 . . . . . . . . . . . . . . . . . . . . .
Economical driving 399 . . . . . . . . . . . . . . . . .
Good driving practice 191,195 . . . . . . . . . . .
Winter driving tips 386 . . . . . . . . . . . . . . . . . .
During
Break −in 351 . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player 251 . . . . . . . . . . . . . . . . . . . . . . . . . . E
Economical driving
Saving money on both fuel and repairs 399 . . . . . . . . . . . . . . . . . .
Electric moon roof 48 . . . . . . . . . . . . . . . . . . . . .
Electrical system
Battery 466,467 . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 444 . . . . . . . . . . . . . . . . . . . . .
Fuses 468 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 163 . . . . . . . . . . . . .
Emergency, In case of
Blown fuse 468 . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 163 . . . . . . . . . . .
Flat tire 408 . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 406 . . . . . . . . . . . . . . . . . . . .
If you lose your keys 426 . . . . . . . . . . . . . . . .
If you lose your wireless remote control transmitter 426 . . . . . . . . . . . . . . . . If your engine stalls while driving 406
. . . . .
If your vehicle becomes stuck 420 . . . . . . .
If your vehicle needs to be towed 420 . . . . .
If your vehicle will not start 402
. . . . . . . . . .
Jump starting 403
. . . . . . . . . . . . . . . . . . . . . .
Overheating 407
. . . . . . . . . . . . . . . . . . . . . . .
Towing 420
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and Maintenance (I/M) programs 440
. . . . . . . . .
Engine
Before starting the engine 382
. . . . . . . . . . .
Checking the coolant level 452
. . . . . . . . . .
Emission control device 354
. . . . . . . . . . . . .
Engine compartment 442
. . . . . . . . . . . . . . .
Exhaust gas caution 355
. . . . . . . . . . . . . . . .
Hood release 42
. . . . . . . . . . . . . . . . . . . . . . .
Identification number 366
. . . . . . . . . . . . . . .
Oil consumption 356
. . . . . . . . . . . . . . . . . . . .
Oil level 450
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure gauge 175
. . . . . . . . . . . . . . . . .
Overheating 407
. . . . . . . . . . . . . . . . . . . . . . .
Starting procedure 382
. . . . . . . . . . . . . . . . .
Three −way catalytic converters 354 . . . . . .
Engine coolant
Temperature gauge 174
. . . . . . . . . . . . . . . . .
Winter driving tips 386
. . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 174 . . . . .
Engine immobilizer system 19
. . . . . . . . . . . . .
Engine oil
Winter driving tips 386
. . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 175
. . . . . . . . . . . . .
Engine oil replacement reminder light 178
. . . . . . . . . . . . . . . . . . . . . .
Exhaust gas caution 355
. . . . . . . . . . . . . . . . . .

’06 TUNDRA_U (L/O 0508)
507
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
F
Facts about engine oil consumption 356 . . . .
Flasher, Headlight 162 . . . . . . . . . . . . . . . . . . . .
Flat tire
After changing wheels 419 . . . . . . . . . . . . . .
Changing tire 416 . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 408 . . . . . . . . . . . . . . . .
Jack point 414 . . . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 408 . . . . . . . . . . . . . . . .
Jacking up 415 . . . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 413 . . . . . . . . . . . . . . .
Lowering vehicle 417 . . . . . . . . . . . . . . . . . . .
Reinstalling w heel ornament 418 . . . . . . . . .
Removing wheel ornament 412 . . . . . . . . . .
Wheel block 412 . . . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 416 . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 346 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level
Brake 453,454 . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 455 . . . . . . . . . . . . . . . . . . . . .
Washer fluid 469 . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch, Front 164 . . . . . . . . . . . . . . . .
Foreign countries, Operation in 354 . . . . . . . .
Four −wheel drive
Operating the four −wheel
drive system 196 . . . . . . . . . . . . . . . . . . . . .
Four −wheel drive system
warning buzzer 178
. . . . . . . . . . . . . . . . . . . .
Front door locks 20
. . . . . . . . . . . . . . . . . . . . . .
Front passenger occupant classification system 102,108
. . . . . . . . . . .
Front passenger ’s seat 56
. . . . . . . . . . . . . . . .
Front passenger ’s seat belt reminder light 178
. . . . . . . . . . . . . . . . . . . . . . Front seat
Rear seat entry 56
. . . . . . . . . . . . . . . . . . . . .
Front seats 53,54,55
. . . . . . . . . . . . . . . . . . . . .
Fuel
Fuel economy 399
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 353
. . . . . . . . . .
Gauge 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 354 . . . . . . .
Tank cap 46
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 351
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 353
. . . . . . . . . . . .
Fuse
Fuse box 468
. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 444
. . . . . . . . . . . . . . . . . . . . . . .
G
Garage door opener 318
. . . . . . . . . . . . . . . . . .
Garage door opener box 331
. . . . . . . . . . . . . .
Gauge
Engine coolant temperature 174
. . . . . . . . .
Engine oil pressure 175
. . . . . . . . . . . . . . . . .
Fuel 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 331
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice 191,195
. . . . . . . . . . . . .
Grocery bag hooks 346
. . . . . . . . . . . . . . . . . . .
H
Hazard switch 163
. . . . . . . . . . . . . . . . . . . . . . .
Head restraints 61
. . . . . . . . . . . . . . . . . . . . . . .
Headlight switch 162
. . . . . . . . . . . . . . . . . . . . . High speed operation
During break −in 351
. . . . . . . . . . . . . . . . . . . .
Hood release, Engine 42
. . . . . . . . . . . . . . . . . .
How to start the engine 382
. . . . . . . . . . . . . . .
I
I/M test 440
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification
Engine 366
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire 369
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 365
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 190
. . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 167
. . . . . . . . . . . . . . . . . . .
Indicator symbols 13
. . . . . . . . . . . . . . . . . . . . .
Instrument panel
Ashtray 327
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness control 164
. . . . . . . . . . . . . . . . . .
Cigarette lighter 327
. . . . . . . . . . . . . . . . . . . .
Clock 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 175
. . . . . . . . . . .
Fuel gauge 174
. . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 13
. . . . . . . . . . . . . . . . . . .
Odometer 177
. . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 176
. . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 177
. . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 164
. . . . . . . . . .
Instrument panel overview 2,7,11
. . . . . . . . . .

’06 TUNDRA_U (L/O 0508)
508
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
J
Jack
Location 409,410 . . . . . . . . . . . . . . . . . . . . . .
Jump starting 403 . . . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 178
. . . . . . . . . . . . . . . . .
Keys 16,426
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
Light bulbs
Back −up lights 475,476,477 . . . . . . . . . . . . .
Cargo lamps 478 . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 472 . . . . . . . . . . . . . . . . . . . . .
Front side marker lights 473,474 . . . . . . . . .
Front turn signal lights 473,474 . . . . . . . . . .
Headlights 471 . . . . . . . . . . . . . . . . . . . . . . . .
High mounted stoplight 478 . . . . . . . . . . . . .
License plate lights 478 . . . . . . . . . . . . . . . . .
Parking lights 472 . . . . . . . . . . . . . . . . . . . . . .
Rear turn signal lights 475,476,477 . . . . . .
Stop/tail/rear side marker lights 475,476,477 . . . . . . . . . . . . . . . . . . .
Light bulbs, Replacing 470 . . . . . . . . . . . . . . . .
Light, Interior
Ignition switch light 167 . . . . . . . . . . . . . . . . .
Interior light 165,166 . . . . . . . . . . . . . . . . . . .
Personal light 165,166 . . . . . . . . . . . . . . . . . .
Step light 167 . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited slip differential 365 . . . . . . . . . . . . . . . .
Load capacity 376 . . . . . . . . . . . . . . . . . . . . . . . . Lock
Front doors 20 . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 21 . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column 190 . . . . . . . . . . . . . . . . . . .
Tailgate 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low engine oil pressure warning light 178 . . . . . . . . . . . . . . . . . . . . . . .
Low fuel level warning light 178 . . . . . . . . . . . .
Low tire pressure warning light 178,207 . . . . .
Low windshield washer fluid level warning light 178 . . . . . . . . . . . . . . . . . . . . . . . M
Maintenance
Do −it−yourself maintenance 445 . . . . . . . . .
Does your vehicle need repairing? 439 . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 437 . . . . . . . . . . . . . . .
Maintenance requirements 436 . . . . . . . . . .
Parts and tools 447 . . . . . . . . . . . . . . . . . . . . .
Where to go for service 436 . . . . . . . . . . . . .
Malfunction indicator lamp 440 . . . . . . . . . . . .
Malfunction indicator lamp
Emissions Inspection and Maintenance (I/M) programs 178 . . . . . . .
Service reminder indicator 178 . . . . . . . . . .
Manual transmission
Driving with a manual transmission 195 . . . . . . . . . . . . . . . . . . . . .
Shift pattern 195 . . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 195 . . . . . . . . . . . . . . . . . . . . . Maximum allowable speed
Automatic transmission 191 . . . . . . . . . . . . .
Manual transmission 195 . . . . . . . . . . . . . . .
Mirror
Anti −glare inside rear view 156
. . . . . . . . . .
Auto anti −glare inside rear view 157 . . . . . .
Mirrors
Folding rear view 156
. . . . . . . . . . . . . . . . . . .
Outside rear view 154
. . . . . . . . . . . . . . . . . .
Power rear view 155
. . . . . . . . . . . . . . . . . . . .
Vanity 159
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi −information display 316
. . . . . . . . . . . . . N
New vehicle break −in 351 . . . . . . . . . . . . . . . . .
Note pad holder 345 . . . . . . . . . . . . . . . . . . . . . .
O
Odometer 177
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Off −road driving precautions 385
. . . . . . . . . .
Off −road vehicle precautions 350
. . . . . . . . . .
Oil
Consumption 356
. . . . . . . . . . . . . . . . . . . . . .
Power steering 455
. . . . . . . . . . . . . . . . . . . . .
Pressure gauge 175
. . . . . . . . . . . . . . . . . . . .
Viscosity and grade 450
. . . . . . . . . . . . . . . .
Oil consumption 356
. . . . . . . . . . . . . . . . . . . . .
Open door warning light 178
. . . . . . . . . . . . . . .
Operation in foreign countries 354
. . . . . . . . .
Outside rear view mirror heaters 170 . . . . . . .
