display TOYOTA TUNDRA 2007 2.G Navigation Manual

79
To change “Location”
1. Touch “Location” on the “Edit Area to
Avoid” screen.
4U5063G
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
To change “Area Size”
1. Touch “Area Size” on the “Edit Area to
Avoid” screen.
4U5064G
2. Touch either or to change
the size of the area to be avoided.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting area to avoid
4U5065G
1. Touch “Delete” on the “My Places”
screen.
4U5103G
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all registered areas to
avoid in the system.
3. To delete the area, touch “Yes”. To can-
cel the deletion, touch “No”.

81
4U5087G
3. Touch the items to be set.
4. Touch “OK”.
The previous screen will be displayed.
INFORMATION
To reset all setup items, touch “Default”.
Distance unit
Distance unit can be changed.
1. Touch “Setup” on the “Menu” screen.
4U5090G
2. Touch “km” or “miles” of “Distance” to
choose the distance unit.
The selected button is highlighted.
3. Touch “OK”.
INFORMATION
This function is available only in English
or Spanish. To switch language, see
“Select language” on page 149.
Estimated travel time
The speed that is used for the calculation of
the estimated travel time and the estimated
arrival time can be set.
1. Touch “Setup” on the “Menu” screen.
4U5091G
2. Touch “Set Speed” of the “Estimated
Travel Time”.

82
4U5069G
3. Touch or to set the average ve-
hicle speeds for “Residential”, “Main
street”, and “Freeway”.
To set the default speeds, touch “Default”.
4. After setting of the desired speeds is
completed, touch “OK”.
INFORMATION
The displayed time to the destination
is the approximate driving time that is
calculated based on the selected
speeds and the actual position along
the guidance route.
The time shown on the screen may
vary greatly depending on progress
along the route, which may be af-
fected by road conditions such as
traffic jams, and construction work.
It is possible to display up to 99 hours
59 minutes.
Input key layout
Key layout can be changed.
1. Touch “Setup” on the “Menu” screen.
4U5092G
2. Touch “ABC” or “QWE” of “Keyboard
Layout” to choose the Input key layout.

83 LAYOUT TYPE
4U5070G
“ABC” type
4U5071G
“QWE” type
The selected button is highlighted.
3. Touch “OK”.
Time zone
Time zone can be changed.
1. Touch “Setup” on the “Menu” screen.
4U5093G
2. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be dis-
played on the display.
4U5072G
3. Touch the desired time zone.
The selected button is highlighted.
“Daylight Saving Time”: Daylight saving
time can be set or cancelled.
To set daylight saving time, touch “ON”, and
to cancel it, touch “OFF”.
4. Touch “OK”.

84
Screen layout function ( Function)
Each touch−screen button and current street
name on the map screen can be displayed or
hidden.
1. Touch “Setup” on the “Menu” screen.
4U5094G
2. Touch “Change” of “ Function”.
4U5073G
3. Touch the touchscreen button to be
turned off. The button becomes dimmed.
To set the default, touch “Default”.
4. Touch “OK”.
POI category change
(Display POI Icons)
Select from among the 6 icons displayed on
the “Display POI Icons” top screen, so that
setting of the icons to be displayed on the map
screen can be done easily.
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the
“Setup” screen.
4U5095G
2. Touch “Change” of “Display POI
Icons”.

85
4U5075G
3. Touch the category button to be
changed.
4U5076G
4. Touch the category button to be dis-
played on the “Display POI Icons” top
screen.
5. Touch “OK”.
Display of building shape
When the “Display Building Shapes” feature
is turned on, the system will display the build-
ing shape on the map screen using a scale of
150 feet (50 m) to 300 feet (100 m).
To turn the “Display Building Shapes” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the
“Setup” screen.
4U5096G
2. Touch “ON” of “Display Building
Shapes”.
The selected button is highlighted.
3. Touch “OK”.
Notifying traffic restriction
When the “Traffic Restrict. Notification” fea-
ture is turned on, the system notifies you of
traffic or seasonal restrictions.
To turn the “Traffic Restrict. Notification” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the
“Setup” screen.
4U5097G
2. Touch “ON” of “Traffic Restrict.
Notification”.
The selected button is highlighted.
3. Touch “OK”.

86
Voice recognition guidance
When the “Voice Recognition Guidance” fea-
ture is turned on, the voice recognition guid-
ance can be heard automatically.
To turn the “Voice Recognition Guidance” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
4U5098G
2. Touch “ON” of “Voice Recognition
Guidance”.
The selected button is highlighted.
3. Touch “OK”.
Voice guidance in all modes
When the “Voice Guidance in All Modes” fea-
ture is turned on, the voice guidance in all
modes can be heard.
When the “Voice Guidance in All Modes” fea-
ture is turned off, voice guidance cannot be
heard when using the audio system.
To turn the “Voice Guidance in All Modes” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
4U5099G
2. Touch “ON” of “Voice Guidance in All
Modes”.
The selected button is highlighted.
3. Touch “OK”.
Auto voice guidance
When the “Auto Voice Guidance” feature is
turned on, the voice guidance can be heard
automatically.
When the “Auto Voice Guidance” feature is
turned off, the voice guidance can be heard
only if the “MAP/VOICE” button is pushed.
To turn the “Auto Voice Guidance” mode on:
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
4U5100G
2. Touch “ON” of “Auto Voice Guidance”.
The selected button is highlighted.
3. Touch “OK”.

87
Popup message
When the “Pop−up Message” is turned on,
the Pop−up message will be displayed.
To turn the “Pop−up Message” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
4U5101G
2. Touch “ON” of “Popup Message”.
The selected button is highlighted.
3. Touch “OK”.When the “Pop−up Message” is turned off, fol-
lowing messages are not displayed.
4U5109G
This message appears when the system is in
the POI mode and the map scale is 1 mile (1.6
km) or greater.
4U5110G
The message appears when the map is
switched to the dual map screen mode.
Current position/tire change calibra-
tion
The current vehicle position mark can be ad-
justed manually. Miscalculation of the dis-
tance caused by tire replacement can also be
adjusted.
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
4U5102G
2. Touch “Adjust” of “Calibration”.

88
4U5078G
3. Touch the desired touchscreen but-
ton.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page 210.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by GPS
signals. If GPS reception is poor due to loca-
tion, you can manually adjust the current ve-
hicle position mark.
4U5104G
1. Touch “Position/Direction”.
4U5079G
2. Touch the eight directional touch
screen button to move the cursor
to the
desired point on the map.3. Touch “Enter”.
4U5080G
4. Touch either or to adjust the di-
rection of the current vehicle position
mark.
5. Touch “Enter”.
The map screen will be displayed.

89 TIRE CHANGE CALIBRATION
The tire change calibration function will be
used when replacing the tires. This function
will adjust the miscalculation caused by the
circumference difference between the old
and new tires. If this procedure is not per-
formed when tires are replaced, the current
vehicle position mark may be incorrectly dis-
played.

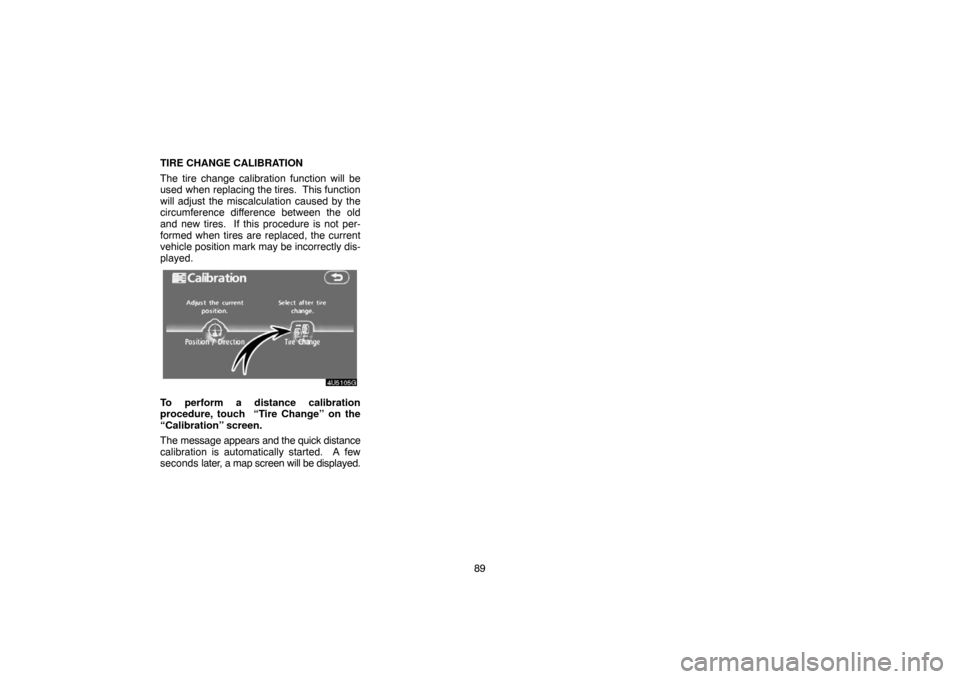

4U5105G
To perform a distance calibration
procedure, touch “Tire Change” on the
“Calibration” screen.
The message appears and the quick distance
calibration is automatically started. A few
seconds later, a map screen will be displayed.
