TOYOTA TUNDRA 2007 2.G Owners Manual

3222007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z17413

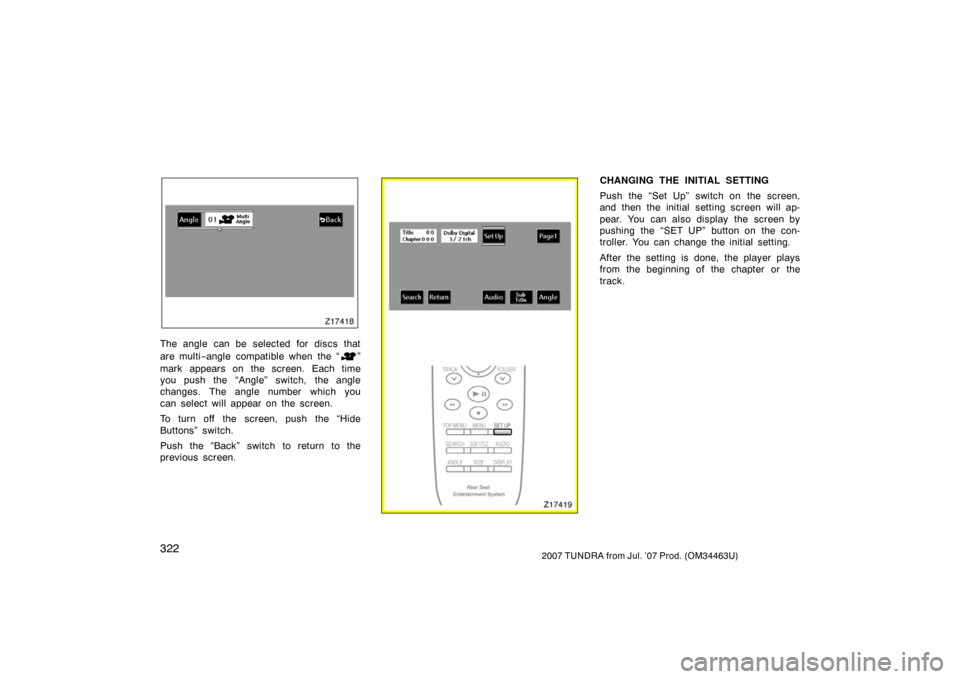

The angle can be selected for discs that
are multi−angle compatible when the “
”
mark appears on the screen. Each time
you push the “Angle” switch, the angle
changes. The angle number which you
can select will appear on the screen.
To turn off the screen, push the “Hide
Buttons” switch.
Push the “Back” switch to return to the
previous screen.Z17419
CHANGING THE INITIAL SETTING
Push the “Set Up” switch on the screen,
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the “SET UP” button on the con-
troller. You can change the initial setting.
After the setting is done, the player plays
from the beginning of the chapter or the
track.

3232007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z18017

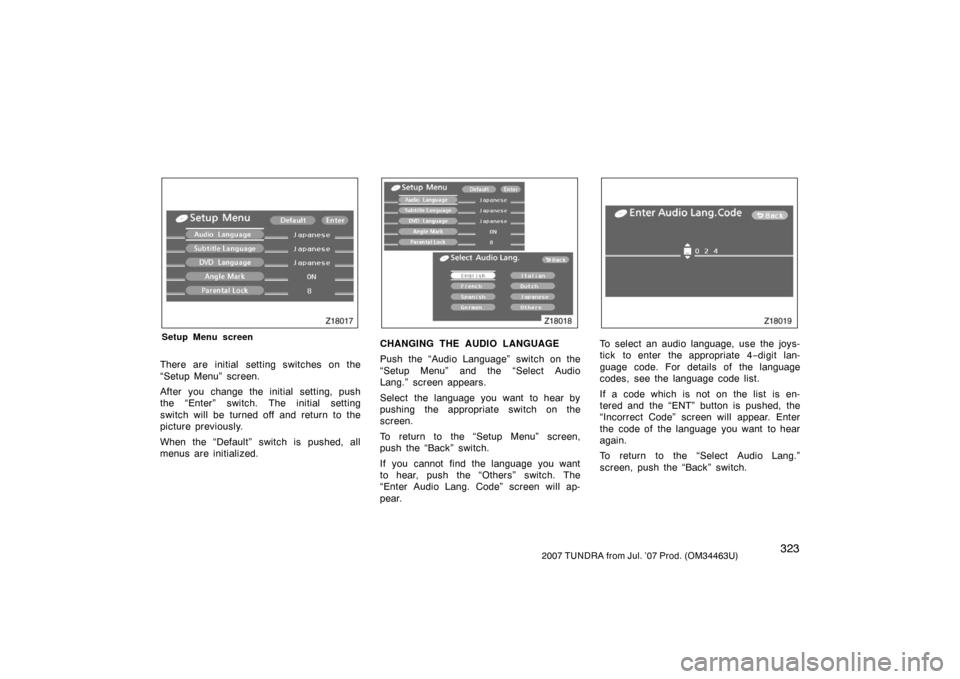

Setup Menu screen
There are initial setting switches on the
“Setup Menu” screen.
After you change the initial setting, push
the “Enter” switch. The initial setting
switch will be turned off and return to the
picture previously.
When the “Default” switch is pushed, all
menus are initialized.
Z18018
CHANGING THE AUDIO LANGUAGE
Push the “Audio Language” switch on the
“Setup Menu” and the “Select Audio
Lang.” screen appears.
Select the language you want to hear by
pushing the appropriate switch on the
screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find the language you want
to hear, push the “Others” switch. The
“Enter Audio Lang. Code” screen will ap-
pear.
Z18019
To select an audio language, use the joys-
tick to enter the appropriate 4−digit lan-
guage code. For details of the language
codes, see the language code list.
If a code which is not on the list is en-
tered and the “ENT” button is pushed, the
“Incorrect Code” screen will appear. Enter
the code of the language you want to hear
again.
To return to the “Select Audio Lang.”
screen, push the “Back” switch.

3242007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z18020

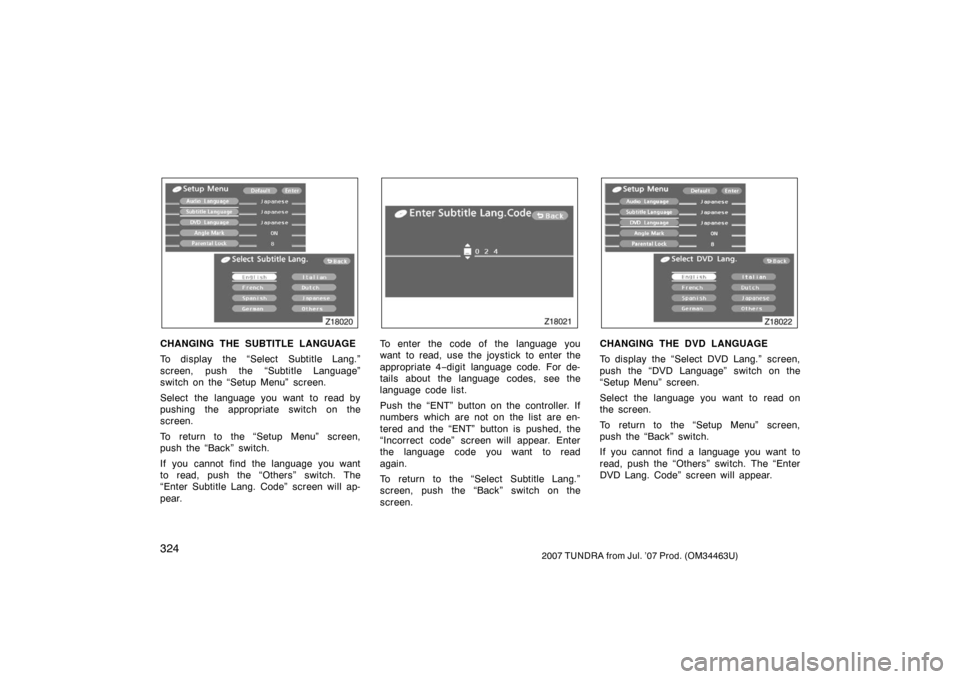

CHANGING THE SUBTITLE LANGUAGE
To display the “Select Subtitle Lang.”
screen, push the “Subtitle Language”
switch on the “Setup Menu” screen.
Select the language you want to read by
pushing the appropriate switch on the
screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find the language you want
to read, push the “Others” switch. The
“Enter Subtitle Lang. Code” screen will ap-
pear.
Z18021
To enter the code of the language you
want to read, use the joystick to enter the
appropriate 4−digit language code. For de-
tails about the language codes, see the
language code list.
Push the “ENT” button on the controller. If
numbers which are not on the list are en-
tered and the “ENT” button is pushed, the
“Incorrect code” screen will appear. Enter
the language code you want to read
again.
To return to the “Select Subtitle Lang.”
screen, push the “Back” switch on the
screen.
Z18022
CHANGING THE DVD LANGUAGE
To display the “Select DVD Lang.” screen,
push the “DVD Language” switch on the
“Setup Menu” screen.
Select the language you want to read on
the screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find a language you want to
read, push the “Others” switch. The “Enter
DVD Lang. Code” screen will appear.

3252007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z18023

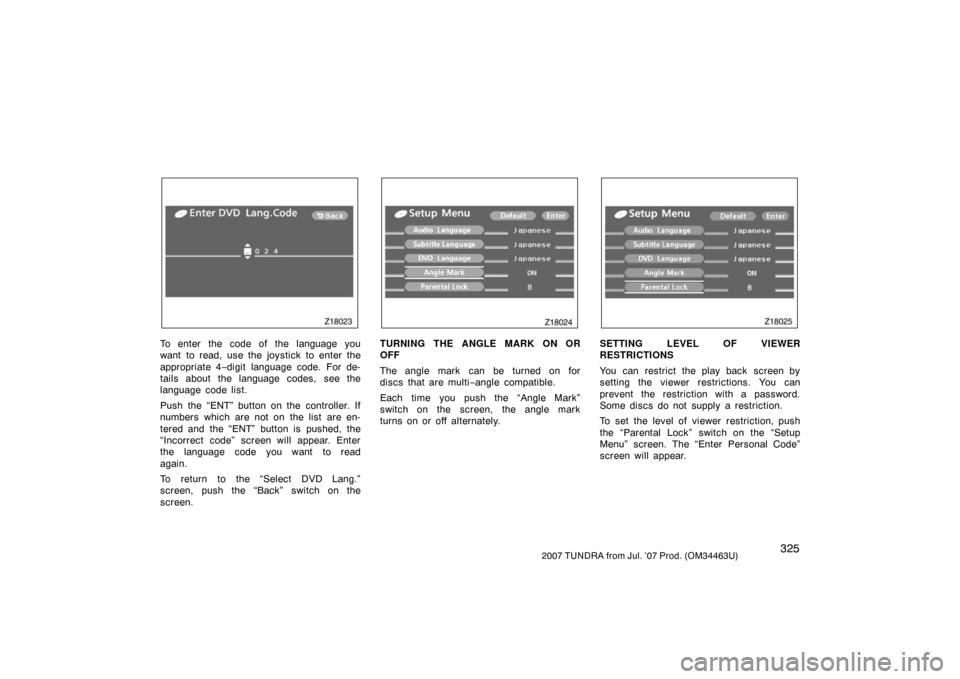

To enter the code of the language you
want to read, use the joystick to enter the
appropriate 4−digit language code. For de-
tails about the language codes, see the
language code list.
Push the “ENT” button on the controller. If
numbers which are not on the list are en-
tered and the “ENT” button is pushed, the
“Incorrect code” screen will appear. Enter
the language code you want to read
again.
To return to the “Select DVD Lang.”
screen, push the “Back” switch on the
screen.
Z18024
TURNING THE ANGLE MARK ON OR
OFF
The angle mark can be turned on for
discs that are multi −angle compatible.
Each time you push the “Angle Mark”
switch on the screen, the angle mark
turns on or off alternately.
Z18025
SETTING LEVEL OF VIEWER
RESTRICTIONS
You can restrict the play back screen by
setting the viewer restrictions. You can
prevent the restriction with a password.
Some discs do not supply a restriction.
To set the level of viewer restriction, push
the “Parental Lock” switch on the “Setup
Menu” screen. The “Enter Personal Code”
screen will appear.

3262007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z18026

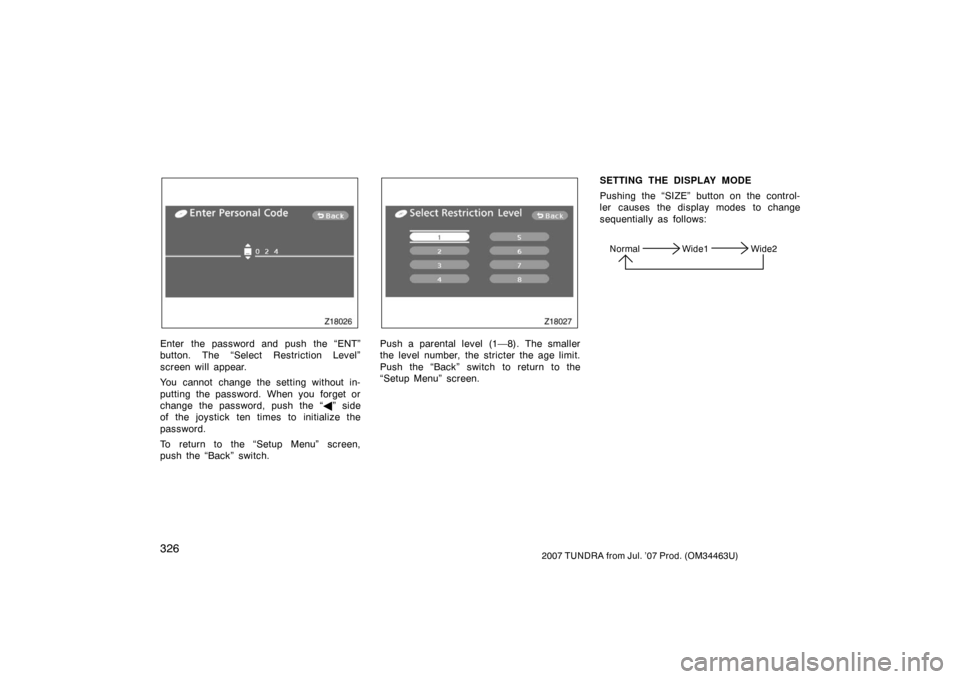

Enter the password and push the “ENT”
button. The “Select Restriction Level”
screen will appear.
You cannot change the setting without in-
putting the password. When you forget or
change the password, push the “” side
of the joystick ten times to initialize the
password.
To return to the “Setup Menu” screen,
push the “Back” switch.
Z18027
Push a parental level (1—8). The smaller
the level number, the stricter the age limit.
Push the “Back” switch to return to the
“Setup Menu” screen. SETTING THE DISPLAY MODE
Pushing the “SIZE” button on the control-
ler causes the display modes to change
sequentially as follows:
Normal Wide1 Wide2

3272007 TUNDRA from Jul. ’07 Prod. (OM34463U)
LANGUAGE CODE LISTCode
Language
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scots −Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese

3282007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan) Oromo
1518Oriya
1601Punjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto−Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo−Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Ta m i l
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish

3292007 TUNDRA from Jul. ’07 Prod. (OM34463U)
2019Tsonga
2020Ta t a r
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu
Z17464

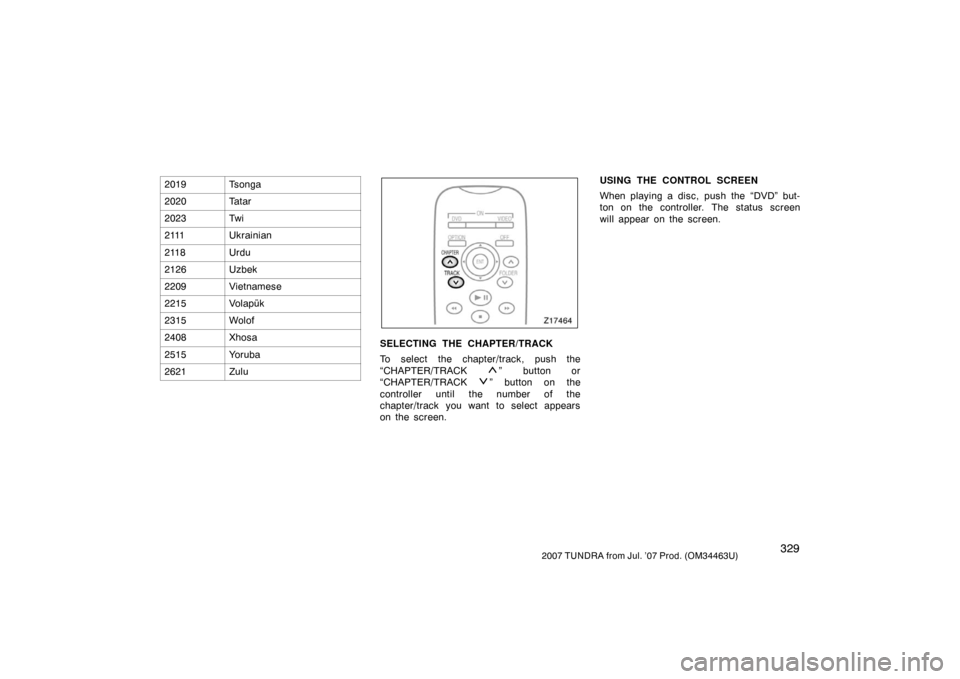

SELECTING THE CHAPTER/TRACK
To select the chapter/track, push the
“CHAPTER/TRACK
” button or
“CHAPTER/TRACK
” button on the
controller until the number of the
chapter/track you want to select appears
on the screen. USING THE CONTROL SCREEN
When playing a disc, push the “DVD” but-
ton on the controller. The status screen
will appear on the screen.

3302007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z17489

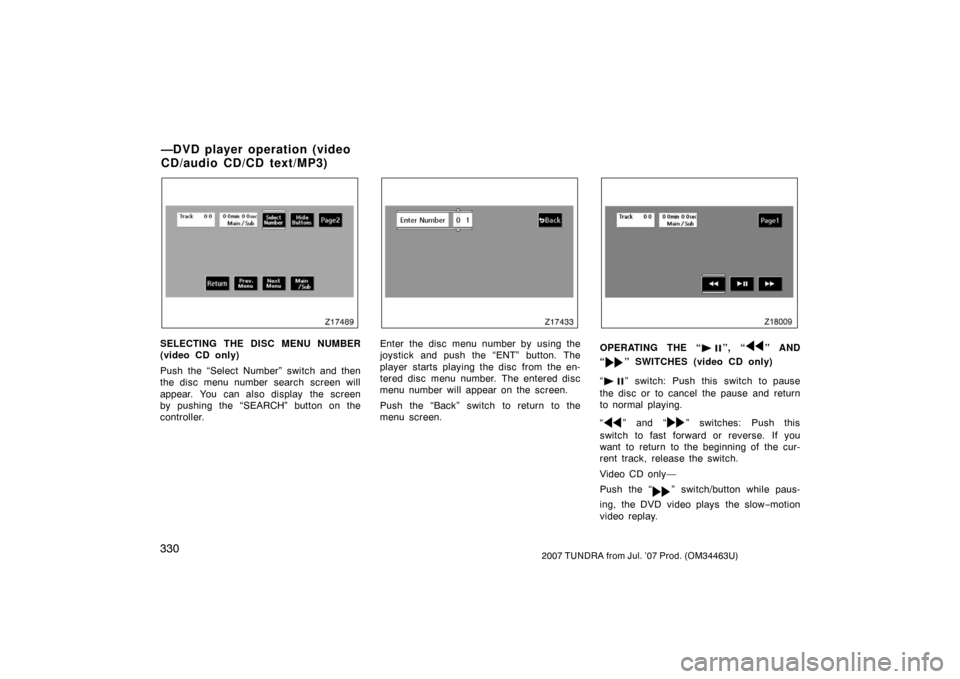

SELECTING THE DISC MENU NUMBER
(video CD only)
Push the “Select Number” switch and then
the disc menu number search screen will
appear. You can also display the screen
by pushing the “SEARCH” button on the
controller.
Z17433
Enter the disc menu number by using the
joystick and push the “ENT” button. The
player starts playing the disc from the en-
tered disc menu number. The entered disc
menu number will appear on the screen.
Push the “Back” switch to return to the
menu screen.
Z18009
OPERATING THE “”, “” AND
“
” SWITCHES (video CD only)
“
” switch: Push this switch to pause
the disc or to cancel the pause and return
to normal playing.
“
” and “” switches: Push this
switch to fast forward or reverse. If you
want to return to the beginning of the cur-
rent track, release the switch.
Video CD only—
Push the “
” switch/button while paus-
ing, the DVD video plays the slow −motion
video replay.
—DVD player operation (video
CD/audio CD/CD text/MP3)

3312007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Z17435

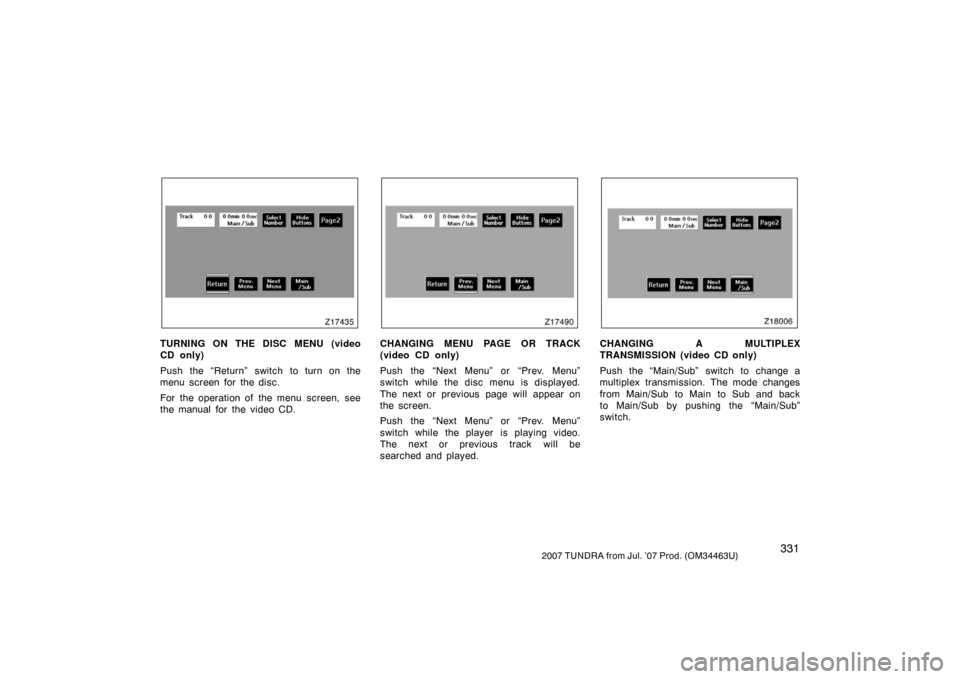

TURNING ON THE DISC MENU (video
CD only)
Push the “Return” switch to turn on the
menu screen for the disc.
For the operation of the menu screen, see
the manual for the video CD.
Z17490
CHANGING MENU PAGE OR TRACK
(video CD only)
Push the “Next Menu” or “Prev. Menu”
switch while the disc menu is displayed.
The next or previous page will appear on
the screen.
Push the “Next Menu” or “Prev. Menu”
switch while the player is playing video.
The next or previous track will be
searched and played.
Z18006
CHANGING A MULTIPLEX
TRANSMISSION (video CD only)
Push the “Main/Sub” switch to change a
multiplex transmission. The mode changes
from Main/Sub to Main to Sub and back
to Main/Sub by pushing the “Main/Sub”
switch.
