TOYOTA TUNDRA 2007 2.G Owners Manual

3722007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Dial
Turn the “AUDIO/CONTROL” knob until
the number that you want to dial is dis-
played and push the knob. After that, do
the one of the following:
Push the off−hook switch.
Push the talk switch and say “Dial”.
Turn the “AUDIO/CONTROL” knob until
“Dial” is displayed and push the knob.
Delete
1. Turn the “AUDIO/CONTROL” knob until the dial number that you want to delete
is displayed and push the knob.
2. Push the talk switch and say “Delete”, or turn the “AUDIO/CONTROL” knob
until “Delete” is displayed and push the
knob.
“Delete. Push the talk switch and say
confirm. Otherwise, say go back” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“Deleted.” is heard. Store
1. Turn the “AUDIO/CONTROL” knob until the dial number that you want to regis-
ter is displayed and push the knob.
2. Push the talk switch and say “Store”, or turn the “AUDIO/CONTROL” knob
until “Store” is displayed and push the
knob.
“Store. Push the talk switch and say
confirm. Otherwise, say go back.” is
heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
Next, input a voice tag.
For further details, see page 363.
The system may not function in the follow-
ing cases:
If there is no incoming history.
If the phone book is locked.
INFORMATION
 Up to five incoming calls can be
stored in the system.
 When five incoming calls are stored
in memory, the oldest incoming call
is deleted to make room in memory
for new calls.

3732007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the cellular phone is not registered, this
system cannot be used. See page 353 for
registering a cellular phone. Make sure
that “BT” is displayed and get the cellular
phone ready to use.
There are 3 way to make a phone call
with this system.
Speed dial
A phone call can be made with a preset
button in which a phone number is regis-
tered. See page 369 for setting the preset
buttons.
Dial by Name
The system dials the numbers correspond-
ing to the spoken names registered in the
system.
Dial by Number
The system dials to the spoken numbers.
To make a phone call
Push the off −hook switch to turn the
hands −free system on. To speed dial
1. Push the preset button where the de- sired number is set. The name or tele-
phone number is displayed.
2. Push the off −hook switch to dial.
To dial by Name 1. Push the talk switch and say “Dial by name”.
“Dial by name. Please push the talk
switch and say the stored name, or say
list names.” is heard and “Dial by Name”
is displayed.
2. Push the talk switch and say “XXXX”, or turn the “AUDIO/CONTROL” knob
until the phone name that you want to
dial is displayed and push the knob. When using a voice command:
“XXXX Push the off
−hook switch to dial.
Otherwise, push the talk switch and say
dial, or go back.” is heard. After that, do
the one of the following:
Push the off −hook switch.
Push the talk switch and say “Dial”.
Turn the “AUDIO/CONTROL” knob until
“Dial” is displayed and push the knob.
When using the knob:
It calls the number.
The system may not function in the follow-
ing cases:
If there is no number registered in the
preset button.
If the system does not recognize the
voice command.
—Making a phone call

3742007 TUNDRA from Jul. ’07 Prod. (OM34463U)
INFORMATION
The phone numbers registered in
the phone book can be retrieved.
 The system does not recognize that
the voice tag is not registered in
the registered cellular phone. For
details about voice tags, see “To
add entry” on page 363.
 A shortcut to “Dial by name” is
available. Push the talk switch and
say “Dial XXX (name you want to
dial)”.
To dial by Number
1. Push the talk switch and say “Dial by Number”.
“Dial by number. Please push the talk
switch and say the number.” is heard and
“Dial by Num” is displayed. 2. Push talk switch and say “XXXX”.
“Push the off −hook switch to dial.
Otherwise, push the talk switch and say
dial, go back, or delete.” is heard.
To dial the number, do the one of the
following:
Push the off −hook switch.
Push the talk switch and say “Dial”.
Turn the “AUDIO/CONTROL” knob until
“Dial” is displayed and push the knob.
If the number exceeds 24 digits, the sys-
tem may not function properly.
INFORMATION
 The system can recognize single
digits from zero to nine, # (pound),
∗ (star), and + (plus). Numbers that
are ten or greater are not recog-
nized.
 To speed up input, it is a good idea
to group all digits into a continuous
string. However, you can enter each
digit individually or group digits to-
gether in preferred string lengths.
The display corresponding to each op-
eration appears on the screen as fol-
lows:
Input operation—
You say: “Nine, nine, five”
Voice output: “995 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.”
Display: “995”
You say: “Seven, three, four”
Voice output: “734 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.”

3752007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Display “995734”
Repeat the above procedure until the
entire number that you want to dial is
input.
Go back operation—
You say: “Go back”
Voice output: “Go back, the last
numbers entered have been removed.
Push the talk switch and continue
adding numbers otherwise say dial,
go back, or delete.”
Display: “995”
Repeating the above operation deletes
the last digits in reverse order of in-
put.
Delete operation—
You say: “Delete”
Voice output: “Deleted. The entire
number to dial has been deleted.
Please push the talk switch and say
the number.”
Display: “Dial by Num”
The display will return to the initial
screen that allows a number to be
input.Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
 Push the talk switch and say
“Cancel” after the beep at anytime
during the operation except while a
call in connected.When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name, or “Incoming” is displayed.
When the vehicle is in motion:
“Incoming“ is displayed.
Do either one of the following:
Pushing the off −hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone.
—Receiving a p hone call

3762007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To transfer a call to the phone:
The received call can be transferred from
the hands−free system to the cellular
phone that is connected to Bluetooth
. For
details, refer to the user’s guide for the
cellular phone. While talking on the phone, the display is
as follows. The display differs depending
on whether or not the vehicle is in motion.
When the vehicle is stopped:
Number is displayed.
When the vehicle is in motion:
“Talking“ is displayed.
When the call is finished, push the on
−
hook switch.
In the following situations, your voice may
not reach the party.
Talk alternately with the other party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
When driving on a rough road.
When driving at high speeds.
When the window is open.
When the air conditioning vents face
the microphone.
When the sound of the air conditioning
fan is loud. To transfer a call from the phone:
Pushing the off
−hook switch while talking
on the cellular phone that is connected to
Bluetooth
 allows you to talk hands −free.
To transfer a call to the phone:
The call can be transferred from the
hands −free system to the phone that is
connected to Bluetooth
. For details, refer
to the user’s guide for the cellular phone.
—Talking on the phone

3772007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Manual air conditioning systemControls 378
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Air flow selector settings 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Automatic air conditioning system Controls 386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Air flow selector settings 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Instrument panel and rear vents 393
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning filter 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

3782007 TUNDRA from Jul. ’07 Prod. (OM34463U)

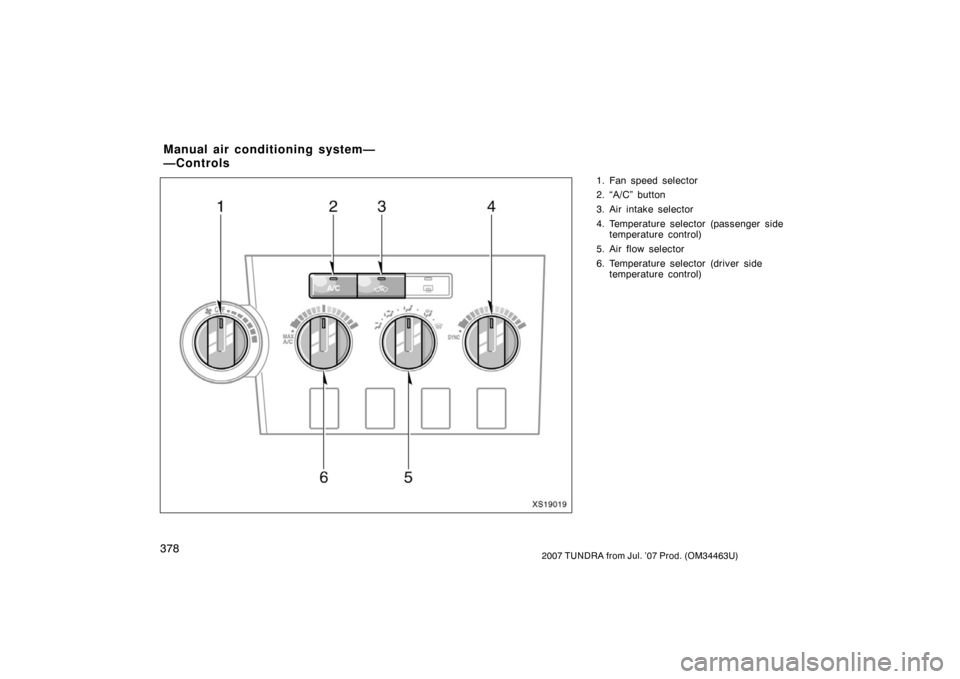

1. Fan speed selector
2. “A/C” button
3. Air intake selector
4. Temperature selector (passenger sidetemperature control)
5. Air flow selector
6. Temperature selector (driver side temperature control)
Manual air conditioning system—
—Controls
XS19019

3792007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector (driver side)
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
“MAX A/C” position—Turning the tempera-
ture selector knob to the “MAX A/C” posi-
tion turns on the air conditioning and sets
the air intake selector to RECIRCULATE
for quick cooling.Temperature selector (passenger side)
Turn the knob to adjust the tempera-
ture—to the right to warm, to the left to
cool.
Independent setting—
When the passenger side selector is
in a position other than the “SYNC”
position, the temperature only on pas-
senger side can be adjusted using the
selector. This function is canceled
when the passenger side temperature
selector is turned to the “SYNC” posi-
tion.
Simultaneous setting— When the passenger side selector is
in the “SYNC” position, the tempera-
tures on both driver and passenger
sides can be simultaneously adjusted
using the driver side selector. This
function is canceled when the passen-
ger side temperature selector is
turned to the right.
G18021
Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel— Air flows mainly from the
instrument panel vents and the rear
vents.
2. Bilevel— Air flows from both the floor
vents, the instrument panel vents and
the rear vents.
3. Floor— Air flows mainly from the floor
vents.

3802007 TUNDRA from Jul. ’07 Prod. (OM34463U)
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging/defrosting function with the
purpose of clearing the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. If you
want to return the setting to RECIRCU-
LATE mode, press the air intake selec-
tor button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the windshield more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging/defrosting function and the air con-
ditioning with the purpose of clearing
the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. It is not
possible to return to RECIRCULATE in
this position. In this position, the air conditioning
turns on regardless of the “A/C button
indicator comes on or goes off. This is
not a malfunction.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
XS19014
Air intake selector
Press the button to select the air source.
1. Recirculate (indicator light is on)—Re-
circulates the air inside the vehicle.
2. Fresh (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.

3812007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the ambient temperature drops, the air
intake mode will automatically change
from RECIRCULATE to FRESH after a few
minutes. This automatic change control
mode can be cancelled by pushing and
holding the button for longer than 2 sec-
onds. The automatic change control mode
will be reactivated if the ignition switch is
turned to the “LOCK” or “ACC” position.
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.
