TOYOTA TUNDRA 2007 2.G Owners Manual

4322007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13006
You should use the front passenger ’s
seatback as a temporary table only when
the vehicle is stopped.
To use the seatback table, fold the seat-
back down. (For detailed information, see
“—Folding front passenger ’s seat” on page
54 in Section 1−3.)
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the seatback table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
XS10070a
To secure your luggage, use the deck
hooks.
See “—Stowage precautions” on page 464
in Section 2 for precautions when loading
luggage.
Seatback table (Regular cab
models) Deck hooks

4332007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS10096
Cargo net hooks
Grocery bag hooks
These hooks are designed to hang
things like grocery bags or cargo net.
Although the cargo net itself is not in-
cluded as an original equipment, these
hooks can be used to hang the cargo net.
NOTICE

To prevent damage to the hooks,
avoid hanging heavy loads on them
when using them as grocery bag
hooks.
 To prevent damage to the hooks,
avoid hanging things other than a
cargo net on it when using them as
cargo net hooks.
XS10080
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
two holes, then they are designed for use
with two locking clips. Attach the floor mat
to the vehicle carpet using the clips. Lock
the clips into the holes in the vehicle
carpet.
Grocery bag/cargo net hooks
( C rew Max mo d els) Floor mat

4342007 TUNDRA from Jul. ’07 Prod. (OM34463U)

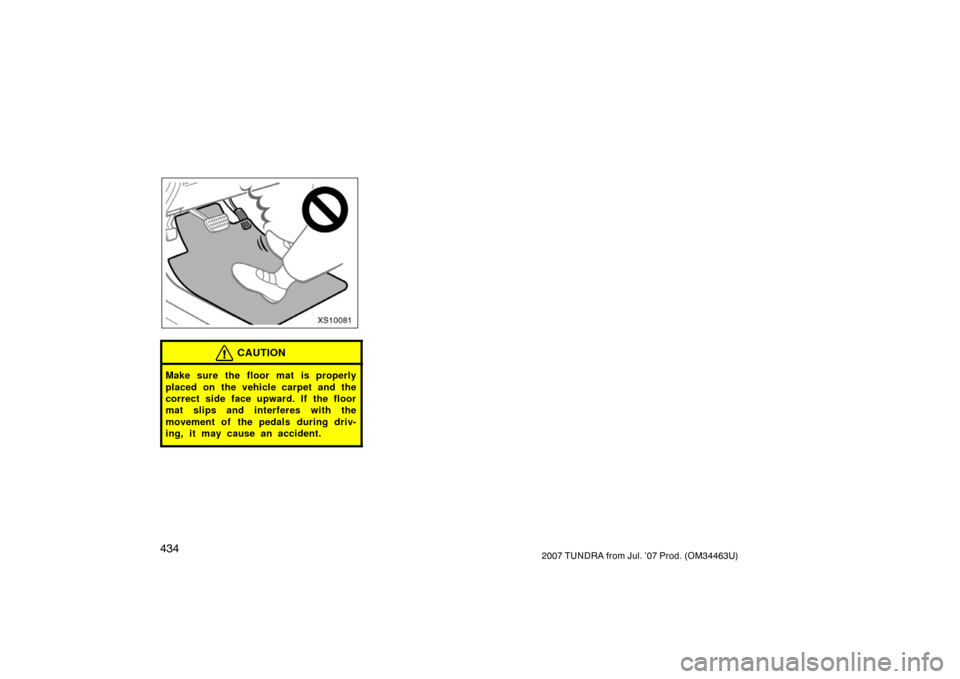

XS10081
CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet and the
correct side face upward. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.

4352007 TUNDRA from Jul. ’07 Prod. (OM34463U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off−road vehicle precautions 436
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 437
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 437
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 439
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 440
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 440
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 441
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 442
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 443
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Long reach iridium −tipped spark plugs 444
. . . . . . . . . . . . . . . . . . . . . . . .
Brake system 444
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 448
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear step bumper 448
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Your Toyota’s identification 449
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 450
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 450
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 451
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 463
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 464
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 466
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

4362007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS20003
This vehicle has higher ground clear-
ance and narrower tread in relation to
the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, it has a signifi-
cantly higher rollover rate than other
types of vehicles. An advantage of the
higher ground clearance is a better
view of the road allowing you to antici-
pate problems. It is not designed for
cornering at the same speeds as ordi-
nary passenger cars any more than
lowslung sports cars are designed to
perform satisfactorily under offroad
conditions. Therefore, sharp turns at
excessive speeds may cause rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Avoid loading any items on the roof
that will raise the vehicle’s center
of gravity.
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have much better control.
Offroad vehicle precautions

4372007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles). FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix
−ups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period Fuel

4382007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OCTANE RATING
Select Octane Rating 87 (Research
Octane Number 91) or higher.
Use of unleaded gasoline with an Octane
Rating lower than 87 may result in engine
knocking. Persistent knocking can lead to
engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 3 or 4 has
been adopted. The WWFC improves air
quality by providing for better emis-
sions in vehicle fleets, and customer
satisfaction through better vehicle per-
formance.CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.

4392007 TUNDRA from Jul. ’07 Prod. (OM34463U)
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Toyota dealer.NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If driveab ility problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
100 L (26.4 gal., 22.0 Imp. gal.)
Fuel pump shut off system
The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the engine after the fuel pump shut
off system activates, turn the ignition
switch to “ACC” or “LOCK” once and start
it.
CAUTION
Inspect the ground under the vehicle
before restarting the engine. If you
find that fuel has leaked onto the
ground, the fuel system has been
damaged and is in need of repair. In
this case, do not restart the engine.

4402007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
XS20001
4.0 L V6 (1GRFE) and 4.7 L V8 (2UZFE)
engine
XS20002a
5.7 L V8 (3URFE) engine
The threeway catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not idle or park your vehicle
over anything that might burn easi-
ly such as grass, leaves, paper or
rags.
Operation in foreign countries Threeway catalytic converters

4412007 TUNDRA from Jul. ’07 Prod. (OM34463U)
NOTICE
A large amount of unburned gases
flowing into the threeway catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
 Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three
way catalytic converter.
 Do not allow the engine to run at
idle speed for more than 20 minu-
tes.
 Avoid racing the engine.
 Do not pushstart or pullstart your
vehicle.
 Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel systems could cause an ex-
tremely high threeway catalytic
converter temperature.
 If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
 To ensure that the threeway
catalytic converter and the entire
emission control system operate
properly, your vehicle must receive
the periodic inspections required by
the Toyota Maintenance Schedule.
For scheduled maintenance
information, refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Engine exhaust cautions
