192007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
LS12040
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
LS12041
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

302007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Vehicles with power door lock system—
Locking function—All doors are automati-
cally locked when the vehicle speed goes
above about 20 km/h (12 mph).
Unlocking function—All doors are automat-
ically unlocked when the selector lever is
moved to the “P” position with the engine
started.
The following functions can be changed:
Shift position linked auto lock.
Driver ’s door open linked auto unlock.
If your vehicle is equipped with the multi −
information display (For further informa-
tion, see “Multi −information display” on
page 187 in Section 1 −6.), these can be
changed by yourself.
For details, contact your Toyota dealer.
XS12051b
Regular cab models
XS12009b
Double cab and Crew Max models
The windows can be operated with the
switch on either front door (Regular
cab models)/each door (Double cab and
Crew Max models).
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
The indicator light (“AUTO”) on the switch
tells you the switch can be operated.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
—Automatic door locking and
unlocking functions Power windows

402007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS12001
Indicator light
XS12027a
Glass breakage sensor (on some models)
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 21 in this Section for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors and hood.
The indicator light will remain on when all
the doors and hood are closed and
locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again. 4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the hood
is forcibly opened
If the battery terminal is disconnected
and then reconnected
Vehicles with the glass breakage sensor—
The side windows are tapped or bro-
ken.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
doors will re −lock automatically.
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.

412007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition switch from the
“LOCK” to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors should be locked with
the key or wireless remote control
transmitter. Be sure to wait until the
indicator light goes off or starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
XS12038c
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

572007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.

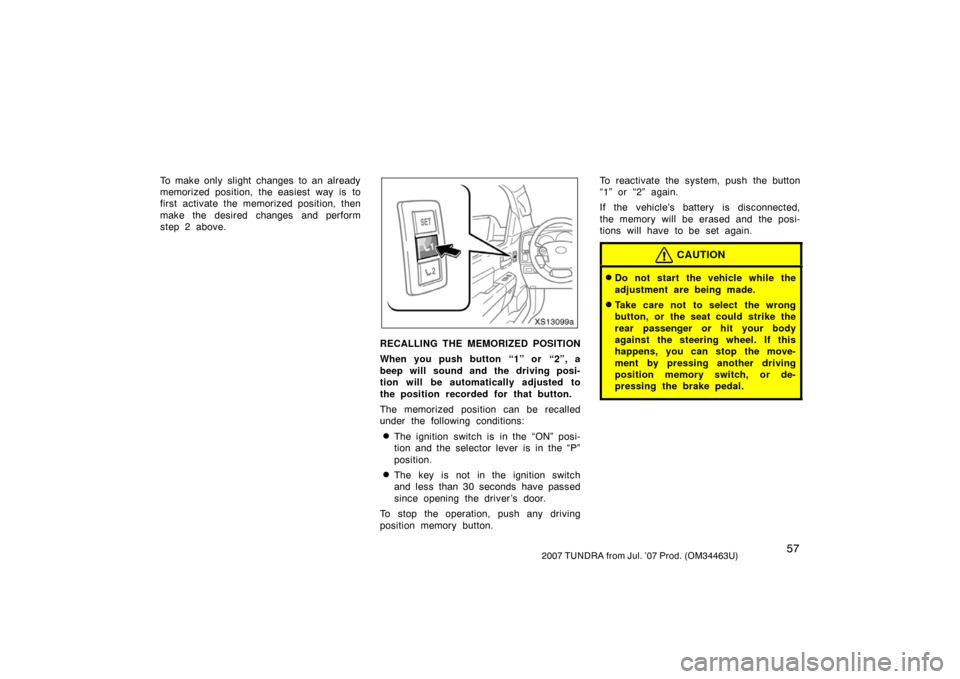

XS13099a
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition switch is in the “ON” posi-
tion and the selector lever is in the “P”
position.
The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver ’s door.
To stop the operation, push any driving
position memory button. To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

1842007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The oil pressure gauge indicates engine
oil pressure when the ignition switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
NOTICE
Do not drive the vehicle with the oil
pressure below the normal range until
the cause is fixed—it may ruin the
engine.
XS16015c
High range
Ty p e A
XS16016c
High range
Ty p e B
Automatic transmission fluid tempera-
ture gauge indicates automatic trans-
mission fluid temperature when the
ignition switch is on. Check it while
driving to make sure that the needle is
in the proper range.
The gauge displays the current tempera-
ture of the automatic transmission fluid.
The gauge informs the driver of changes
in the automatic transmission fluid temper-
ature especially if it becomes too high
while towing a heavy trailer or hauling a
heavy load.
If the needle reads high range while you
are driving, slow down and pull off the
road. Stop the vehicle at a safe place and
put the selector lever in “P”. With the
engine idling, wait until the needle reads
below the high range. If the needle reads
below the high range, you may start the
vehicle again. If the needle reads the high
range, call a Toyota dealer or qualified
repair shop for assistance.
NOTICE
Continued driving with reading in the
high range may damage the automatic
transmission.
Automatic transmission fluid
temperature gauge (with
towing package)

1892007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Zoom display of odometer and tripmeter
The odometer and one of the trip meters
are displayed simultaneously. See
“—Odometer and two trip meters”.
2. Average fuel consumption (“Average Fuel Economy”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “SELECT RESET” button for more
than 2 seconds.
3. Instantaneous fuel consumption (“Current Fuel Economy”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption at 20 revo-
lutions of the engine.
The displayed value is updated for a short
time.
An accurate figure may not be shown if
the vehicle is driving down a long slope,
and engine brake is applied. (The display
will indicate the extremely low fuel con-
sumption.) The display indicates 0 when the vehicle
is stopped with the engine running.
The calculation is reset when the ignition
switch is turned off.
4. Driving range (“Distance To Empty”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated. If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.
5. Driving time (“Trip Timer”)
To calculate the driving time, display
the “Trip Timer” after the engine has
been started. Then press the “SELECT
RESET” button. To stop the calculation,
press the “SELECT RESET” button
again.
Driving time is counted from 00:00:00. Up
to 99:59:59 (99 hours, 59 minutes and 59
seconds) can be displayed. When the driv-
ing time exceeds 99:59:59, the counter
returns to 00:00:00.
If the ignition switch is turned off while
the driving time is being calculated, the
calculation will cease. When the engine is
next started, it will automatically resume
from the previous value.
If the “SELECT RESET” button is pressed
to cease the calculation and then the igni-
tion switch is turned off, the calculation
will not resume when the engine is next
started. In this case, press the “SELECT
RESET” button to start the calculation.
To reset the calculation, push and hold
the “SELECT RESET” button for more
than 2 seconds.

1952007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light flashes, brake system warn-
ing light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool.
The message appears with the master
warning light flashes and a warning tone
sounds.
NOTICE
Do not continue driving with an over-
heated engine. See “If your vehicle
overheats” on page 497 in Section 4.
(c)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light flashes, open door warning
light and a warning tone sounds when the
vehicle speed rises above 5 km/h (3
mph).
(d)
This message is to remind the driver
that the fuel level in the tank becomes
nearly empty.
If the message appears with the low fuel
level warning light comes on and a warn-
ing tone sounds, fill up the tank as soon
as possible.The message disappears by pressing
“SELECT RESET” button when the ignition
switch is in the “ON” position. However,
the low fuel level warning light remains
on.
(e)
This message is to warn the driver that
automatic transmission fluid tempera-
ture is too high.
If the automatic transmission fluid temper-
ature is too high, the message appears
with the automatic transmission fluid tem-
perature warning light comes on and a
warning tone sounds.
If this message appears while you are
driving, slow down and pull off the road.
Stop the vehicle at a safe place and put
the selector lever in “P”. With the engine
idling, wait until the message goes off. If
the message goes off, you may start the
vehicle again. If the message does not go
off, call a Toyota dealer or qualified repair
shop for assistance.

2002007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(a) Brake System Warning Light andbuzzer
This light comes on in the following cases
when the ignition switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition switch is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...

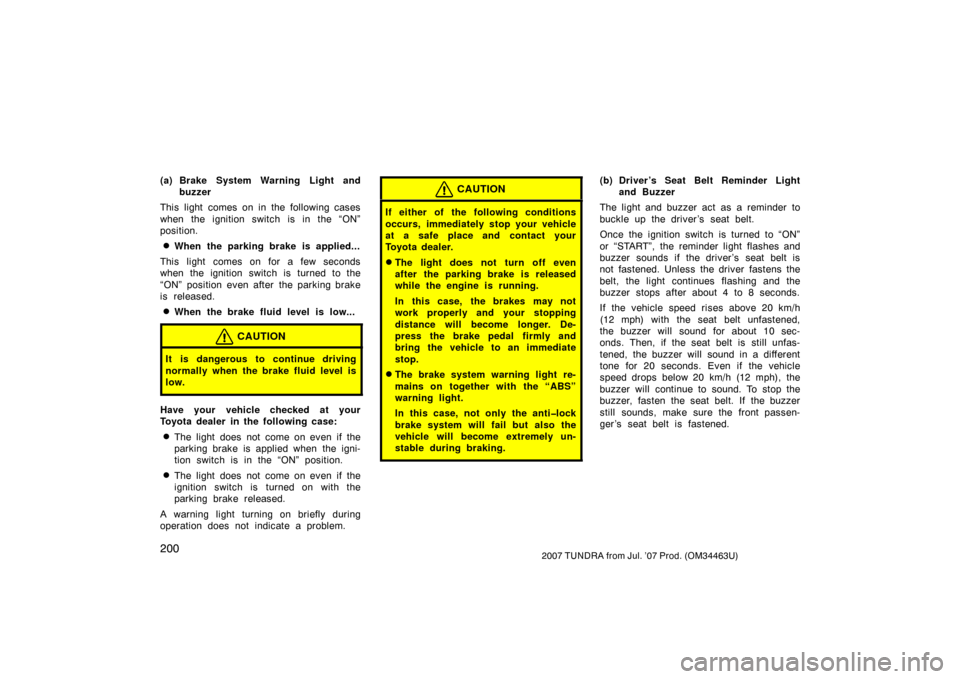

CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion switch is in the “ON” position.
The light does not come on even if the
ignition switch is turned on with the
parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition switch is turned to “ON”
or “START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.

2012007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(c) Front Passenger ’s Seat Belt Re-minder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the ignition switch is turned to the
“ON” position, the reminder light flashes if
a passenger sits in the right front passen-
ger seat and does not fasten the seat
belt.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 20 km/h (12 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the driver ’s seat belt
is fastened.
The buzzer can be disabled. For details,
contact your Toyota dealer.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sounds. (d) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Toyota
dealer.
(e) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
