navigation system TOYOTA TUNDRA 2008 2.G Navigation Manual

ROUTE GUIDANCE
692008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.
3U5115a
4.2 miles
0.25 miles
1“Proceed about 4 miles to the traf-
fic circle.”
2“In a quarter of a mile, traffic circle
ahead, and then 3rd exit ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
3U5116a
One−way road
One−way road
∗: The system indicates a U−turn if the dis-
tance between two one−way roads (of oppo-
site directions) is less than 50 feet (15 m) in
residential areas or 164 feet (50 m) in non−
residential areas.
1“In half of a mile, make a legal
U−turn.”
2“Make a legal U−turn ahead.”
3(Beep sound only)

ROUTE GUIDANCE
702008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5117a
The system announces the approach to the fi-
nal destination.
1“Your destination is ahead.”
2“You have arrived at your
destination. The route guidance is
now finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
If you did not hear the voice guidance
command, push the “MAP/VOICE”
button to hear it again.
To adjust the voice guidance volume,
see “Volume” on page 88.
Distance and time to
destination
3U5057aG
When the vehicle is on the guidance route,
the distance and the estimated travel/arrival
time to the destination are displayed. When
the vehicle is not on the guidance route, the
distance and the direction of the destination
are displayed.
When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel/arrival time from the cur-
rent position to each destination are dis-
played.
1. Touch this touchscreen button to dis-
play the following screen.

ROUTE GUIDANCE
722008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) 3. Input an additional destination in the
same way as the destination search. (See
“Destination search” on page 41.)
3U5067aG
4. Touch the desired “Add” to determine
the arrival order of the additional destina-
tion.
— Reordering destinations
When more than one destination is set, you
can change the arrival order of the destina-
tions.
3U5094G
1. Touch “Route”.
3U5096G
2. Touch “Reorder”.
3U5068aG
3. Select the destination in the order of
arrival by touching the destination button.
Reordered number of arrival is displayed on
the right side of the screen.
Touching “Undo” will cancel each selected
order number from the previously input num-
ber.
4. After selecting the destinations, touch
“OK”.
The system searches for the guidance route
again, and displays the entire route. Even if
“OK” is not touched, the entire route is dis-
played automatically within a few seconds
when the order is fixed.

ROUTE GUIDANCE
732008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
— Deleting destinations
A set destination can be deleted.
3U5094G
1. Touch “Route”.
3U5097G
2. Touch “Delete”.
When more than one destination is set, a list
will be displayed on the screen.
3U5069aG
3. Touch the destination for deletion.
“Delete All”: To delete all destinations on the
list.
A message appears to confirm the request to
delete.
4. To delete the destination(s), touch
“Yes”.
If “Yes” is touching, the data cannot be recov-
ered.
If “No” is touching, the previous screen will
return.
5. If more than one destination is set,
touch “OK” after deleting the destination-
s.
The system searches for the guidance route
again, and displays the entire route.
Setting route —
— Search condition
You can designate the route conditions of the
route to the destination.
3U5094G
1. Touch “Route”.
3U5098G
2. Touch “Search Condition”.

ROUTE GUIDANCE
742008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5070G
3. Touch “Quick”, “Quick1”, “Quick2” or
“Short” and touch “OK”.
3U5071G
The entire route from the starting point to the
destination is displayed.
“Guide”: To start guidance.
“Route”: To change a route. (See pages 71
and 73.)
— Detour setting
While the route guidance is operating, you
can change the route to detour around a sec-
tion of the route where a delay is caused by
road repairs, or an accident, etc.
3U5094G
1. Touch “Route”.
3U5099G
2. Touch “Detour”.
3U5072G
3. Select the touchscreen button below
to select the desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these touch−screen but-
tons to start the detour process. After detour-
ing, the system returns to the original guid-
ance route.
“Whole Route”: By touching this touch−
screen button, the system will calculate an
entire new route to the destination.

ROUTE GUIDANCE
752008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5118a
This picture shows an example of how the
system would guide around a delay caused
by a traffic jam.
1This position indicates the location of a
traffic jam caused by road repairs or an
accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
When your vehicle is on a freeway, the
detour distance selections are 5, 15,
and 25 miles (km).
The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.
— Route preference
A number of choices are provided on the con-
ditions which the system uses to determine
the route to the destination.
3U5094G
1. Touch “Route”.
3U5100G
2. Touch “Route Preference” to change
the conditions which are to determine the
route to the destination.
3U5073G
3. The indicator can be turned on or off by
touching the button.
When searching for a route, the system func-
tions to avoid routes where the indicator is
dimmed.
4. After choosing the conditions, touch
“OK”.

ROUTE GUIDANCE
772008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

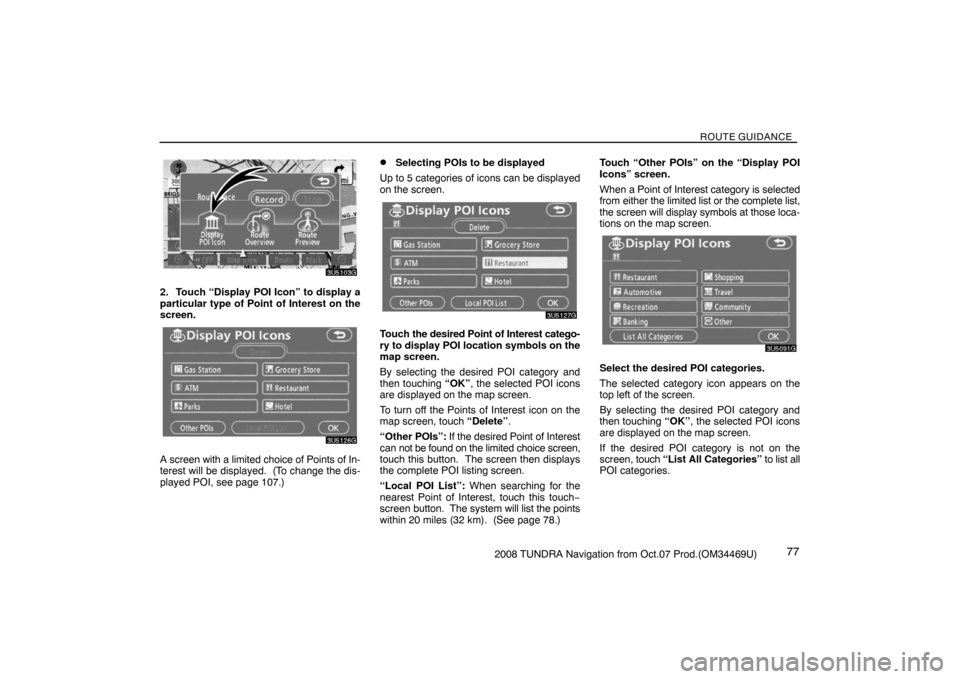

3U5103G
2. Touch “Display POI Icon” to display a
particular type of Point of Interest on the
screen.
3U5126G
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 107.)
Selecting POIs to be displayed
Up to 5 categories of icons can be displayed
on the screen.
3U5127G
Touch the desired Point of Interest catego-
ry to display POI location symbols on the
map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To turn off the Points of Interest icon on the
map screen, touch “Delete”.
“Other POIs”: If the desired Point of Interest
can not be found on the limited choice screen,
touch this button. The screen then displays
the complete POI listing screen.
“Local POI List”: When searching for the
nearest Point of Interest, touch this touch−
screen button. The system will list the points
within 20 miles (32 km). (See page 78.)Touch “Other POIs” on the “Display POI
Icons” screen.
When a Point of Interest category is selected
from either the limited list or the complete list,
the screen will display symbols at those loca-
tions on the map screen.
3U5091G
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.

ADVANCED FUNCTIONS
842008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)The “Menu” screen allows effective use of the
navigation system. To display the “Menu”
screen, push the “MENU” button.
1“Resume Guidance”
Resumes guidance 88. . . . . . . . . . . . . . . . . .
2“Suspend Guidance”
Suspends guidance. 87. . . . . . . . . . . . . . . . .
3“Volume”
Sets the volume for voice guidance.
88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“?”
Function help for the “Menu” screen can be
viewed on this screen. 23. . . . . . . . . . . . . . .
5“Map DVD”
Displays information regarding the disc ver-
sion or covered area. 236. . . . . . . . . . . . . . . .
6“Select User”
Up to 3 different settings for different users
can be memorized. 89. . . . . . . . . . . . . . . . . .
7“Setup”
Enables various settings for the navigation
system. 86,103. . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Menu” screen)

ADVANCED FUNCTIONS
862008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)The items shown on the “Setup” screen can
be set. To display the “Setup” screen, push
the “MENU” button and touch “Setup”.
1“Distance”
The distance units “km” or “miles” can be
selected. 104. . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 104. . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 105. . . . . . . . . .
4“Time Zone”
The desired time zone can be selected.
106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch−
screen button and current street name on the
map screen can be set. 107. . . . . . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

ADVANCED FUNCTIONS
892008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
4U5024aG

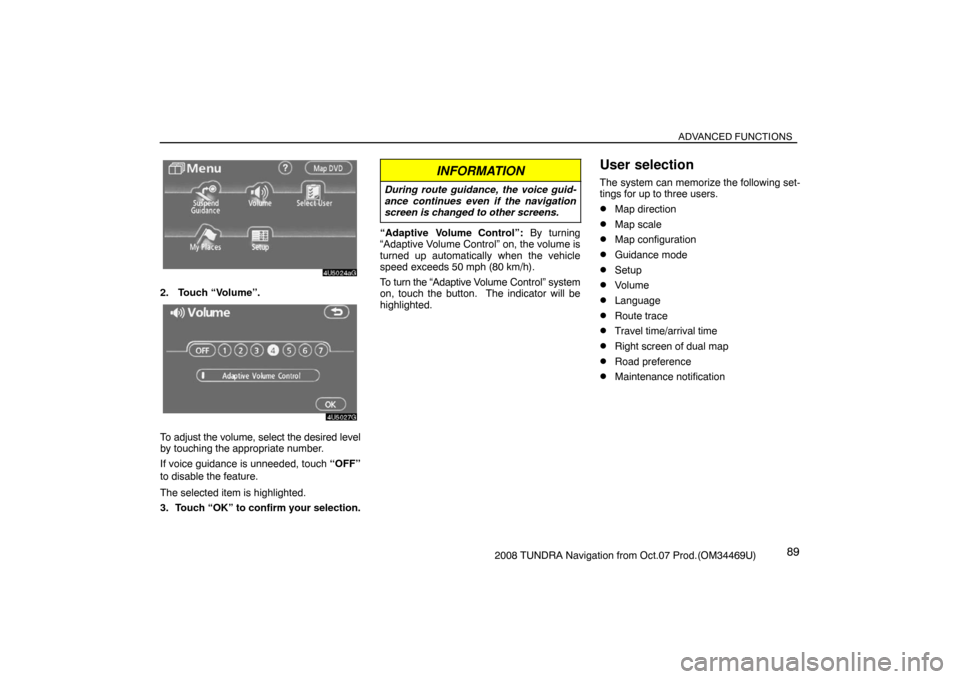

2. Touch “Volume”.
4U5027G
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is unneeded, touch “OFF”
to disable the feature.
The selected item is highlighted.
3. Touch “OK” to confirm your selection.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.
User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification
