navigation TOYOTA TUNDRA 2008 2.G Navigation Manual

DESTINATION SEARCH
572008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
— Destination search by
“Memory”
1. Push the “DEST” button.
2. Touch “Memory” on the “Destination”
screen.
A list of registered memory points is dis-
played. (To register or edit memory points,
see “My places” on page 91.)
2U5035G
3. Touch the touchscreen button of your
desired memory point.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
— Destination search by
“Previous”
1. Push the “DEST” button.
2. Touch “Previous”
on the “Destination”
screen.
2U5037G
The previous starting point and up to 100 pre-
viously set destinations are displayed on the
screen.
3. Touch the touchscreen button of the
desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
INFORMATION
The list of previous destinations can be
deleted while the vehicle is stopped, if
these destinations are no longer neces-
sary. (See “ — Deleting previous points”
on page 103.)

DESTINATION SEARCH
582008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
— Destination search by
“Map”
1. Push the “DEST” button.
2. Touch “Map” on the “Destination”
screen.
2U5039aG
The screen changes and displays the map
location that was previously displayed just
before the destination input operation and the
route preference. (See “Starting route
guidance” on page 61.)
INFORMATION
Guidance starts if “Enter” is touched
even while driving. However, the cursor
cannot be moved.
— Destination search by
“Intersection”
1. Push the “DEST” button.
2. Touch “Intersection” on the
“Destination” screen.
2U5040G
3. Input the name of the two intersecting
streets which are located near the destina-
tion to be set.
2U5041G
4. Touch the touchscreen button of the
desired item.
After inputting the two intersecting streets,
the screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)

DESTINATION SEARCH
592008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5105a
If the same two streets cross at more than one
intersection, the screen changes and dis-
plays the menu to select the city name where
the streets intersect. Select the city, and the
map location of the selected destination and
the route preference. (See “Starting route
guidance” on page 61.)
— Destination search by
“Freeway Ent./Exit”
1. Push the “DEST” button.
2. To input a freeway entrance or exit,
touch “Freeway Ent./Exit” on the
“Destination” screen.
2U5042aG
Be sure to use the complete name of the free-
way or highway, including the hyphen, when
entering the destination. Freeways and inter-
states use an “I” (I−405). US highways use
the state designation before the number
(CA−118).
2U5043aG
3. Select the desired freeway by touching
the touchscreen button.
2U5044aG
4. Either a freeway “Entrance” or “Exit”
can be selected.

DESTINATION SEARCH
602008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5045aG
5. Touch the touchscreen button of the
desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 61.)
“Input Name”: An applicable list is displayed
by touching this touch−screen button and in-
putting the name.
— Destination search by
“Coordinates”
1. Push the “DEST” button.
2. Touch “Coordinates” on the
“Destination” screen.
2U5046G
3. Input the latitude and the longitude.
4. When the input is finished, touch
“OK”.
By touching the touch−screen button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 61.)
— Destination search by
“Phone #”
1. Push the “DEST” button.
2. Touch “Phone #” on the “Destination”
screen.
2U5047G
3. Input a telephone number.
4. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
If there is more than one site having the same
number, the following screen will be dis-
played.

DESTINATION SEARCH
612008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5048G
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 97.)
Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
2U5049aG
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling.2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 63.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch it to
view items such as name, address, and
phone number.

DESTINATION SEARCH
622008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5050aG
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route from
three possible routes. (See page 63.)
“Route”: To change the route. (See pages
71 and 73.)
INFORMATION
Guidance can be suspended or
resumed. (See “Suspending and
resuming guidance” on page 87.)
If “Guide” is touched until a beep
sounds, Demo mode will start. Push
the “MAP/VOICE” button to finish
Demo mode.
The route for returning may not be the
same as that for going.
The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
Route guidance may not be available
if there is no road data for the speci-
fied location.
When setting the destination on a
map with a scale larger than 0.5 miles
(800 m), the map scale changes to 0.5
miles (800 m) automatically. Set the
destination again.
If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations and
keep road conditions in mind while
driving. If a traffic sign on the road
has been changed, the route guidance
may provide wrong information.

DESTINATION SEARCH
632008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
To change the route before starting
guidance
ROUTE PREFERENCE
2U5098aG
1. You can change route preference by
touching “Route Preference”.
2U5051G
2. Turn the indicator on or off by touching
the touchscreen button.
When searching for a route, the system func-
tions to avoid routes where the indicator is
dimmed.3. After choosing conditions, touch
“OK”.
INFORMATION
Even if the “Allow Freeway” indicator
is dimmed, the route cannot avoid in-
cluding a freeway in some cases.
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
2U5099G
1. To select the desired route from three
routes, touch “3 Routes”.
2U5052G
2. Touch “Quick1”, “Quick2” or “Short”
to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.

DESTINATION SEARCH
642008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) “Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

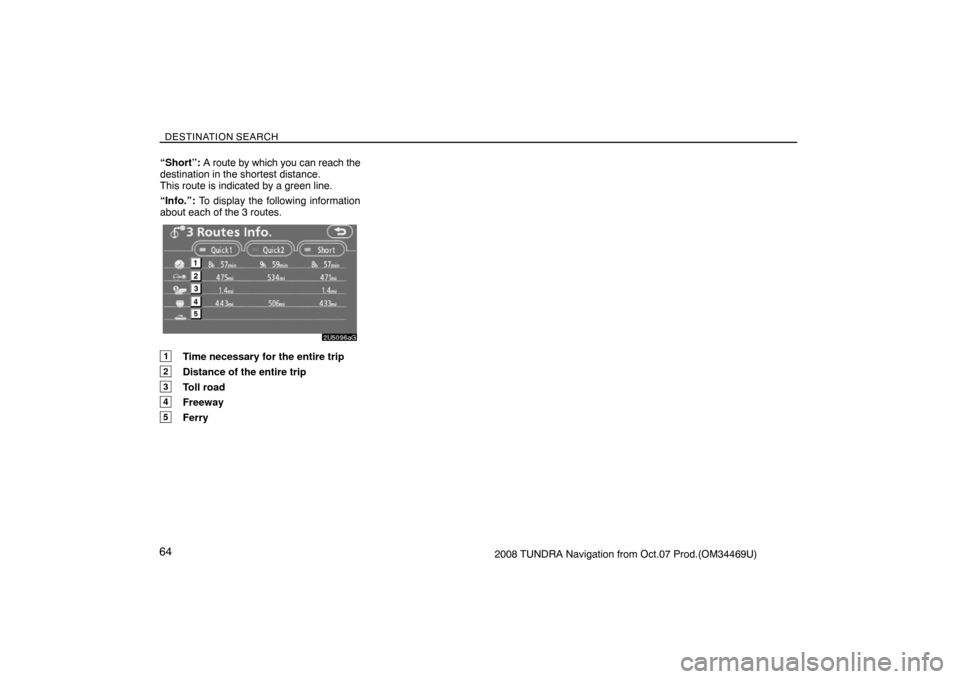

“Info.”: To display the following information
about each of the 3 routes.
2U5096aG
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

ROUTE GUIDANCE
652008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
ROUTE GUIDANCE
Route guidance screen66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting route73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preference75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map view76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display POI* icons 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route trace81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*: Point of Interest
∗: Point of Interest
SECTION 3

ROUTE GUIDANCE
662008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Route guidance screen
During route guidance, various types of guid-
ance screens can be displayed depending on
conditions.
Screen layout
3U5063G
1Distance to the next turn and the ar-
row indicating turning direction
2Current street name
3Distance and travel/arrival time to the
destination
4Current position
5Guidance route
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select road that should not
be traveled on.
When you arrive at your destination,
destination name will be displayed on
the top of the screen. Touching “OFF”
clears the display.
During freeway driving
During freeway driving, the freeway informa-
tion screen will be displayed.
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
3U5085G
1Current position
2Points of Interest that are close to a
freeway exit.
3Exit number and junction name
4Distance from the current position to
the exit or junction
5Current street name
:To display the selected map of the exit
vicinity.
