OTHER FUNCTIONS
11 32008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
OTHER FUNCTIONS
Maintenance information11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 11 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar with memo11 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a memo11 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing a memo120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memo list121 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands−free system (for cellular phone)122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enter a Bluetooth phone126 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth phone135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth phone135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Change the settings of the Bluetooth phone137 . . . . . . . . . . . . . . . . . . . . . . . . .
Set a Bluetooth phone160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speech command system165 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help screen167 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen adjustment168 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen setting169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delete personal data171 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Select language172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 5

OTHER FUNCTIONS
1222008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
RS02015a
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
(for cellular phone) —
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth
.
Bluetooth is a wireless data system by
which you can call without your cellular phone
being connected with a cable or placed on a
cradle.
If your cellular phone does not support Blue-
tooth
, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.
INFORMATION
In the following conditions, the system
may not function.
The cellular phone is turned OFF.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.

OTHER FUNCTIONS
1242008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
5U5135G
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth
.
“Yellow” indicates a bad connection to Blue-
tooth
, resulting in possible deterioration of
voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth

phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth
 connection may turn yellow
and the system may not function when
you use the Bluetooth
 phone in the fol-
lowing conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth
 phone on the place
where “Blue” indication is displayed.
Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.

OTHER FUNCTIONS
1252008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) When you release your car:
A lot of personal data is registered when
you use the Handsfree system. When
you release your car, initialize your data.
If you initialize it, the former state will never
come back again. Pay much attention when
initializing the data.
You can initialize the following data in the sys-
tem.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

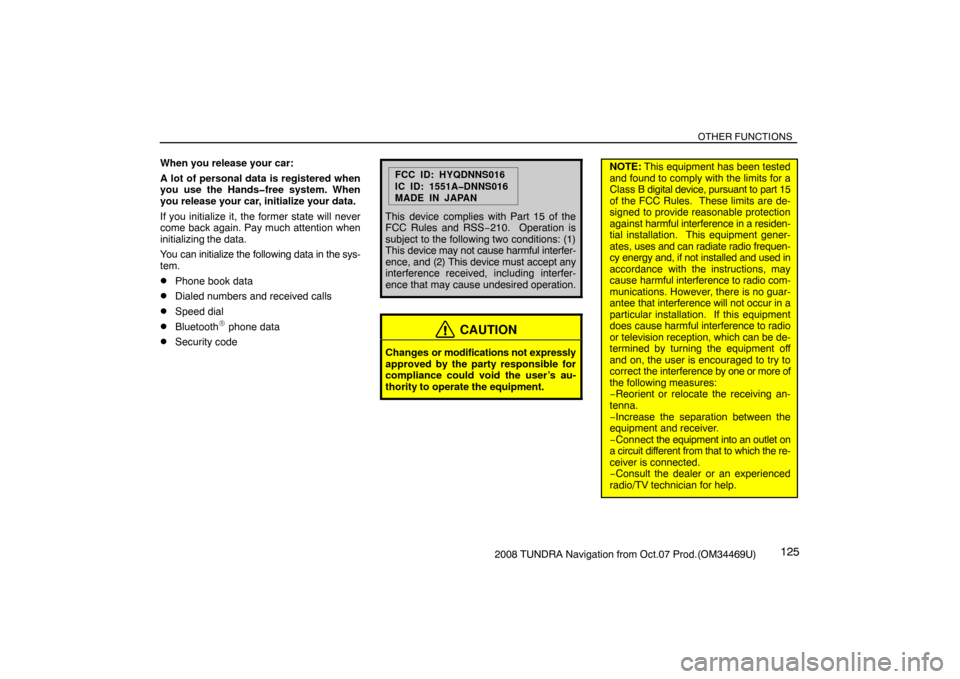

FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference received, including interfer-
ence that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a residen-
tial installation. This equipment gener-
ates, uses and can radiate radio frequen-
cy energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio com-
munications. However, there is no guar-
antee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet on
a circuit different from that to which the re-
ceiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.

OTHER FUNCTIONS
1262008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC ra-
dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low levels of RF energy
that it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least 20 cm
and more between the radiator and per-
son’s body (excluding extremities:
hands, wrists, feet and legs).
Colocation: This transmitter must not
be co−located or operated in conjunction
with any other antenna or transmitter.— Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
XS00203
1. Push the “INFO” button to display the
“Information” screen.
5U5112G
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the steer-
ing wheel to display this screen when the ve-
hicle is stopped.

OTHER FUNCTIONS
1272008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
5U5139G
3. Touch “Settings” to display “Settings”
screen.
5U5140G
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5141G
5. Touch “Register” to connect your cel-
lular phone to the system.
XS00126
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
5U5143G
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
5U5144G
When this screen is displayed, follow the
guidance on the screen to try again.

OTHER FUNCTIONS
1282008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Connecting a Bluetooth phone
(i) Automatically
5U5145G
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth
 phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.
5U5309G
When the engine switch is turned to the
ACC or ON position, the selected Blue-
tooth
 phone will be automatically con-
nected and the connection result is dis-
played.
This screen appears when the Bluetooth

phone is first connected after the engine
switch is turned to the ACC or ON position.(ii) Manually
When the auto connection failed or turned
off, you have to connect Bluetooth

manually.
5U5146G
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
5U5147G
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth
 phone.

OTHER FUNCTIONS
1292008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Reconnecting the Bluetooth phone
If the Bluetooth
 phone is disconnected
with a poor reception from the Bluetooth
network when the engine switch is turned
to the ACC or ON position, the system au-
tomatically reconnects the Bluetooth

phone. In this case, the connection result
is not displayed.
If the Bluetooth
 is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
— Call on the Bluetooth
phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5149G
1. Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
2. Touch
or push the switch of the
steering wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
5U5150G
1. Touch “Phone Book” to display
“Phone Book” screen.

OTHER FUNCTIONS
1352008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (vii) By POI call
5U5339G
You can call by touching when it is
displayed on the screen from navigation
system. (See page 27 for details.)
— Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
— Talk on the Bluetooth
phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.

OTHER FUNCTIONS
1372008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) You can do this operation when you want to
operate an answering machine or use a tele-
phone service in bank for example. You can
register the phone number and the code num-
ber in the phone book.
Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
140.)
5U5270G
1. Touch “Speed Tone”.
5U5271G
2. Touch the desired switch to send a
tone.
— Change the settings of the
Bluetooth phone
5U5162G
Touch “Settings” to display “Settings”
screen.
5U5163G
You can change the settings of the phone.
