BASIC FUNCTIONS
182008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Initial screen
1U5022aG
When the engine switch is turned to the ACC
or ON position, the initial screen will be
displayed and the system will begin operat-
ing.
CAUTION
When the vehicle is stopped with the en-
gine running, always apply the parking
brake for safety.
After a few seconds, the “CAUTION” screen
will be displayed.
0U5701G
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP” button is also
pushed, the map screen is displayed.
While the “CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Language”,
“Calendar” or “Maintenance” buttons on
the “Information” screen are touched, the
screen will change back to “CAUTION”
screen and then change to the map screen in
about 5 seconds later or if the “MAP” button
is pushed.
Maintenance information
This system informs about when to replace
certain parts or components and shows deal-
er information (if registered) on the screen.
When the vehicle reaches a previously set
driving distance or date specified for a sched-
uled maintenance check, the “Information”
screen will be displayed when the navigation
system is in operation.
1U5024G
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.”.
To register “Maintenance information”, see
“Maintenance information” on page 114.

OTHER FUNCTIONS
11 52008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones
5U5060G
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions.
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.

OTHER FUNCTIONS
1452008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

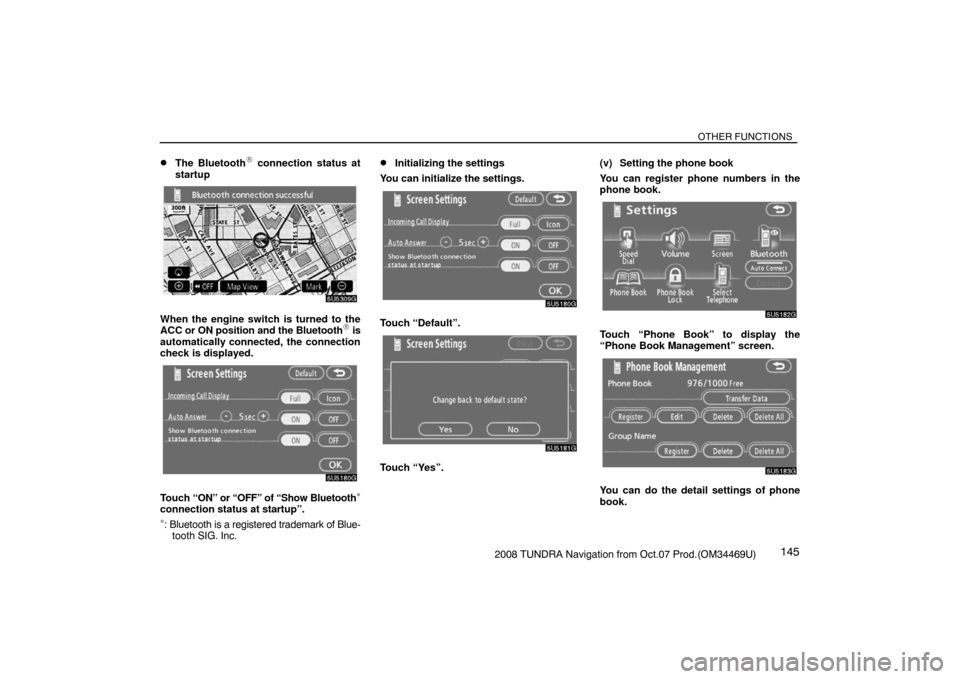

The Bluetooth connection status at
startup
5U5309G
When the engine switch is turned to the
ACC or ON position and the Bluetooth is
automatically connected, the connection
check is displayed.
5U5180G
Touch “ON” or “OFF” of “Show Bluetooth∗
connection status at startup”.
∗: Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.
Initializing the settings
You can initialize the settings.
5U5180G
Touch “Default”.
5U5181G
Touch “Yes”.(v) Setting the phone book
You can register phone numbers in the
phone book.
5U5182G
Touch “Phone Book” to display the
“Phone Book Management” screen.
5U5183G
You can do the detail settings of phone
book.

REAR VIEW MONITOR SYSTEM
2302008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Rear view monitor system
The rear view monitor system assists the
driver by displaying an image of the view
behind the vehicle while backing up. The
left and right displayed on the screen are
the same as those of the inside rear view
mirror.
To display the rear view image on the
screen, place the selector lever in the “R”
position when the engine switch is in the
ON position.
If you move the selector lever out of the “R”
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure your
intended path is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the screen
is different from actual conditions.
Depicted distances between objects
and flat surfaces will differ from
actual distances. If you back up while
looking only at the screen, you may
hit a vehicle, a person or an object.
When backing up, be sure to check
behind and all around the vehicle
visually and with mirrors before
proceeding.
Do not use the system when the tail
gate is not completely closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to have
the camera’s position and mounting
angle checked at your Toyota dealer.
As the camera has a water proof
construction, do not detach,
disassemble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured on
the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud adhere
to the lens, rinse with water and wipe
with a soft cloth. If the lens is
extremely dirty, wash it with a mild
cleanser and rinse.
Do not allow organic solvent, car
wax, window cleaner or glass coat to
adhere to the camera. If this happens,
wipe it off as soon as possible.
Use your own eyes to confirm the
vehicle’s surroundings, as the
displayed image may become faint or
dark, and moving images will be
distorted, or not entirely visible when
the outside temperature is low. When
backing up, be sure to check behind
and all around the vehicle visually
and with mirror before proceeding.
When replacing the tires, please consult
your Toyota dealer. If you replace the tires,
the area displayed on the screen may
change.
