BASIC FUNCTIONS
182008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Initial screen
1U5022aG
When the engine switch is turned to the ACC
or ON position, the initial screen will be
displayed and the system will begin operat-
ing.
CAUTION
When the vehicle is stopped with the en-
gine running, always apply the parking
brake for safety.
After a few seconds, the “CAUTION” screen
will be displayed.
0U5701G
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP” button is also
pushed, the map screen is displayed.
While the “CAUTION” screen is displayed,
the “DEST” or “MENU” button cannot be
operated. And if the “Language”,
“Calendar” or “Maintenance” buttons on
the “Information” screen are touched, the
screen will change back to “CAUTION”
screen and then change to the map screen in
about 5 seconds later or if the “MAP” button
is pushed.
Maintenance information
This system informs about when to replace
certain parts or components and shows deal-
er information (if registered) on the screen.
When the vehicle reaches a previously set
driving distance or date specified for a sched-
uled maintenance check, the “Information”
screen will be displayed when the navigation
system is in operation.
1U5024G
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.”.
To register “Maintenance information”, see
“Maintenance information” on page 114.

OTHER FUNCTIONS
11 52008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones
5U5060G
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions.
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.

OTHER FUNCTIONS
1282008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Connecting a Bluetooth phone
(i) Automatically
5U5145G
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth
 phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.
5U5309G
When the engine switch is turned to the
ACC or ON position, the selected Blue-
tooth
 phone will be automatically con-
nected and the connection result is dis-
played.
This screen appears when the Bluetooth

phone is first connected after the engine
switch is turned to the ACC or ON position.(ii) Manually
When the auto connection failed or turned
off, you have to connect Bluetooth

manually.
5U5146G
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
5U5147G
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth
 phone.

OTHER FUNCTIONS
1292008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Reconnecting the Bluetooth phone
If the Bluetooth
 phone is disconnected
with a poor reception from the Bluetooth
network when the engine switch is turned
to the ACC or ON position, the system au-
tomatically reconnects the Bluetooth

phone. In this case, the connection result
is not displayed.
If the Bluetooth
 is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
— Call on the Bluetooth
phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5149G
1. Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
2. Touch
or push the switch of the
steering wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
5U5150G
1. Touch “Phone Book” to display
“Phone Book” screen.

OTHER FUNCTIONS
1452008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
The Bluetooth connection status at
startup
5U5309G
When the engine switch is turned to the
ACC or ON position and the Bluetooth is
automatically connected, the connection
check is displayed.
5U5180G
Touch “ON” or “OFF” of “Show Bluetooth∗
connection status at startup”.
∗: Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.
Initializing the settings
You can initialize the settings.
5U5180G
Touch “Default”.
5U5181G
Touch “Yes”.(v) Setting the phone book
You can register phone numbers in the
phone book.
5U5182G
Touch “Phone Book” to display the
“Phone Book Management” screen.
5U5183G
You can do the detail settings of phone
book.

OTHER FUNCTIONS
1462008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth
 phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.
5U5184G
1. Touch “Transfer Data” to display
“Select Group” screen.
XS00132
2. Select the group you want to transfer
to.
XS00133
3. Touch “Overwrite” or “Add To”.
5U5187G
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.
5U5188G
5. When this screen is displayed, the
transfer is completed.

AUDIO/VIDEO SYSTEM
1772008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
8“LOAD·/CLOSE” button
Push this button to display the
“LOAD·EJECT” screen or close the dis-
play. For details, see page 190.
9“SEEK/TRACK” button
Push either side of this button to seek up
or down for a station, or to access a de-
sired track, file or chapter. For details,
see pages 183, 194, 198, 202 and 205.
10“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 178.
Using your audio/video
system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the engine
switch is turned to the ACC or ON position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.
CAUTION

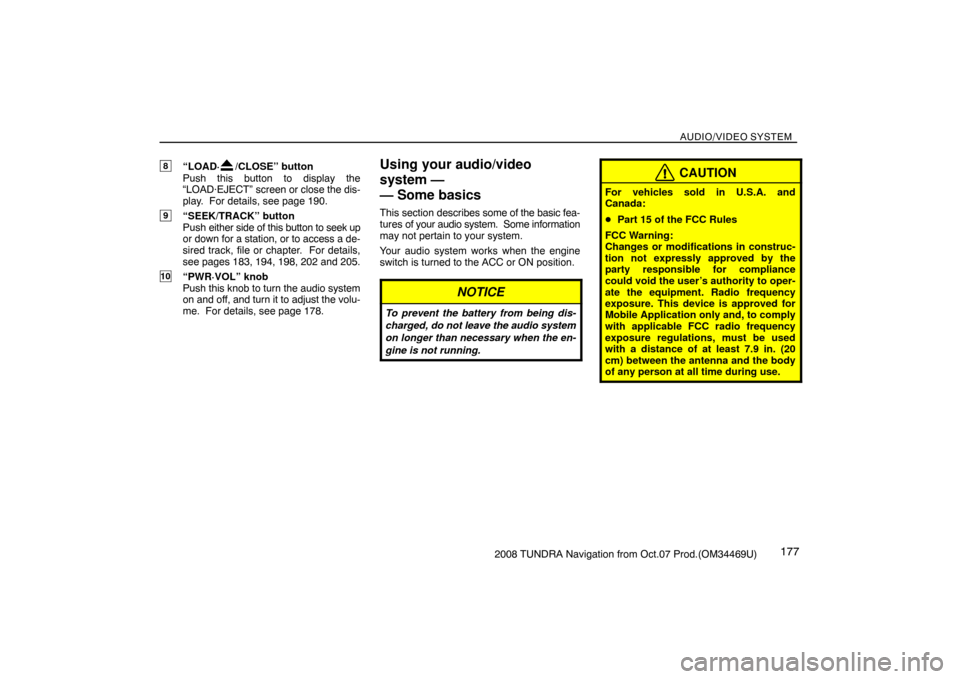

For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in construc-
tion not expressly approved by the
party responsible for compliance
could void the user’s authority to oper-
ate the equipment. Radio frequency
exposure. This device is approved for
Mobile Application only and, to comply
with applicable FCC radio frequency
exposure regulations, must be used
with a distance of at least 7.9 in. (20
cm) between the antenna and the body
of any person at all time during use.

AUDIO/VIDEO SYSTEM
1902008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to Part
15 of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a resi-
dential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the in-
structions, may cause harmful interfer-
ence to radio communications. Howev-
er, there is no guarantee that interfer-
ence will not occur in a particular instal-
lation.
If this equipment does cause harmful in-
terference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user is
encouraged to try to correct the interfer-
ence by one or more of the following
measures:
—Reorient or relocate the receiving an-
tenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
Information to user
Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
INFORMATION
This XM tuner supports “Audio
Services” (Music and Talk) of only XM
Satellite Radio and “Text Information”
∗
linked to the respective “Audio
Services”.
∗:Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.
— CD changer operation

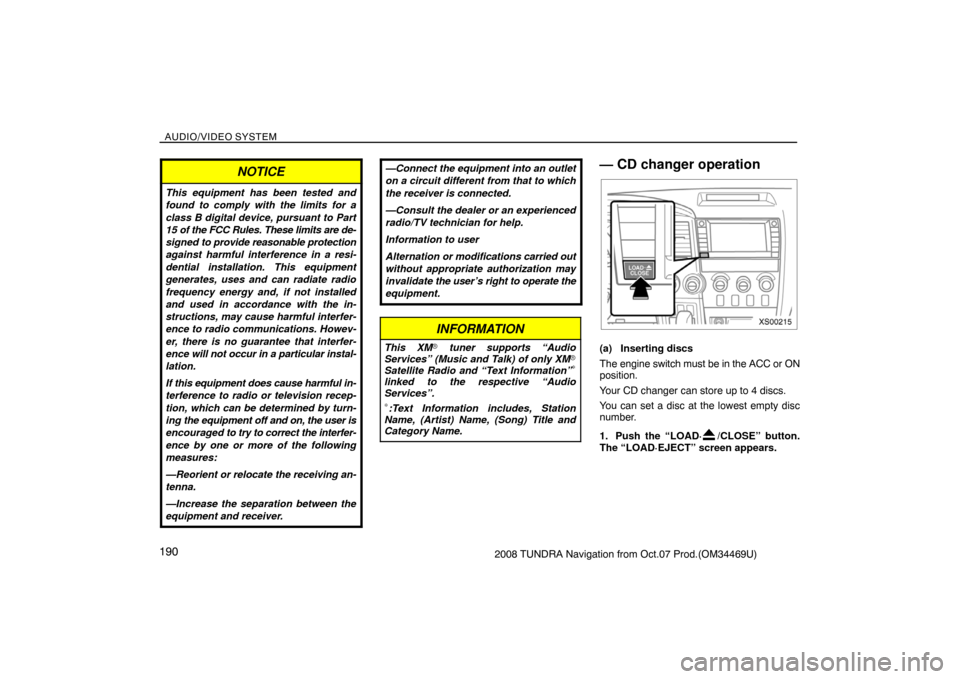

XS00215
(a) Inserting discs
The engine switch must be in the ACC or ON
position.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “LOAD·
/CLOSE” button.
The “LOAD·EJECT” screen appears.

REAR VIEW MONITOR SYSTEM
2302008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Rear view monitor system
The rear view monitor system assists the
driver by displaying an image of the view
behind the vehicle while backing up. The
left and right displayed on the screen are
the same as those of the inside rear view
mirror.
To display the rear view image on the
screen, place the selector lever in the “R”
position when the engine switch is in the
ON position.
If you move the selector lever out of the “R”
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure your
intended path is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the screen
is different from actual conditions.
Depicted distances between objects
and flat surfaces will differ from
actual distances. If you back up while
looking only at the screen, you may
hit a vehicle, a person or an object.
When backing up, be sure to check
behind and all around the vehicle
visually and with mirrors before
proceeding.
Do not use the system when the tail
gate is not completely closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to have
the camera’s position and mounting
angle checked at your Toyota dealer.
As the camera has a water proof
construction, do not detach,
disassemble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured on
the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud adhere
to the lens, rinse with water and wipe
with a soft cloth. If the lens is
extremely dirty, wash it with a mild
cleanser and rinse.
Do not allow organic solvent, car
wax, window cleaner or glass coat to
adhere to the camera. If this happens,
wipe it off as soon as possible.
Use your own eyes to confirm the
vehicle’s surroundings, as the
displayed image may become faint or
dark, and moving images will be
distorted, or not entirely visible when
the outside temperature is low. When
backing up, be sure to check behind
and all around the vehicle visually
and with mirror before proceeding.
When replacing the tires, please consult
your Toyota dealer. If you replace the tires,
the area displayed on the screen may
change.

APPENDIX
2402008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or reutilize any portion of the
contents of the DATABASE, nor
reproduce, copy, duplicate, modify,
adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the DATABASE.
TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the
DATABASE, and provided that the
transferee agrees to all terms and
conditions of this AGREEMENT.
DISCLAIMER OF WARRANTY
THE DATABASE IS PROVIDED ON AN
“AS IS” AND “WITH ALL FAULTS
BASIS” AND DENSO AND TANA (AND
THEIR LICENSORS AND SUPPLIERS)
EXPRESSLY DISCLAIM ALL OTHER
WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED
WARRANTIES OF
NON−INFRINGEMENT,
MERCHANTABILITY, SATISFACTORY
QUALITY, ACCURACY, TITLE AND
FITNESS FOR A PARTICULAR
PURPOSE. NO ORAL OR WRITTEN
ADVICE OR INFORMATION
PROVIDED BY DENSO OR TANA (OR
ANY OF THEIR LICENSORS, AGENTS,
EMPLOYEES OR THIRD PARTY
PROVIDERS) SHALL CREATE A
WARRANTY, AND YOU ARE NOT
ENTITLED TO RELY ON ANY SUCH
ADVICE OR INFORMATION. THIS
DISCLAIMER OF WARRANTIES IS AN
ESSENTIAL CONDITION OF THIS
AGREEMENT.LIMITATION OF LIABILITY
IN NO EVENT SHALL DENSO OR TANA
(OR THEIR LICENSORS OR
SUPPLIERS) BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL,
SPECIAL, INDIRECT OR EXEMPLARY
DAMAGES ARISING OUT OF THIS
AGREEMENT OR YOUR USE OF THE
DATABASE, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR
COSTS OF COVER, LOSS OF USE OR
BUSINESS INTERRUPTION OR THE
LIKE, REGARDLESS OF WHETHER
THE PARTY WAS ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT WILL THE TOTAL
LIABILITY OF DENSO OR TANA (OR
THEIR LICENSORS OR SUPPLIERS)
EXCEED THE AMOUNTS PAID BY
YOU FOR THE DATABASE.
